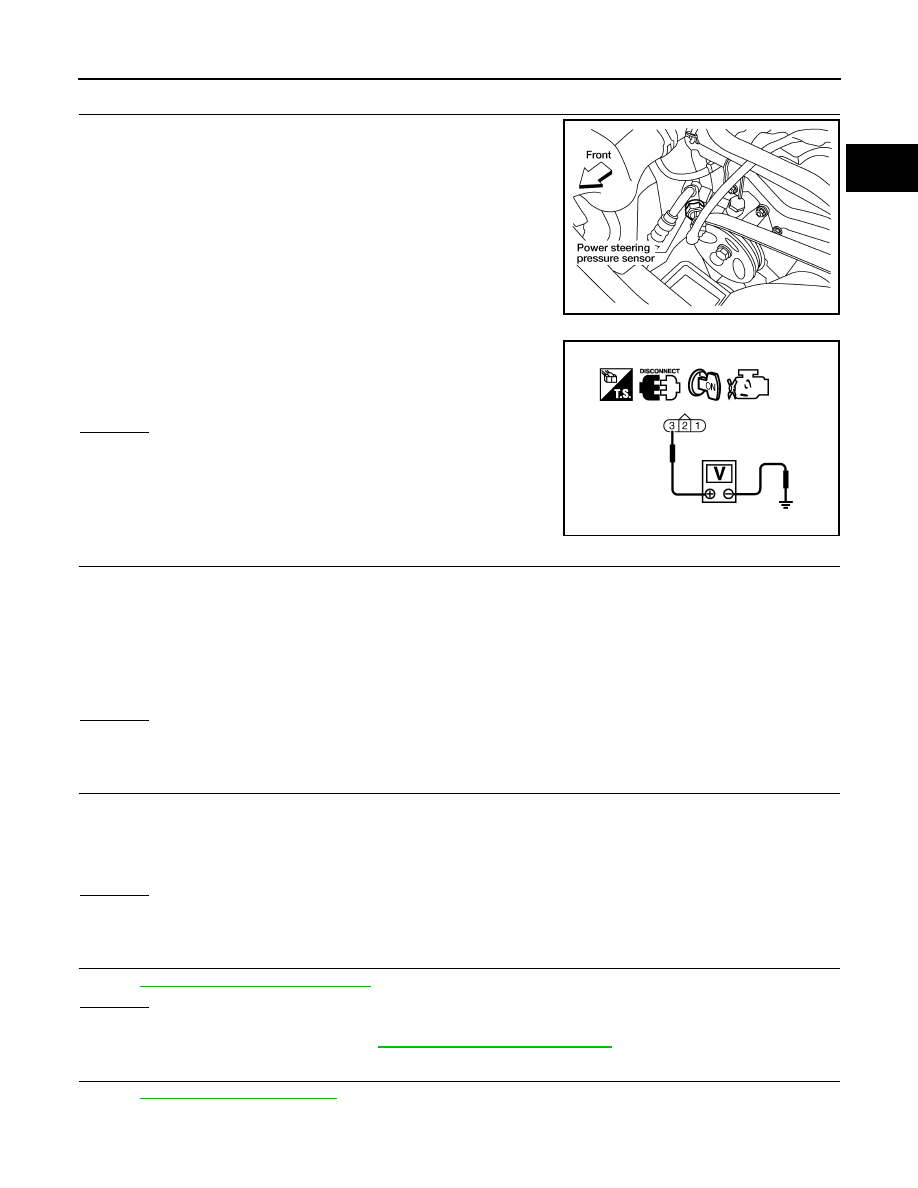

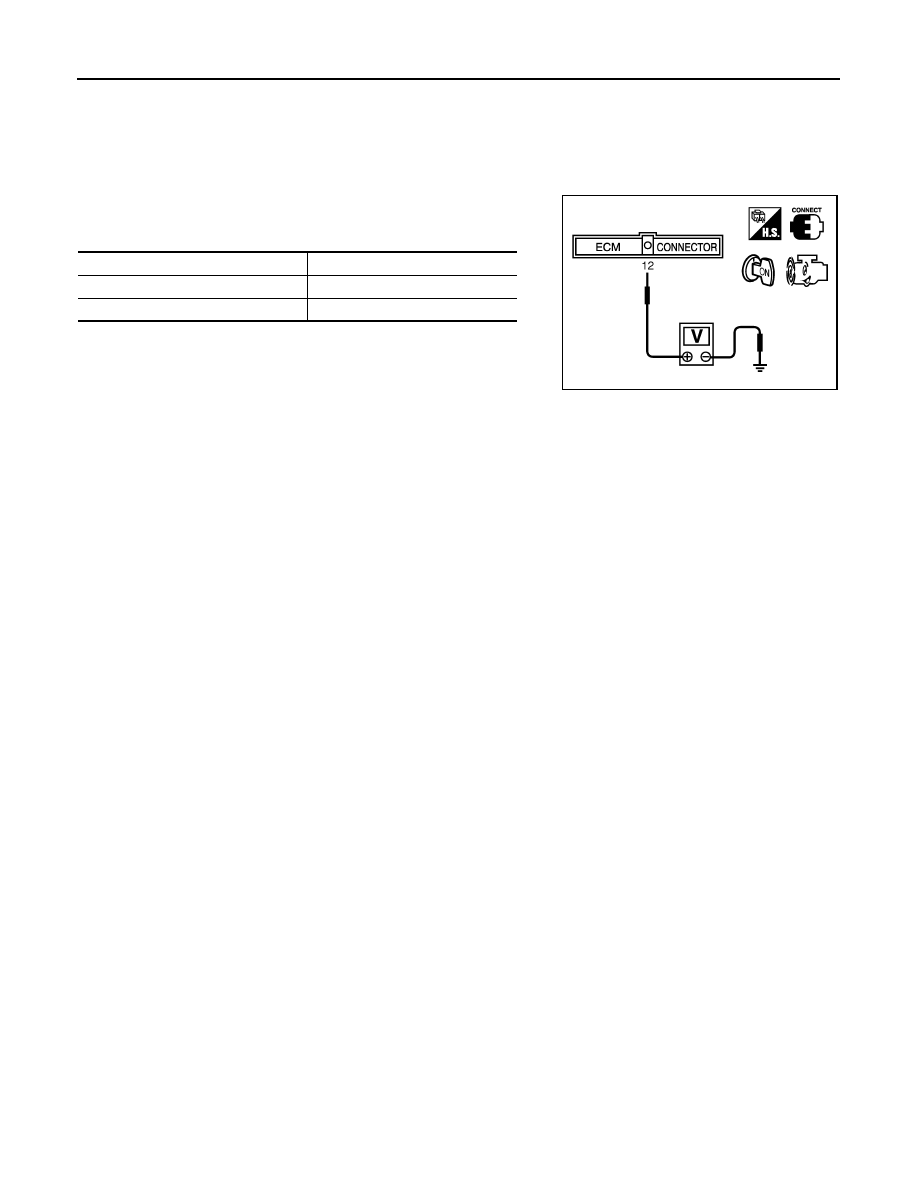

P0550 PSP SENSOR EC-305 < DTC/CIRCUIT DIAGNOSIS > [VQ40DE] C D E F G H I J K L M A EC N P O 2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect power steering pressure (PSP) sensor harness con- nector. 2. Turn ignition switch ON. 3. Check voltage between PSP sensor terminal 3 and ground with CONSULT or tester. OK or NG OK >> GO TO 3. NG >> Repair open circuit or short to ground or short to power in harness or connectors. 3. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check harness continuity between PSP sensor terminal 1 and ECM terminal 67. Refer to Wiring Diagram. 4. Also check harness for short to ground and short to power. OK >> GO TO 4. NG >> Repair open circuit or short to ground or short to power in harness or connectors. 4. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2. 2. Also check harness for short to ground and short to power. OK >> GO TO 5. NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5. CHECK PSP SENSOR EC-306, "Component Inspection" OK or NG OK >> GO TO 6. NG >> Replace PSP sensor. Refer to ST-25, "Removal and Installation" 6. CHECK INTERMITTENT INCIDENT GI-37, "Intermittent Incident" . >> INSPECTION END BBIA0552E Voltage: Approximately 5V PBIB1872E Continuity should exist. Continuity should exist. August 2012 2012 Pathfinder |
