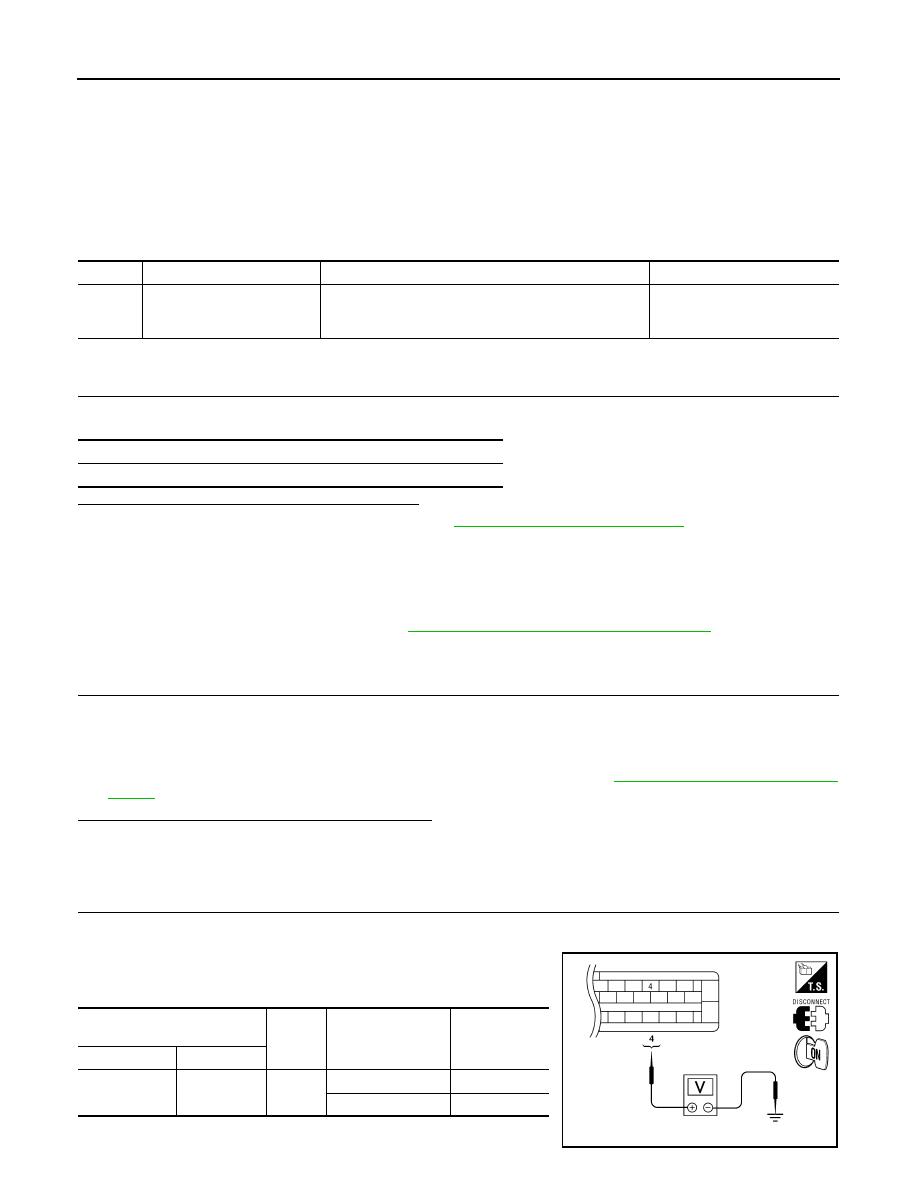

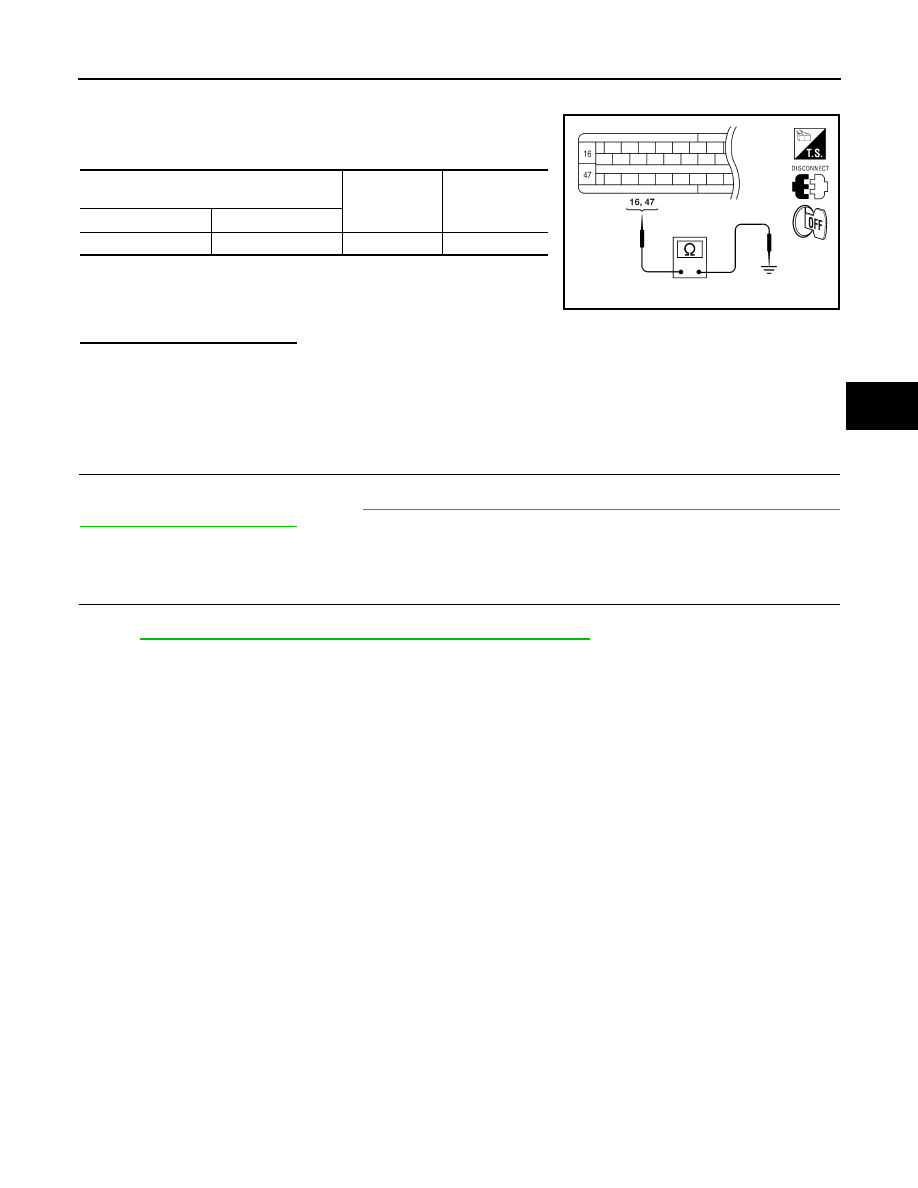

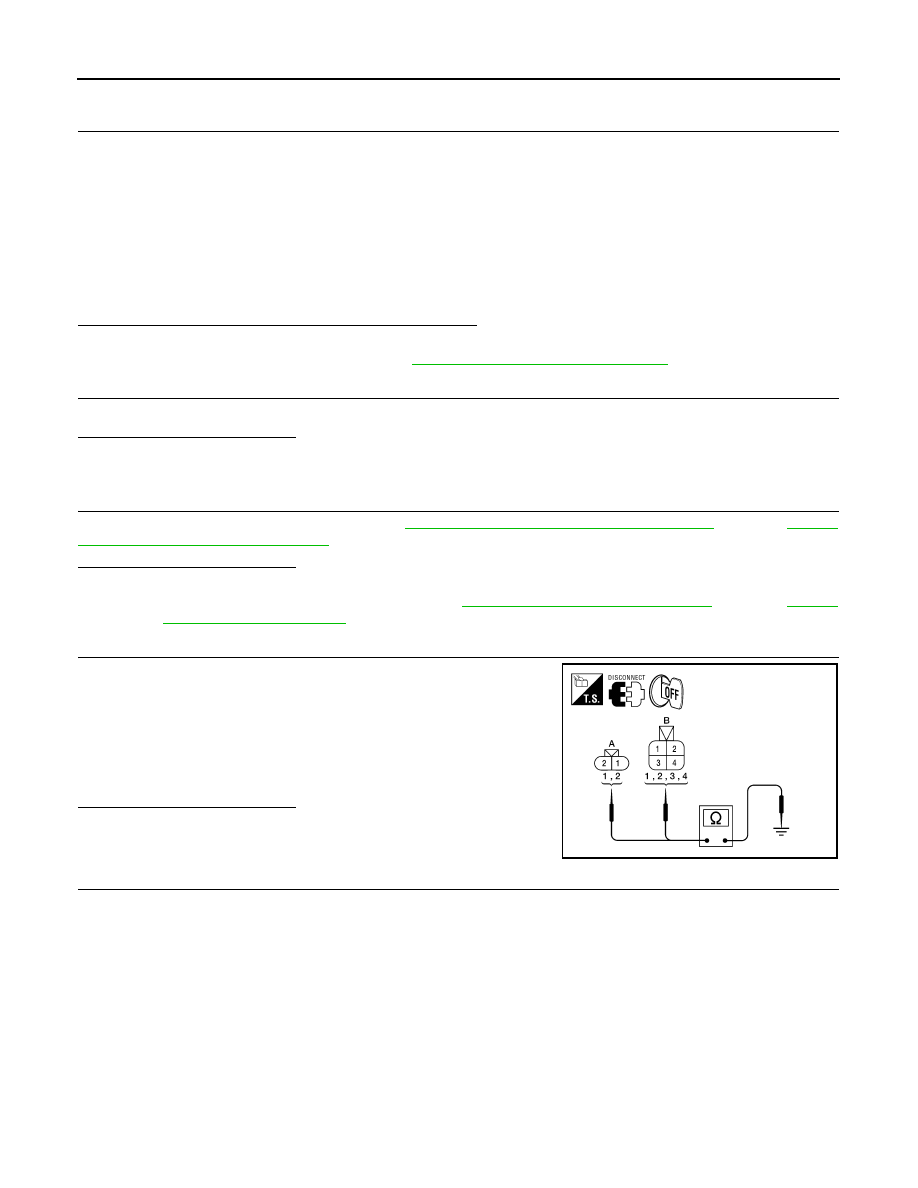

BRC-146 < DTC/CIRCUIT DIAGNOSIS > [TYPE 2] C1101, C1102, C1103, C1104 WHEEL SENSOR-1 YES >> Replace the ABS actuator and electric unit (control unit). Refer to . NO >> Repair the circuit. Component Inspection INFOID:0000000007356847 1. CHECK DATA MONITOR On “DATA MONITOR”, select “FR LH SENSOR”, “FR RH SENSOR”, “RR LH SENSOR”, and “RR RH SEN- SOR”, and check the vehicle speed. Is the inspection result normal? YES >> Inspection End. NO >> Go to diagnosis procedure. Refer to BRC-144, "Diagnosis Procedure" Special Repair Requirement INFOID:0000000007356848 1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator and electric unit (control unit). Refer to BRC-121, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU- >> GO TO 2 2. CALIBRATION OF DECEL G SENSOR Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit). BRC-122, "CALIBRATION OF DECEL G SENSOR : Description" . >> END Wheel sensor Vehicle speed (DATA MONITOR) FR LH SENSOR Nearly matches the speedometer dis- ± 10% or less) FR RH SENSOR RR LH SENSOR RR RH SENSOR August 2012 2012 Pathfinder |
