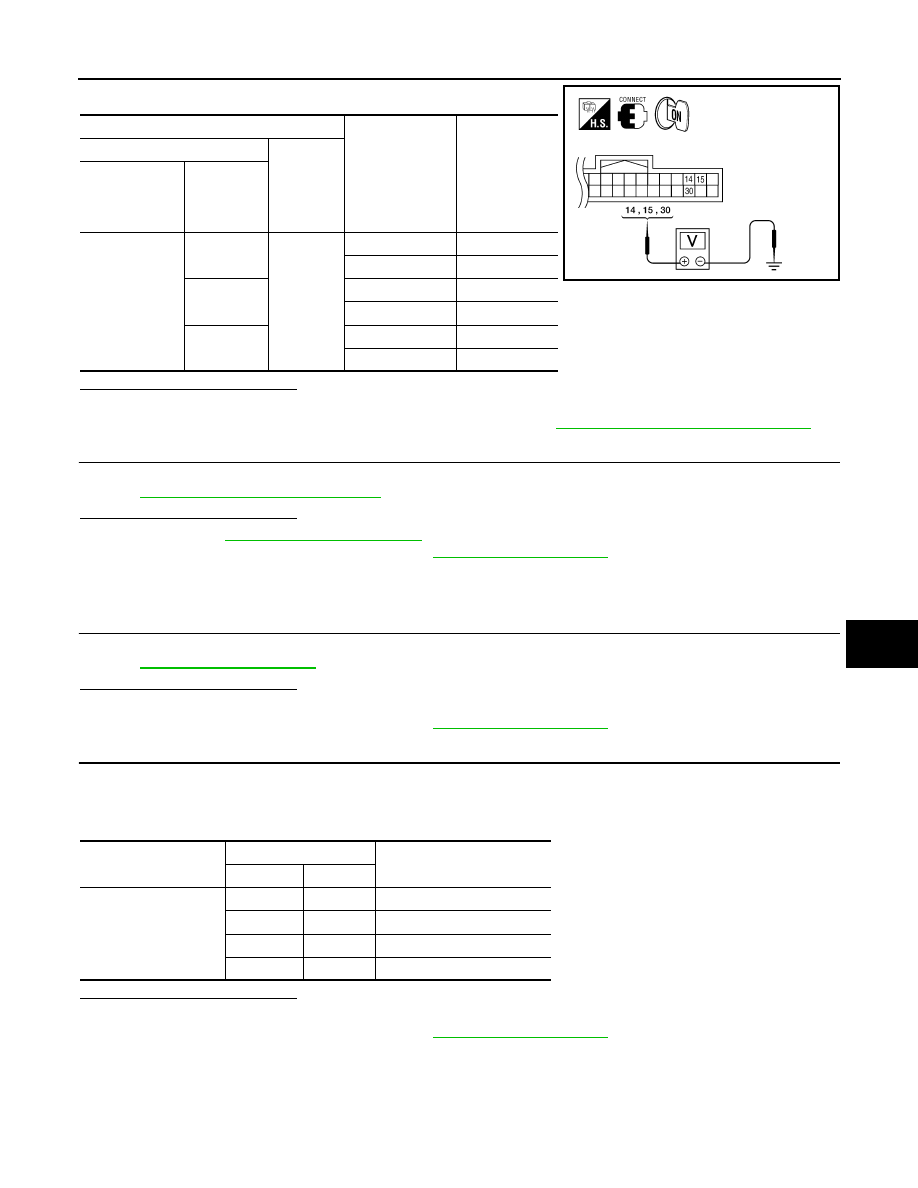

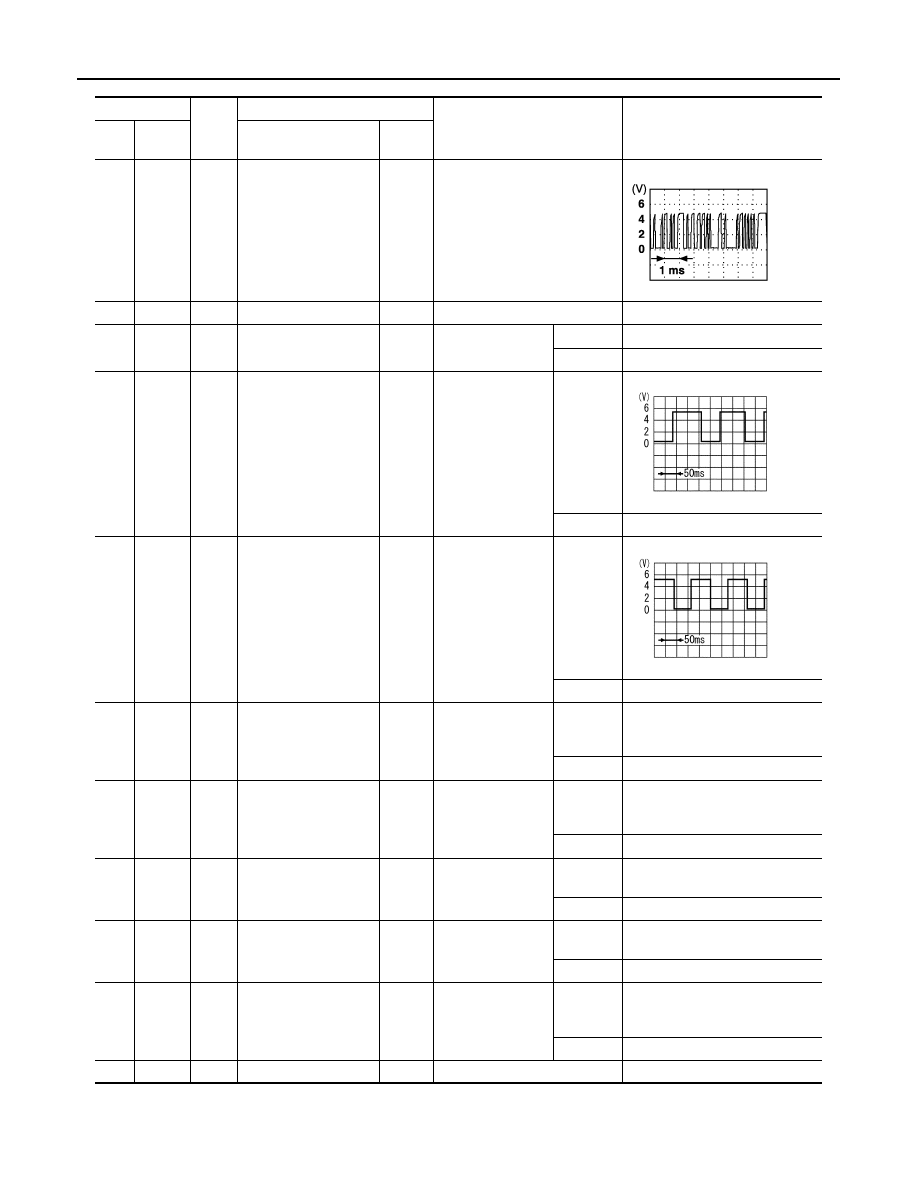

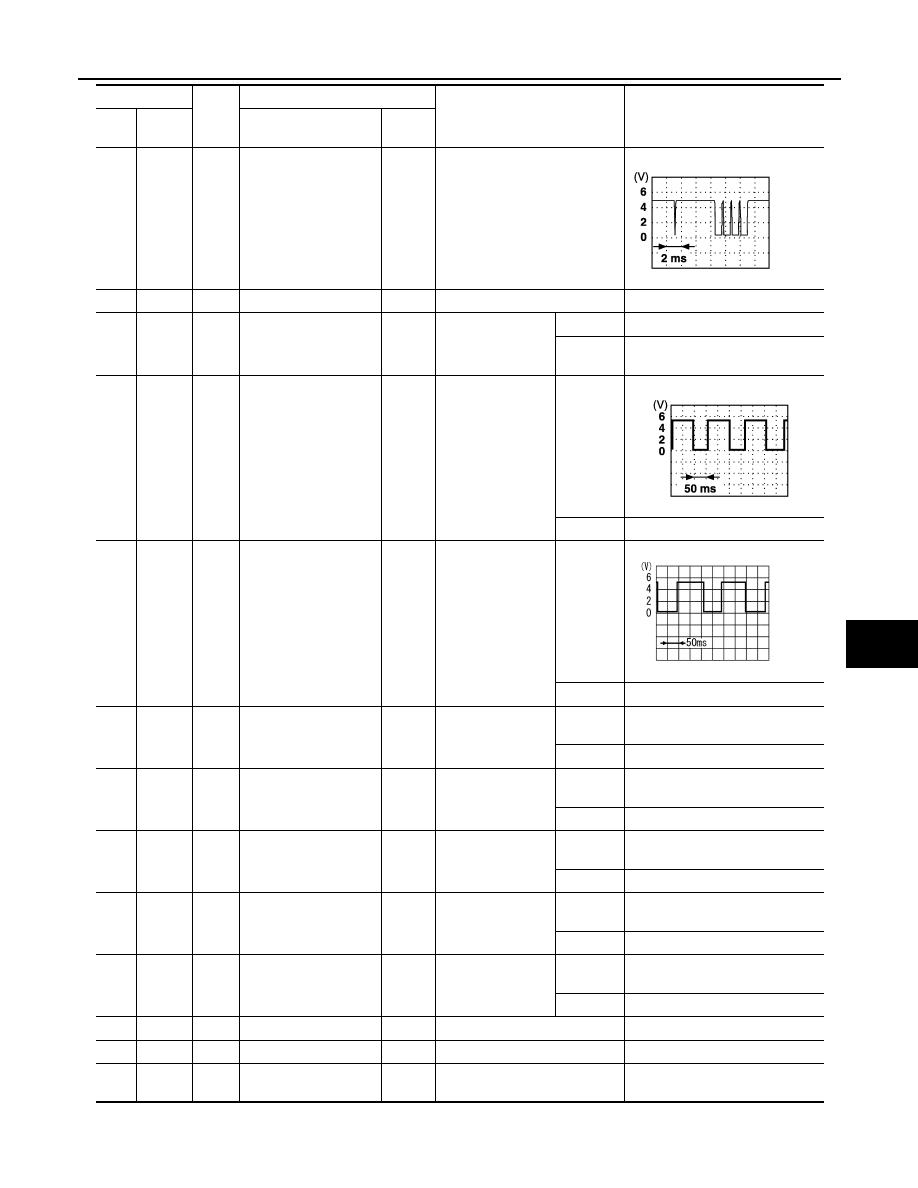

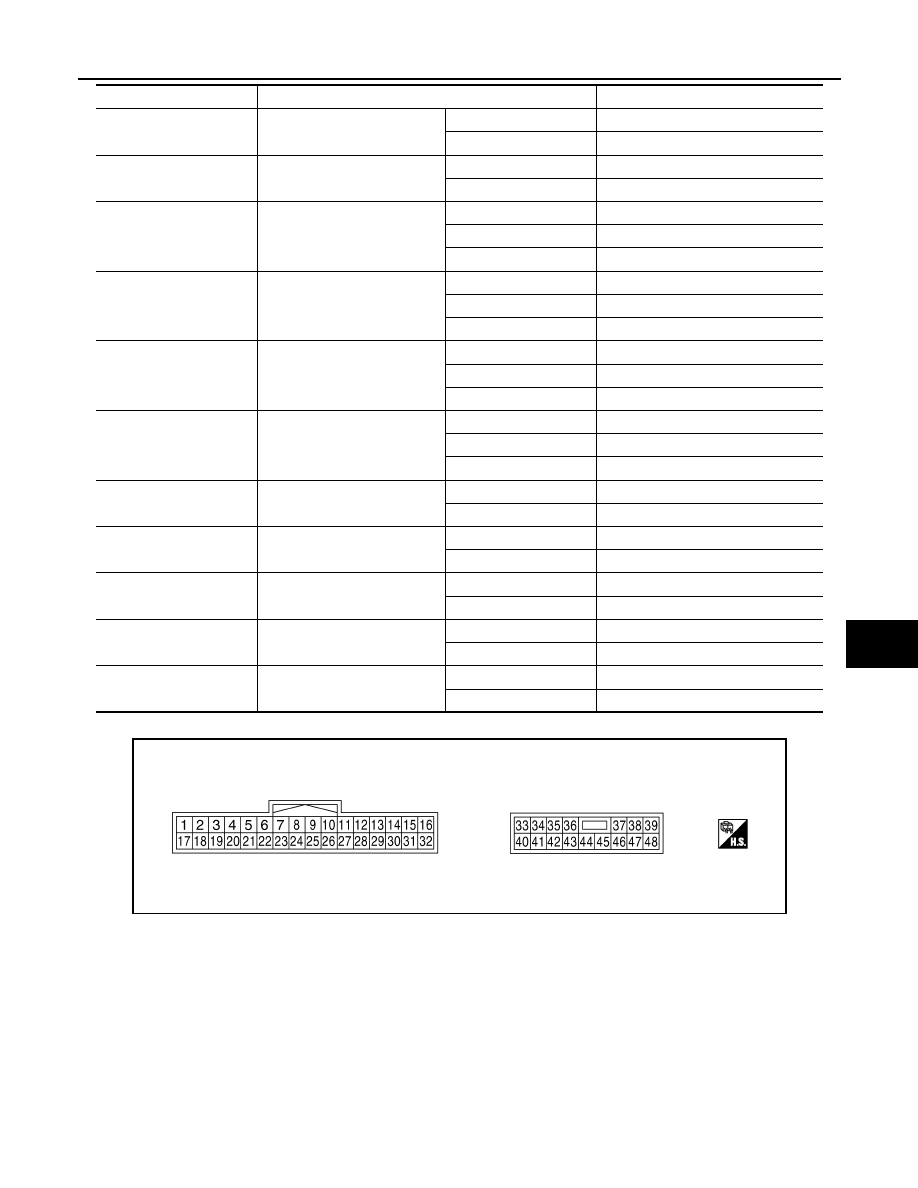

DOOR MIRROR MOTOR ADP-105 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I K L M A B ADP N O P Door mirror RH Is the inspection result normal? YES >> GO TO 4 NO >> Replace automatic drive positioner control unit. Refer to ADP-150, "Removal and Installation" . 4. CHECK DOOR MIRROR MOTOR Check door mirror motor. ADP-105, "Component Inspection" . Is the inspection result normal? YES >> Refer to GI-37, "Intermittent Incident" . NO >> Replace door mirror actuator. Refer to . Component Inspection INFOID:0000000007356217 1. CHECK DOOR MIRROR MOTOR-I Check that door mirror motor does not trap foreign objects and does not have any damage. Is the inspection result normal? YES >> GO TO 2 NO >> Replace door mirror actuator. Refer to . 2. CHECK DOOR MIRROR MOTOR-II 1. Turn ignition switch OFF. 2. Disconnect door mirror. 3. Apply 12V to each power supply terminal of door mirror motor. Is the inspection result normal? YES >> Inspection End. NO >> Replace door mirror actuator. Refer to . Terminals Mirror switch con- dition Voltage (V) (Approx.) (+) (-) Automatic drive positioner con- trol unit connec- tor Terminal M33 14 Ground UP Battery voltage Other than above 0 15 LEFT Battery voltage Other than above 0 30 DOWN / RIGHT Battery voltage Other than above 0 ALJIA0198ZZ Door mirror connector Terminal Operational direction (+) (–) D18 (LH) D118 (RH) 8 2 RIGHT 2 8 LEFT 3 8 UP 8 3 DOWN August 2012 2012 Pathfinder |
