EC-750

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0442 EVAP CONTROL SYSTEM

DTC Confirmation Procedure

INFOID:0000000006244395

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

•

Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed

on flat level surface.

•

Always perform test at a temperature of 0 to 30

°

C (32 to 86

°

F).

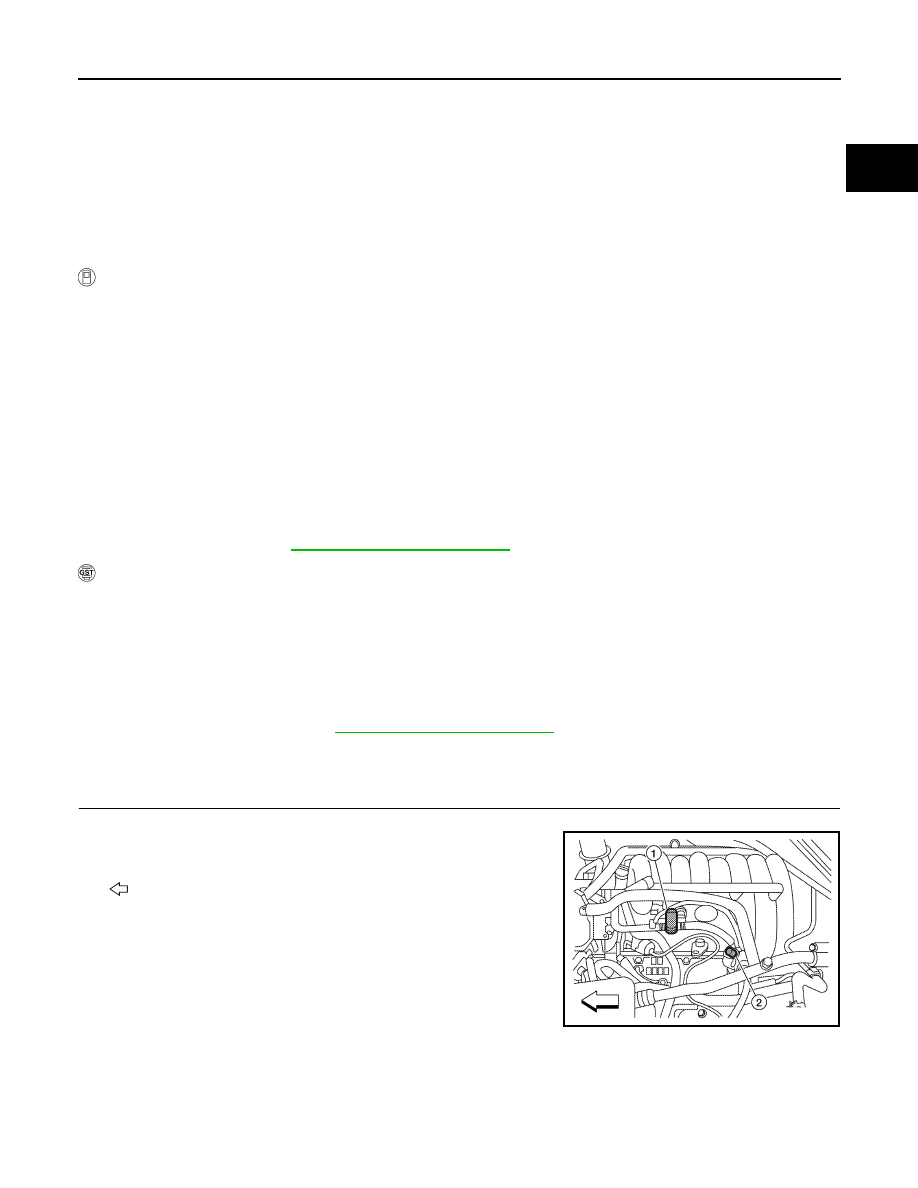

 WITH CONSULT-III

1. Turn ignition switch ON.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.

4. Check that the following conditions are met.

COOLAN TEMP/S: 0 - 70

°

C (32 - 158

°

F)

INT/A TEMP SE: 0 - 30

°

C (32 - 86

°

F)

5. Select “EVP V/S LEAK P0456/P1456” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode

with CONSULT-III.

Follow the instructions displayed.

NOTE:

If the engine speed cannot be maintained within the range displayed on the CONSULT-III screen, go to

EC-588, "Basic Inspection"

.

6. Check that “OK” is displayed.

If “NG” is displayed, go to

EC-750, "Diagnosis Procedure"

.

NOTE:

Check that EVAP hoses are connected to EVAP canister purge volume control solenoid valve

properly.

 WITH GST

NOTE:

Always read the explanation of “Driving Pattern” in

EC-525, "DIAGNOSIS DESCRIPTION : Driving Pattern"

before driving vehicle.

1. Start engine.

2. Drive vehicle according to “Driving Pattern” in

EC-525, "DIAGNOSIS DESCRIPTION : Driving Pattern"

.

3. Stop vehicle.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Turn ignition switch ON.

6. Turn ignition switch OFF and wait at least 10 seconds.

7. Select Service $07 with GST.

-

If P0442 is displayed on the screen, go to

EC-750, "Diagnosis Procedure"

.

-

If P0441 is displayed on the screen, go to

EC-745, "Diagnosis Procedure"

.

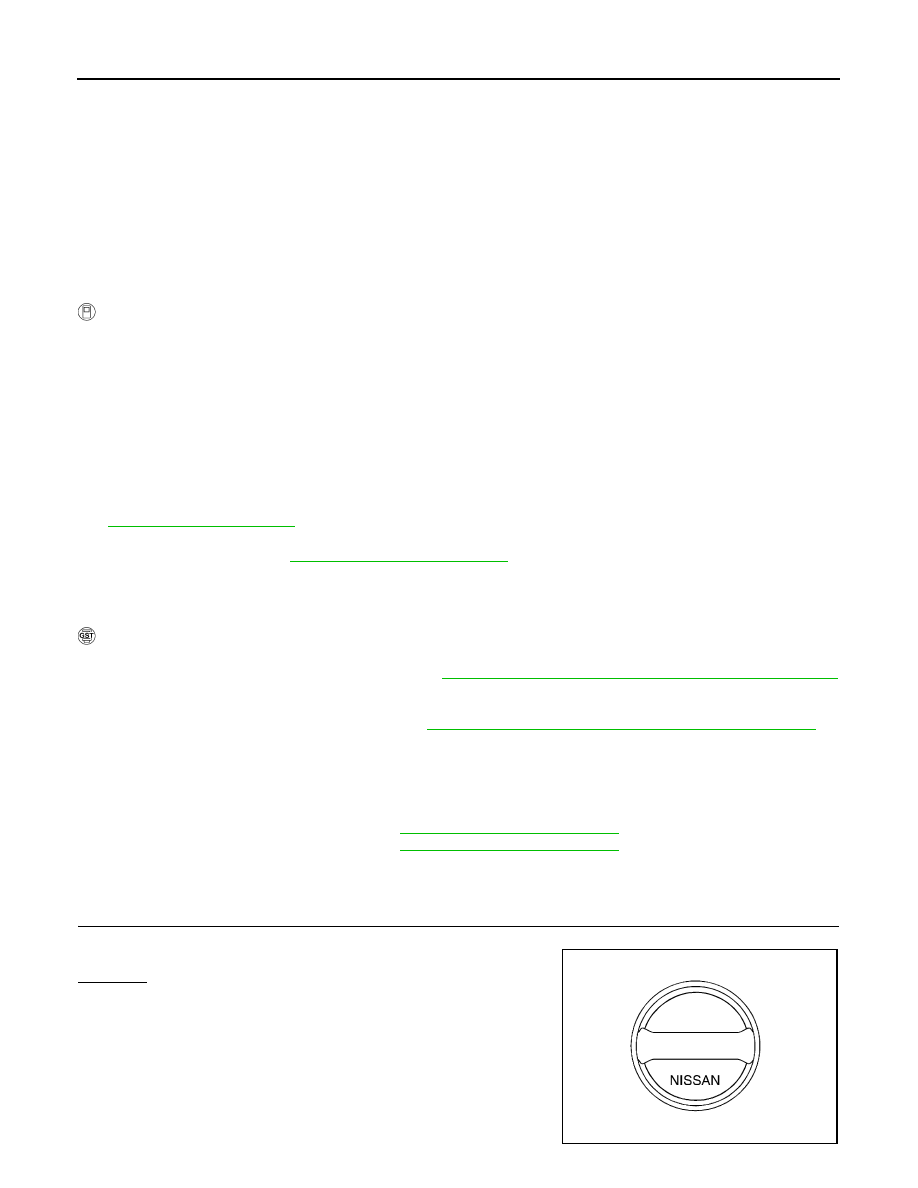

Diagnosis Procedure

INFOID:0000000006244396

1.

CHECK FUEL FILLER CAP DESIGN

1. Turn ignition switch OFF.

2. Check for genuine NISSAN fuel filler cap design.
OK or NG

OK

>> GO TO 2.

NG

>> Replace with genuine NISSAN fuel filler cap.

SEF915U

2011 Pathfinder

P0442 EVAP CONTROL SYSTEM

EC-751

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK FUEL FILLER CAP INSTALLATION

Check that the cap is tightened properly by rotating the cap clockwise.
OK or NG

OK

>> GO TO 3.

NG

>> 1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.

2. Retighten until ratcheting sound is heard.

3.

CHECK FUEL FILLER CAP FUNCTION

Check for air releasing sound while opening the fuel filler cap.
OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK FUEL TANK VACUUM RELIEF VALVE

Refer to

EC-755, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace fuel filler cap with a genuine one.

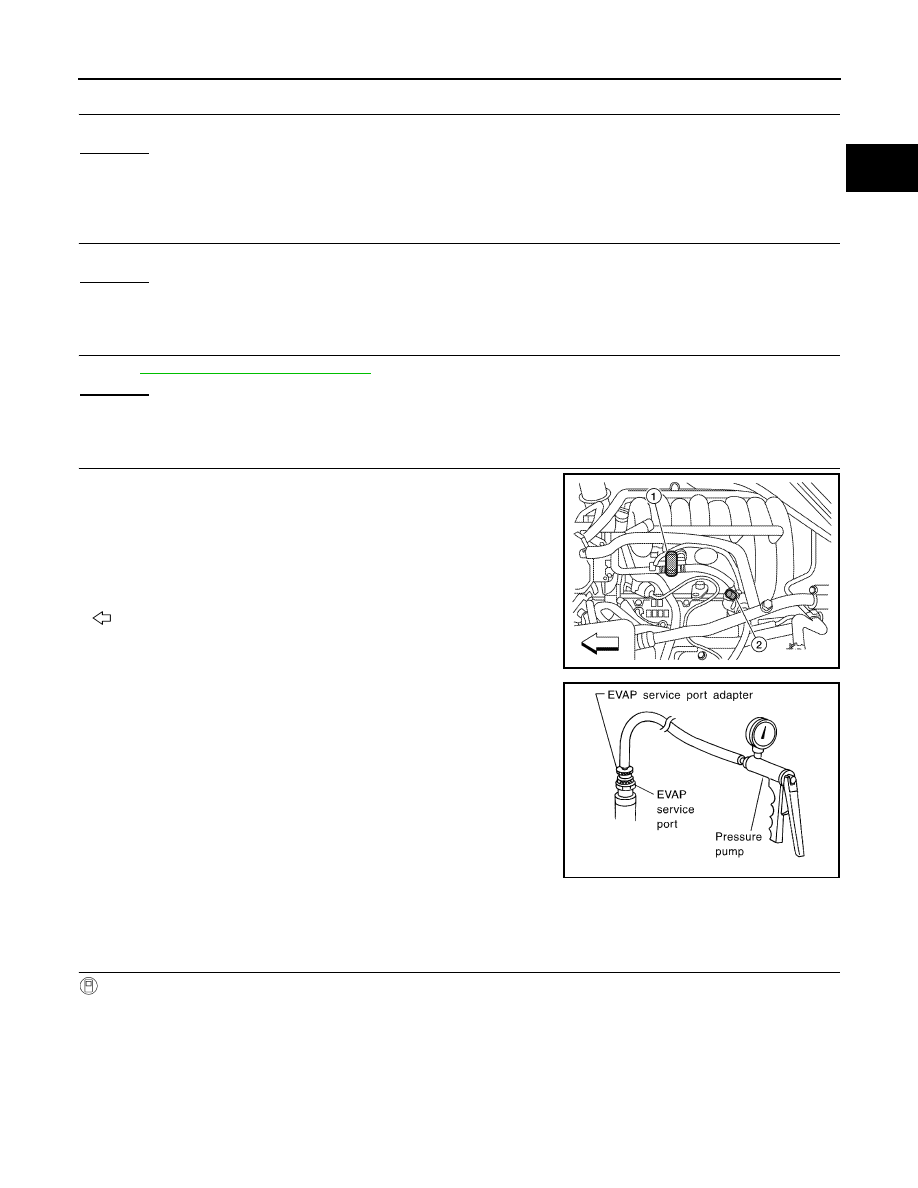

5.

INSTALL THE PRESSURE PUMP

To locate the EVAP leak, install EVAP service port adapter (commer-

cial service tool) and pressure pump to EVAP service port securely.

NOTE:

Improper installation of the EVAP service port adapter (com-

mercial service tool) to the EVAP service port may cause leak-

ing.

• EVAP canister purge volume control solenoid valve (1)

• EVAP service port (2)
•

: Vehicle front

With CONSULT-III>>GO TO 6.

Without CONSULT-III>>GO TO 7.

6.

CHECK FOR EVAP LEAK

With CONSULT-III

1. Turn ignition switch ON.

2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT-III.

3. Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of

the bar graph.

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in the system.

ALBIA0349ZZ

SEF916U

2011 Pathfinder

EC-752

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0442 EVAP CONTROL SYSTEM

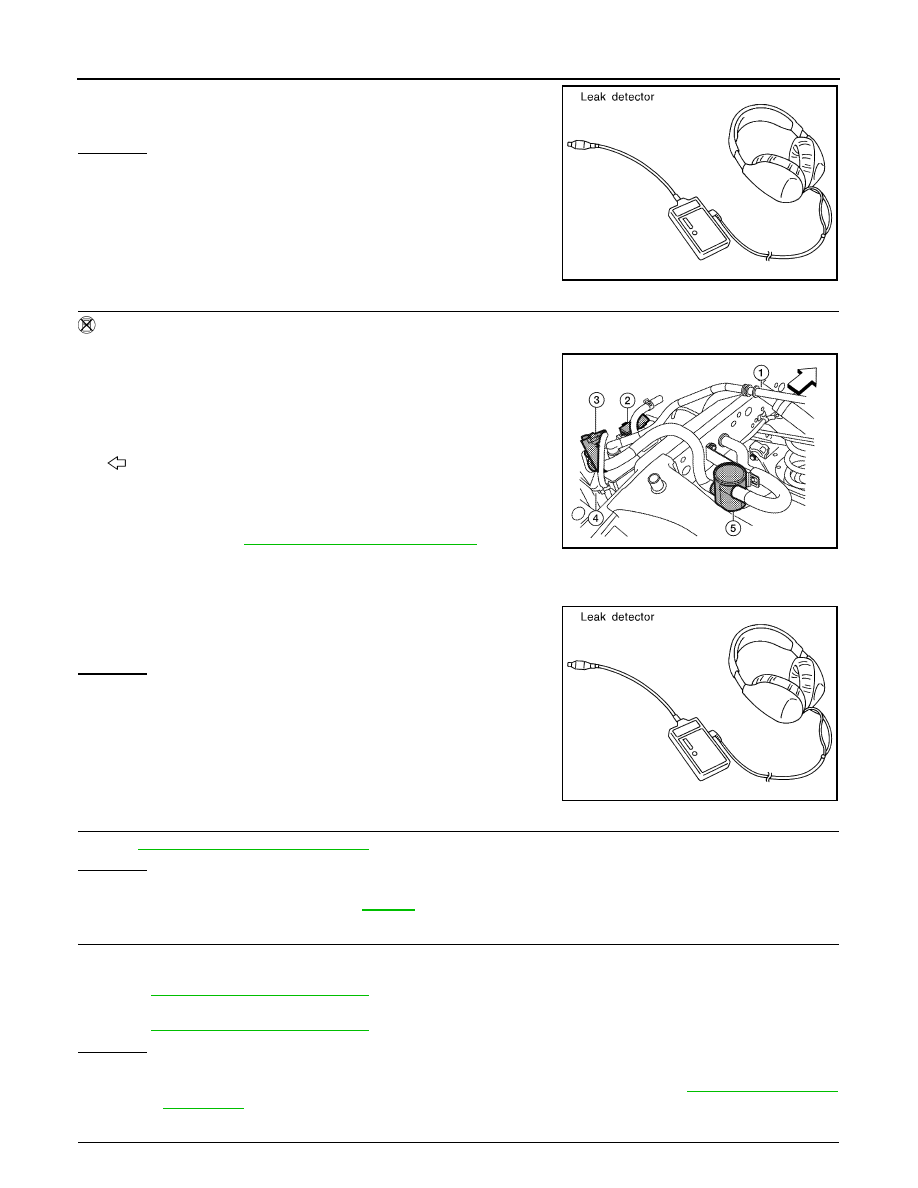

4. Using EVAP leak detector (commercial service tool), locate the

EVAP leak. For the leak detector (commercial service tool), refer

to the instruction instruction for more details.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace malfunctioning part.

7.

CHECK FOR EVAP LEAK

Without CONSULT-III

1. Turn ignition switch OFF.

2. Apply 12 volts DC to EVAP canister vent control valve (3). The

valve will close. (Continue to apply 12 volts until the end of test.)

-

Fuel filler pipe (top of frame view) (1)

-

EVAP control system pressure sensor (2)

-

EVAP canister (4)

-

Drain filter (5)

-

: Vehicle front

3. Pressurize the EVAP line using pressure pump with 1.38 to 2.76

kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi), then remove the

pressure pump and EVAP service port adapter (commercial ser-

vice tool).  Refer to

FL-16, "Removal and Installation"

.

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in the system.

4. Using EVAP leak detector (commercial service tool), locate the

EVAP leak. For the leak detector (commercial service tool), refer

to the instruction instruction for more details.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace malfunctioning part+.

8.

CHECK DRAIN FILTER

Refer to

EC-755, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Replace drain filter. Refer to

EC-512

.

9.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the following.

• EVAP canister vent control valve is installed properly.

Refer to

FL-16, "Component Inspection"

.

• EVAP canister vent control valve.

Refer to

FL-16, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace EVAP canister vent control valve and O-ring.  Refer to

FL-16, "Removal and

Installation"

.

10.

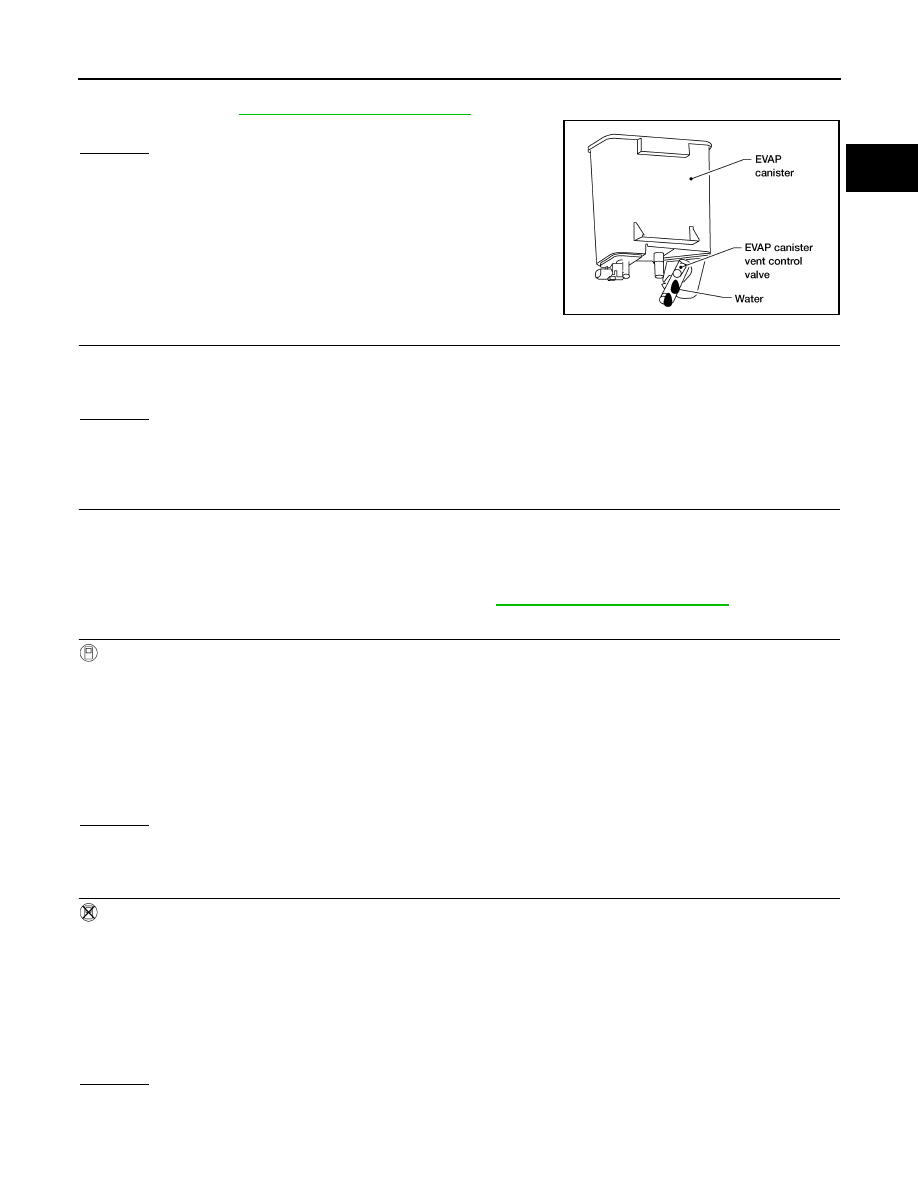

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

SEF200U

AWBIA0134ZZ

SEF200U

2011 Pathfinder

P0442 EVAP CONTROL SYSTEM

EC-753

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached. Refer to

FL-16, "Removal and Installation"

.

2. Does water drain from the EVAP canister?
Yes or No

Yes

>> GO TO 11.

No (With CONSULT-III)>>GO TO 13.

No (Without CONSULT-III)>>GO TO 14.

11.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.0 kg (4.4 lb).

OK or NG

OK (With CONSULT-III)>>GO TO 13.

OK (Without CONSULT-III)>>GO TO 14.

NG

>> GO TO 12.

12.

DETECT MALFUNCTIONING PART

Check the following.

• EVAP canister for damage

• EVAP hose between EVAP canister and drain filter for clogging or poor connection

>> Repair hose or replace EVAP canister. Refer to

FL-16, "Removal and Installation"

.

13.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

With CONSULT-III

1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve and EVAP

service port from EVAP service port.

2. Start engine.

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode.

4. Touch “Qu” on CONSULT-III screen to increase “PURG VOL C/V” opening to 100%.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.

OK or NG

OK

>> GO TO 16.

NG

>> GO TO 15.

14.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

Without CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Stop engine.

3. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve and EVAP

service port from EVAP service port.

4. Start engine and let it idle for at least 80 seconds.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.

OK or NG

OK

>> GO TO 17.

NG

>> GO TO 15.

BBIA0558E

Vacuum should exist.

Vacuum should exist.

2011 Pathfinder

EC-754

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

P0442 EVAP CONTROL SYSTEM

15.

CHECK VACUUM HOSE

Check vacuum hoses for clogging or disconnection. Refer to

EC-512, "Description"

.

OK or NG

OK

>> GO TO 16.

NG

>> Repair or reconnect the hose.

16.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-763, "Component Inspection"

.

OK or NG

OK

>> GO TO 17.

NG

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EM-166

.

17.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-717, "Component Inspection"

.

OK or NG

OK

>> GO TO 18.

NG

>> Replace “fuel level sensor unit and fuel pump”. Refer to

FL-18

.

18.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-775, "Component Inspection"

.

OK or NG

OK

>> GO TO 19.

NG

>> Replace EVAP control system pressure sensor. Refer to

FL-16, "Removal and Installation"

.

19.

CHECK EVAP PURGE LINE

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.

Refer to

EC-512, "Description"

.

OK or NG

OK

>> GO TO 20.

NG

>> Repair or reconnect the hose.

20.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 21.

21.

CHECK EVAP/ORVR LINE

Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kinks, looseness and improper

connection. For location, refer to

EC-923, "System Description"

.

OK or NG

OK

>> GO TO 22.

NG

>> Repair or replace hoses and tubes.

22.

CHECK RECIRCULATION LINE

Check recirculation line between filler neck tube and fuel tank for clogging, kinks, cracks, looseness and

improper connection.
OK or NG

OK

>> GO TO 23.

NG

>> Repair or replace hose, tube or filler neck tube.

23.

CHECK REFUELING EVAP VAPOR CUT VALVE

Refer to

EC-926, "Component Inspection"

.

OK or NG

OK

>> GO TO 24.

NG

>> Replace refueling EVAP vapor cut valve with fuel tank. Refer to

FL-16, "Removal and Installation"

.

2011 Pathfinder

P0442 EVAP CONTROL SYSTEM

EC-755

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

24.

CHECK FUEL LEVEL SENSOR

Refer to

MWI-34, "Component Function Check"

.

OK or NG

OK

>> GO TO 25.

NG

>> Replace fuel level sensor unit. Refer to

FL-18

.

25.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>>

INSPECTION END

Component Inspection

INFOID:0000000006244397

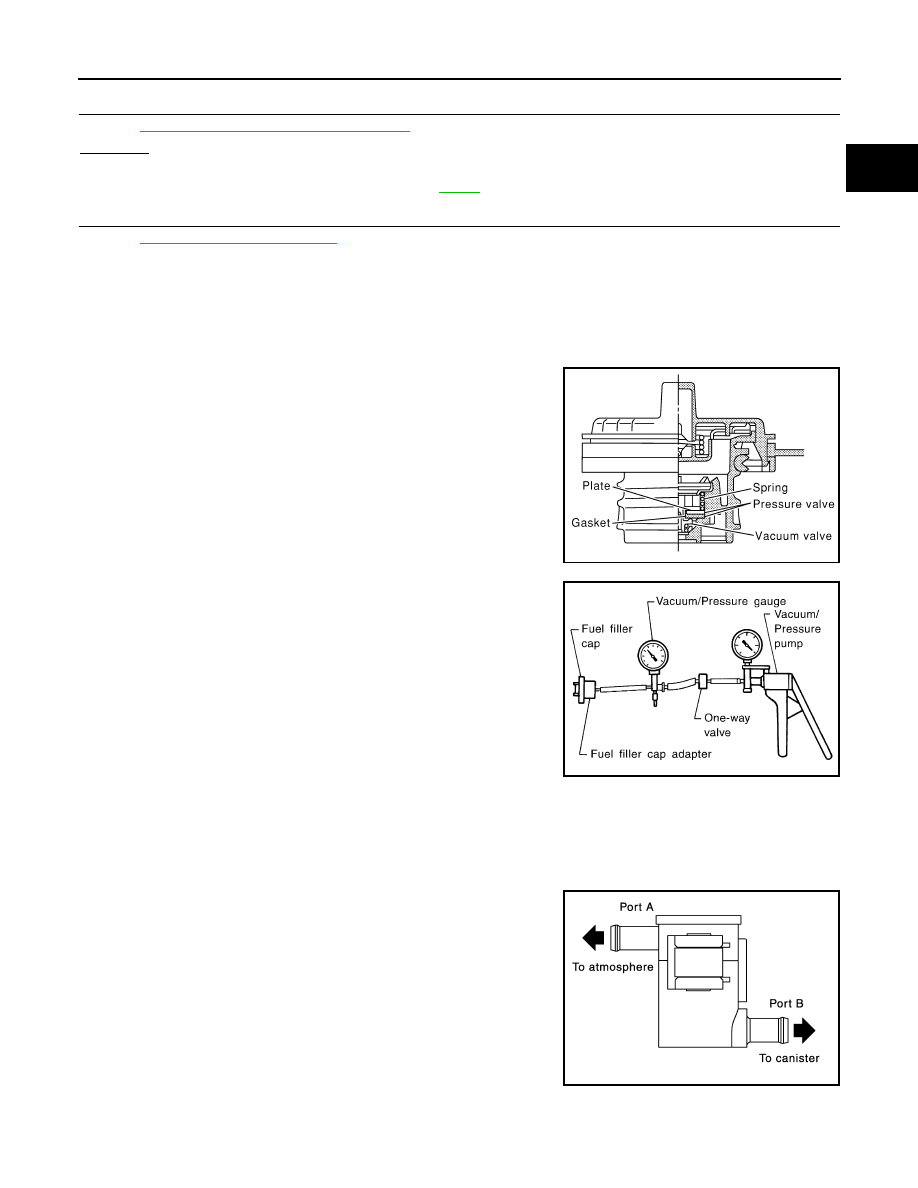

FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)

1. Wipe clean valve housing.

2. Check valve opening pressure and vacuum.

3. If out of specification, replace fuel filler cap as an assembly.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incor-

rect fuel filler cap is used, the MIL may illuminate.

DRAIN FILTER

1. Check visually for insect nests in the drain filter air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.
4. Blow air into port A and check that it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is no leakage.
7. If NG, replace drain filter.

SEF445Y

Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

−

6.0 to

−

3.3 kPa (

−

0.061 to

−

0.034 kg/cm

2

,

−

0.87 to

−

0.48 psi)

SEF943S

PBIB3641E

2011 Pathfinder

EC-756

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

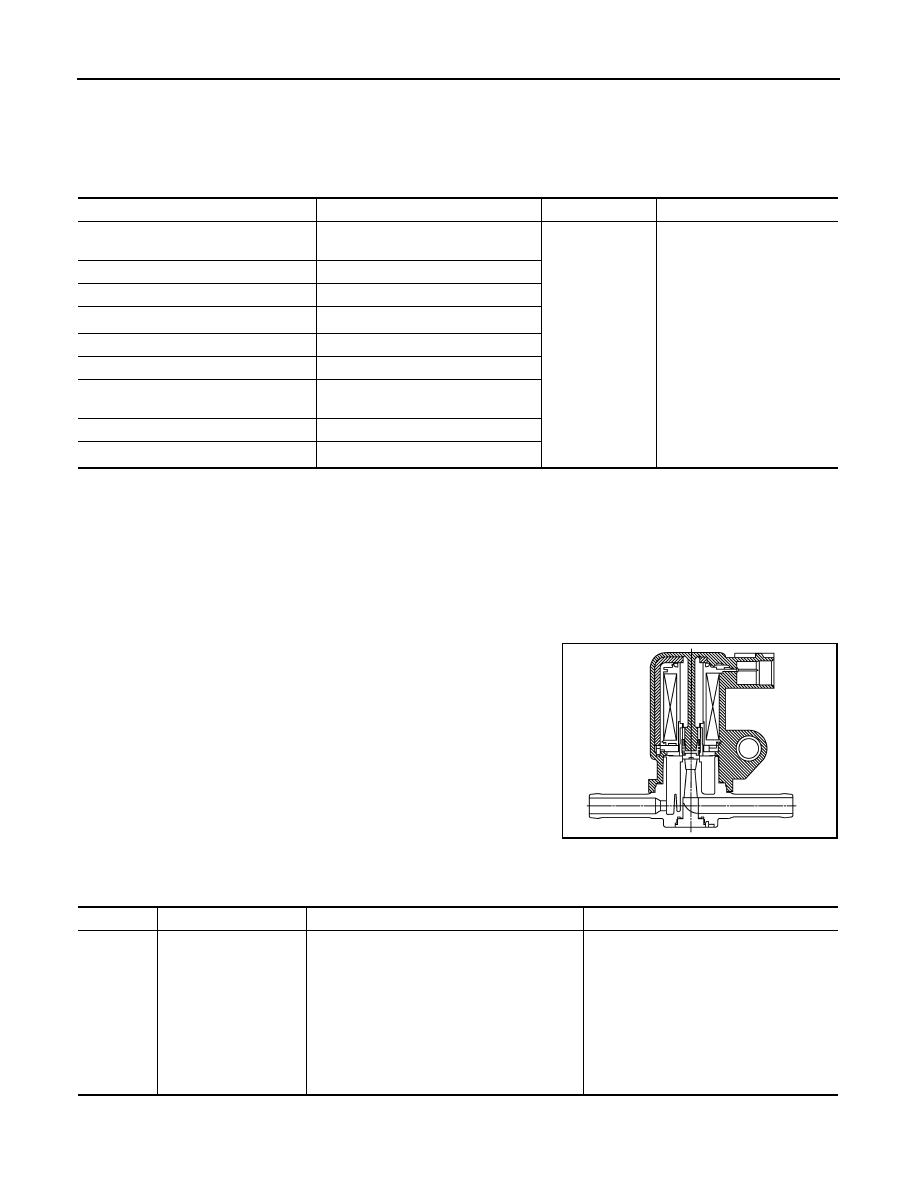

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

INFOID:0000000006244398

SYSTEM DESCRIPTION

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM via the CAN communication line.

This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-

sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP

canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the

ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is

determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor

from the EVAP canister is regulated as the air flow changes.

COMPONENT DESCRIPTION

The EVAP canister purge volume control solenoid valve is used to

control the flow rate of fuel vapor from the EVAP canister. The EVAP

canister purge volume control solenoid valve is moved by ON/OFF

pulses from the ECM. The longer the ON pulse, the greater the

amount of fuel vapor that will flow through the valve.

On Board Diagnosis Logic

INFOID:0000000006244399

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

EVAP canister
purge flow control

EVAP canister purge volume
control solenoid valve

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

1

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Air fuel ratio (A/F) sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel tank temperature sensor

Fuel temperature in fuel tank

Unified meter control unit

Vehicle speed*

2

PBIB2057E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0443
0443

EVAP canister purge
volume control solenoid
valve

The canister purge flow is detected during the
specified driving conditions, even when EVAP
canister purge volume control solenoid valve is
completely closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control so-

lenoid valve
(The valve is stuck open.)

• EVAP canister vent control valve
• Drain filter
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)

2011 Pathfinder

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-757

< DTC/CIRCUIT DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DTC Confirmation Procedure

INFOID:0000000006244400

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Always perform test at a temperature of 5

°

C (41

°

F) or more.

 WITH CONSULT-III

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON.
6. Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with

CONSULT-III.

7. Touch “START”.
8. Start engine and let it idle until “TESTING” on CONSULT-III changes to “COMPLETED”. (It will take

approximately 10 seconds.)

If “TESTING” is not displayed after 5 minutes, retry from step 2.

9. Check that “OK” is displayed after touching “SELF-DIAG RESULTS”.

If “NG” is displayed, go to

EC-757, "Diagnosis Procedure"

.

 WITH GST

1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Start engine and let it idle for at least 20 seconds.
6. Select Service $07 with GST.
7. If 1st trip DTC is detected, go to

EC-757, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006244401

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect EVAP canister purge volume control solenoid valve

(1) harness connector.

-

EVAP service port (2)

-

: Vehicle front

3. Turn ignition switch ON.

ALBIA0349ZZ

2011 Pathfinder
