2007 Pathfinder
DESCRIPTION
●

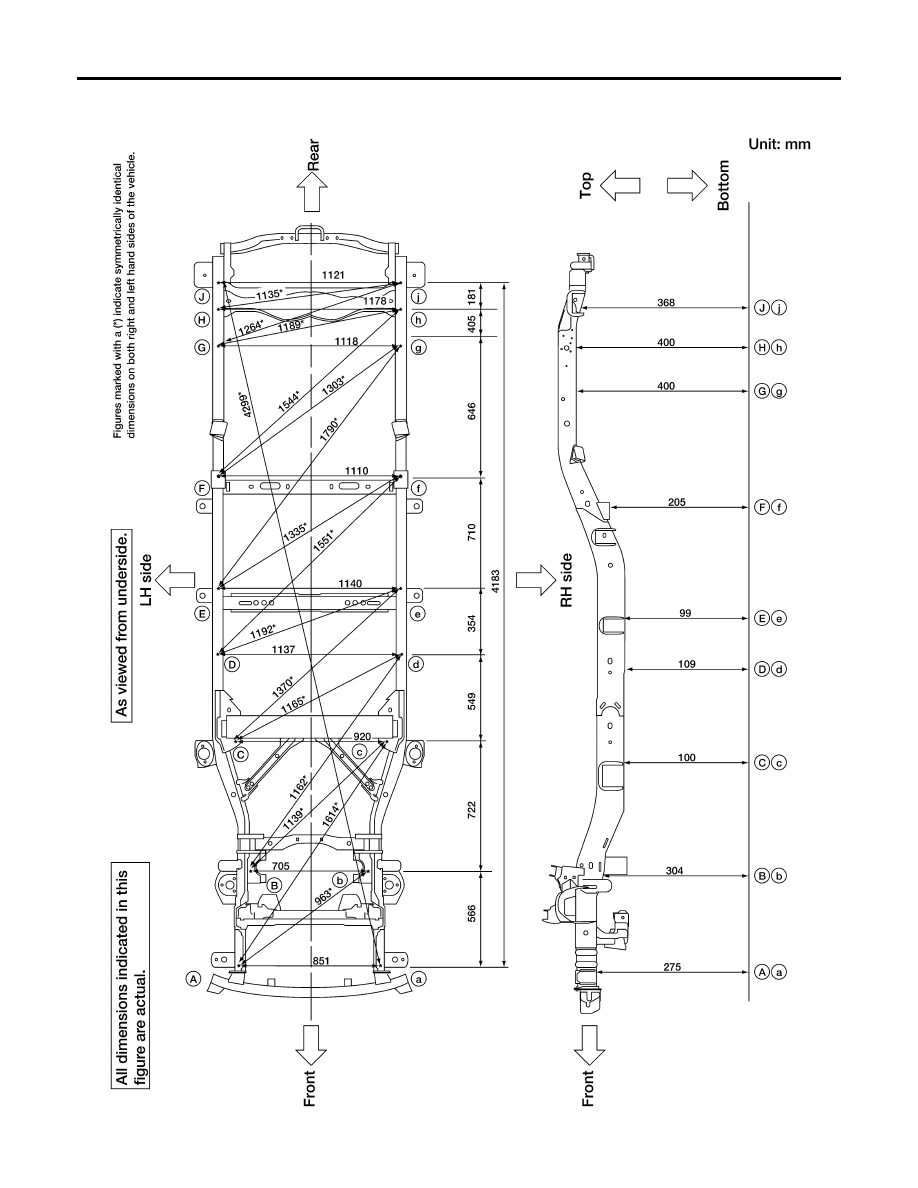

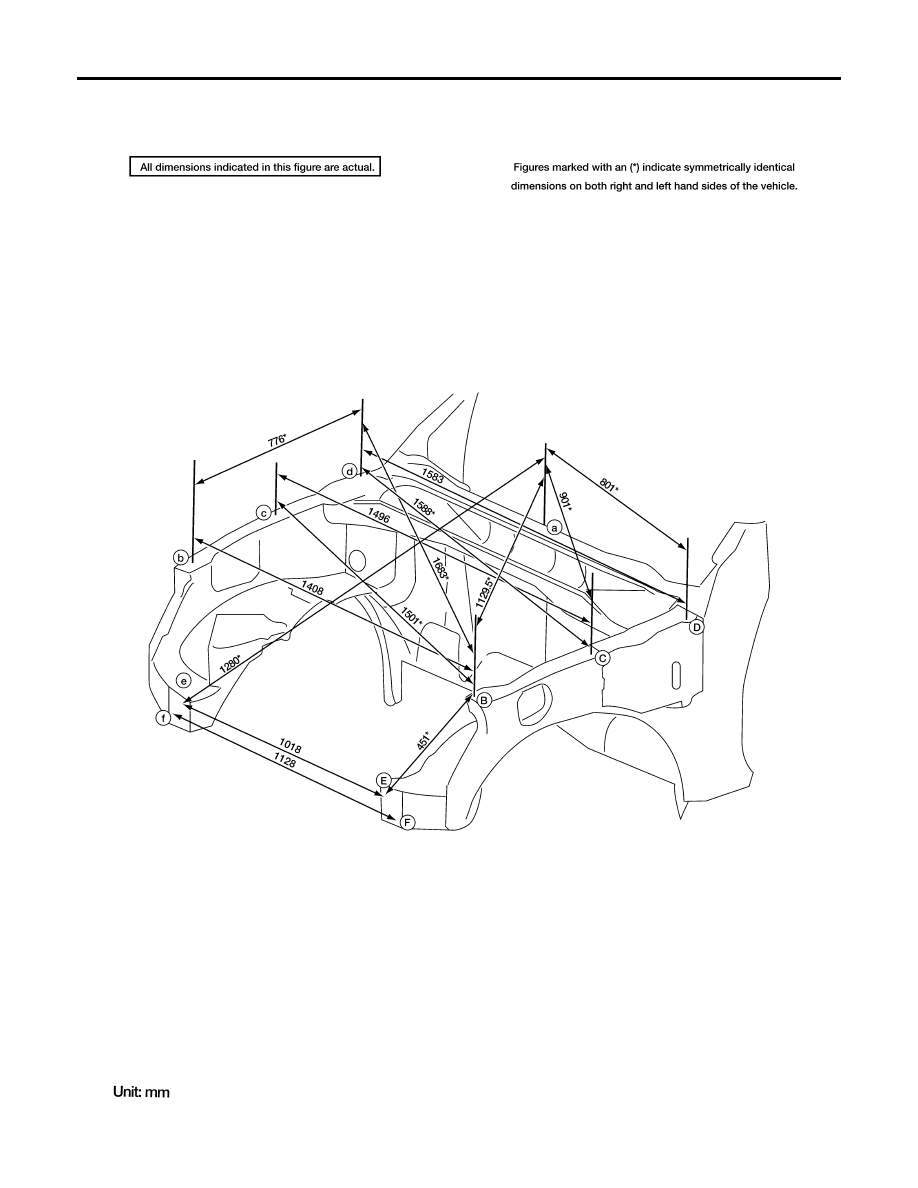

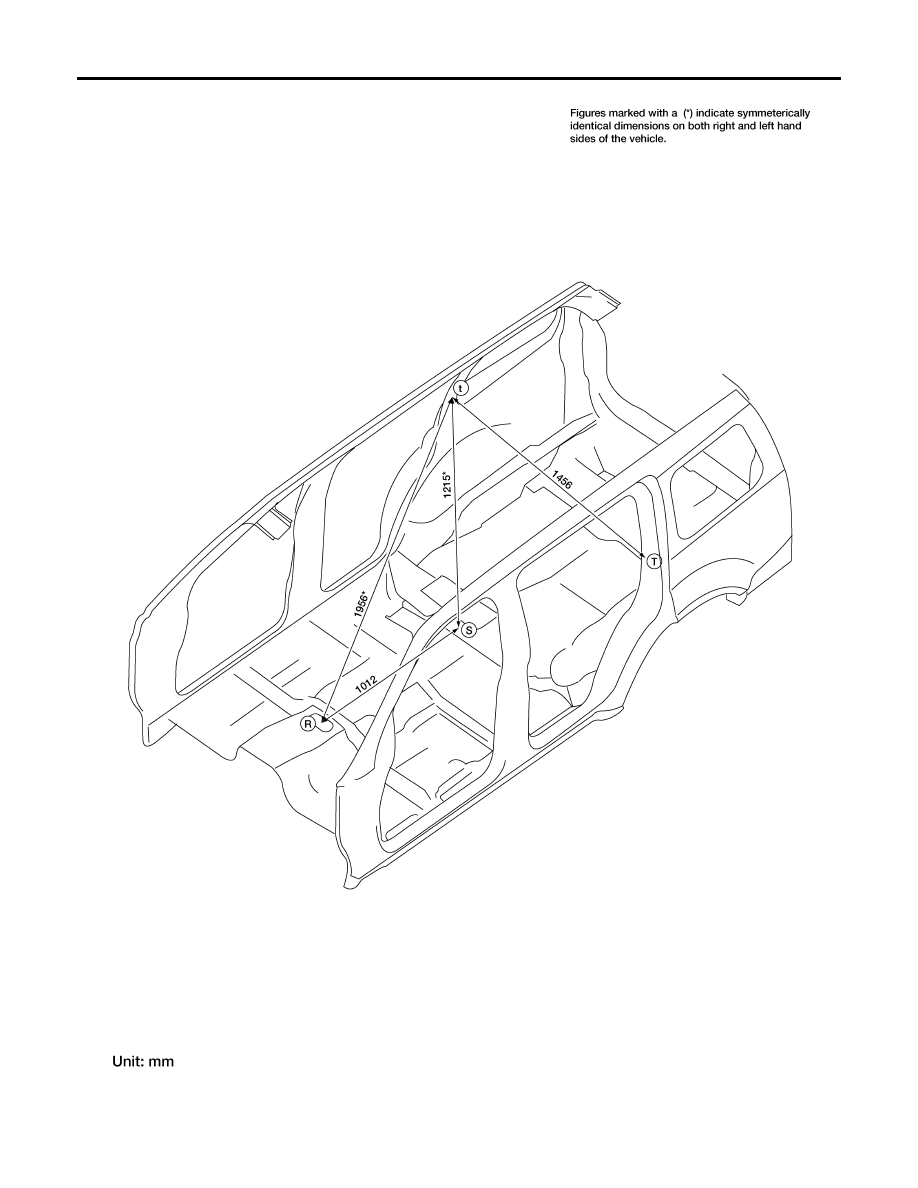

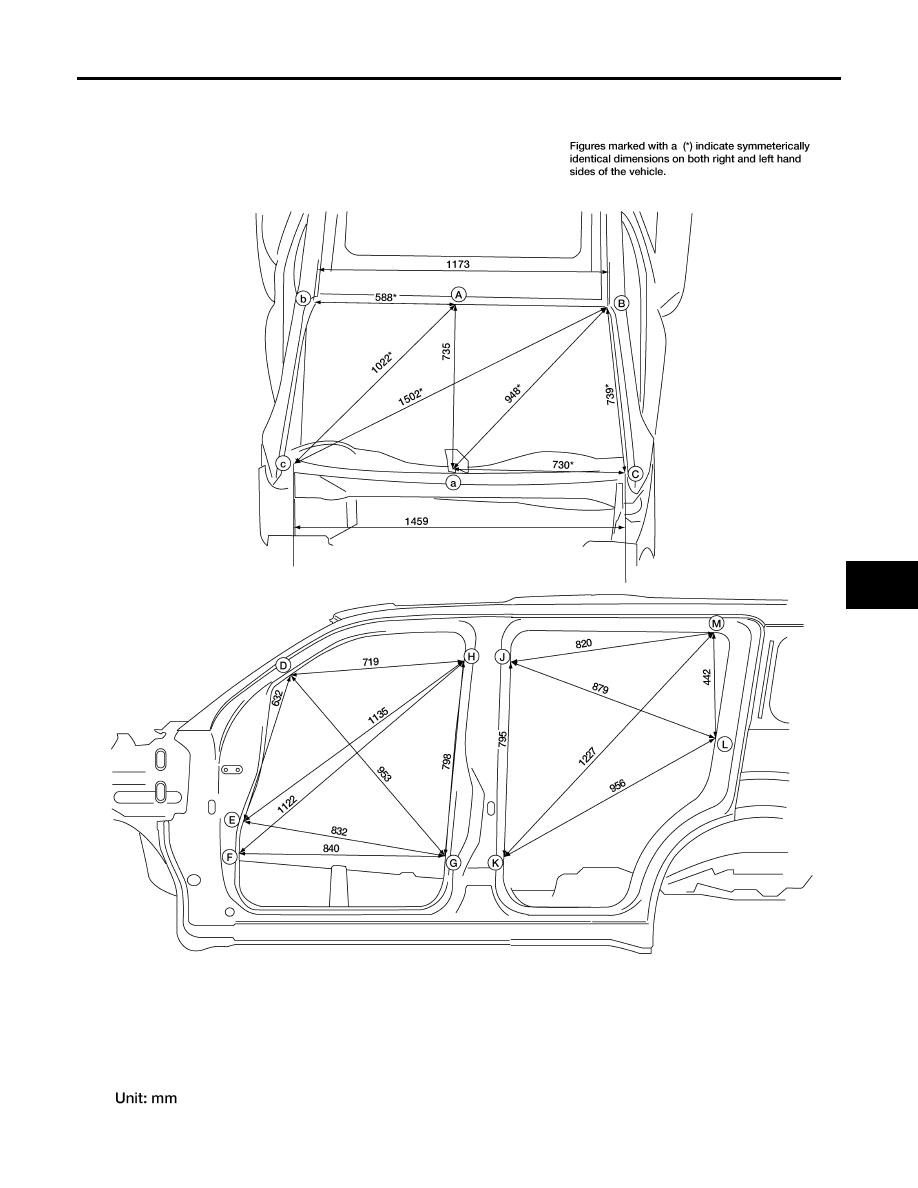

All dimensions indicated in the figures are actual.
●
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
●
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
●

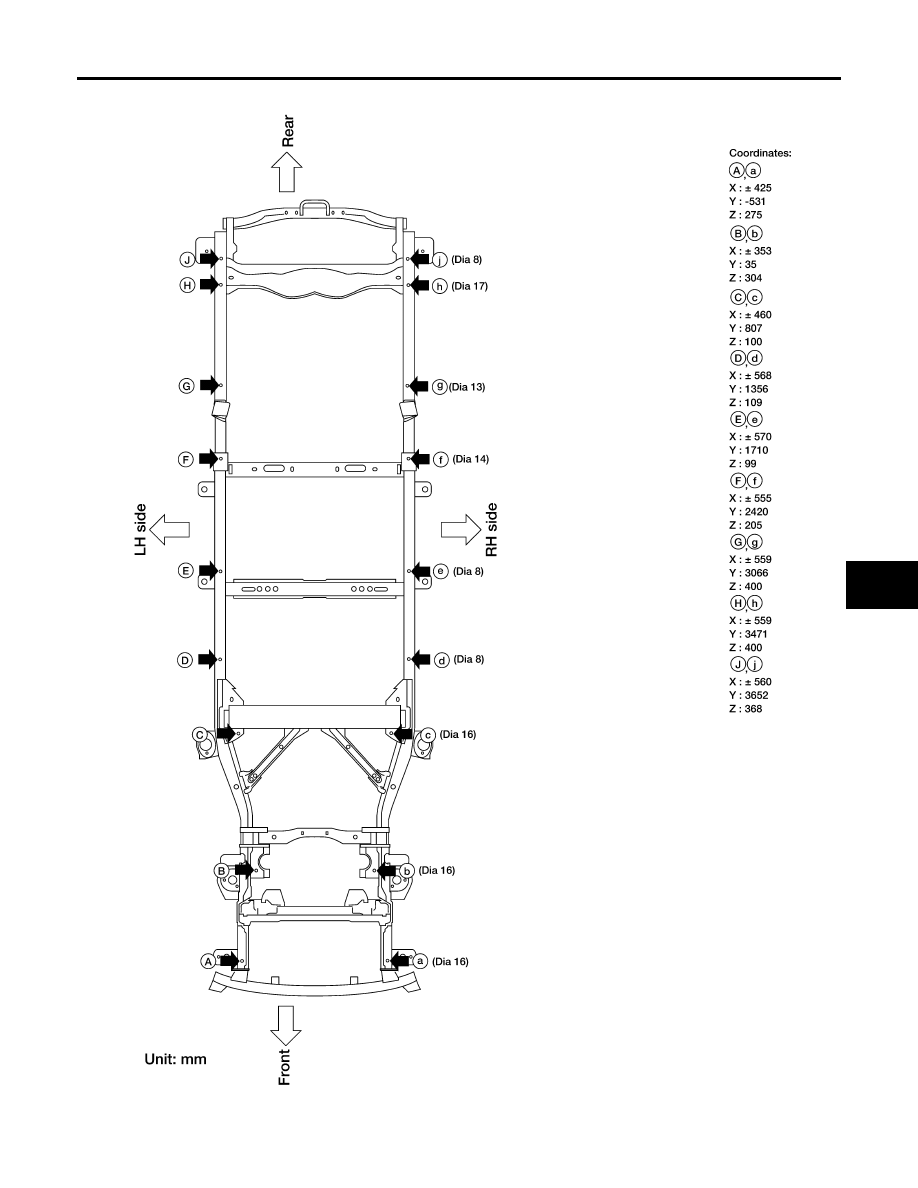

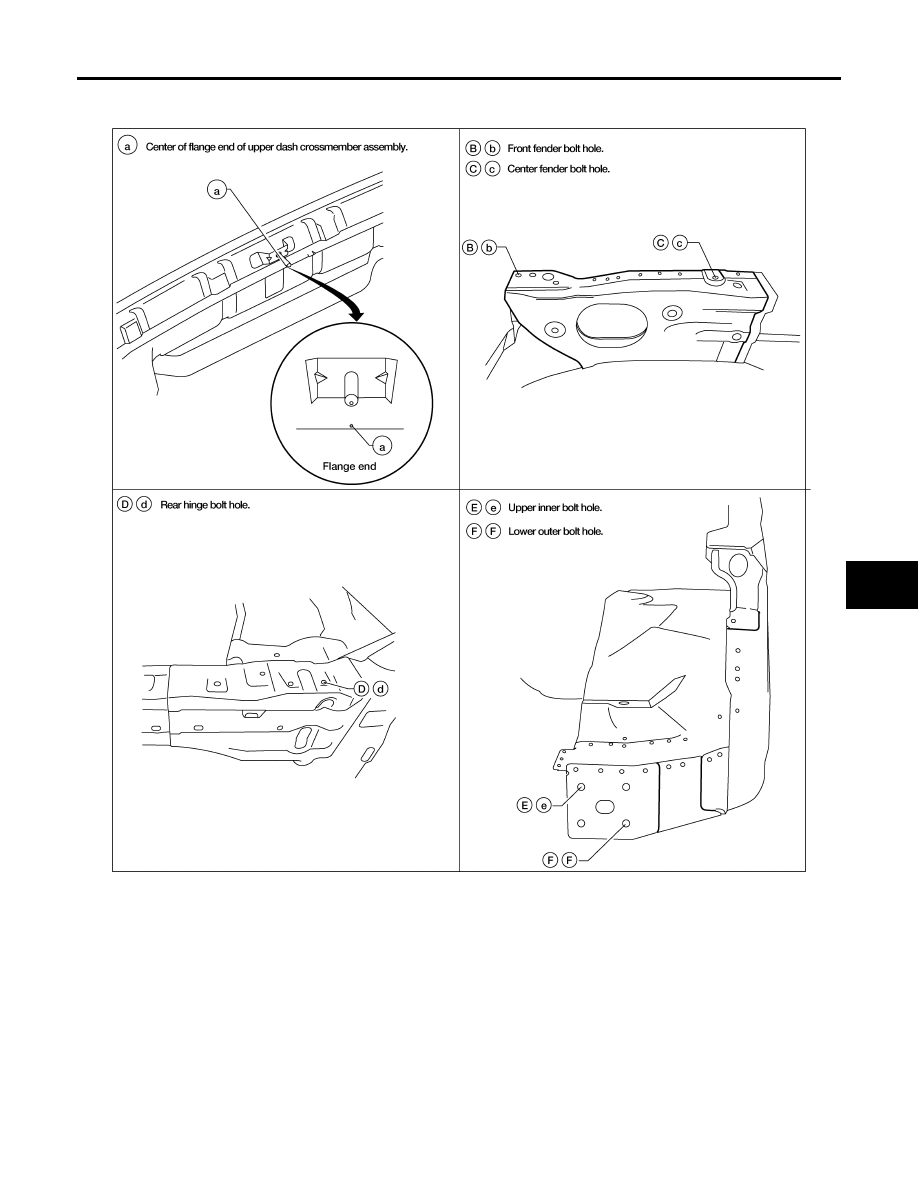

Measurements should be taken at the center of the mounting holes.
●
An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
●

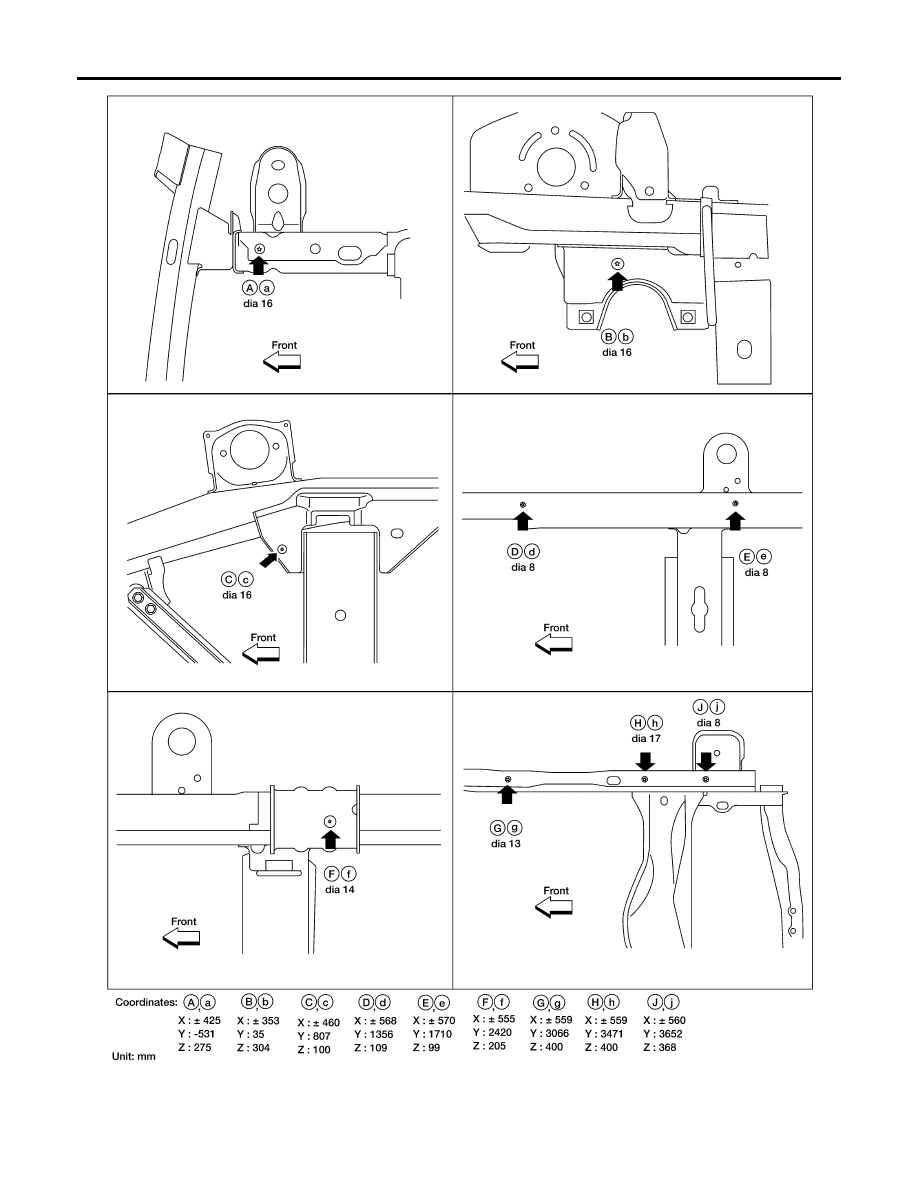

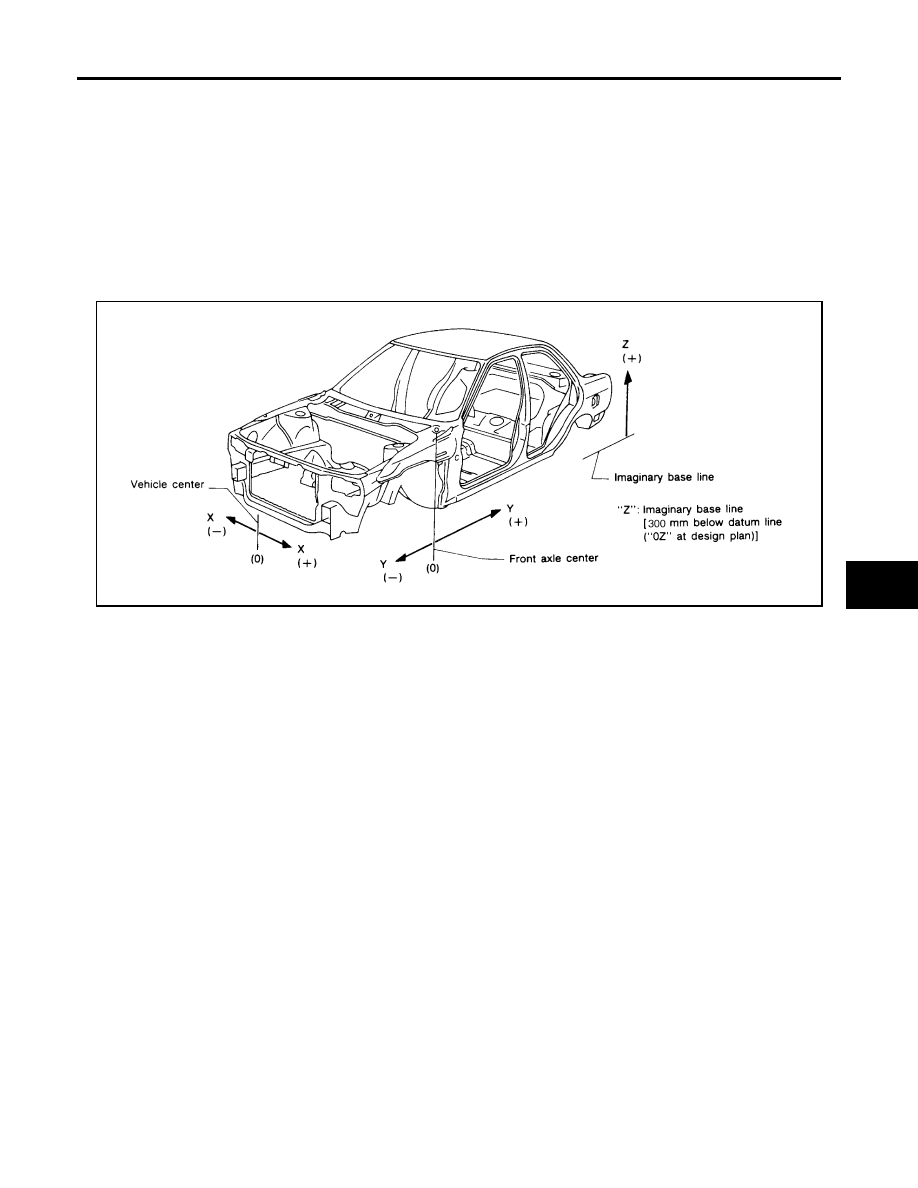

The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"
and "Z".
