TROUBLE DIAGNOSIS

SRS-11

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2006 Pathfinder

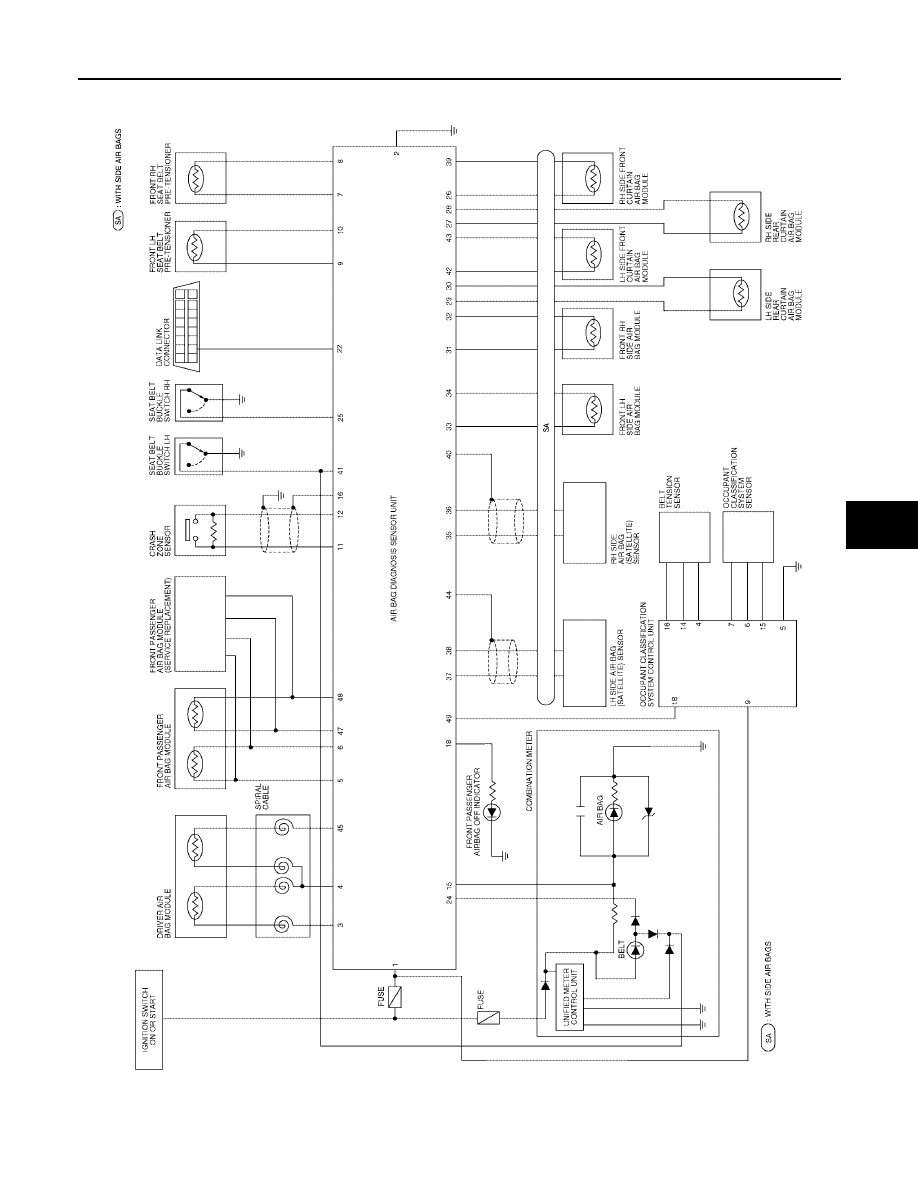

Schematic

EHS001LW

WHWA0256E

SRS-12

TROUBLE DIAGNOSIS

2006 Pathfinder

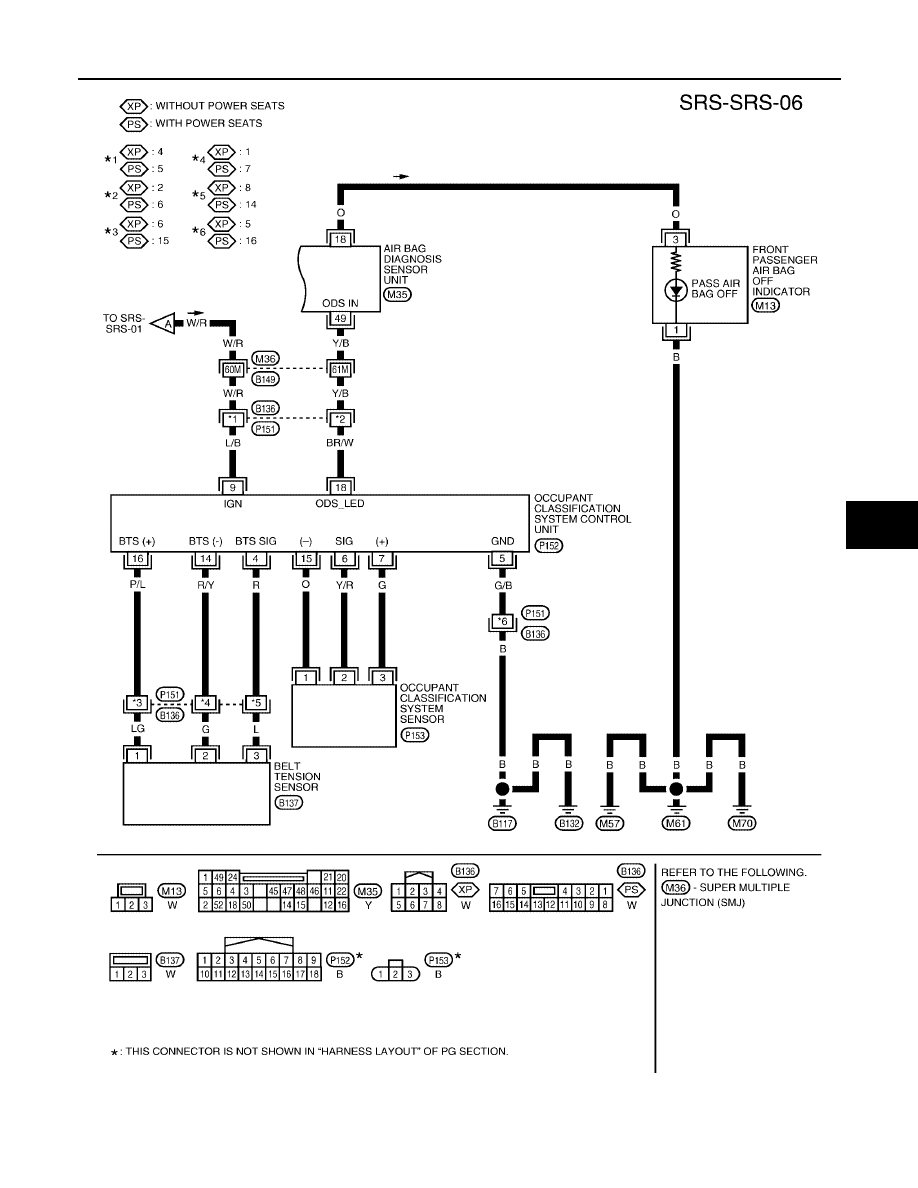

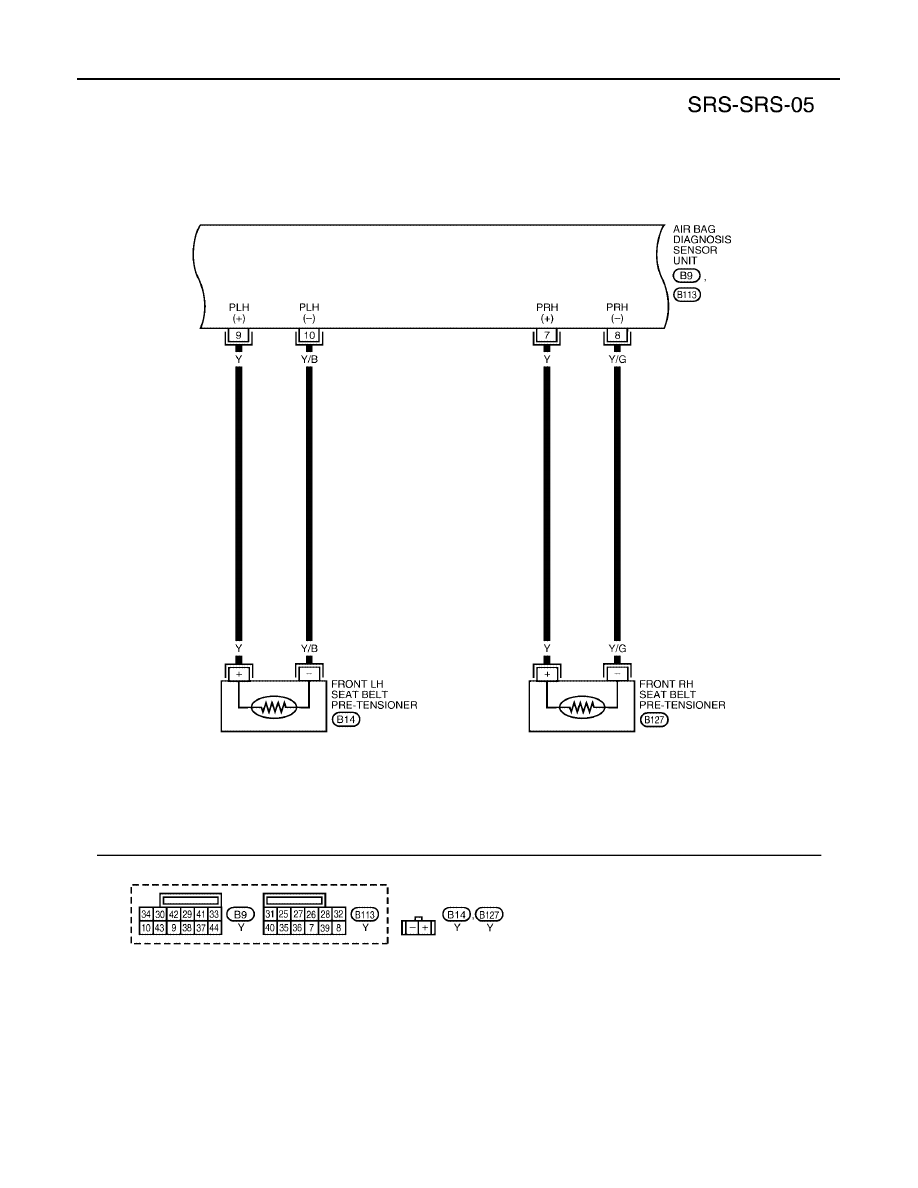

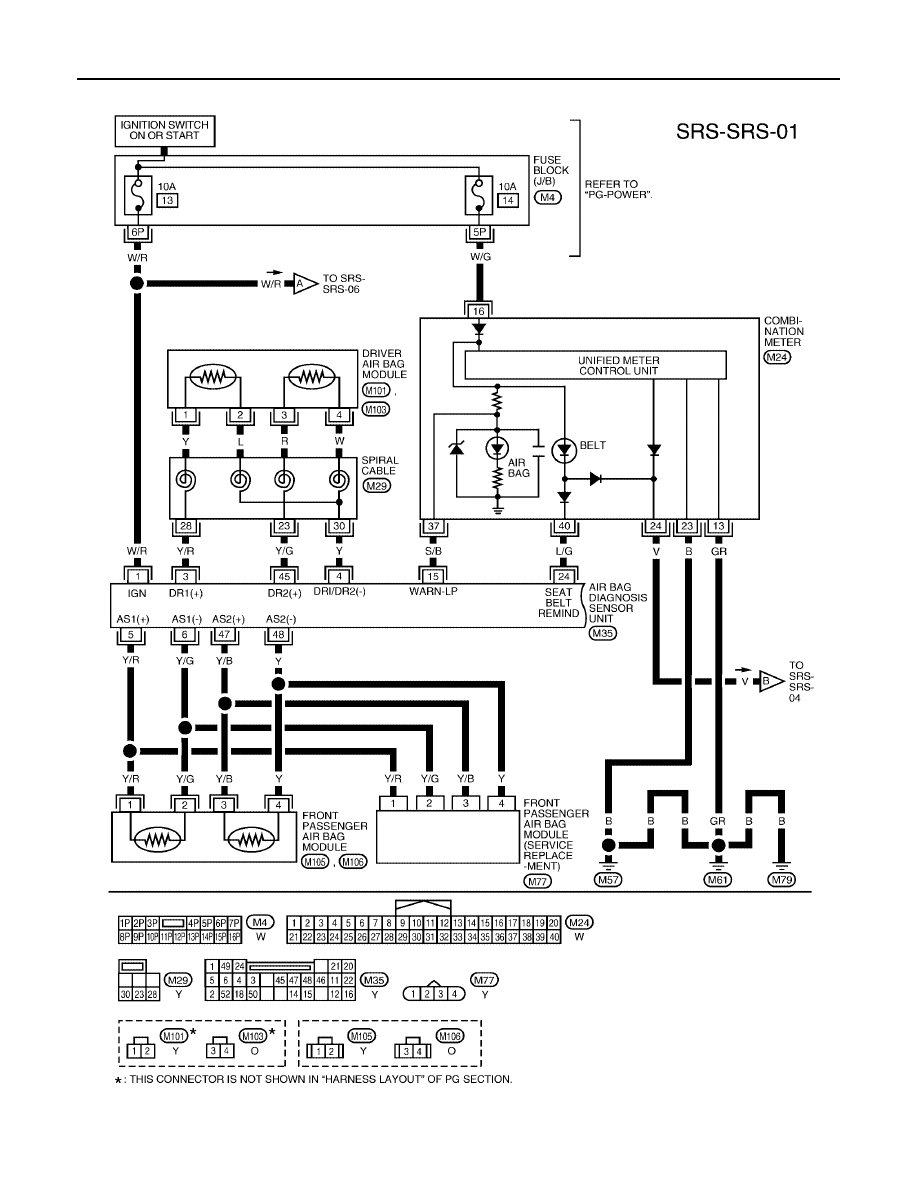

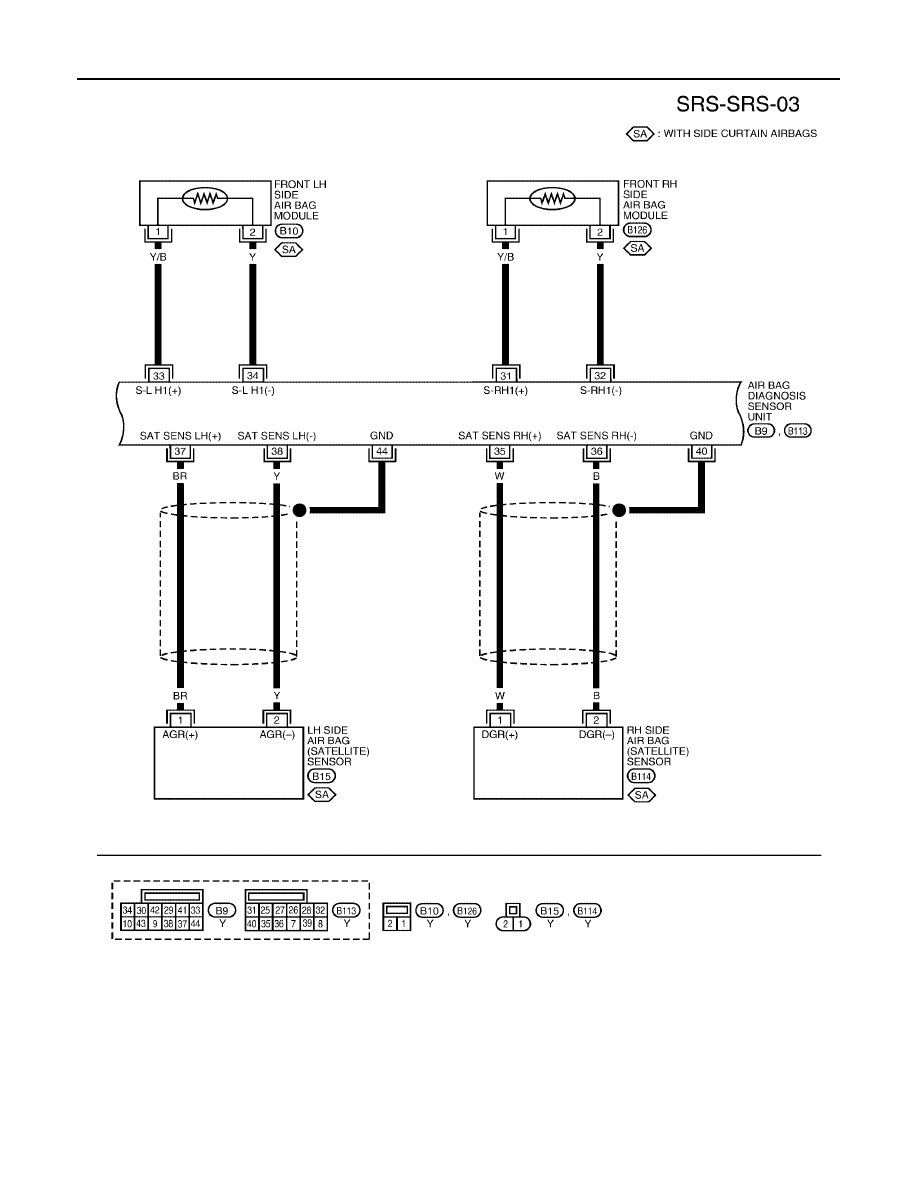

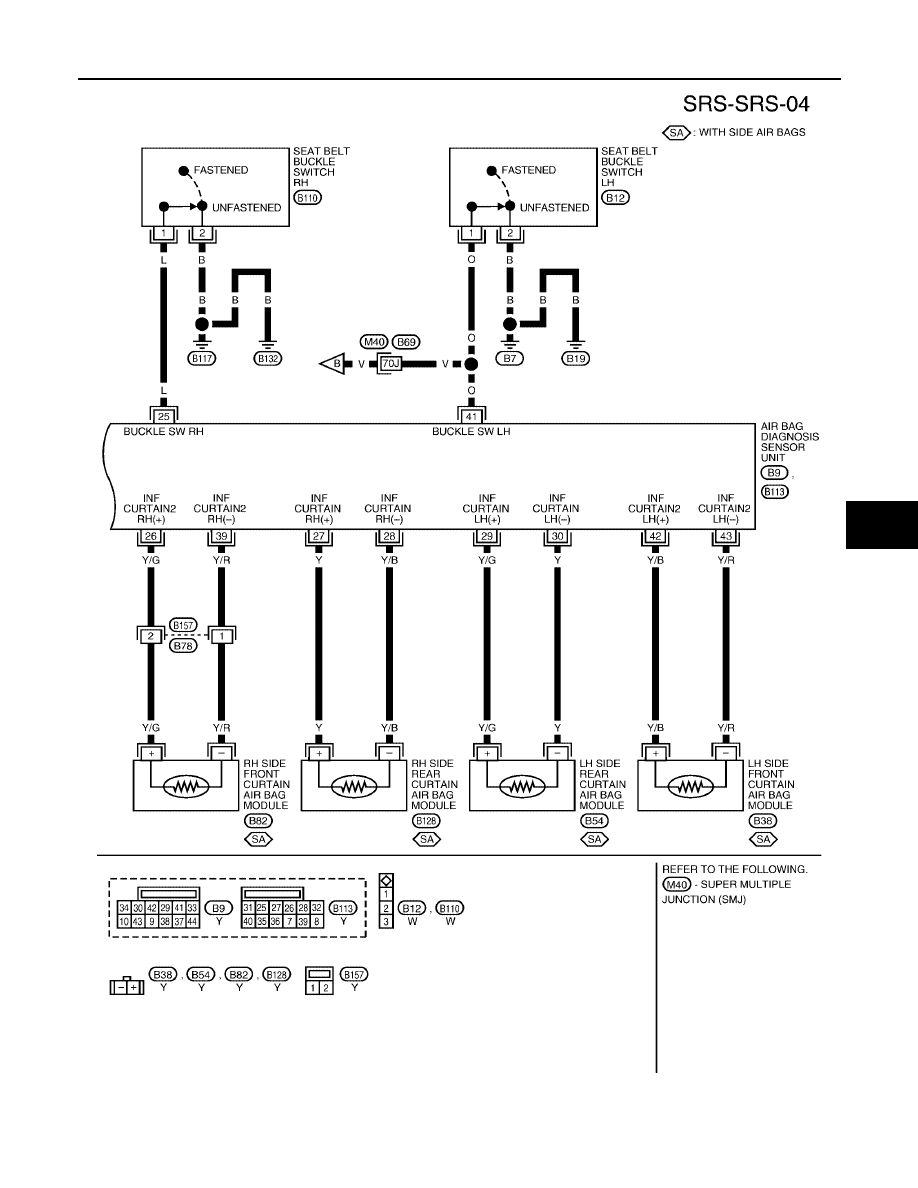

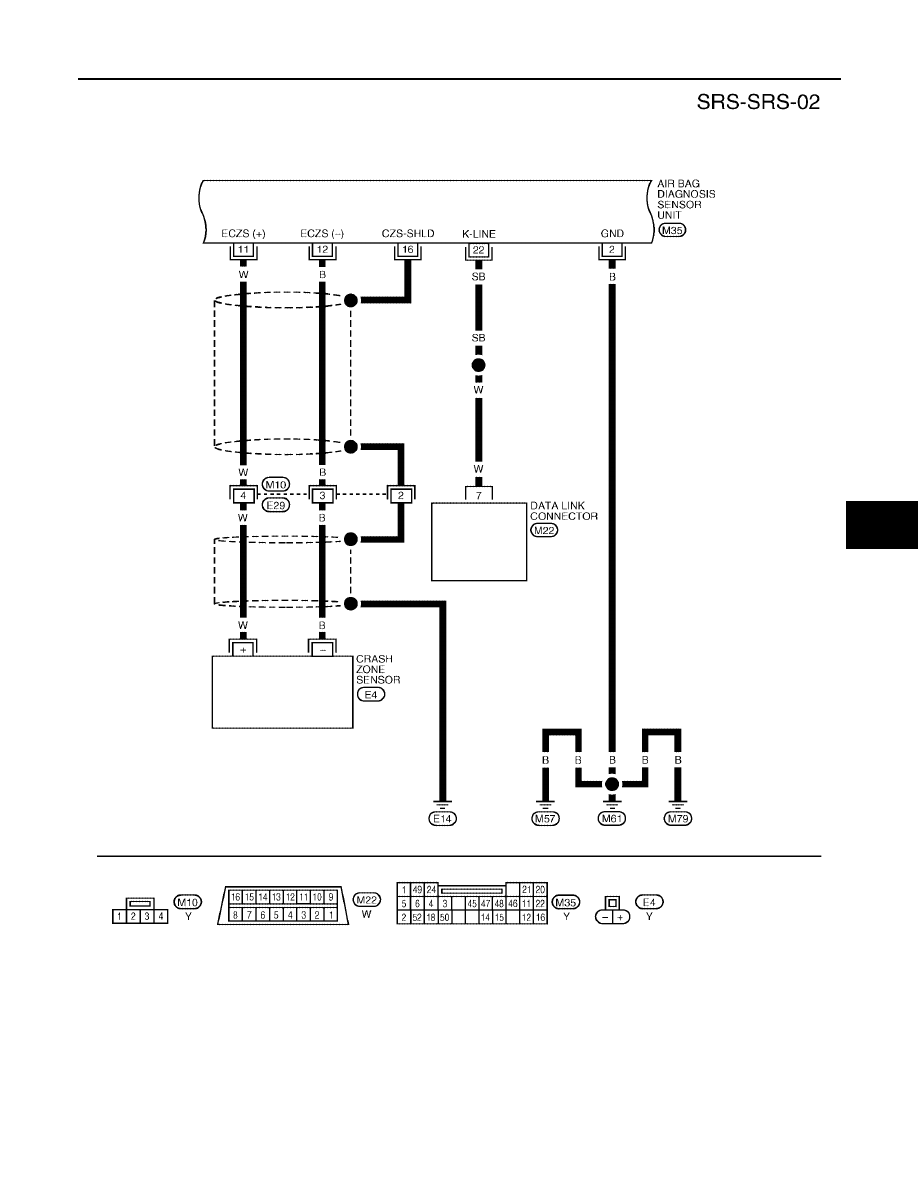

Wiring Diagram — SRS —

EHS001LX

WHWA0257E

TROUBLE DIAGNOSIS

SRS-13

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2006 Pathfinder

WHWA0258E

SRS-14

TROUBLE DIAGNOSIS

2006 Pathfinder

WHWA0259E

TROUBLE DIAGNOSIS

SRS-15

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2006 Pathfinder

WHWA0260E

SRS-16

TROUBLE DIAGNOSIS

2006 Pathfinder

WHWA0113E

TROUBLE DIAGNOSIS

SRS-17

C

D

E

F

G

I

J

K

L

M

A

B

SRS

2006 Pathfinder

WHWA0261E

SRS-18

TROUBLE DIAGNOSIS

2006 Pathfinder

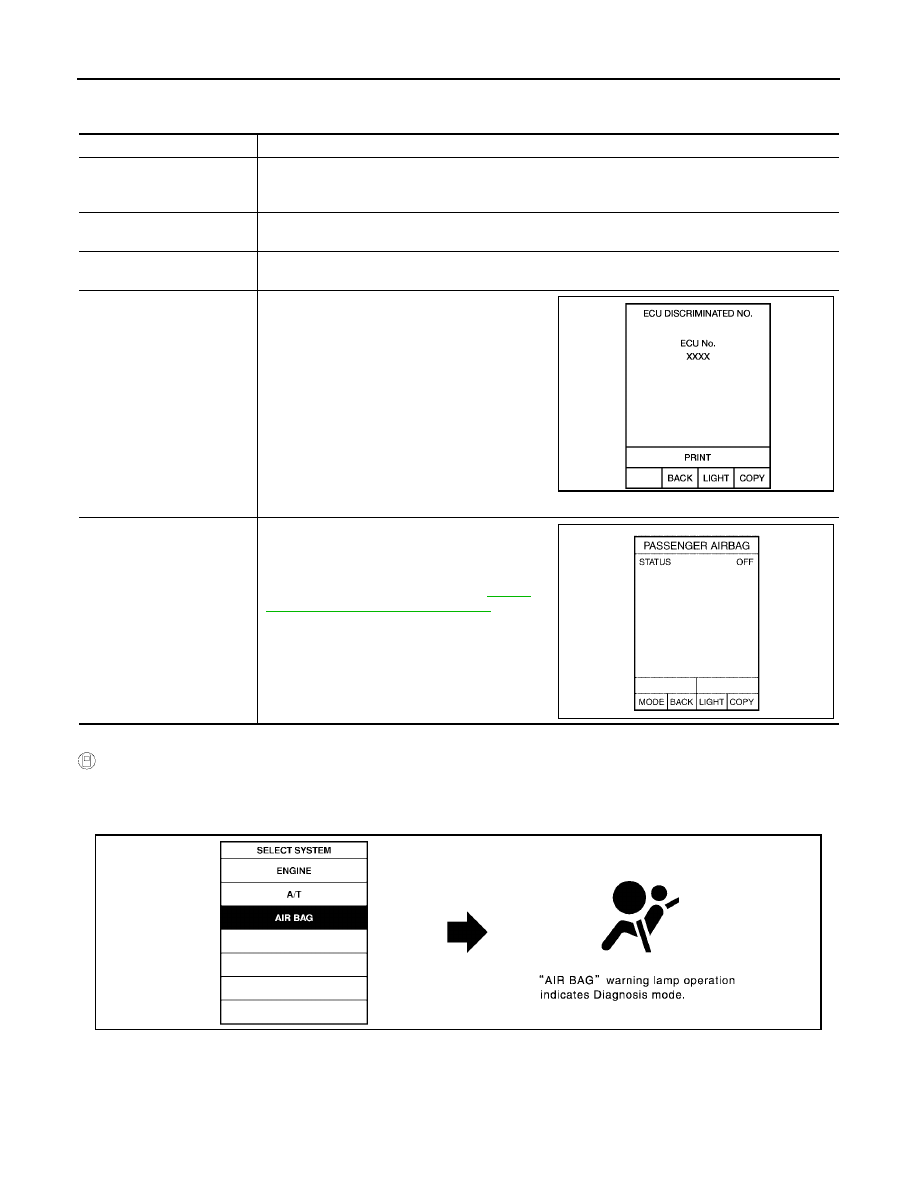

CONSULT-II Function (AIR BAG)

EHS001LY

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II Function

EHS001LZ

 HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II

From User Mode to Diagnosis Mode

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.

From Diagnosis Mode to User Mode

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.

AIR BAG diagnostic mode

Description

SELF-DIAG [CURRENT]

A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requir-
ing repairs.

SELF-DIAG [PAST]

Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The
stored results will remain until memory erasing is executed.

TROUBLE DIAG RECORD

With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.

ECU DISCRIMINATED NO.

The air bag diagnosis sensor unit for each vehicle
model is assigned with its own, individual classifi-
cation number. This number will be displayed on
the CONSULT-II screen, as shown. When replac-
ing the air bag diagnosis sensor unit, refer to the
part number for the compatibility. After installation,
replacement with a correct unit can be checked by
confirming this classification number on the CON-
SULT-II screen.
The air bag diagnosis sensor unit discrimi-
nated numbers assigned are F63E (for models
with side and side front curtain air bags) and
F63D (for models without side and side front
curtain air bags).

PASSENGER AIR BAG

The STATUS (readiness) of the front passenger air
bag module is displayed.  The STATUS displayed
(ON/OFF) depends on the signals supplied to the
occupant classification system control module and
air bag diagnosis sensor unit.  Refer to

SRS-6,

"Occupant Classification System (OCS)"

   for more

information.

ARS366

WHIA0290E
