HARNESS CONNECTOR

PG-77

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

●

SRS direct-connect type harness connectors are used on certain SRS components such as air bag mod-
ules and seat belt pre-tensioners.

●

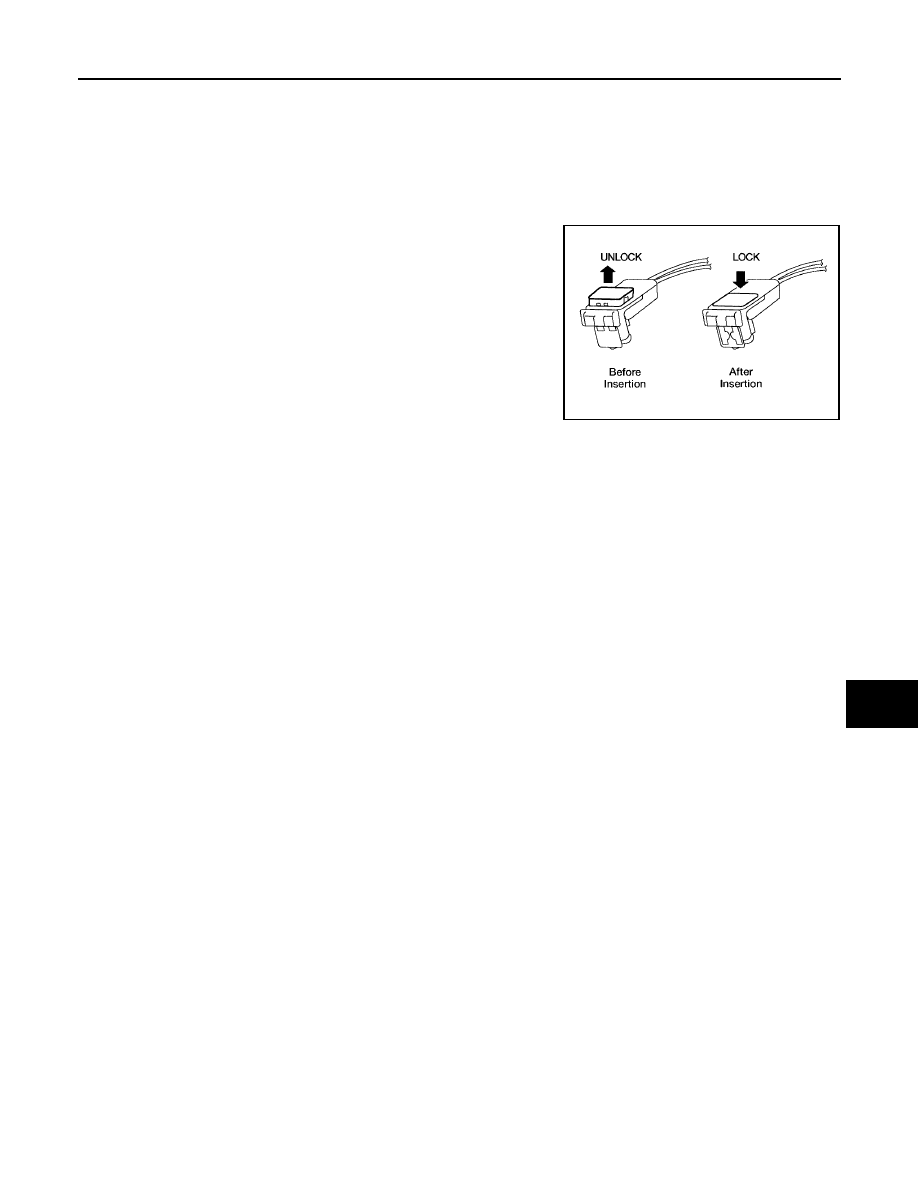

Always pull up to release black locking tab prior to removing connector from SRS component.

●

Always push down to lock black locking tab after installing connector to SRS component. When locked,
the black locking tab is level with the connector housing.

CAUTION:

●

Do not pull the harness or wires when removing connectors
from SRS components.

WHIA0103E

PG-78

ELECTRICAL UNITS

2006 Pathfinder

ELECTRICAL UNITS

PFP:23710

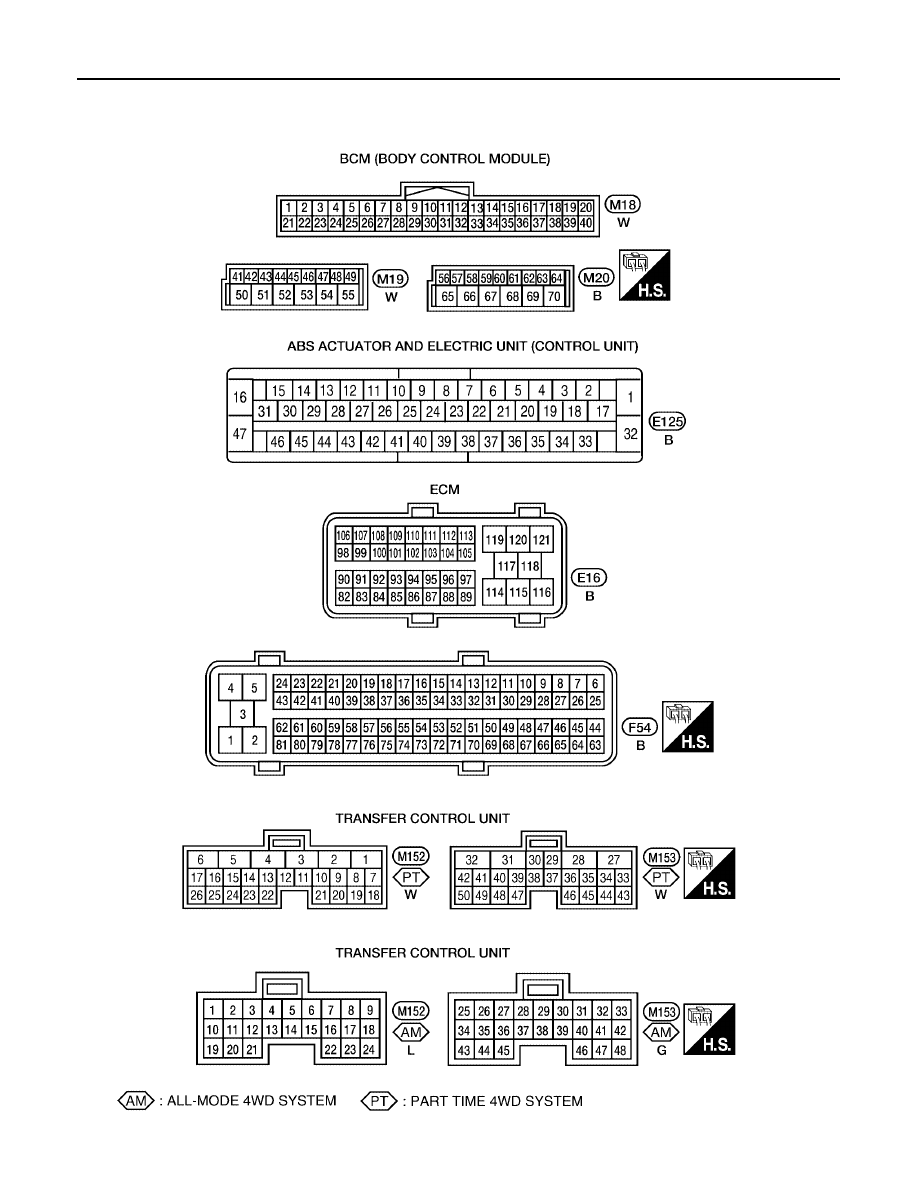

Terminal Arrangement

EKS00G8W

WKIA5011E

STANDARDIZED RELAY

PG-79

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

STANDARDIZED RELAY

PFP:25230

Description

EKS00G8X

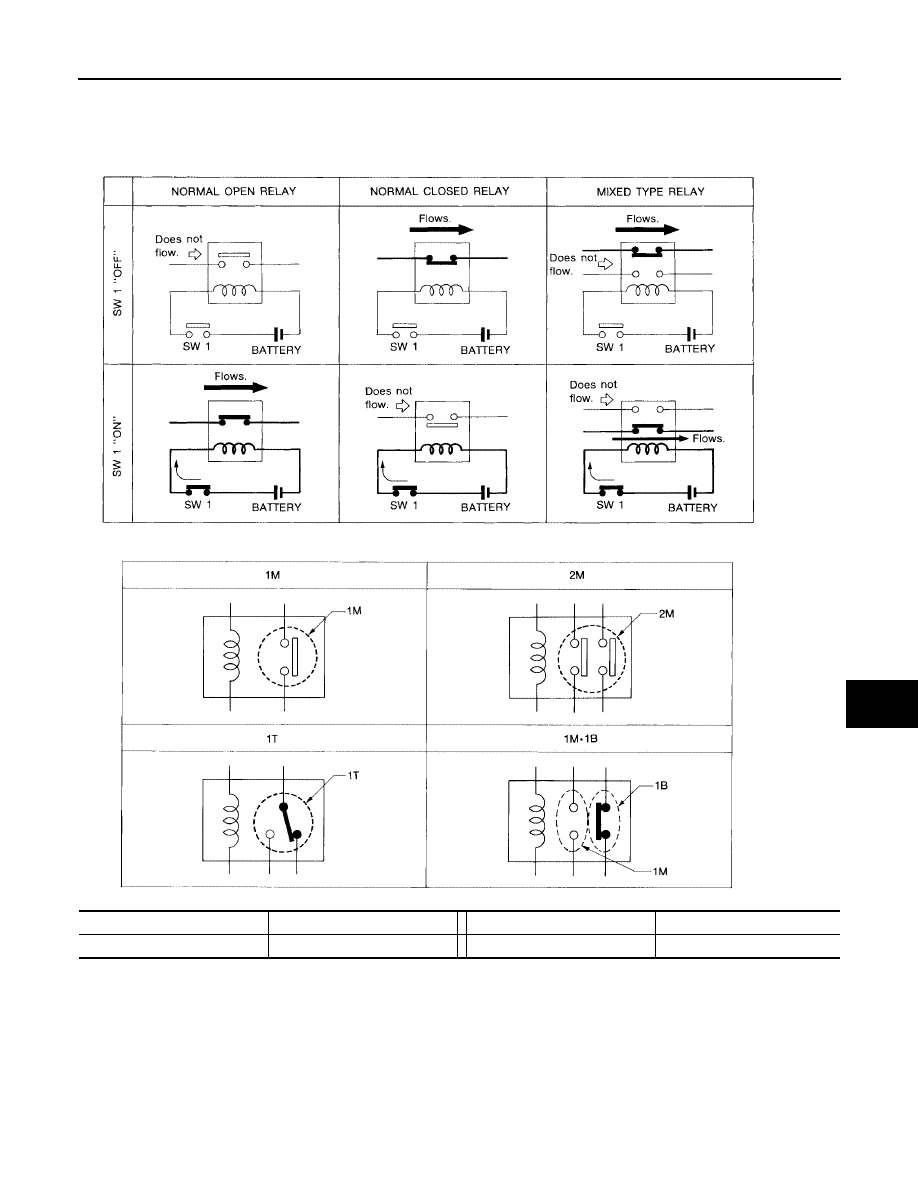

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

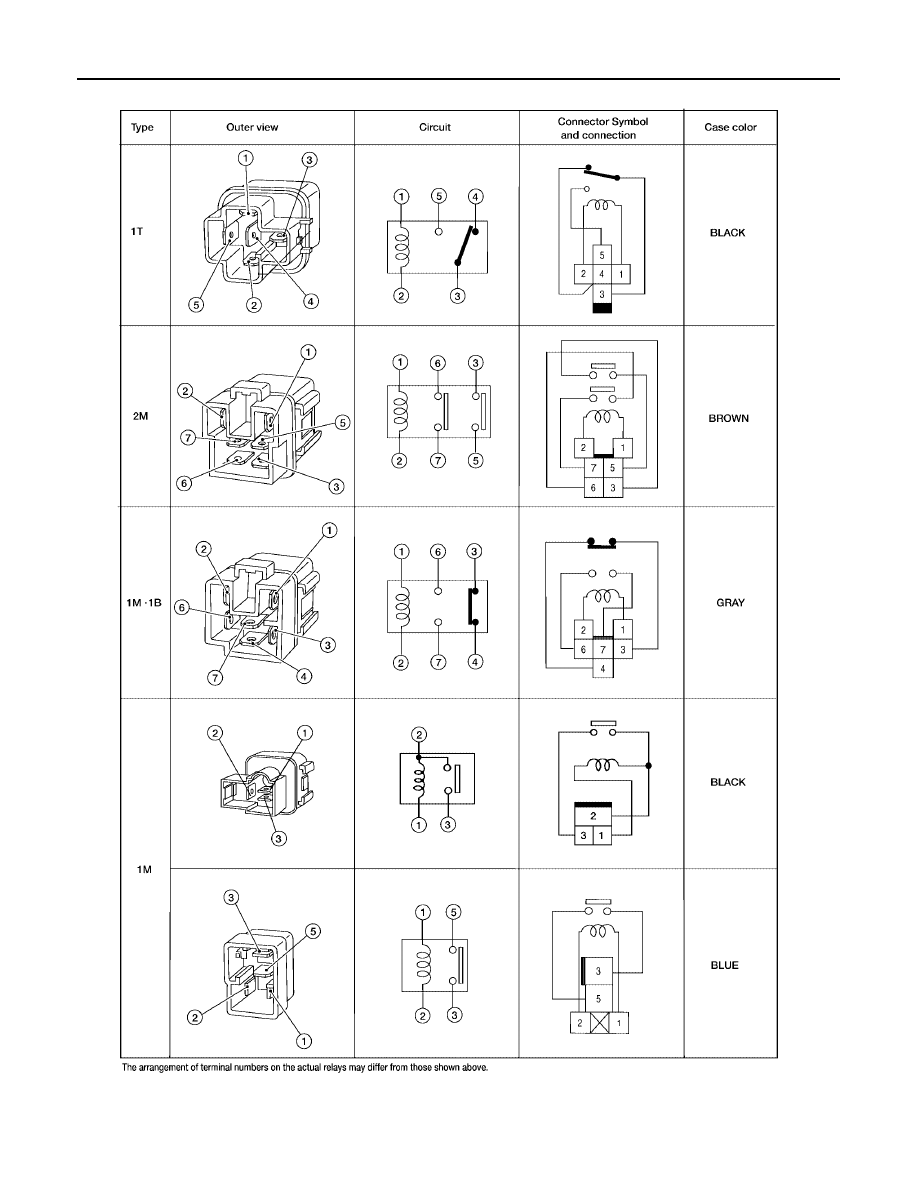

TYPE OF STANDARDIZED RELAYS

SEL881H

SEL882H

1M

1 Make

2M

2 Make

1T

1 Transfer

1M·1B

1 Make 1 Break

PG-80

STANDARDIZED RELAY

2006 Pathfinder

WKIA0253E

SUPER MULTIPLE JUNCTION (SMJ)

PG-81

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

SUPER MULTIPLE JUNCTION (SMJ)

PFP:84341

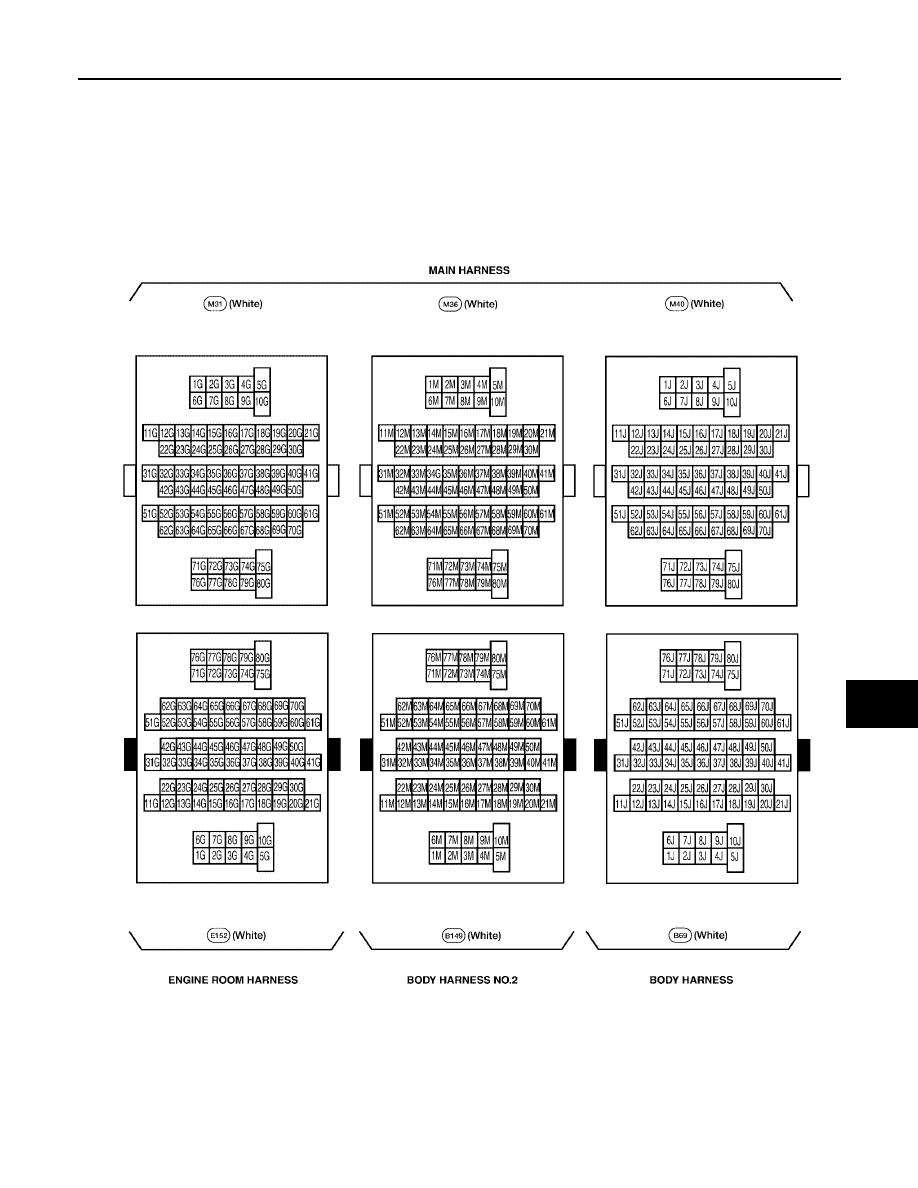

Terminal Arrangement

EKS00G8Y

WKIA3590E

PG-82

SUPER MULTIPLE JUNCTION (SMJ)

2006 Pathfinder

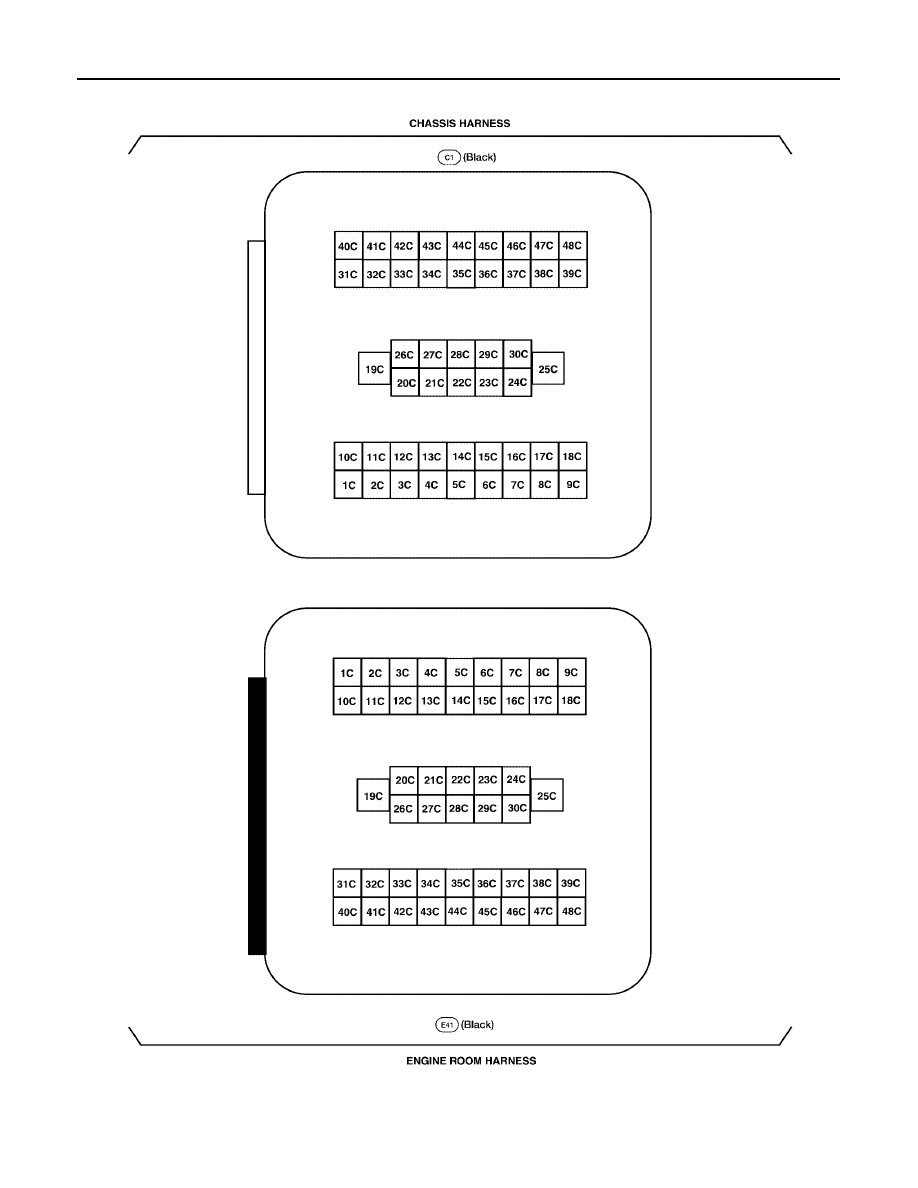

WKIA4179E

FUSE BLOCK-JUNCTION BOX (J/B)

PG-83

C

D

E

F

G

H

I

J

L

M

A

B

PG

2006 Pathfinder

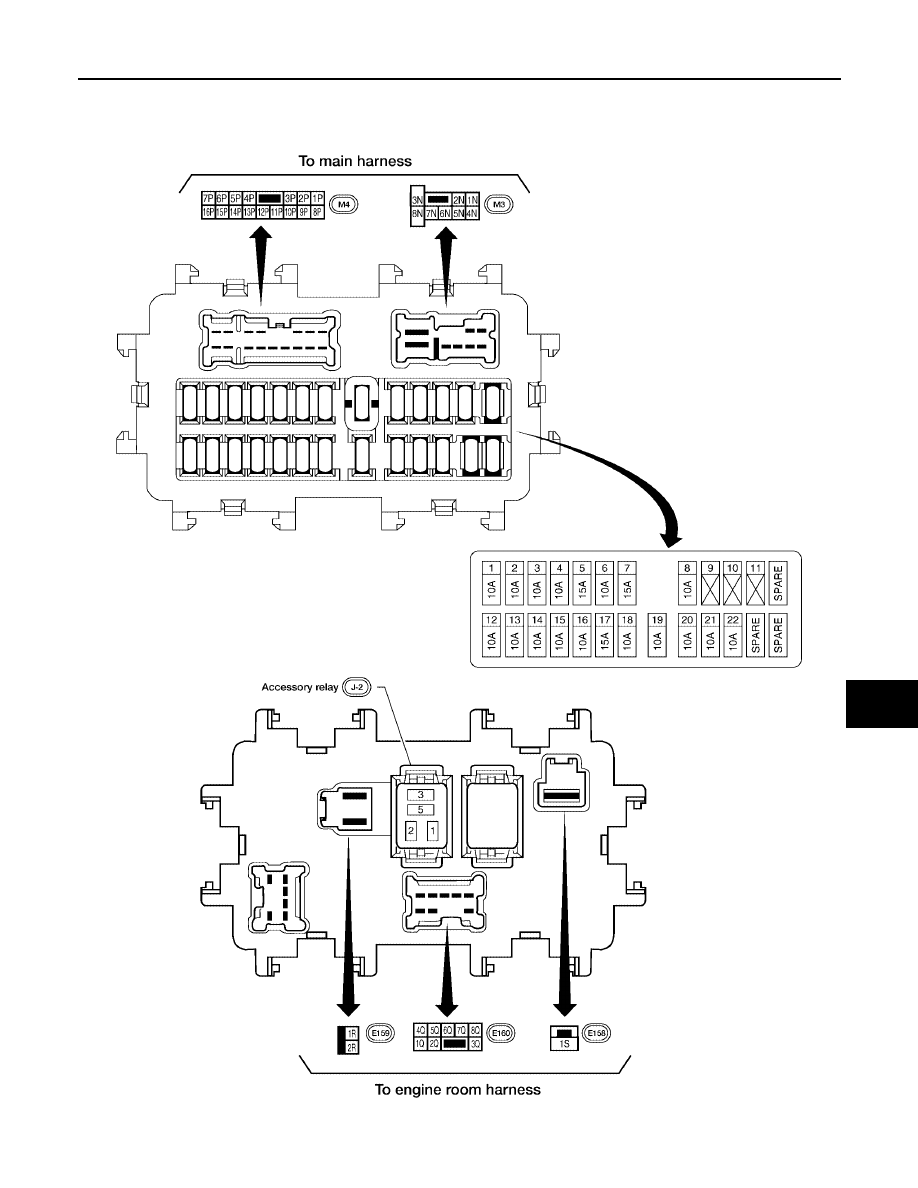

FUSE BLOCK-JUNCTION BOX (J/B)

PFP:24350

Terminal Arrangement

EKS00G8Z

WKIA5012E

PG-84

FUSE AND FUSIBLE LINK BOX

2006 Pathfinder

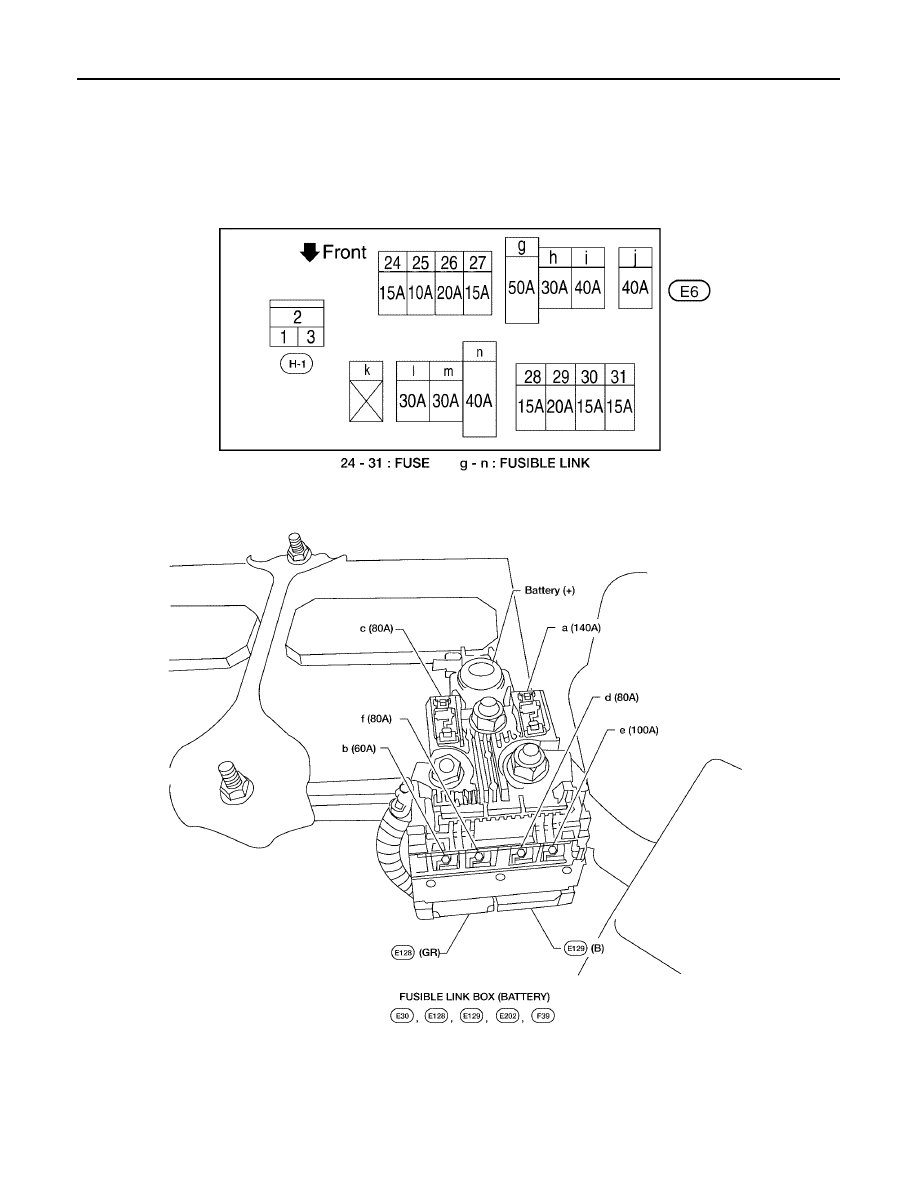

FUSE AND FUSIBLE LINK BOX

PFP:24381

Terminal Arrangement

EKS00G90

WKIA5013E
