CAN SYSTEM (TYPE 5)

LAN-113

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

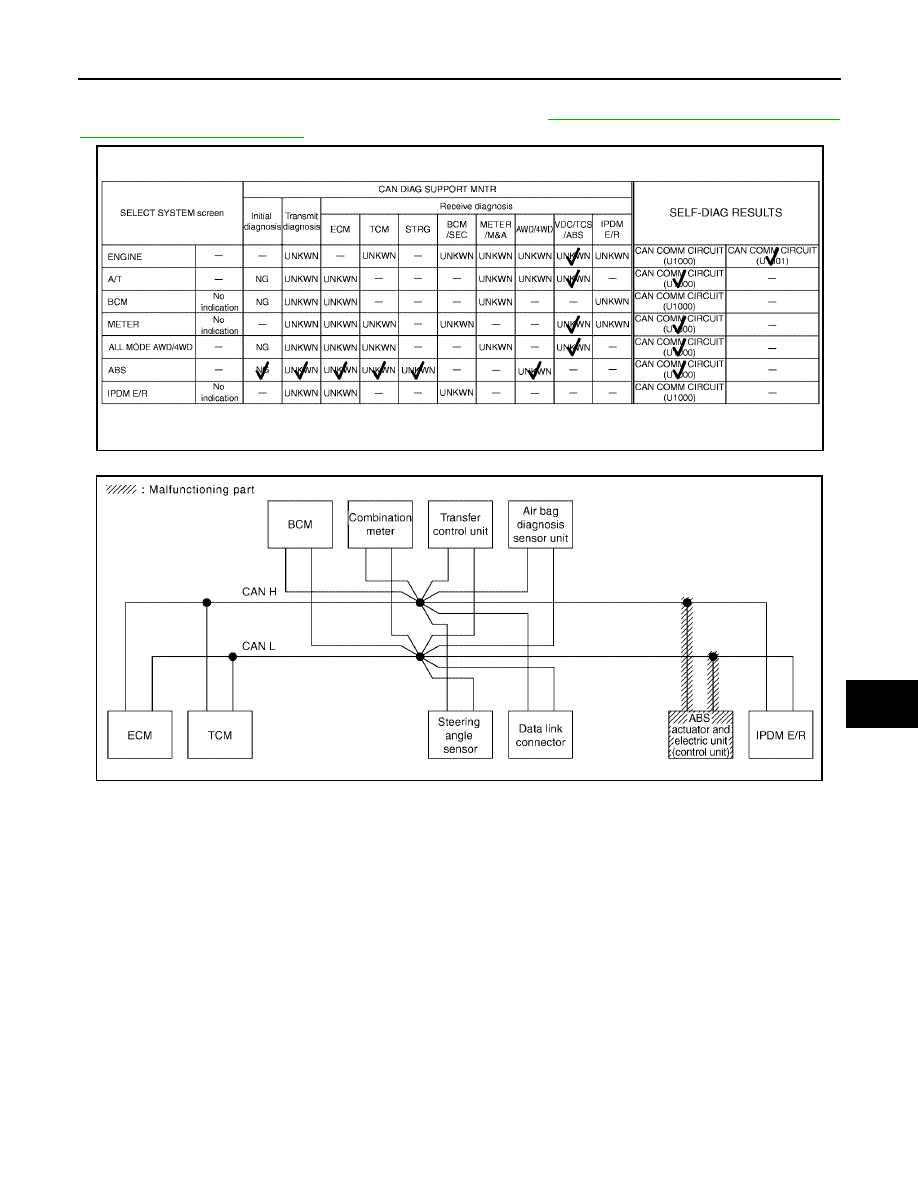

Case 10

Check ABS actuator and electric unit (control unit) circuit. Refer to

LAN-202, "ABS Actuator and Electric Unit

(Control Unit) Circuit Inspection"

 .

PKIC5683E

PKIC5457E

LAN-114

[CAN]

CAN SYSTEM (TYPE 5)

2006 Pathfinder

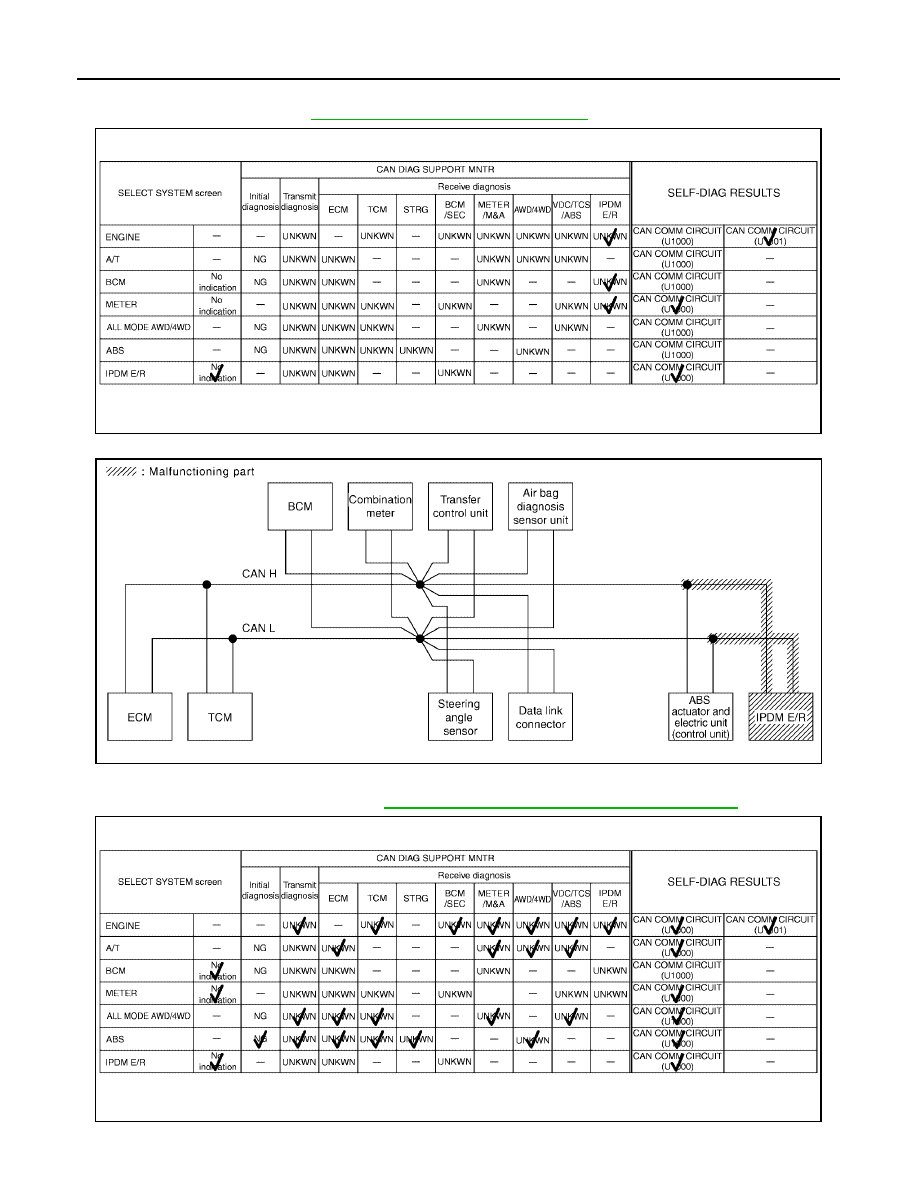

Case 11

Check IPDM E/R circuit. Refer to

LAN-203, "IPDM E/R Circuit Inspection"

 .

Case 12

Check CAN communication circuit. Refer to

LAN-203, "CAN Communication Circuit Inspection"

 .

PKIC5684E

PKIC5458E

PKIC5685E

CAN SYSTEM (TYPE 5)

LAN-115

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

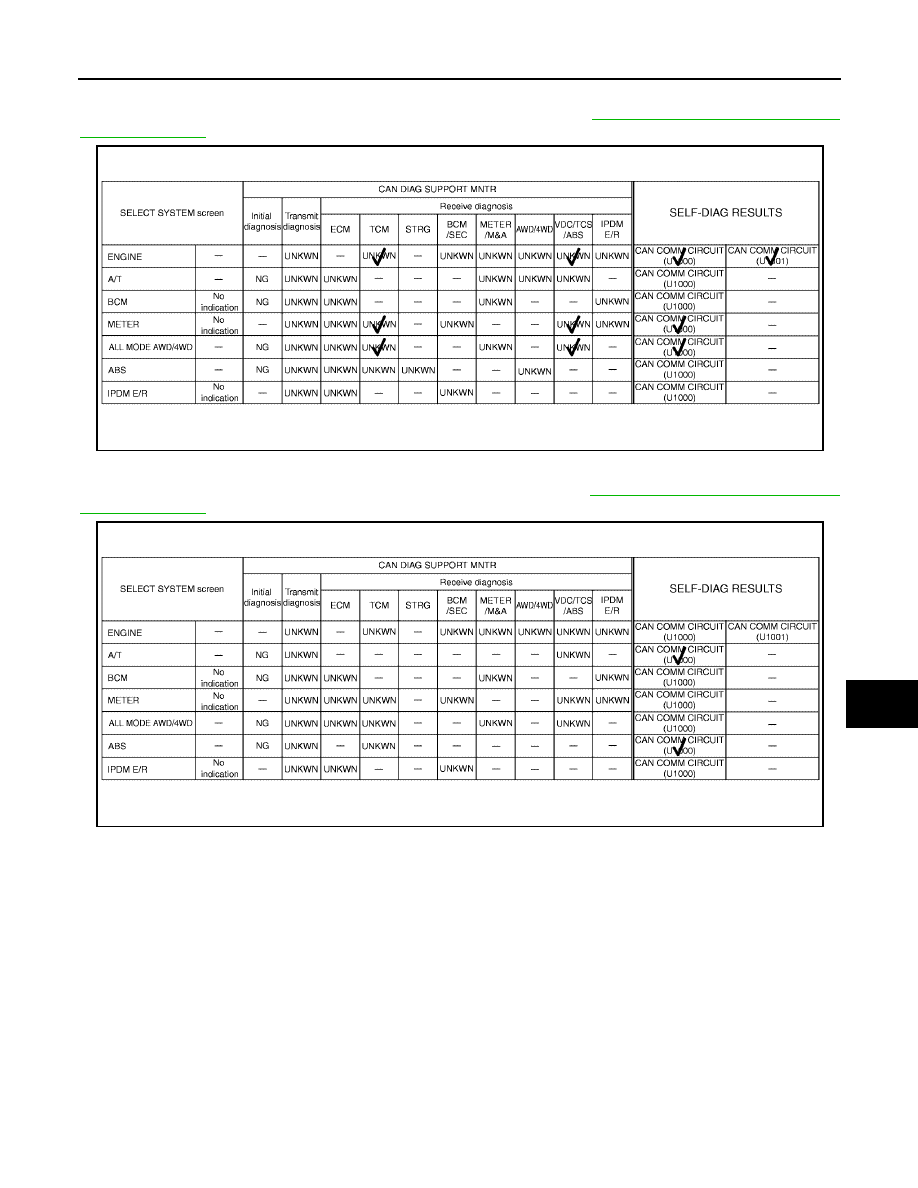

Case 13

Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

Case 14

Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to

LAN-204, "IPDM E/R Ignition Relay

Circuit Inspection"

 .

PKIC5686E

PKIC5687E

LAN-116

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

CAN SYSTEM (TYPE 6)

PFP:23710

Component Parts and Harness Connector Location

UKS0053M

Refer to

LAN-25, "Component Parts and Harness Connector Location"

 .

Schematic

UKS0053N

Refer to

LAN-26, "Schematic"

 .

Wiring Diagram — CAN —

UKS0053O

Refer to

LAN-27, "Wiring Diagram — CAN —"

 .

CAN SYSTEM (TYPE 6)

LAN-117

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

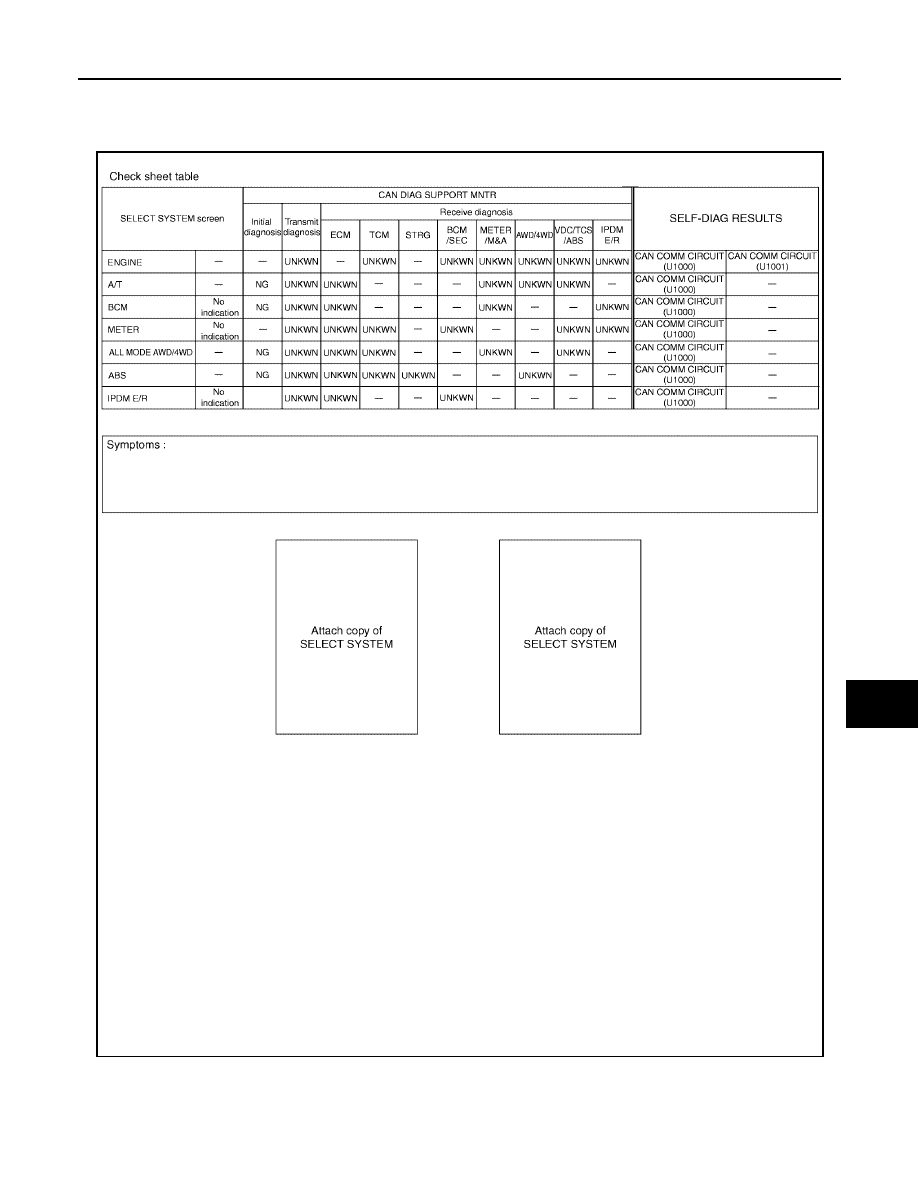

Check Sheet

UKS0053P

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIC5673E

LAN-118

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

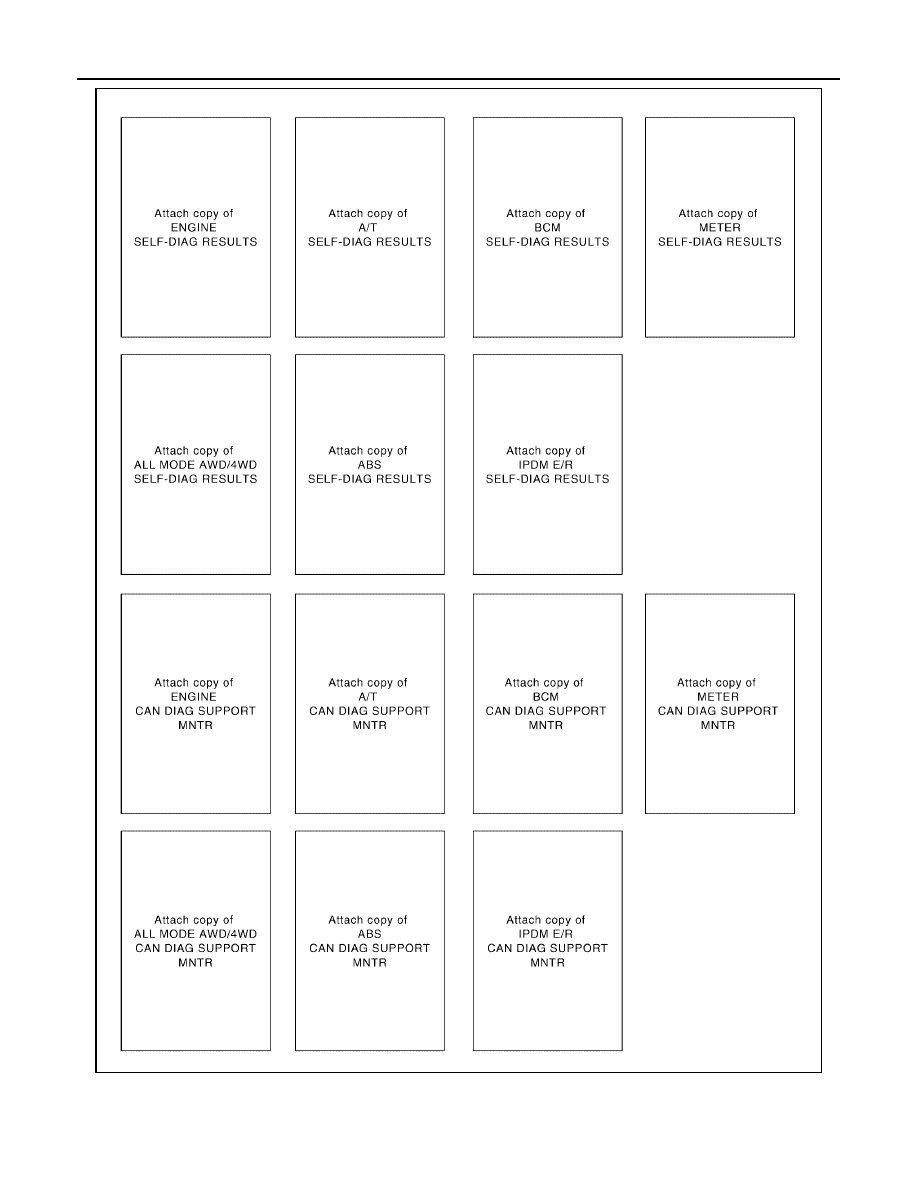

PKIC7066E

CAN SYSTEM (TYPE 6)

LAN-119

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

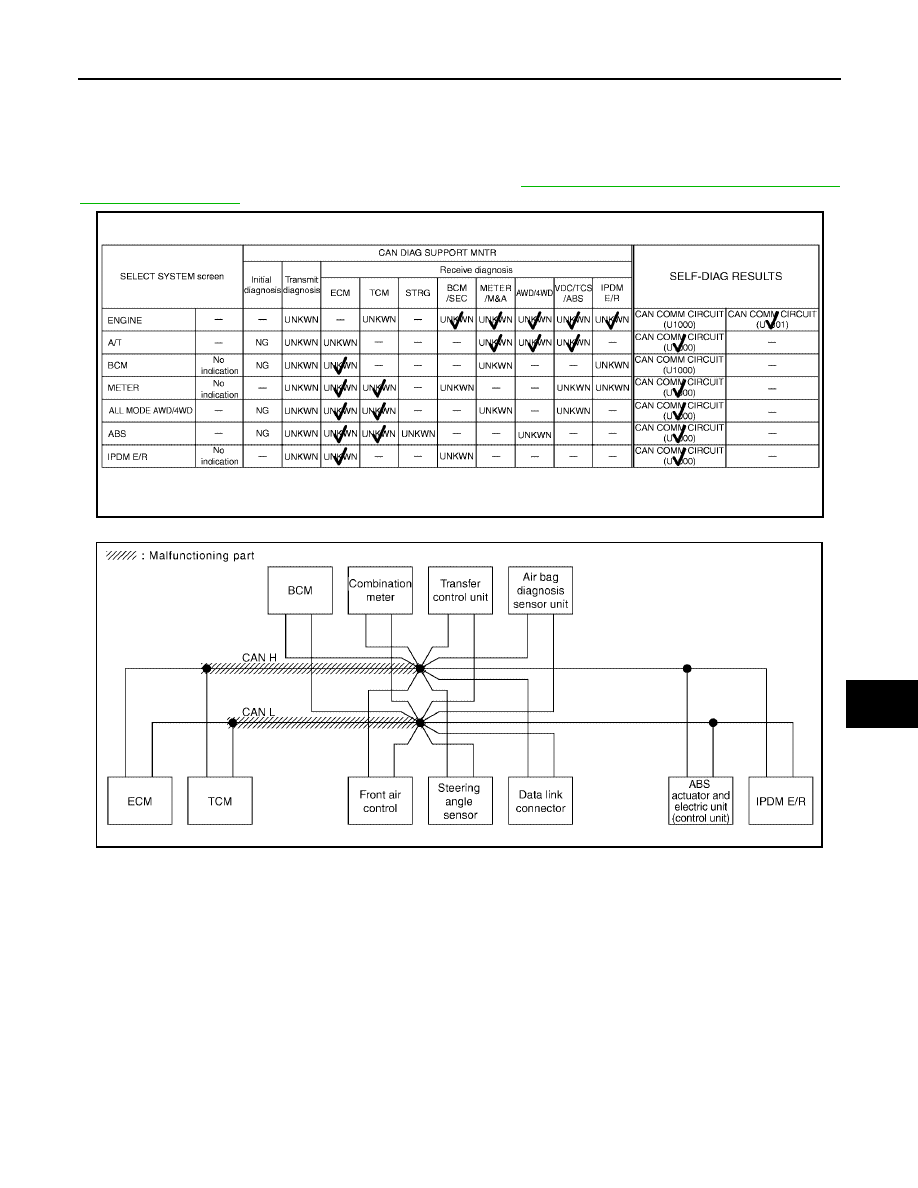

CHECK SHEET RESULTS (EXAMPLE)

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Case 1

Check harness between TCM and data link connector. Refer to

LAN-195, "Inspection Between TCM and Data

Link Connector Circuit"

 .

PKIC5674E

PKIC5459E

LAN-120

[CAN]

CAN SYSTEM (TYPE 6)

2006 Pathfinder

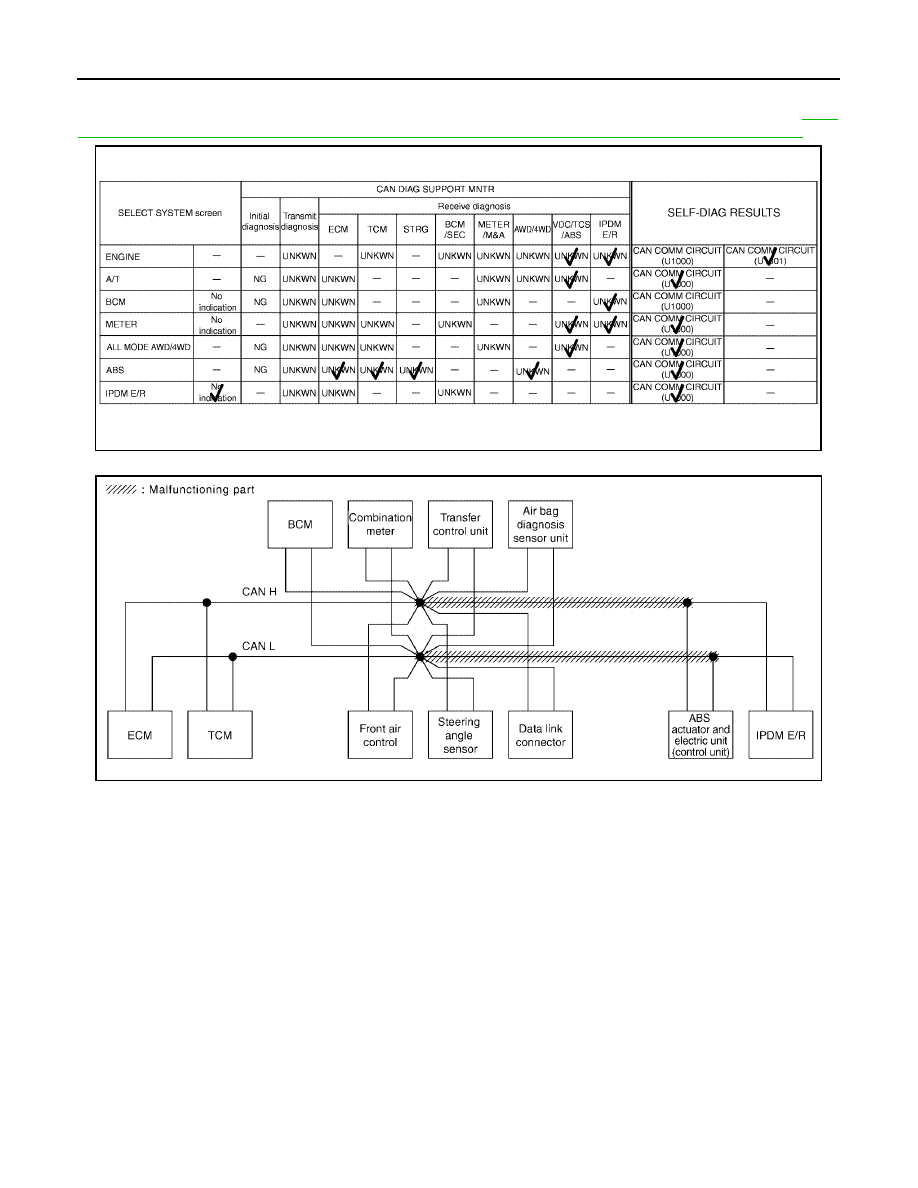

Case 2

Check harness between data link connector and ABS actuator and electric unit (control unit). Refer to

LAN-

196, "Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"

 .

PKIC5675E

PKIC5460E
