CAN SYSTEM (TYPE 4)

LAN-89

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

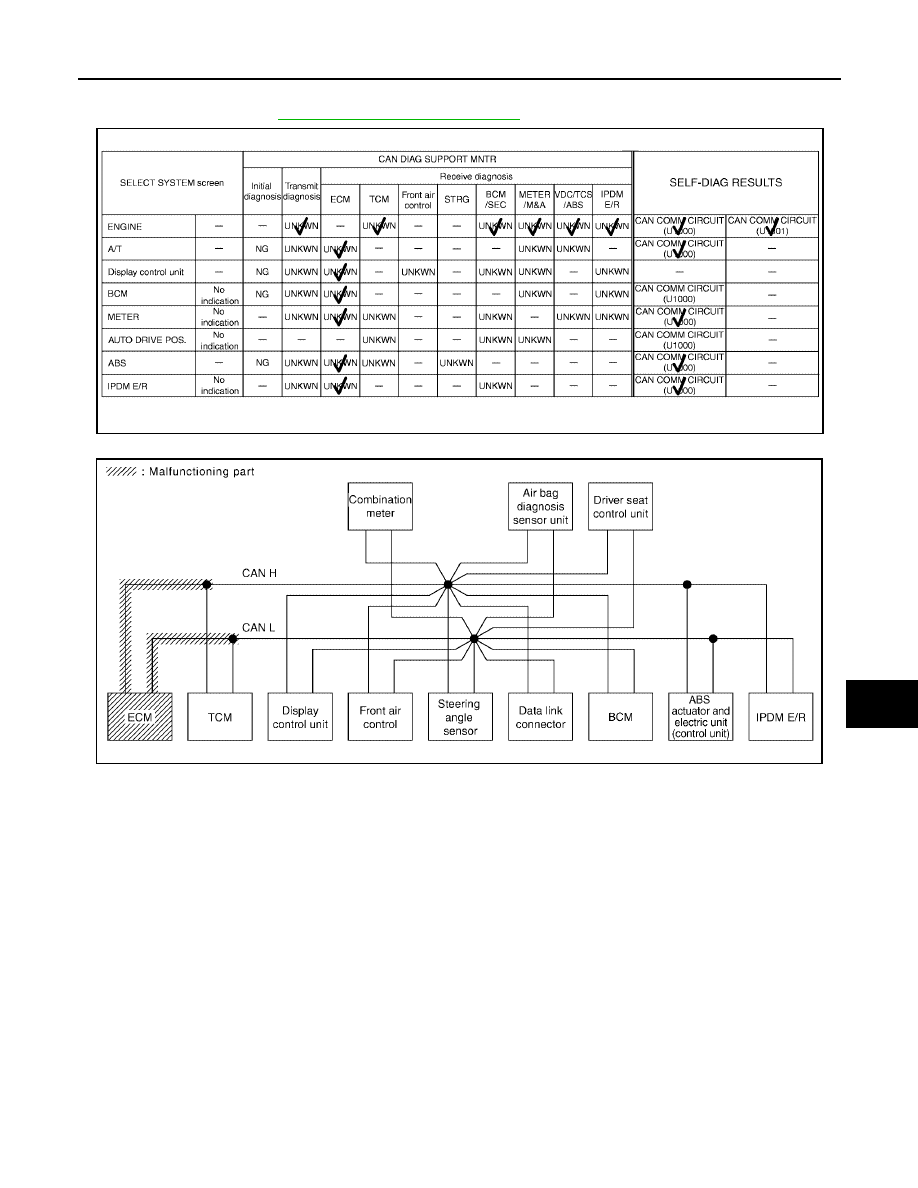

Case 3

Check ECM circuit. Refer to

LAN-197, "ECM Circuit Inspection"

 .

PKIC5659E

PKIC5437E

LAN-90

[CAN]

CAN SYSTEM (TYPE 4)

2006 Pathfinder

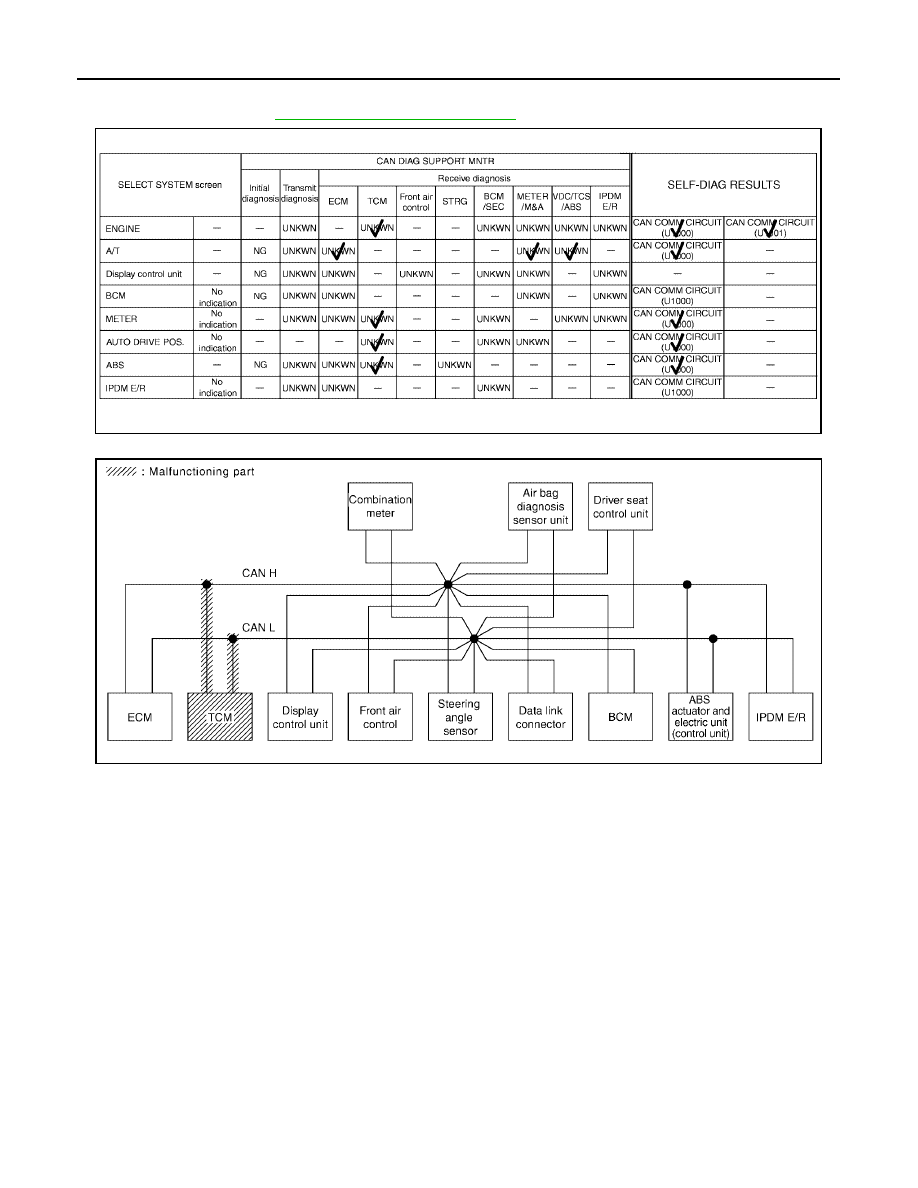

Case 4

Check TCM circuit. Refer to

LAN-197, "TCM Circuit Inspection"

 .

PKIC5660E

PKIC5438E

CAN SYSTEM (TYPE 4)

LAN-91

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

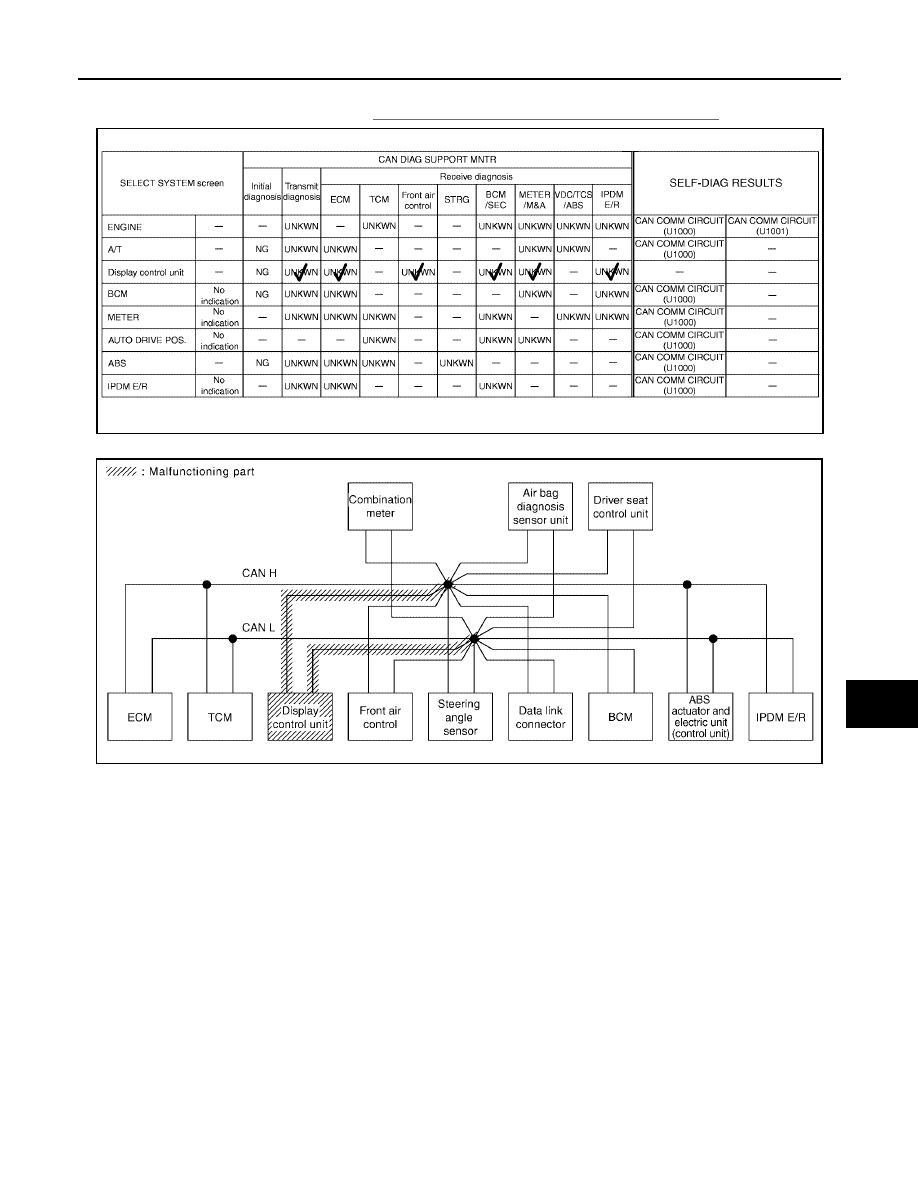

Case 5

Check display control unit circuit. Refer to

LAN-198, "Display Control Unit Circuit Inspection"

 .

PKIC5661E

PKIC5439E

LAN-92

[CAN]

CAN SYSTEM (TYPE 4)

2006 Pathfinder

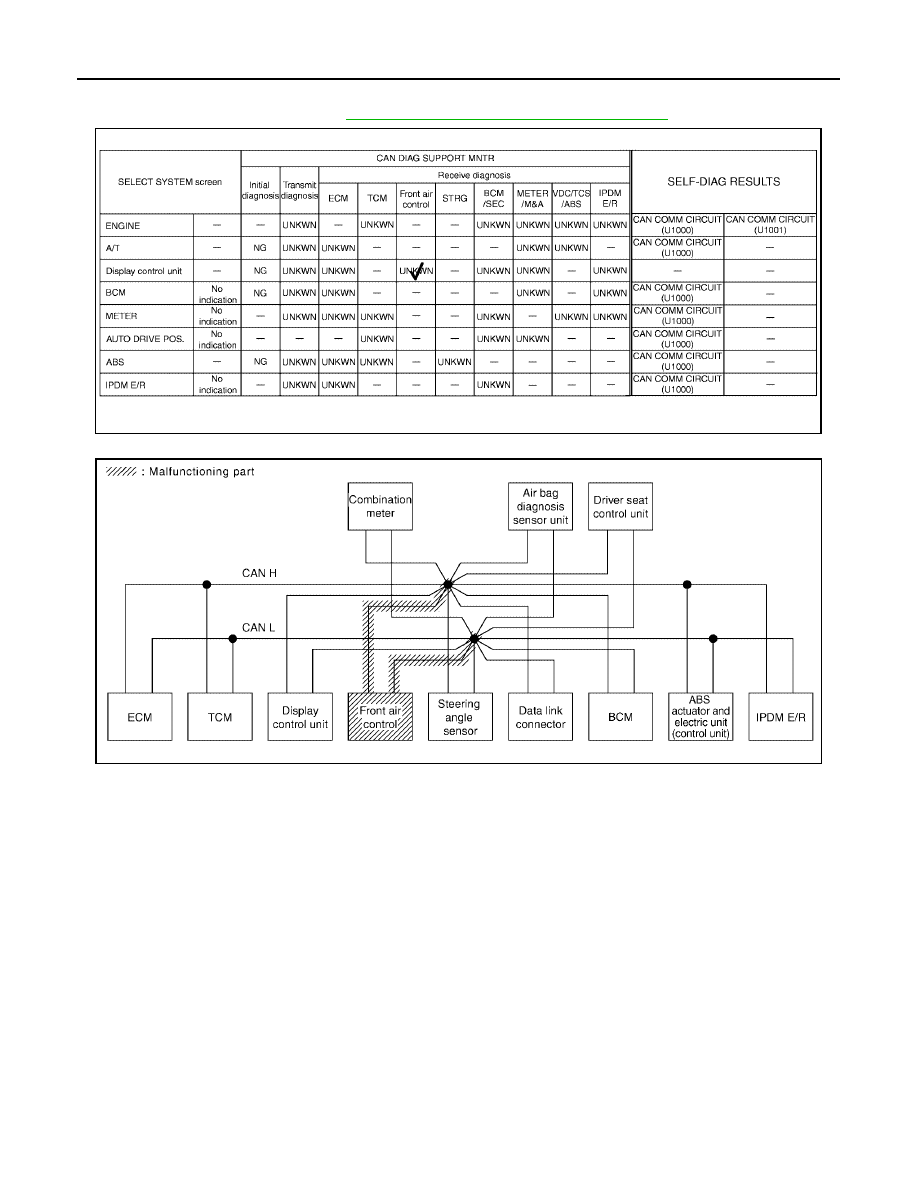

Case 6

Check front air control circuit. Refer to

LAN-198, "Front Air Control Circuit Inspection"

 .

PKIC5662E

PKIC5440E

CAN SYSTEM (TYPE 4)

LAN-93

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

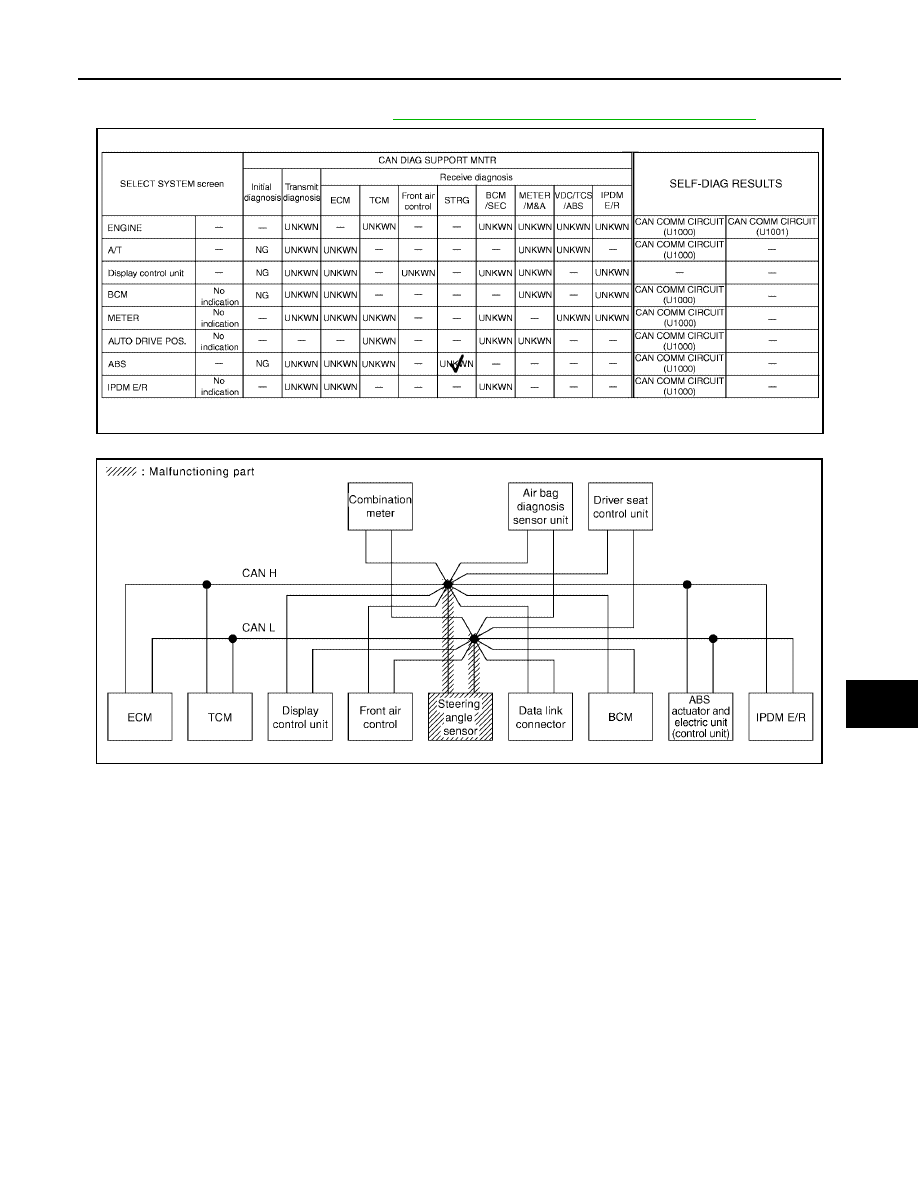

Case 7

Check steering angle sensor circuit. Refer to

LAN-199, "Steering Angle Sensor Circuit Inspection"

 .

PKIC5663E

PKIC5441E

LAN-94

[CAN]

CAN SYSTEM (TYPE 4)

2006 Pathfinder

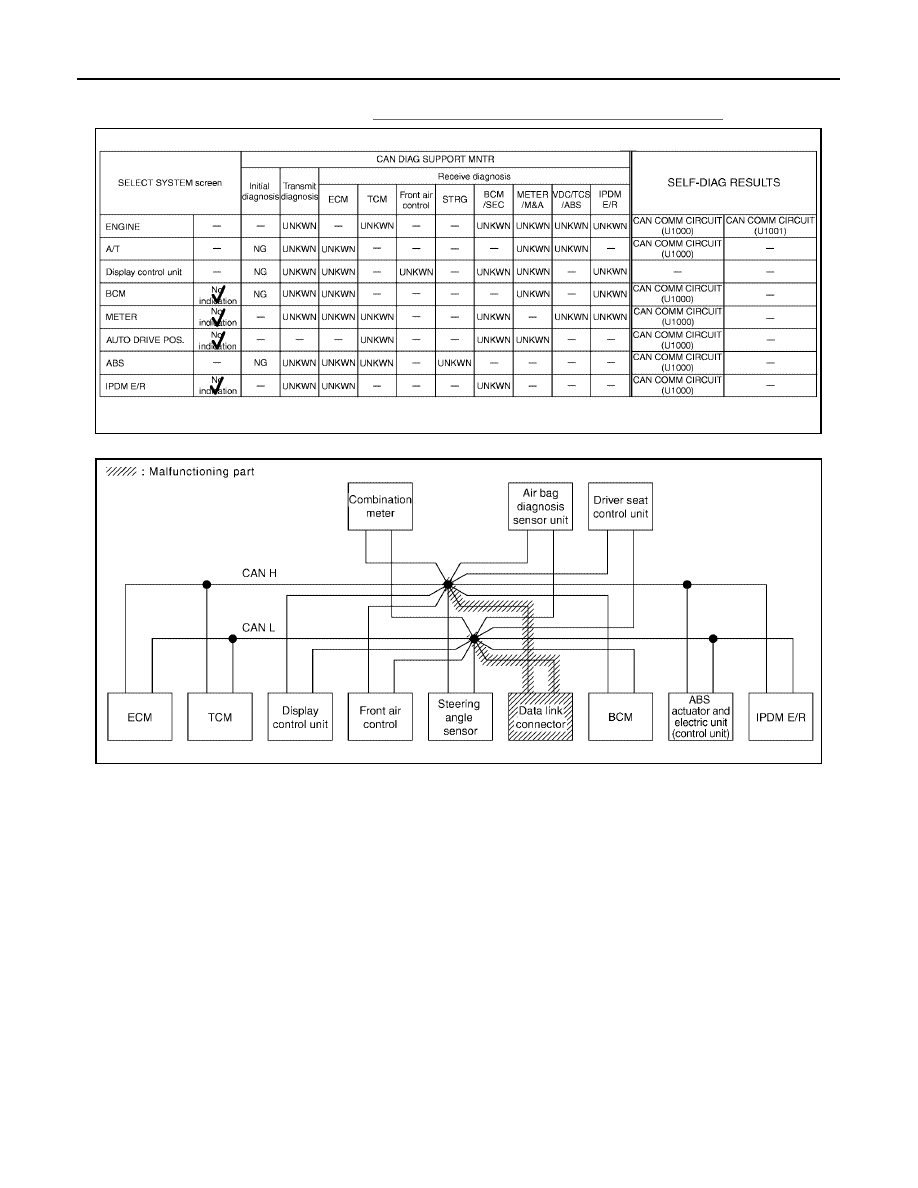

Case 8

Check data link connector circuit. Refer to

LAN-199, "Data Link Connector Circuit Inspection"

 .

PKIC5664E

PKIC5442E

CAN SYSTEM (TYPE 4)

LAN-95

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2006 Pathfinder

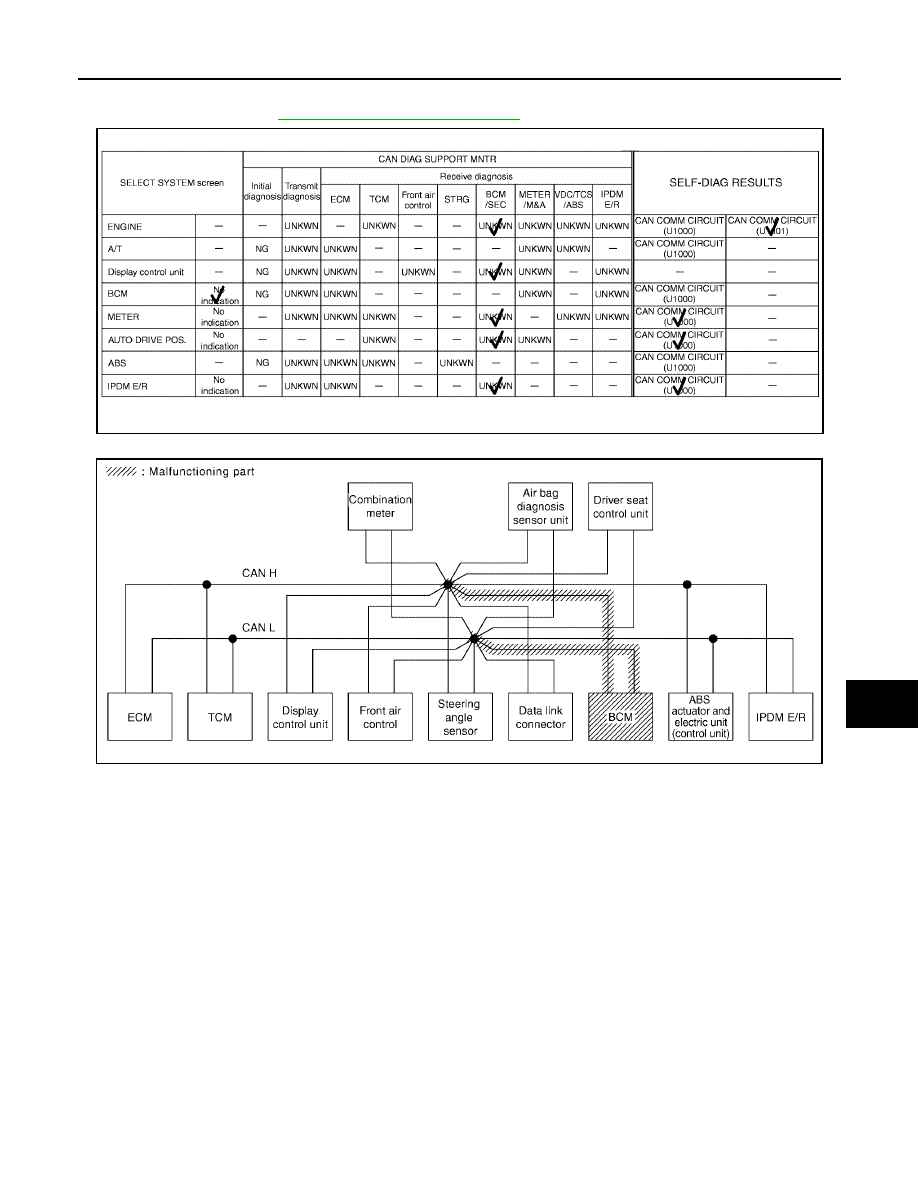

Case 9

Check BCM circuit. Refer to

LAN-200, "BCM Circuit Inspection"

 .

PKIC5665E

PKIC5443E

LAN-96

[CAN]

CAN SYSTEM (TYPE 4)

2006 Pathfinder

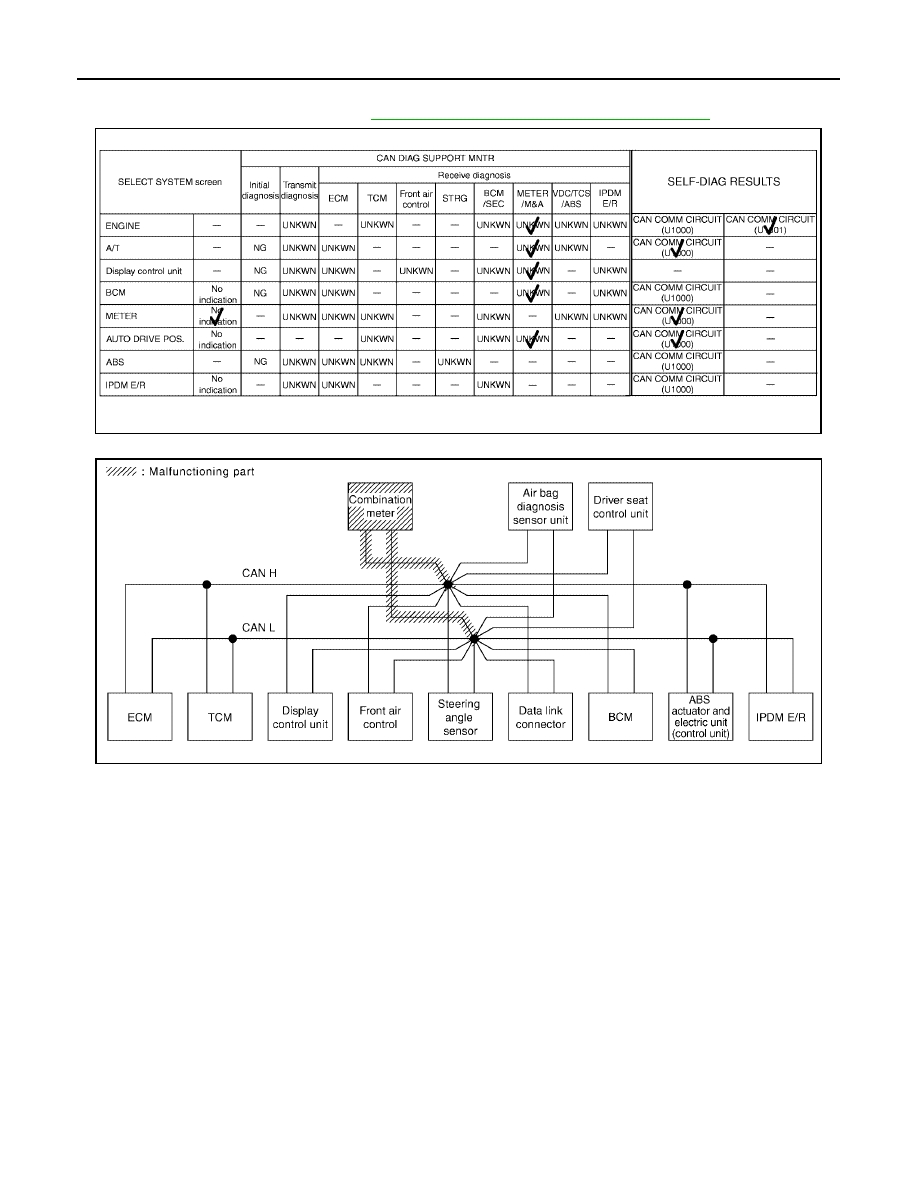

Case 10

Check combination meter circuit. Refer to

LAN-200, "Combination Meter Circuit Inspection"

 .

PKIC5666E

PKIC5444E
