Nissan Pathfinder (2006 year). Instruction - part 271

POWER WINDOW SYSTEM

GW-49

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

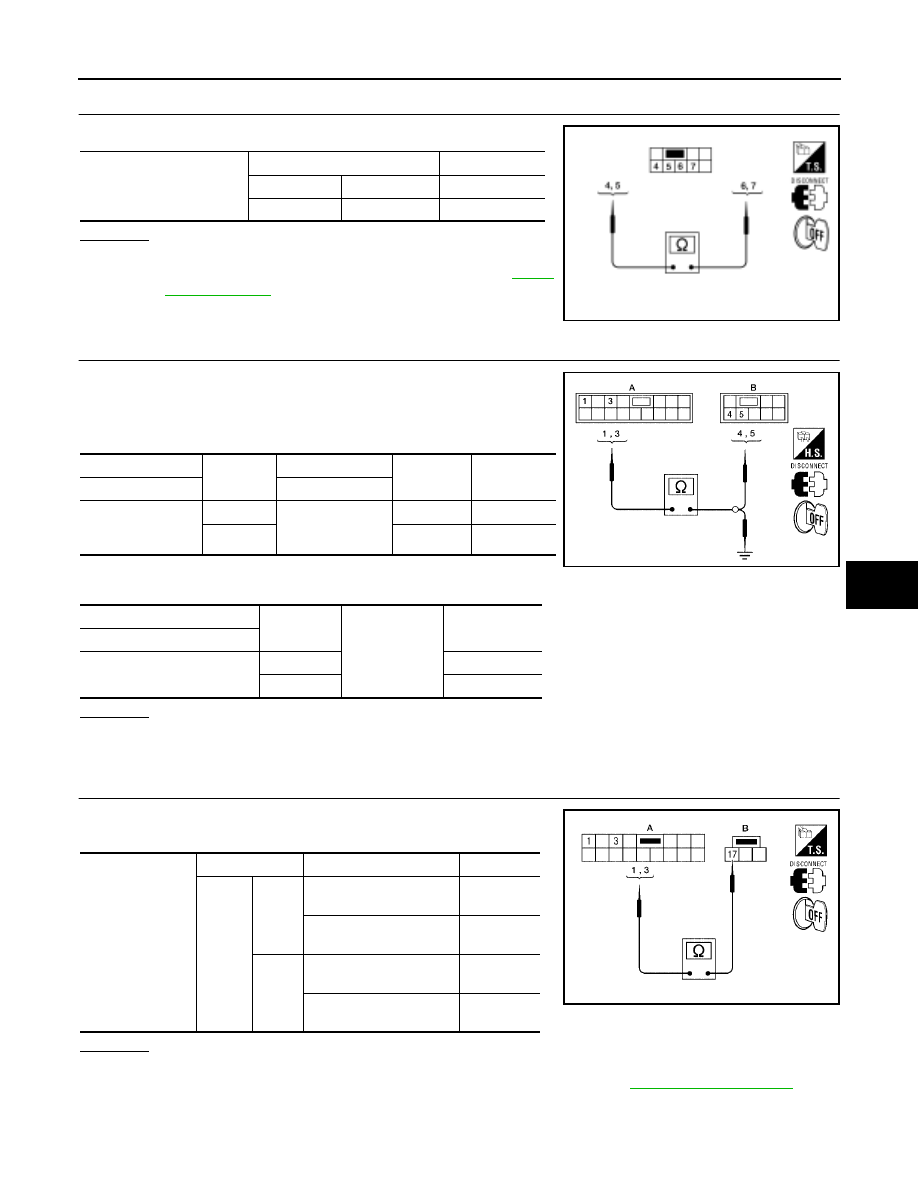

3.

CHECK REAR POWER WINDOW SWITCH LH

Check continuity between rear power window switch LH terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Replace rear power window switch LH. Refer to

EI-26,

"REAR DOOR"

 .

4.

CHECK GROUND SUPPLY CIRCUIT

1.

Disconnect main power window and door lock/unlock switch.

2.

Check continuity between main power window and door lock/
unlock switch connector and rear power window switch LH con-
nector.

3.

Check continuity between main power window and door lock/
unlock switch connector and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness.

5.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check continuity between main power window and door lock/unlock
switch terminals.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace main power window and door lock/unlock switch. Refer to

EI-25, "FRONT DOOR"

 .

Rear power window switch

LH

Terminals

Continuity

4

7

Yes

5

6

Yes

LIIA2181E

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power win-

dow and door lock/

unlock switch: D7

1

Rear power win-

dow switch LH:

D203

4

Yes

3

5

Yes

Connector

Terminal

Ground

Continuity

A

Main power window and door

lock/unlock switch: D7

1

No

3

No

LIIA2230E

Main power win-

dow and door

lock/unlock switch

Terminals

Condition

Continuity

17

1

Power window lock

switch UNLOCK

Yes

Power window lock

switch LOCK

No

3

Power window lock

switch UNLOCK

Yes

Power window lock

switch LOCK

No

LIIA2231E

GW-50

POWER WINDOW SYSTEM

2006 Pathfinder

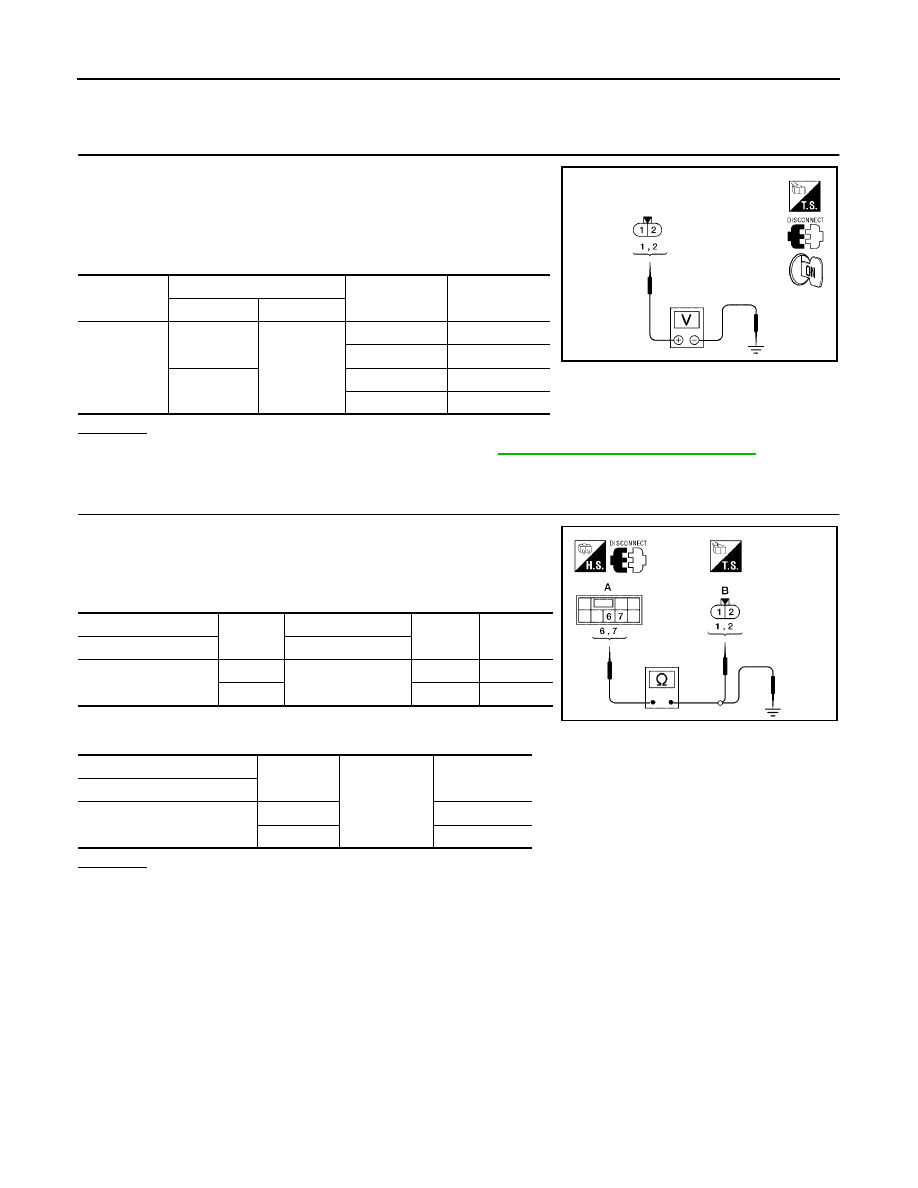

Rear Power Window RH Circuit Check (Rear Power Window Switch RH Opera-
tion)

EIS007RW

1.

CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear power window motor RH.

3.

Turn ignition switch ON.

4.

Check voltage between rear power window motor RH connector
and ground.

OK or NG

OK

>> Replace rear power window motor RH. Refer to

GW-62, "Rear Door Glass Regulator"

 .

NG

>> GO TO 2.

2.

CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch RH.

3.

Check continuity between rear power window switch RH con-
nector and rear power window motor RH connector.

4.

Check continuity between rear power window switch RH con-
nector and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Rear power

window

motor RH:

D304

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2228E

Connector

Terminal

Connector

Terminal

Continuity

A

B

Rear power window

switch RH: D303

6

Rear power window

motor RH: D304

1

Yes

7

2

Yes

Connector

Terminal

Ground

Continuity

A

Rear power window switch

RH: D303

6

No

7

No

LIIA2229E

POWER WINDOW SYSTEM

GW-51

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

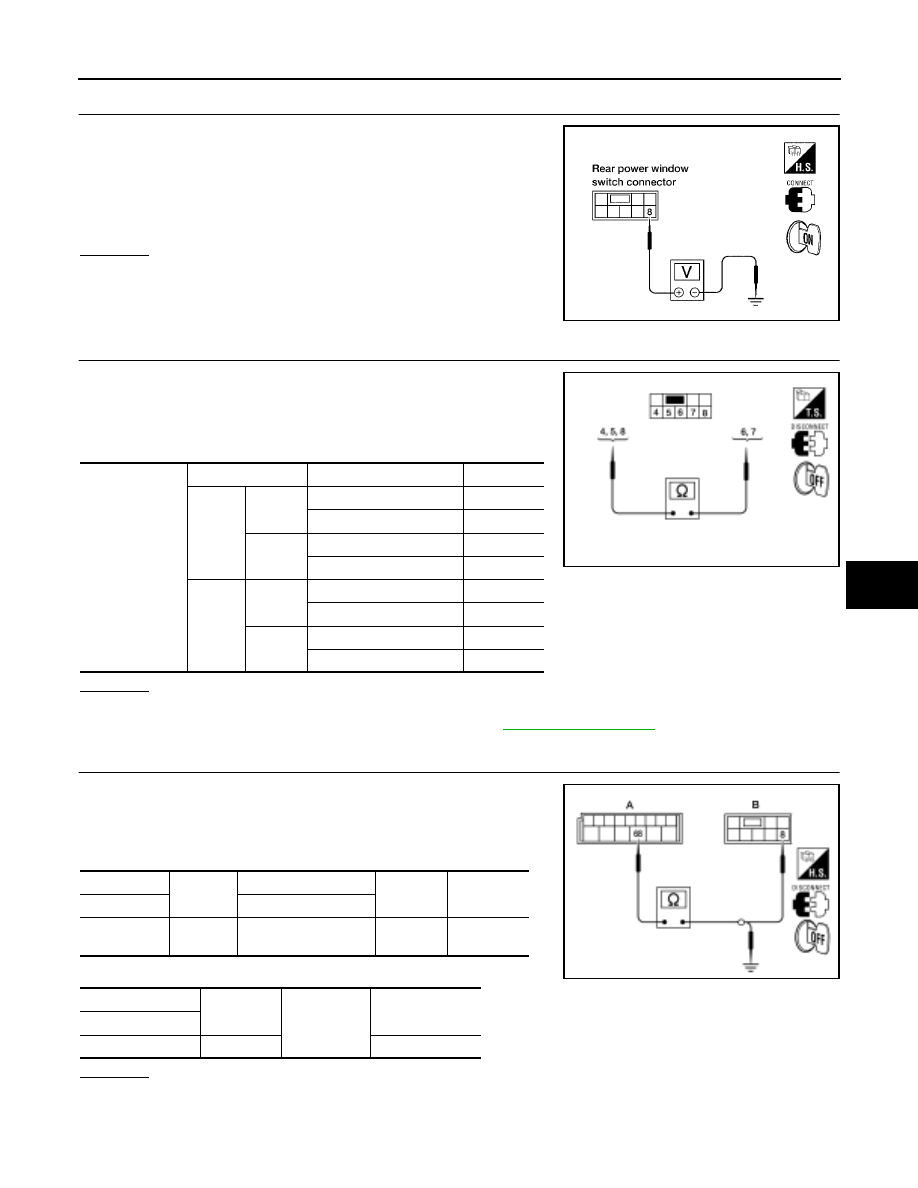

3.

CHECK POWER SUPPLY

1.

Connect rear power window switch RH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window switch RH connector
D303 terminal 8 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 5.

4.

CHECK REAR POWER WINDOW SWITCH RH

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch RH.

3.

Check continuity between rear power window switch RH termi-
nals.

OK or NG

OK

>> GO TO 6.

NG

>> Replace rear power window switch RH. Refer to

EI-26, "REAR DOOR"

 .

5.

CHECK REAR POWER WINDOW SWITCH RH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM.

3.

Check continuity between BCM connector and rear power win-
dow switch RH connector.

4.

Check continuity between BCM and ground.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness.

8 - Ground

: Battery voltage

LIIA1715E

Rearpower win-

dow switch RH

Terminals

Condition

Continuity

6

5

DOWN

No

NEUTRAL or UP

Yes

8

NEUTRAL or UP

No

DOWN

Yes

7

4

UP

No

NEUTRAL or DOWN

Yes

8

NEUTRAL or DOWN

No

UP

Yes

LIIA2174E

Connector

Terminal

Connector

Terminal

Continuity

A

B

BCM: M20

68

Rear power window

switch RH: D303

8

Yes

Connector

Terminal

Ground

Continuity

A

BCM: M20

68

No

LIIA2175E

GW-52

POWER WINDOW SYSTEM

2006 Pathfinder

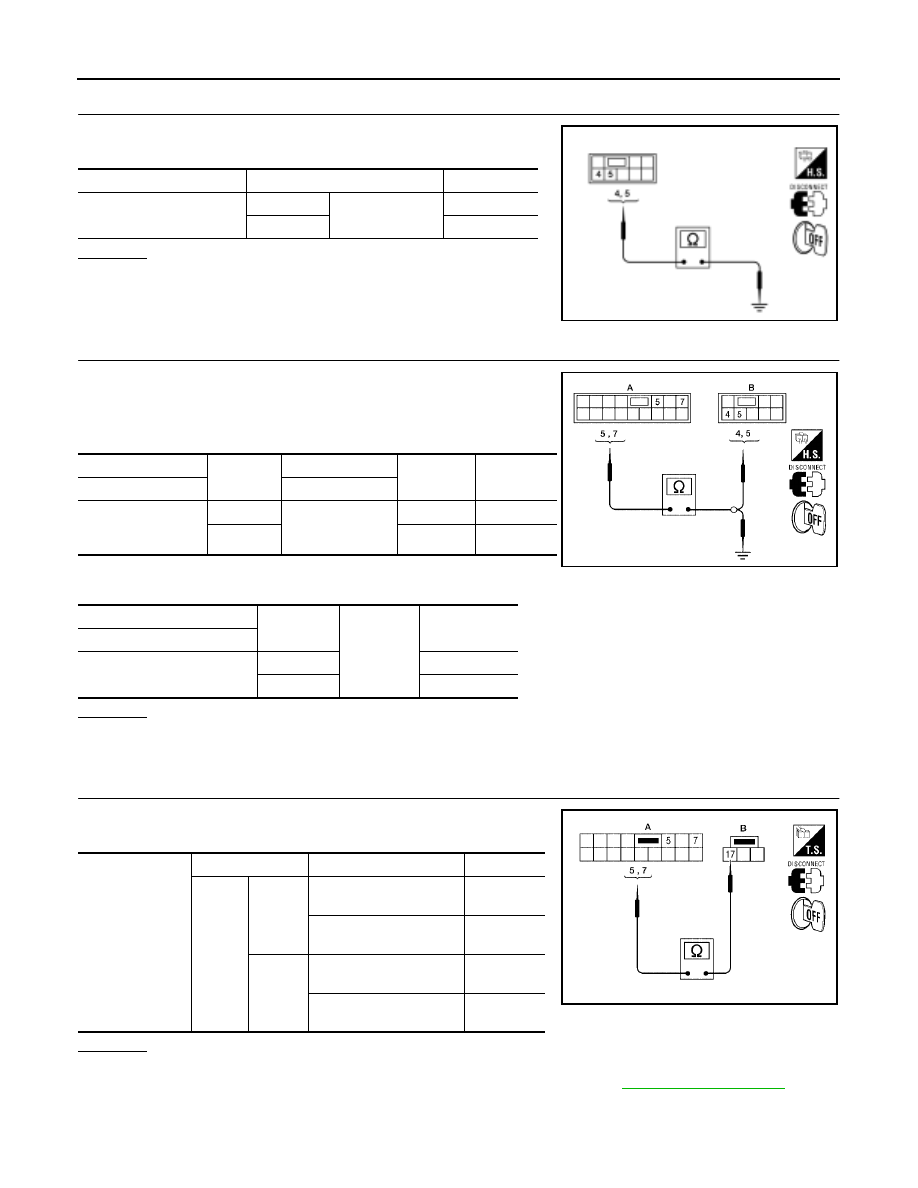

6.

CHECK REAR POWER WINDOW SWITCH RH GROUND SUPPLY

Check continuity between rear power window switch RH connector
and ground.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> GO TO 7.

7.

CHECK GROUND SUPPLY CIRCUIT

1.

Disconnect main power window and door lock/unlock switch.

2.

Check continuity between main power window and door lock/
unlock switch connector and rear power window switch RH con-
nector.

3.

Check continuity between main power window and door lock/
unlock switch connector and ground.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace harness.

8.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check continuity between main power window and door lock/unlock
switch terminals.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace main power window and door lock/unlock switch. refer to

EI-25, "FRONT DOOR"

 .

Connector

Terminals

Continuity

Rear power window switch

RH: D303

4

Ground

Yes

5

Yes

LIIA2176E

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power window

and door lock/unlock

switch: D7

5

Rear power win-

dow switch RH:

D303

5

Yes

7

4

Yes

Connector

Terminal

Ground

Continuity

A

Main power window and door

lock/unlock switch: D7

5

No

7

No

LIIA2232E

Main power win-

dow and door

lock/unlock

switch

Terminals

Condition

Continuity

17

5

Power window lock

switch UNLOCK

Yes

Power window lock

switch LOCK

No

7

Power window lock

switch UNLOCK

Yes

Power window lock

switch LOCK

No

LIIA2233E

POWER WINDOW SYSTEM

GW-53

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

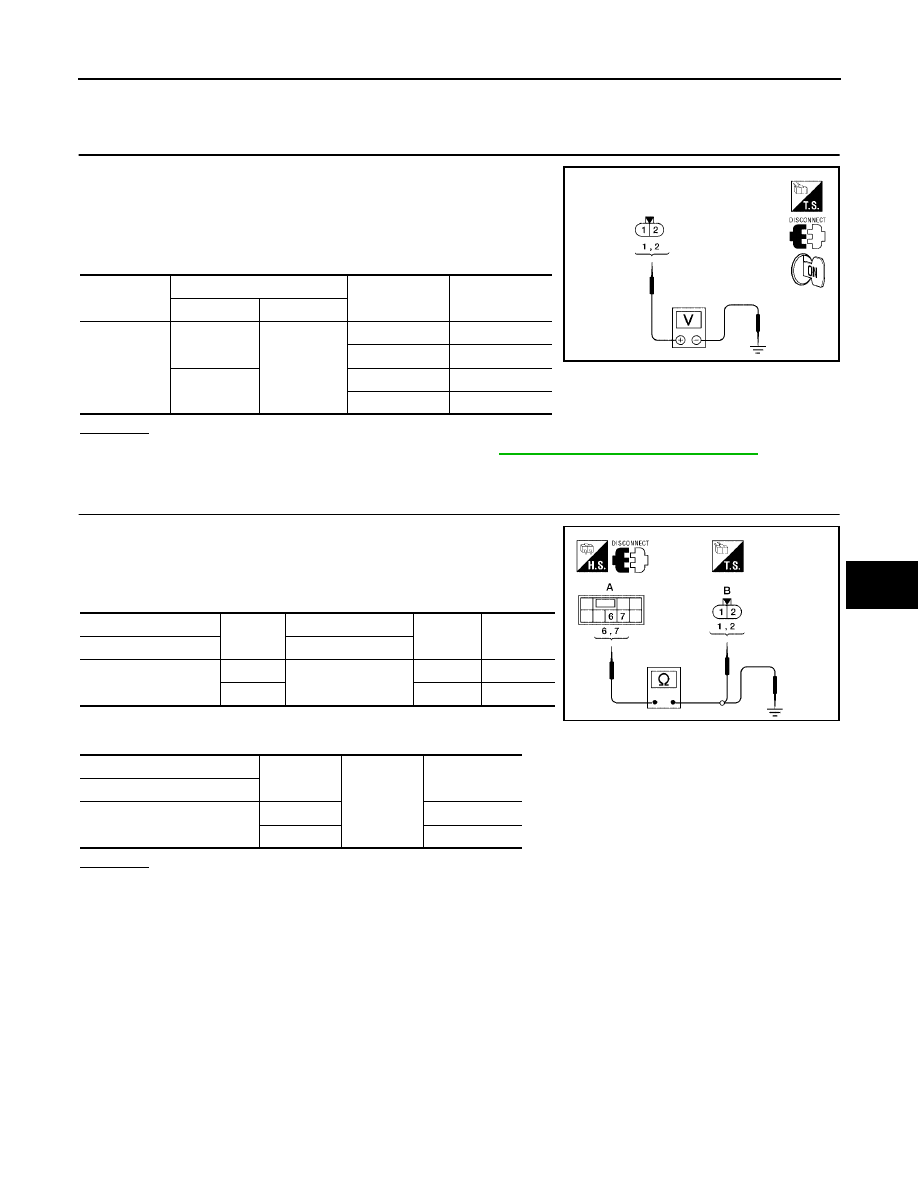

Rear Power Window RH Circuit Check (Main Power Window and Door Lock/
Unlock Switch Operation)

EIS007RX

1.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear power window motor RH.

3.

Turn ignition switch ON.

4.

Check voltage between rear power window motor RH connector
and ground.

OK or NG

OK

>> Replace rear power window motor RH. Refer to

GW-62, "Rear Door Glass Regulator"

 .

NG

>> GO TO 2.

2.

CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch RH.

3.

Check continuity between rear power window switch RH con-
nector and rear power window motor RH connector.

4.

Check continuity between rear power window switch RH con-
nector and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Rear power

window

motor RH:

D304

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2228E

Connector

Terminal

Connector

Terminal

Continuity

A

B

Rear power window

switch RH: D303

6

Rear power window

motor RH: D304

1

Yes

7

2

Yes

Connector

Terminal

Ground

Continuity

A

Rear power window switch

RH: D303

6

No

7

No

LIIA2229E

GW-54

POWER WINDOW SYSTEM

2006 Pathfinder

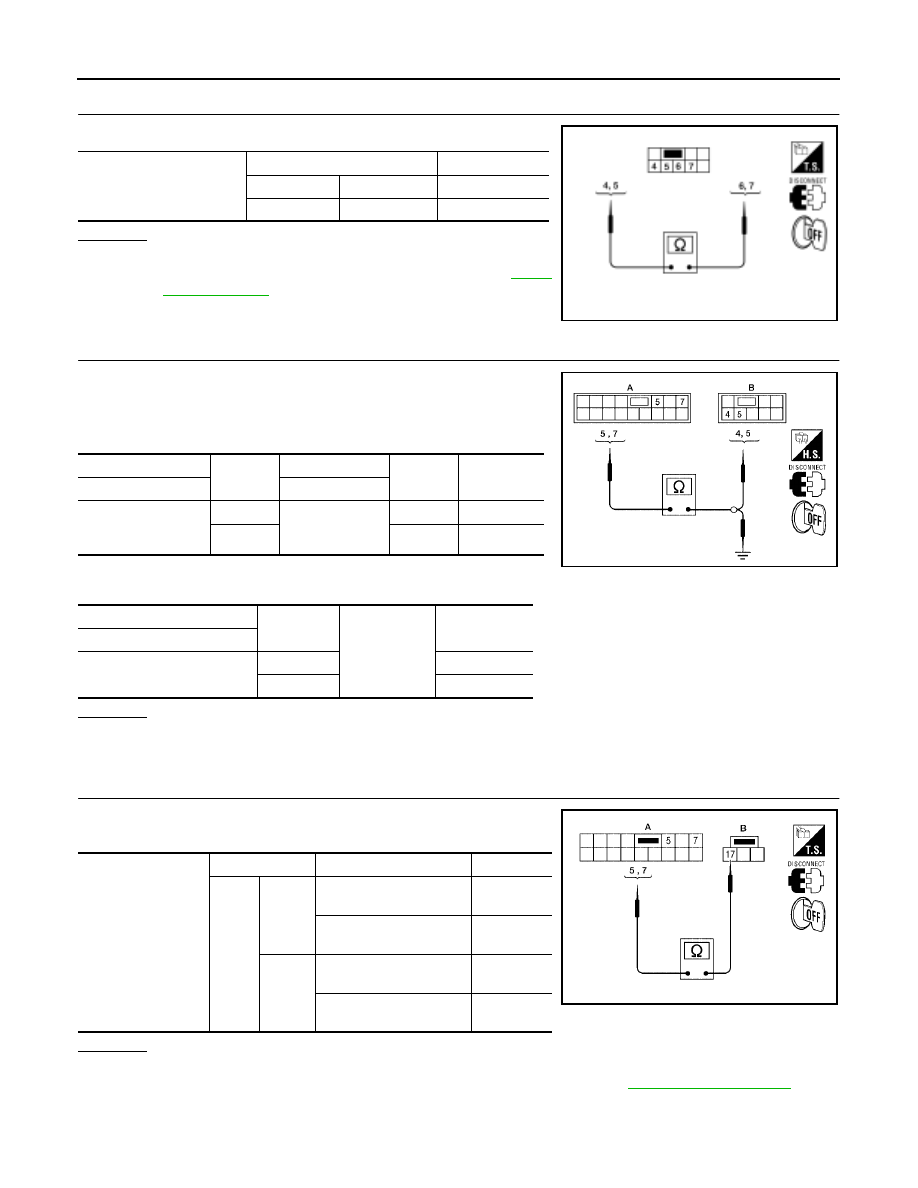

3.

CHECK REAR POWER WINDOW SWITCH RH

Check continuity between rear power window switch RH terminals.

OK or NG

OK

>> GO TO 4.

NG

>> Replace rear power window switch RH. Refer to

EI-26,

"REAR DOOR"

 .

4.

CHECK GROUND SUPPLY CIRCUIT

1.

Disconnect main power window and door lock/unlock switch.

2.

Check continuity between main power window and door lock/
unlock switch connector and rear power window switch RH con-
nector.

3.

Check continuity between main power window and door lock/
unlock switch and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness.

5.

CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Check continuity between main power window and door lock/unlock
switch terminals.

OK or NG

OK

>> Repair or replace harness.

NG

>> Replace main power window and door lock/unlock switch. Refer to

EI-25, "FRONT DOOR"

 .

Rear power window switch

RH

Terminals

Continuity

4

7

Yes

5

6

Yes

LIIA2181E

Connector

Terminal

Connector

Terminal

Continuity

A

B

Main power window

and door lock/unlock

switch: D7

5

Rear power win-

dow switch RH:

D303

5

Yes

7

4

Yes

Connector

Terminal

Ground

Continuity

A

Main power window and door

lock/unlock switch: D7

5

No

7

No

LIIA2232E

Main power window

and door lock/unlock

switch

Terminals

Condition

Continuity

17

5

Power window lock

switch UNLOCK

Yes

Power window lock

switch LOCK

No

7

Power window lock

switch UNLOCK

Yes

Power window lock

switch LOCK

No

LIIA2233E

POWER WINDOW SYSTEM

GW-55

C

D

E

F

G

H

J

K

L

M

A

B

GW

2006 Pathfinder

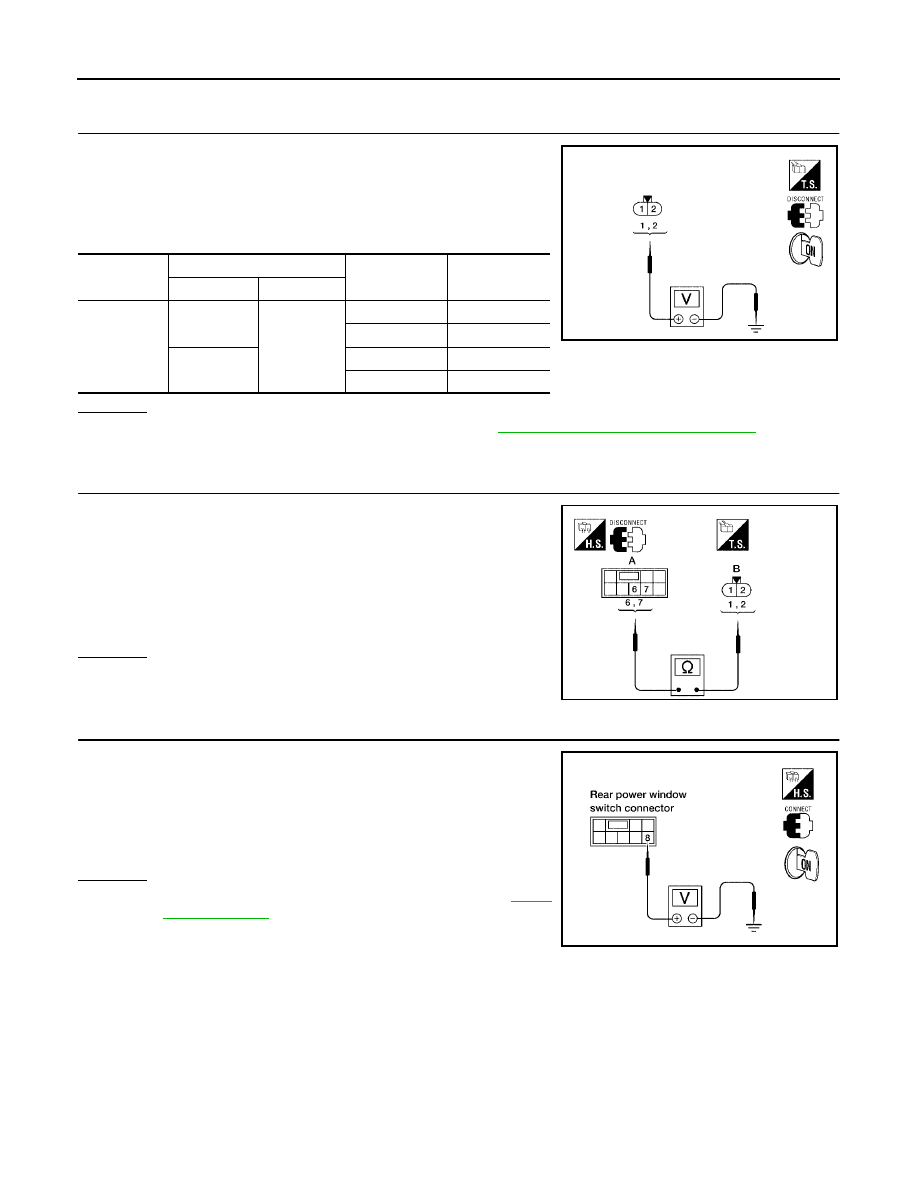

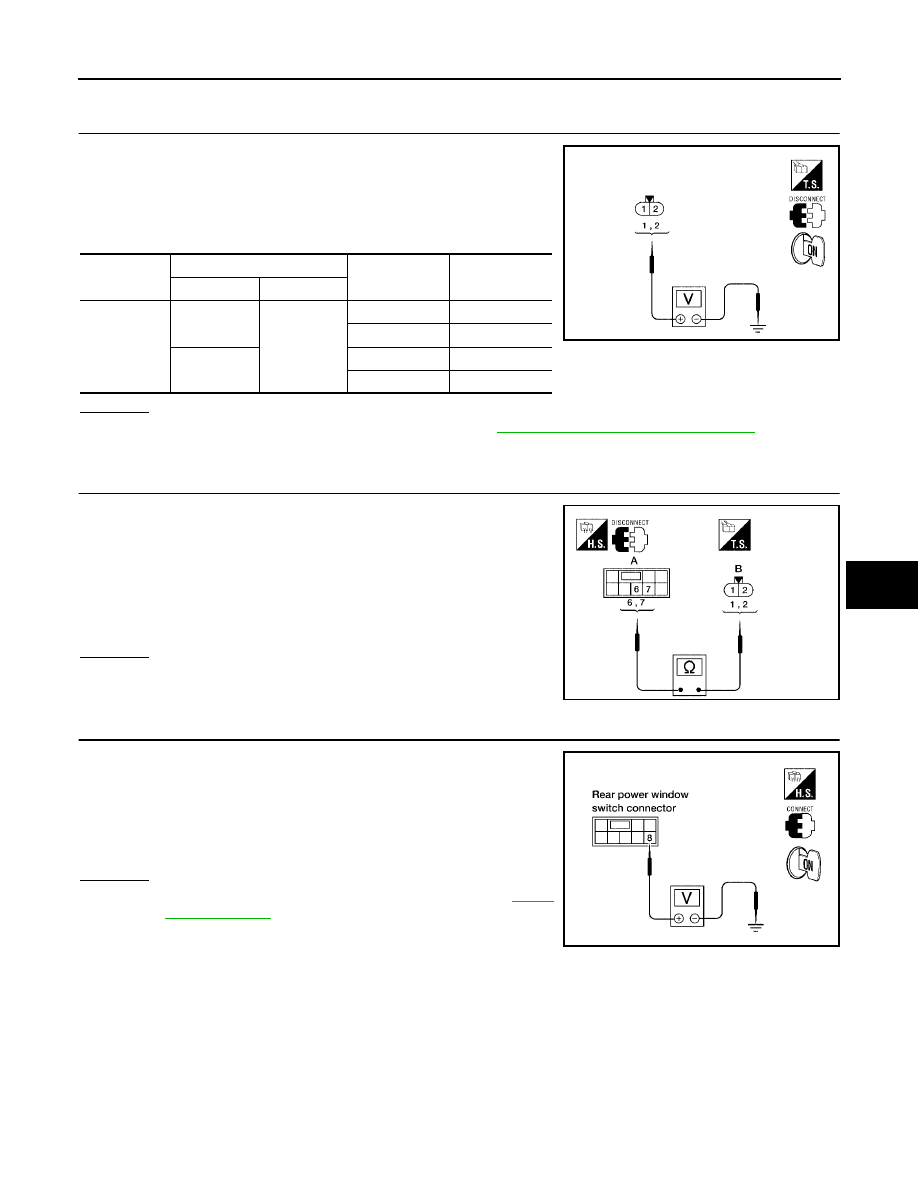

Rear Power Window Motor LH Circuit Check

EIS007RY

1.

CHECK REAR POWER WINDOW SWITCH LH OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear power window motor LH.

3.

Turn ignition switch ON.

4.

Check voltage between rear power window motor LH connector
and ground.

OK or NG

OK

>> Replace rear power window motor LH. Refer to

GW-62, "Rear Door Glass Regulator"

 .

NG

>> GO TO 2.

2.

CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch LH.

3.

Check continuity between rear power window switch LH connec-
tor (A) and rear power window motor LH connector (B).

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK POWER SUPPLY

1.

Connect rear power window switch LH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window switch LH connector
D203 terminal 8 and ground.

OK or NG

OK

>> Replace rear power window switch LH. Refer to

EI-26,

"REAR DOOR"

 .

NG

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Rear power

window

motor LH:

D204

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2228E

6 - 1

: Continuity should exist.

7 - 2

: Continuity should exist.

LIIA2252E

8 - Ground

: Battery voltage

LIIA1715E

GW-56

POWER WINDOW SYSTEM

2006 Pathfinder

Rear Power Window Motor RH Circuit Check

EIS007RZ

1.

CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear power window motor RH.

3.

Turn ignition switch ON.

4.

Check voltage between rear power window motor RH connector
and ground.

OK or NG

OK

>> Replace rear power window motor RH. Refer to

GW-62, "Rear Door Glass Regulator"

 .

NG

>> GO TO 2.

2.

CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch RH.

3.

Check continuity between rear power window switch RH con-
nector (A) and rear power window motor RH connector (B).

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

3.

CHECK POWER SUPPLY

1.

Connect rear power window switch RH.

2.

Turn ignition switch ON.

3.

Check voltage between rear power window switch RH connector
D303 terminal 8 and ground.

OK or NG

OK

>> Replace rear power window switch RH. Refer to

EI-26,

"REAR DOOR"

 .

NG

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

Rear power

window

motor RH:

D304

1

Ground

UP

0

DOWN

Battery voltage

2

UP

Battery voltage

DOWN

0

LIIA2228E

6 - 1

: Continuity should exist.

7 - 2

: Continuity should exist.

LIIA2252E

8 - Ground

: Battery voltage

LIIA1715E
