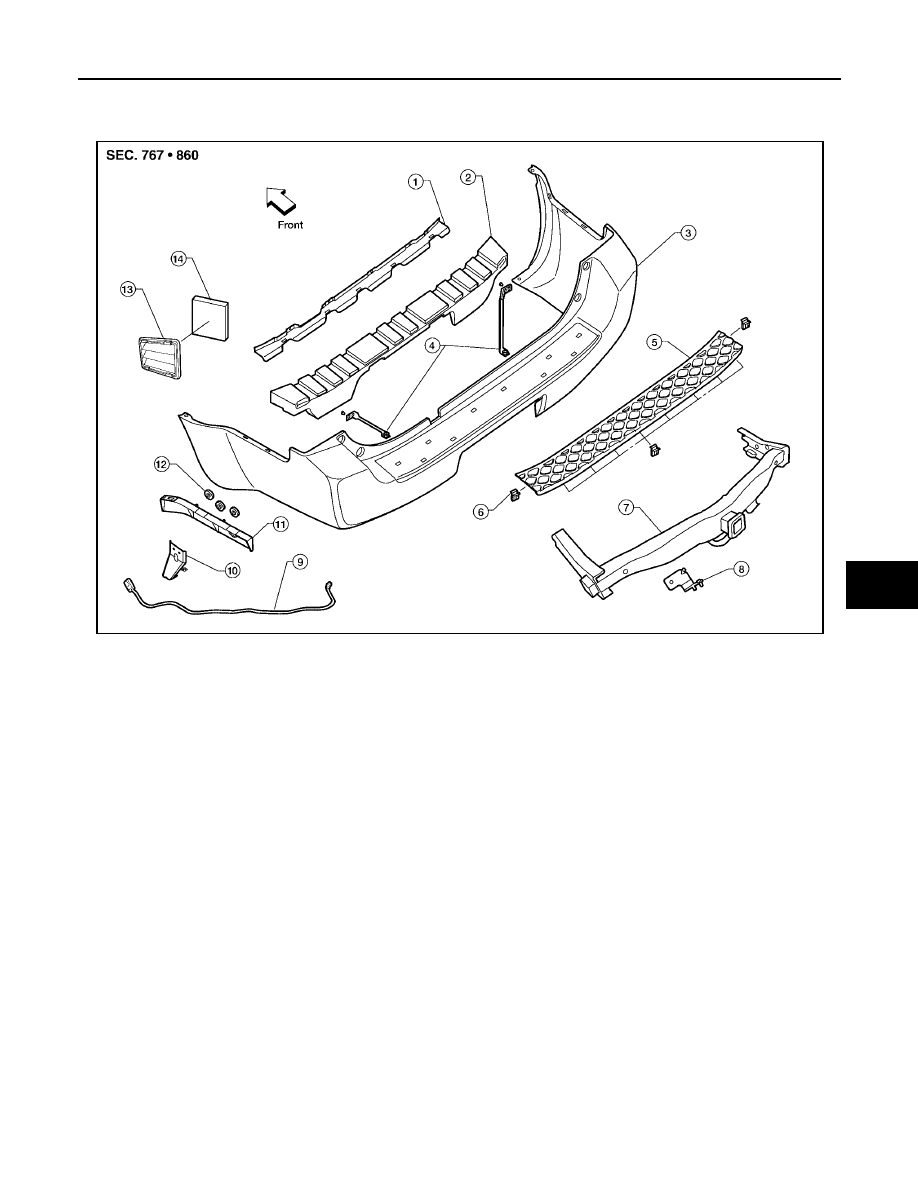

REAR BUMPER EI-15 C D E F G H J K L M A B EI 2006 Pathfinder REAR BUMPER PFP:H5022 Removal and Installation EIS007TS REMOVAL 1. Remove LH and RH rear fascia struts. 2. Remove rear fascia lower stay bolts. 3. Remove fascia front upper bolts near wheel opening. 4. Release left pinch rail clips and remove LH side of rear bumper fascia from quarter panel. 5. Release right pinch rail clips and remove RH side of rear bumper fascia from quarter panel. 6. Remove fascia rear upper bolts near combination lamp. 7. Remove rear bumper fascia. 8. Disconnect harness on left side of tow hitch. 9. Remove rear bumper reinforcement. 10. Remove drafter duct from lower side of LH quarter panel. INSTALLATION Installation is in the reverse order of removal. ● Apply sealant to clips securing upper step pad during installation. 1. Rear valance 2. Rear bumper reinforcement 3. Rear bumper fascia 4. Rear fascia strut LH/RH 5. Step pad 6. Clip 7. Tow hitch 8. Tow harness bracket 9. Tow hitch harness 10. Rear fascia lower stay 11. Pinch rail 12. Washer 13. Drafter duct 14. Filter element LIIA1750E |
