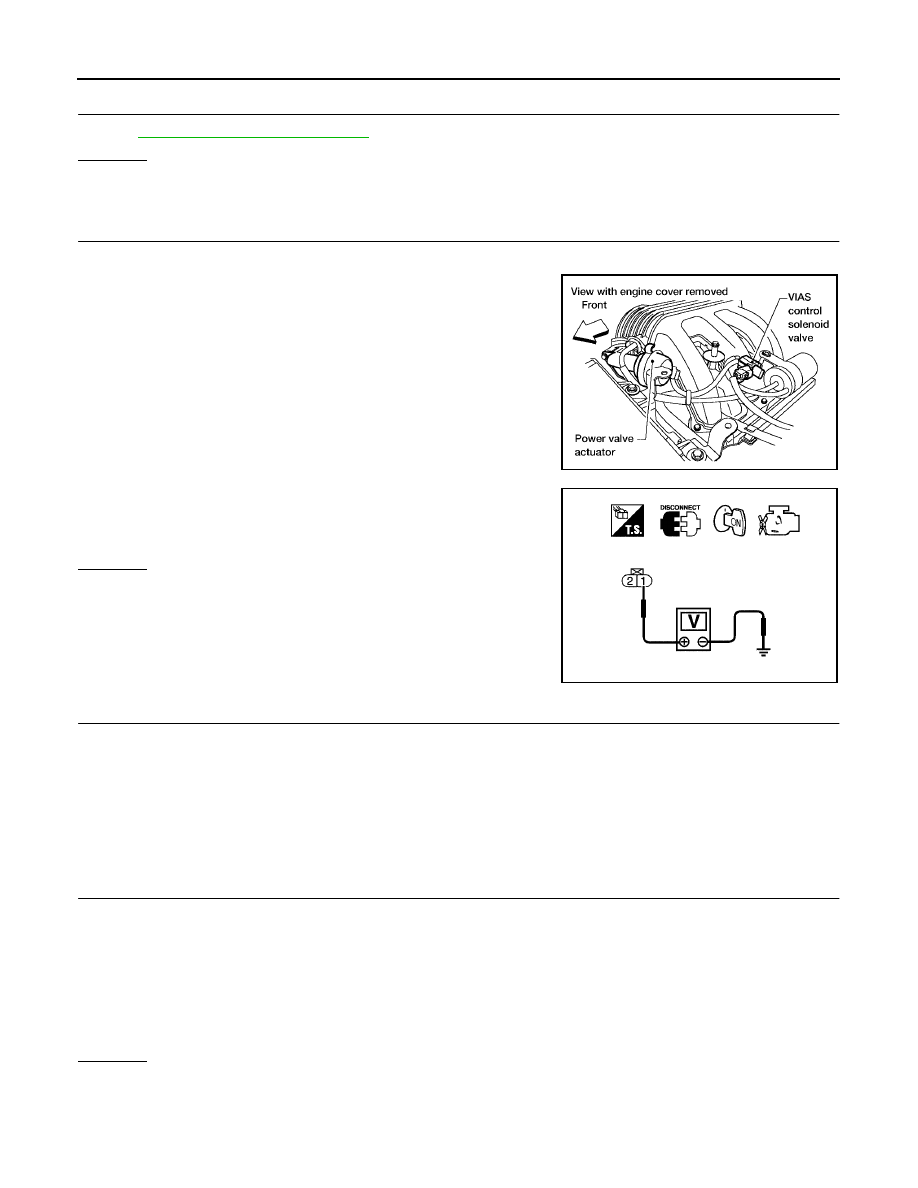

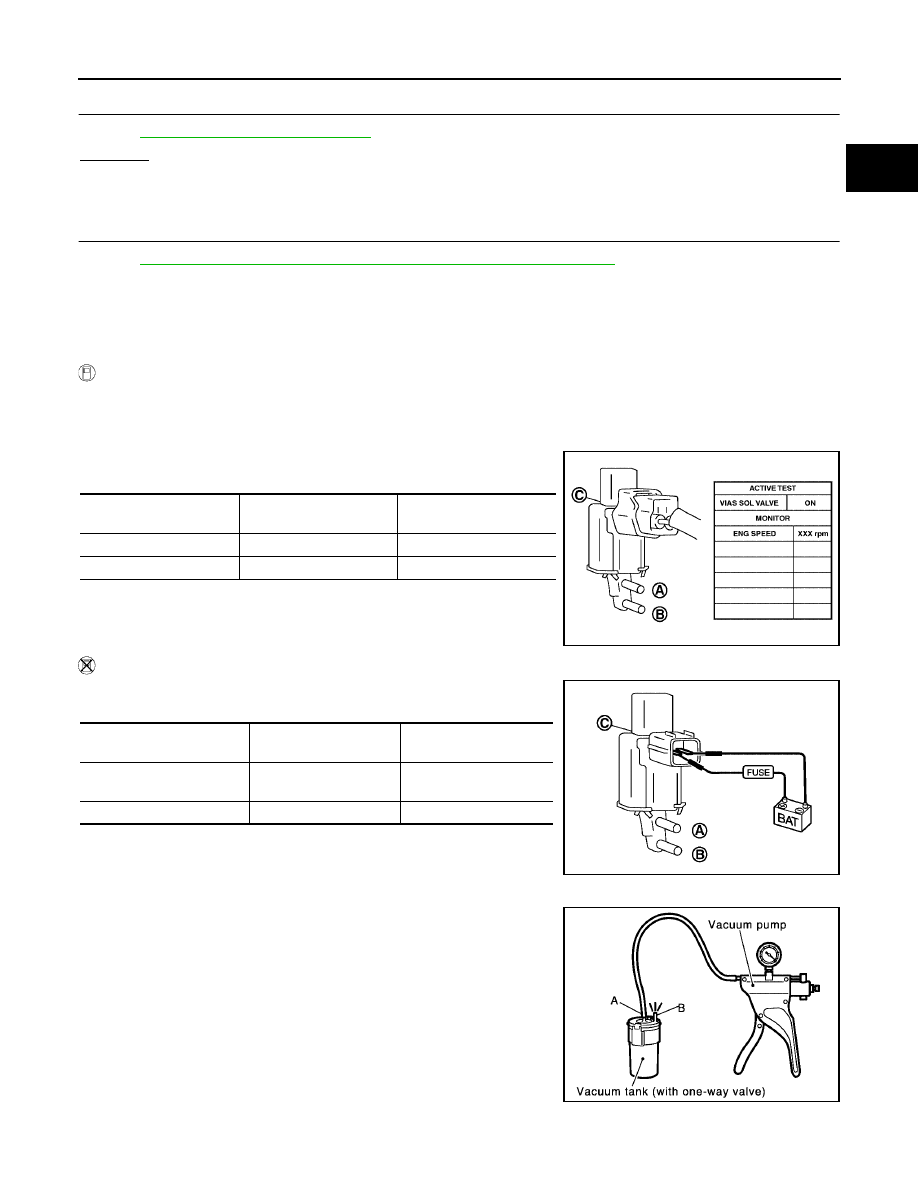

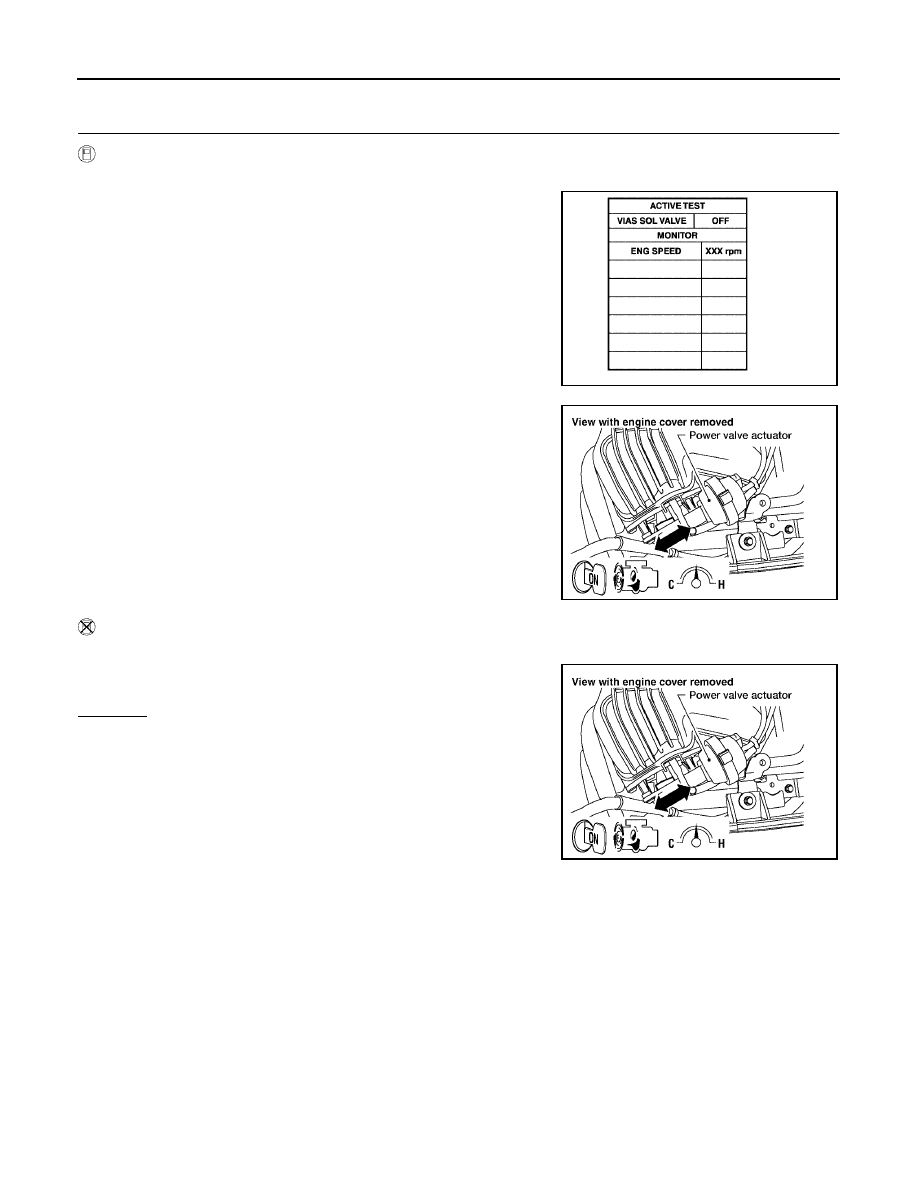

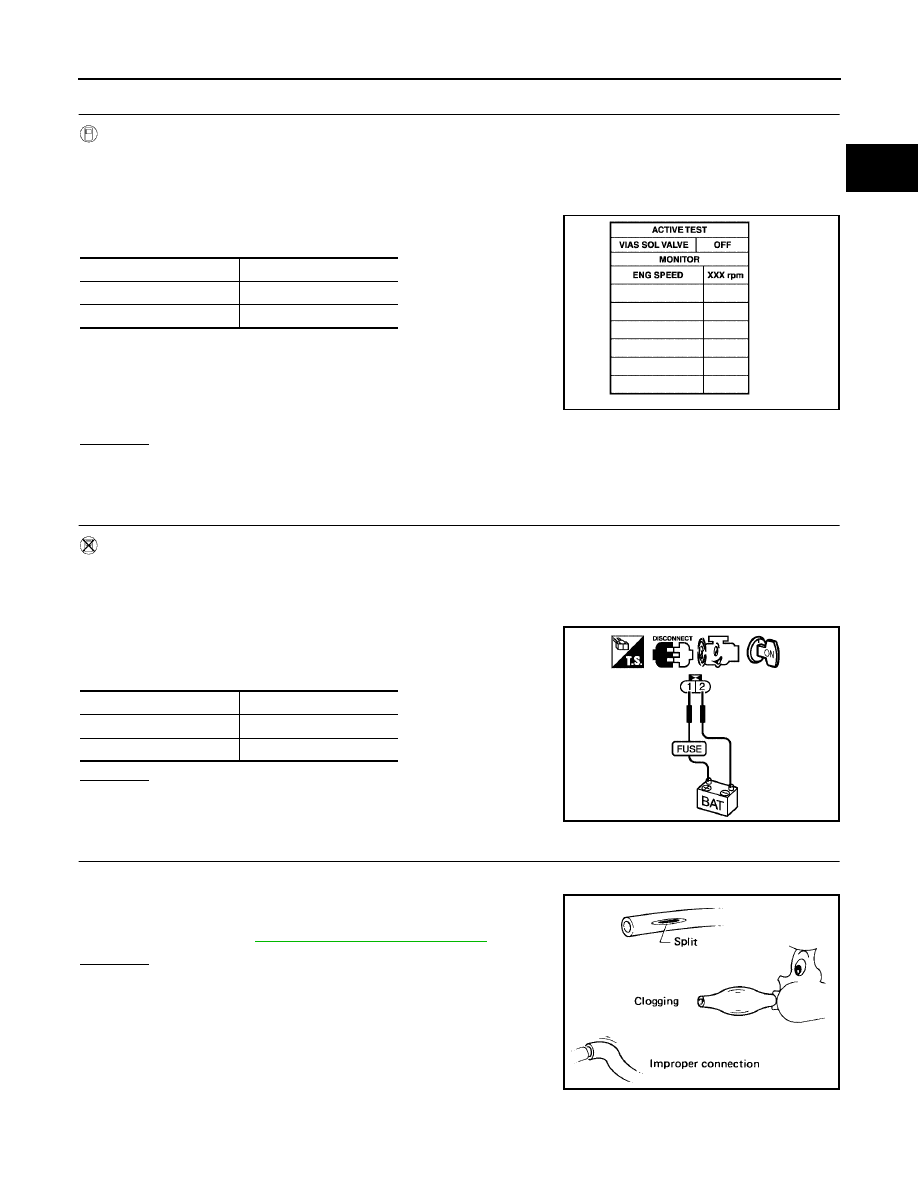

VIAS EC-667 C D E F G H I J K L M A EC 2006 Pathfinder Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 29 G VIAS control solenoid valve [Engine is running] ● Idle speed BATTERY VOLTAGE [Engine is running] ● Engine speed: Between 2,200 and 3,300 0 - 1.0V 111 BR ECM relay [Engine is running] ● For a few seconds after turning ignition 0 - 1.5V [Ignition switch: OFF] ● More than a few seconds passed after turn- BATTERY VOLTAGE 119 120 R Power supply for ECM [Ignition switch: ON] BATTERY VOLTAGE |
