POWER DOOR LOCK SYSTEM

BL-37

2006 Pathfinder

Back Door Lock Actuator and Rear Door Lock Actuator LH/RH Check

EIS007OS

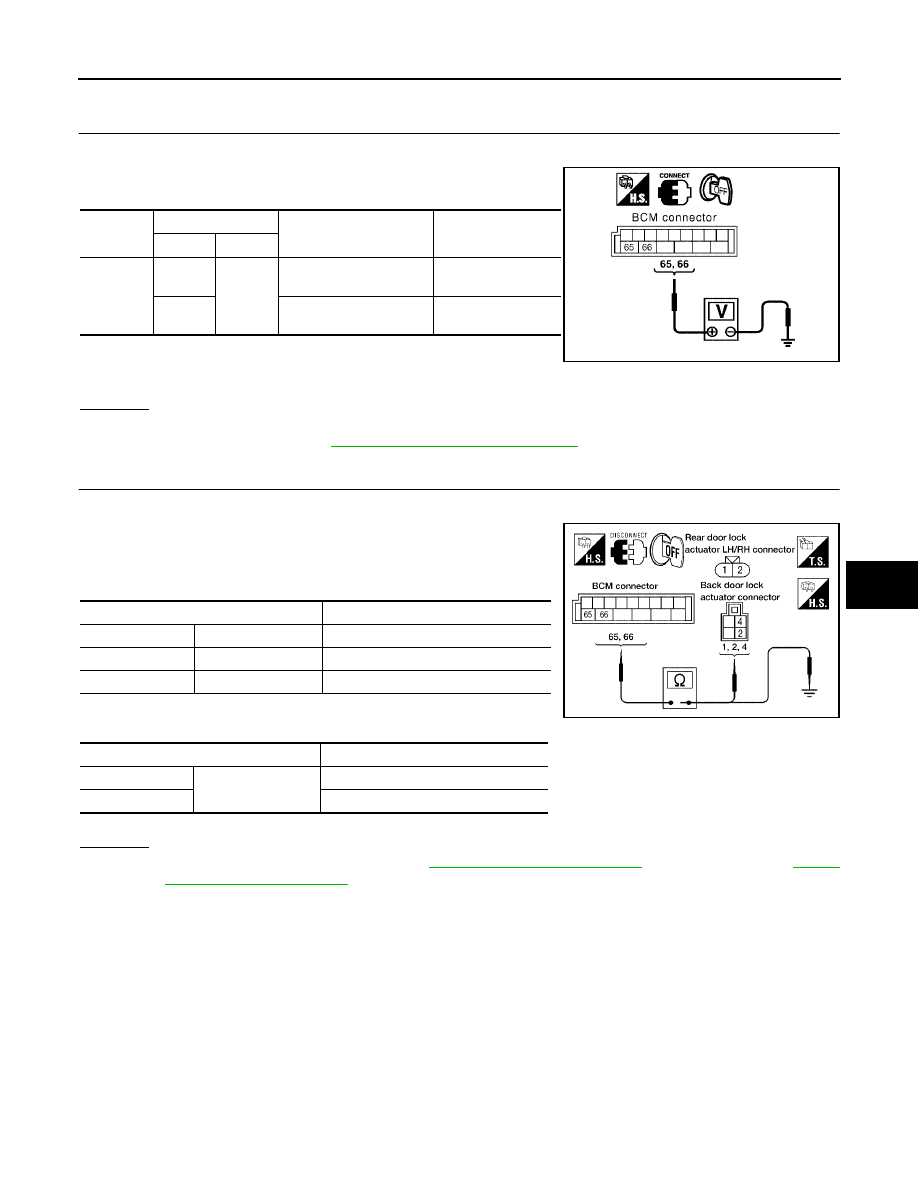

CHECK DOOR LOCK ACTUATOR SIGNAL

Turn ignition switch OFF.

Check voltage between BCM connector M20 terminals 65, 66
and ground.

OK or NG

>> GO TO 2.

>> Replace BCM. Refer to

BCS-27, "Removal and Installation"

CHECK DOOR LOCK ACTUATOR HARNESS

Disconnect BCM and each door lock actuator.

Check continuity between BCM connector M20 terminals 65, 66
and rear door lock actuator LH/RH connectors D205, D305 ter-
minals 1, 2 and back door lock actuator connector D508 termi-
nals 2, 4.

Check continuity between BCM connector M20 terminals 65, 66
and ground.

OK or NG

>> Replace door lock actuator. Refer to

BL-99, "Component Structure"

(back door lock) or

BL-98,

"Removal and Installation"

(rear door LH/RH).

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

Ground

Door lock/unlock switch
is turned to LOCK

→

Battery voltage

Door lock/unlock switch
is turned to UNLOCK

→

Battery voltage

LIIA1048E

Terminal

Continuity

Yes

Terminals

Continuity

Ground

WIIA0455E

BL-38

POWER DOOR LOCK SYSTEM

2006 Pathfinder

Fuel Lid Door Lock Actuator Check

EIS007OT

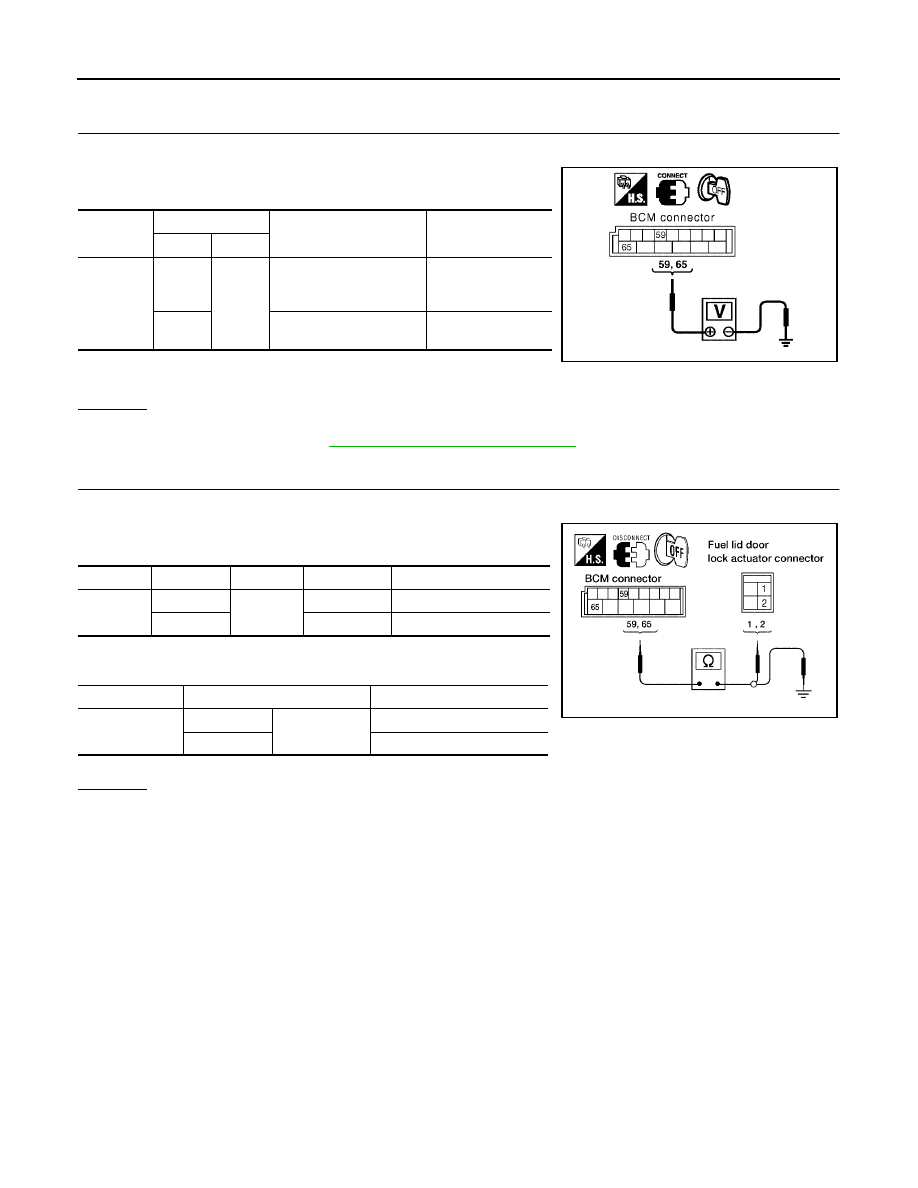

CHECK FUEL LID DOOR LOCK ACTUATOR SIGNAL

Turn ignition switch OFF.

Check voltage between BCM connector M20 terminals 59, 65
and ground.

OK or NG

>> GO TO 2.

>> Replace BCM. Refer to

BCS-27, "Removal and Installation"

CHECK FUEL LID DOOR LOCK ACTUATOR HARNESS

Disconnect BCM and fuel lid door lock actuator.

Check continuity between BCM connector M20 terminals 59, 65
and fuel door lock actuator connector B79 terminals 1, 2.

Check continuity between BCM connector M20 terminals 59, 65
and ground.

OK or NG

>> Replace fuel lid door lock actuator.

>> Repair or replace harness.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

Ground

Driver door lock/unlock
switch is turned to
UNLOCK

→

Battery voltage

Driver door lock/unlock
switch is turned to LOCK

→

Battery voltage

LIIA1046E

Connector

Terminals

Connector

Terminals

Continuity

M20

B79

Yes

Connector

Terminals

Continuity

M20

Ground

WIIA0456E

POWER DOOR LOCK SYSTEM

BL-39

2006 Pathfinder

Front Door Lock Assembly LH (Key Cylinder Switch) Check

EIS007OU

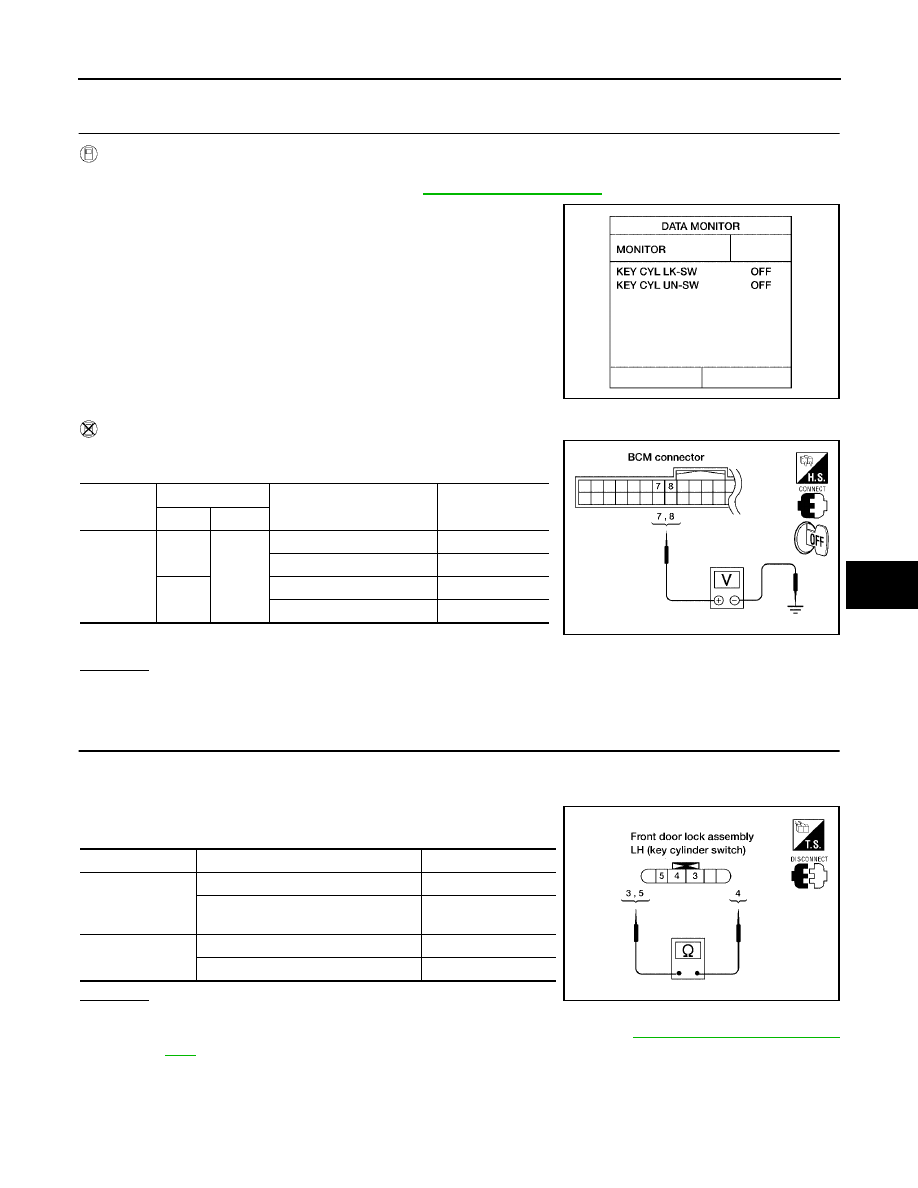

CHECK DOOR KEY CYLINDER SWITCH LH

With CONSULT-II

Check front door lock assembly LH (key cylinder switch) ("KEY CYL LK-SW") and ("KEY CYL UN-SW") in
DATA MONITOR mode in CONSULT–II. Refer to

BL-27, "DATA MONITOR"

●

When key inserted in front key cylinder is turned to LOCK:

●

When key inserted in front key cylinder is turned to UNLOCK:

Without CONSULT-II

Check voltage between BCM connector M18 terminals 7, 8 and
ground.

OK or NG

>> Front door lock assembly LH (key cylinder switch) signal is OK.

>> GO TO 2.

CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH)

Turn ignition switch OFF.

Disconnect front door lock assembly LH (key cylinder switch).

Check continuity between front door lock assembly LH (key cyl-
inder switch) connector terminals 3, 4 and 5.

OK or NG

>> GO TO 3.

>> Replace front door lock assembly LH (key cylinder switch). Refer to

BL-95, "Removal and Installa-

tion"

KEY CYL LK-SW

: ON

KEY CYL UN-SW

: ON

LIIA0188E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M18

Ground

Neutral/Lock

Unlock

Neutral/Unlock

Lock

WIIA0457E

Terminals

Condition

Continuity

4 – 5

Key is turned to LOCK.

Yes

Key is in N position or turned to

UNLOCK

3 – 4

Key is turned to UNLOCK.

Yes

Key is in N position or turned to LOCK

WIIA0458E

BL-40

POWER DOOR LOCK SYSTEM

2006 Pathfinder

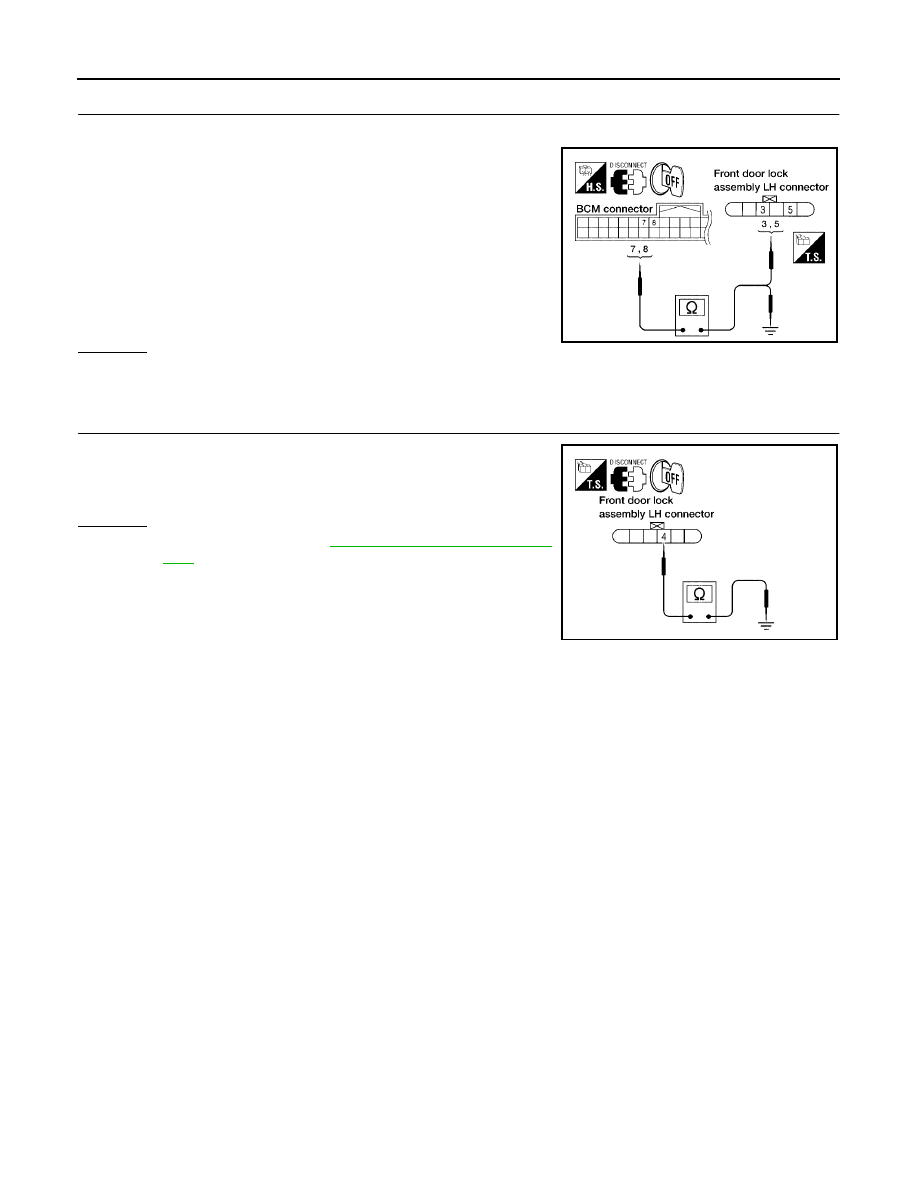

CHECK FRONT DOOR LOCK ASSEMBLY LH HARNESS

Disconnect BCM.

Check continuity between BCM connector M18 terminals 7, 8
and front door lock assembly LH connector D14 terminals 3, 5.

Check continuity between BCM connector M18 terminals 7, 8
and ground.

OK or NG

>> GO TO 4.

>> Repair or replace harness

CHECK FRONT DOOR LOCK ASSEMBLY LH GROUND

Check continuity between front door lock assembly LH connector
D14 terminal 4 and ground.

OK or NG

>> Replace BCM. Refer to

BCS-27, "Removal and Installa-

tion"

>> Repair or replace harness

7 - 3

: Continuity should exist.

8 - 5

: Continuity should exist.

7 - Ground

: Continuity should not exist.

8 - Ground

: Continuity should not exist.

WIIA0676E

4 - Ground

: Continuity should exist.

WIIA0677E

REMOTE KEYLESS ENTRY SYSTEM

BL-41

2006 Pathfinder

REMOTE KEYLESS ENTRY SYSTEM

PFP:28596

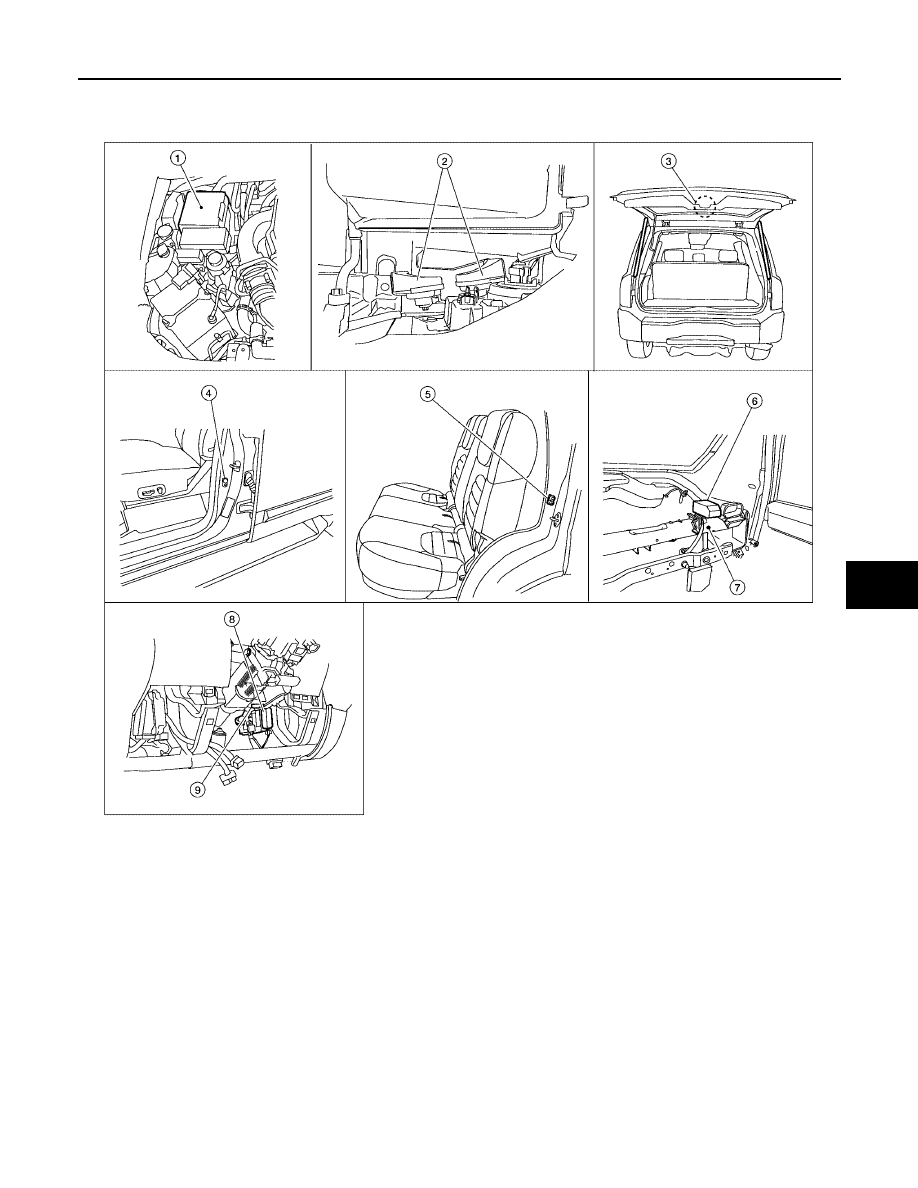

Component Parts and Harness Connector Location

EIS007OV

System Description

EIS007OW

INPUTS

Power is supplied at all times

●

to BCM (body control module) terminal 70

●

through 50A fusible link (letter g , located in the fuse and fusible link box).

●

to BCM terminal 57

●

through 10A fuse [No. 18, located in the fuse block (J/B)].

LIIA2412E

IPDM E/R E118, E119, E120, E121,
E122, E123, E124

Horns E3, E162
(behind front combination lamp LH)

Back door switch D502
Back door lock actuator D508

Front door switch
LH B8
RH B108

Rear door switch
LH B18
RH B116

Remote keyless entry receiver M120
(view with instrument panel RH
removed)

Steering member

BCM M18, M19, M20
(view with instrument lower panel LH
removed)

Key switch M27

BL-42

REMOTE KEYLESS ENTRY SYSTEM

2006 Pathfinder

When the key is inserted in the ignition cylinder (key switch), power is supplied

●

to BCM terminal 37

●

through key switch terminals 1 and 2

●

through 10A fuse (No. 25, located in the fuse and fusible link box).

When the ignition switch is ACC or ON, power is supplied

●

to BCM terminal 11

●

through 10A fuse [No. 4, located in the fuse block (J/B)].

When the ignition switch is ON or START, power is supplied

●

to BCM terminal 38

●

through 10A fuse [No. 1, located in the fuse block (J/B)].

When the front door switch LH is ON (door is OPEN), ground is supplied

●

to BCM terminal 47

●

through front door switch LH terminal 2

●

through front door switch LH case ground.

When the front door switch RH is ON (door is OPEN), ground is supplied

●

to BCM terminal 12

●

through front door switch RH terminal 2

●

through front door switch RH case ground.

When the rear door switch LH is ON (door is OPEN), ground is supplied

●

to BCM terminal 48

●

through rear door switch LH terminal 2

●

through rear door switch LH case ground.

When the rear door switch RH is ON (door is OPEN), ground is supplied

●

to BCM terminal 13

●

through rear door switch RH terminal 2

●

through rear door switch RH case ground.

When the back door switch is ON (door is OPEN), ground is supplied

●

to BCM terminal 43

●

through back door switch terminal 3,

●

through back door switch terminal 1,

●

through body grounds D406 and D504.

Keyfob signal is inputted to BCM from the remote keyless entry receiver.
The remote keyless entry system controls operation of the

●

power door lock

●

interior lamp and ignition keyhole illumination

●

panic alarm

●

hazard and horn reminder

●

auto door lock operation

OPERATED PROCEDURE

●

When the keyfob is operated, the signal from the keyfob is sent and the remote keyless entry receiver
receives the signal and sends it to the BCM. The BCM only locks/unlocks the doors if the ID number
matches. (Remote control entry functions)

●

Using the keyfob, the transmitter sends radio waves to the remote keyless entry receiver, which then
sends the received waves to the BCM. Only if the ID number matches does the BCM lock/unlock the
doors. (Remote control door function)

●

Unless the key is inserted into the ignition key cylinder or one of the doors is opened within 1 minute after
the UNLOCK switch on the keyfob is pressed, all the doors are automatically locked. (Auto lock function)

●

When a door is locked or unlocked, the vehicle turn signal lamps flash and the horn sounds to verify oper-
ation. (Active check function)

REMOTE KEYLESS ENTRY SYSTEM

BL-43

2006 Pathfinder

●

When the key is in the ignition key cylinder (when the key switch is ON) and one of the doors is open, the
door lock function does not work even when the door lock is operated with the keyfob.

●

Keyfob ID set up is available.

●

If a keyfob is lost, a new keyfob can be set up. A maximum of 5 IDs can be set up simultaneously.

Remote Control Entry Functions

Operation Description

●

When a button on the keyfob is operated, the signal is sent from the keyfob and received by the remote
keyless entry receiver.

●

The received signal is sent to the BCM and compared with the registered ID number.

●

If the ID number matches, the BCM sends the lock/unlock signal to each door lock actuator.

●

When the door lock actuators receive this signal, each operates to lock/unlock its door.

●

BCM locks all doors with input of LOCK signal from keyfob.

●

When an UNLOCK signal is sent from keyfob once, driver's door will be unlocked.

●

Then, if an UNLOCK signal is sent from keyfob again within 5 seconds, all other doors will be unlocked.

Remote control entry operation conditions

Auto Lock Function

Operation Description

●

Unless the key is inserted into the ignition key cylinder, one of the doors is opened, or the keyfob is oper-
ated within 1 minute after a door lock is unlocked by keyfob operation, all the doors are automatically
locked.
The 1 minute timer count is executed by the BCM and after 1 minute, the BCM sends the lock signal to all
doors.

NOTE:
On vehicles with NAVI, this time can be adjusted via the display. Refer to Owner's Instruction for instructions.

Lock operations are the same as for the remote control entry function.

Active Check Function

Operation Description
When a door is locked or unlocked by keyfob operation, the vehicle turn signals flash and the horn sounds to
verify operation.

●

When a button on the keyfob is operated, the signal is sent from the remote controller and received by the
keyless remote entry receiver.

●

The received signal is sent to the BCM and compared with the registered ID number.

●

If the ID number matches, the BCM uses communication to send the turn signal flashing and horn signal
to the IPDM E/R.

●

The IPDM E/R flashes the turn signal lamps and sounds the horn for each keyfob operation.

Operating function of hazard and horn reminder

Hazard and Horn Reminder

BCM output to IPDM E/R for horn reminder signal as DATA LINE (CAN-H line and CAN-L line).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
How to change hazard and horn reminder mode

Keyfob operation

Operation condition

Door lock operation (locking)

●

With key removed (key switch: OFF)

●

Closing all doors (door switch: OFF)

Door lock operation (unlocking)

With key removed (key switch: OFF)

C mode

S mode

Keyfob operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp
flash

Twice

Once

Twice

—

Horn sound

Once

—

BL-44

REMOTE KEYLESS ENTRY SYSTEM

2006 Pathfinder

With CONSULT-II

Hazard and horn reminder can be changed using “WORK SUPPORT” mode in “MULTI ANSWER BACK SET".

Without CONSULT-II

Refer to Owner's Instruction for instructions.

Interior Lamp and Ignition Keyhole Illumination Operation

When the following input signals are both supplied:

●

all door switches are in the OFF position. (when all the doors are closed);

●

interior lamp switch is in DOOR position.

Remote keyless entry system turns on interior lamp and ignition keyhole illumination (for 30 seconds) with
input of UNLOCK signal from keyfob.
For detailed description, refer to

LT-118, "ROOM LAMP TIMER OPERATION"

Panic Alarm Operation

When key switch is OFF (when ignition key is not inserted in key cylinder), remote keyless entry system turns
on and off horn and headlamp intermittently with input of PANIC ALARM signal from keyfob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.

CAN Communication System Description

EIS007OX

Refer to

LAN-25, "CAN COMMUNICATION"
