BCM (BODY CONTROL MODULE)

BCS-3

BCS

2006 Pathfinder

BCM (BODY CONTROL MODULE)

PFP:284B2

System Description

EKS00G0M

●

BCM (body control module) controls the operation of various electrical units installed on the vehicle.

BCM FUNCTION

BCM has a combination switch reading function for reading the operation of combination switches (light, wiper
washer, turn signal) in addition to the function for controlling the operation of various electrical components.
Also, it functions as an interface that receives signals from the A/C control unit, and sends signals to ECM
using CAN communication.

COMBINATION SWITCH READING FUNCTION

Description

●

BCM reads combination switch (light, wiper) status, and controls various electrical components accord-
ing to the results.

●

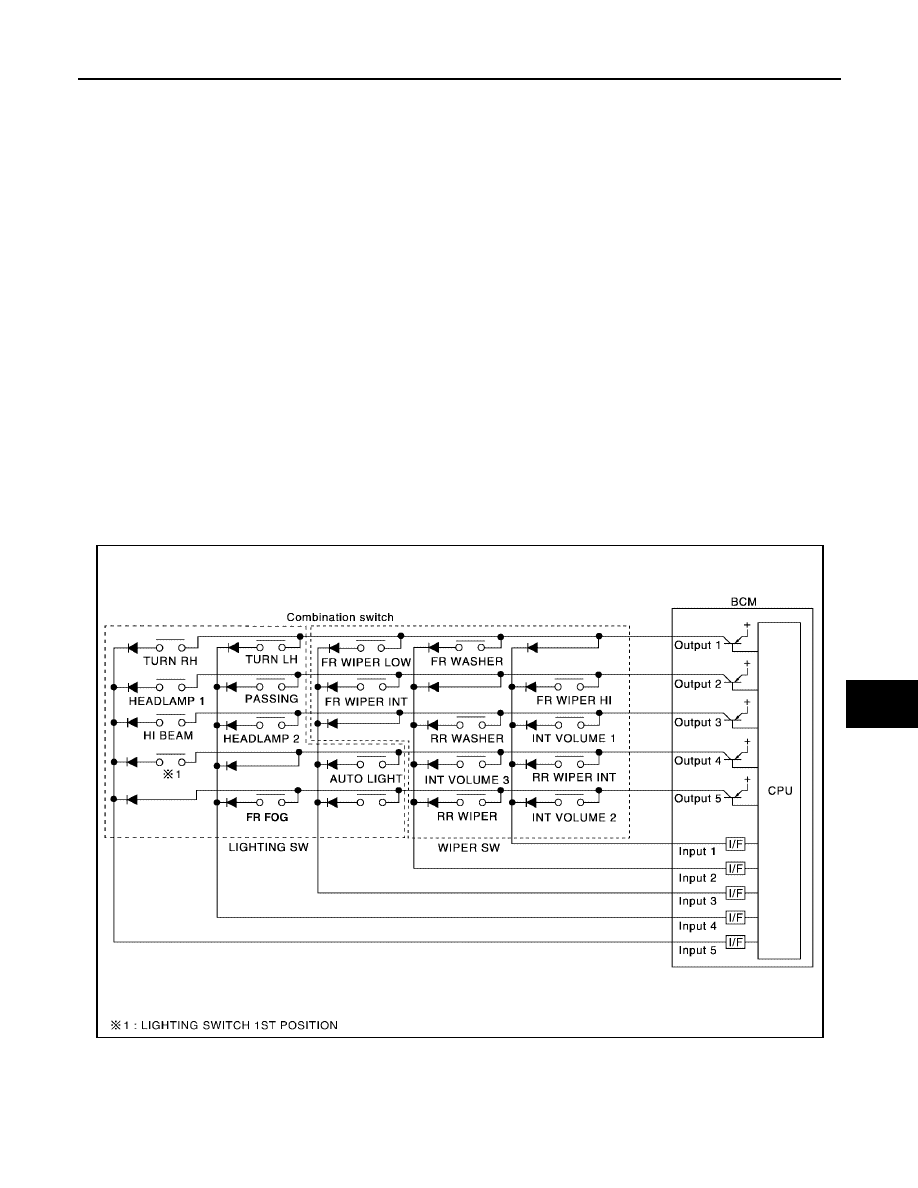

BCM reads information of a maximum of 20 switches by combining five output terminals (OUTPUT 1-5)
and five input terminals (INPUT 1-5).

Operation description

●

BCM activates transistors of output terminals (OUTPUT 1-5) periodically and allows current to flow in
turn.

●

If any (1 or more) of the switches are turned ON, circuit of output terminals (OUTPUT 1-5) and input ter-
minals (INPUT 1-5) becomes active.

●

At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When
voltage of input terminals (INPUT 1-5) corresponding to that switch changes, interface in BCM detects
voltage change and BCM determines that switch is ON.

BCM - Operation table of combination switch

●

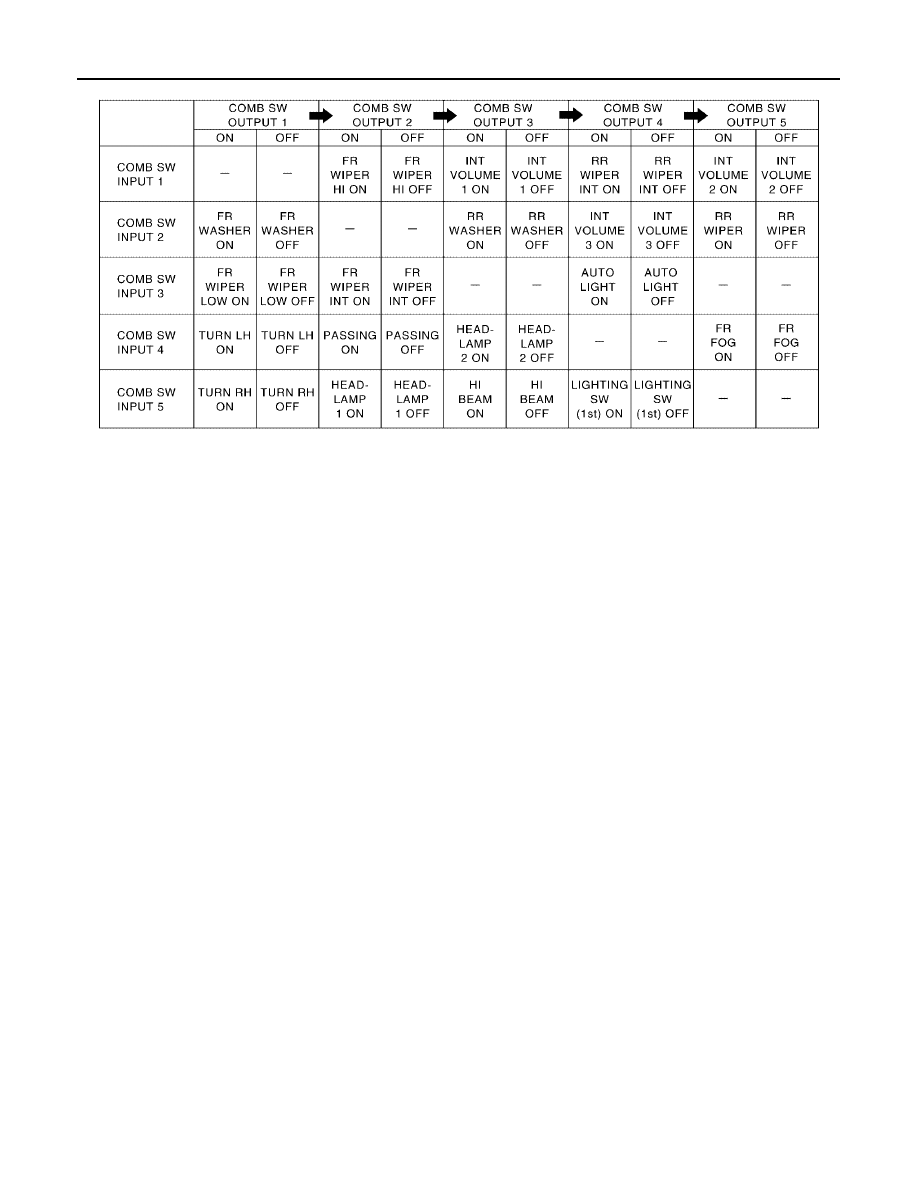

BCM reads operation status of combination switch by the combination shown in the following table.

LIIA0757E

BCS-4

BCM (BODY CONTROL MODULE)

2006 Pathfinder

NOTE:
Headlamp has a dual system switch.

Example operation: (When lighting switch 1st position turned ON)

●

When lighting switch 1st position is turned ON, contact in combination switch turns ON. At this time if
OUTPUT 4 transistor is activated, BCM detects that voltage changes in INPUT 5.

●

When OUTPUT 4 transistor is ON, BCM detects that voltage changes in INPUT 5, and judges lighting
switch 1st position is ON. Then BCM sends tail lamp ON signal to IPDM E/R using CAN communica-
tion.

●

When OUTPUT 4 transistor is activated again, BCM detects that voltage changes in INPUT 5 and rec-
ognizes that lighting switch 1st position is continuously ON.

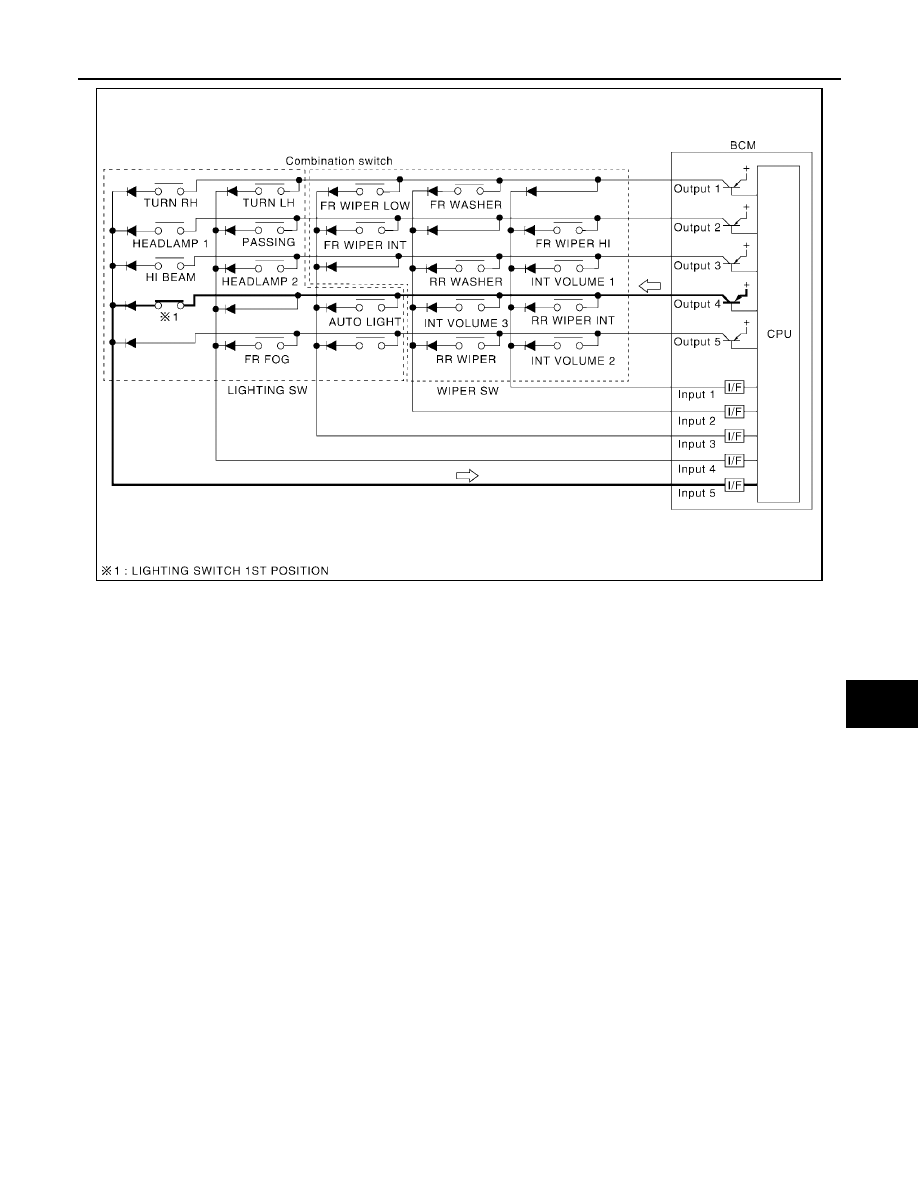

SKIA4959E

BCM (BODY CONTROL MODULE)

BCS-5

BCS

2006 Pathfinder

NOTE:
Each OUTPUT terminal transistor is activated at 10ms intervals. Therefore, after a switch is turned ON,
electrical loads are activated with a time delay. But this time delay is so short that it cannot be noticed.

Operation mode

●

Combination switch reading function has operation modes as follows:

Normal status

●

When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.

Sleep status

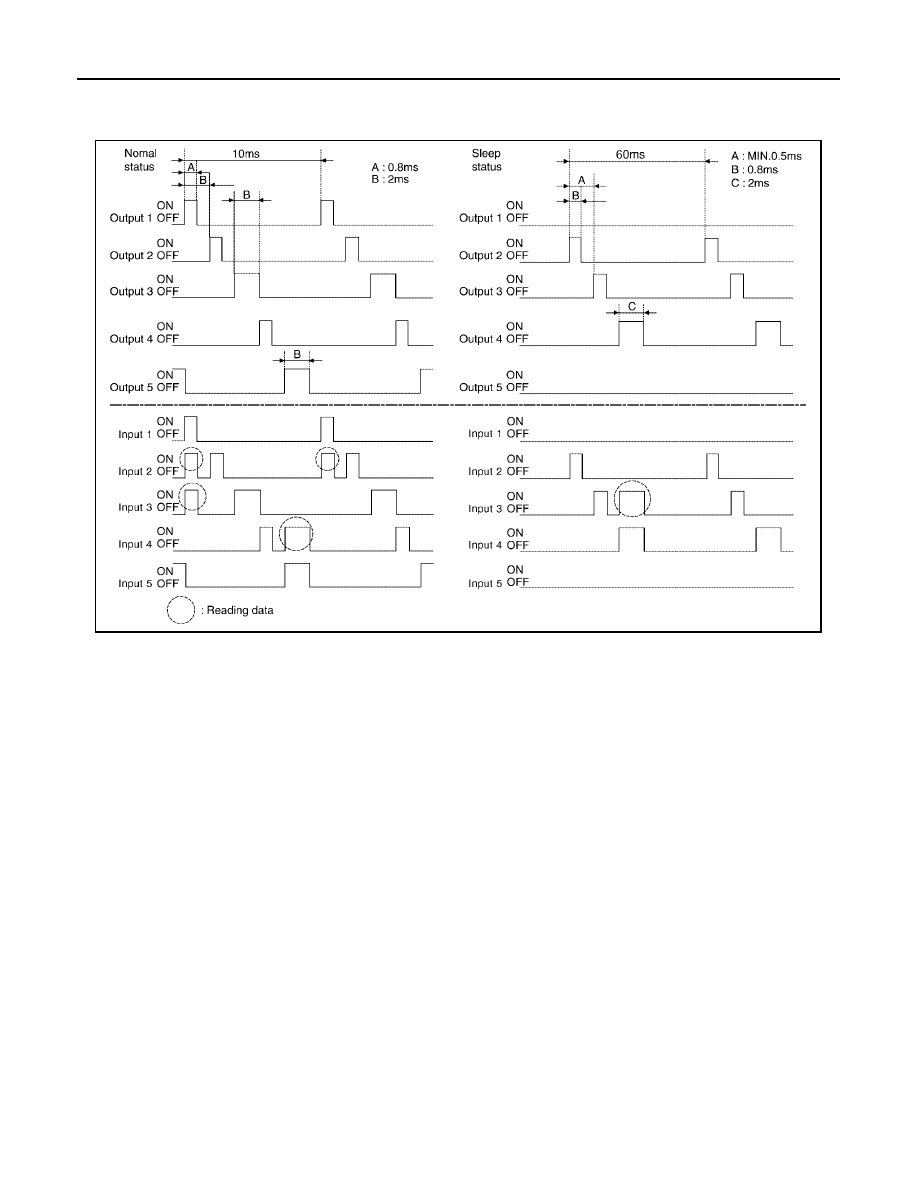

LIIA0760E

BCS-6

BCM (BODY CONTROL MODULE)

2006 Pathfinder

●

When BCM is in sleep mode, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low-cur-
rent-consumption mode. OUTPUTS (2, 3, and 4) turn ON-OFF at 60ms intervals, and receives lighting
switch input only.

CAN COMMUNICATION CONTROL

CAN communication allows a high rate of information through the two communication lines (CAN-L, CAN-H)
connecting the various control units in the system. Each control unit transmits/receives data, but selectively
reads required data only.

BCM STATUS CONTROL

BCM changes its status depending on the operation status in order to save power consumption.

CAN communication status

●

With ignition switch ON, CAN communicates with other control units normally.

●

Control by BCM is being operated properly.

●

When ignition switch is OFF, switching to sleep mode is possible.

●

Even when ignition switch is OFF, if CAN communication with IPDM E/R and combination meter is
active, CAN communication status is active.

Sleep transient status

●

This status shuts down CAN communication when ignition switch is turned OFF.

●

It transmits sleep request signal to IPDM E/R and combination meter.

●

Two seconds after CAN communication of all control units stops, CAN communication switches to inac-
tive status.

CAN communication inactive status

●

With ignition switch OFF, CAN communication is not active.

●

With ignition switch OFF, control performed only by BCM is active.

●

Three seconds after CAN communication of all control units stops, CAN communication switches to
inactive status.

Sleep status

WKIA4093E

BCM (BODY CONTROL MODULE)

BCS-7

BCS

2006 Pathfinder

●

BCM is activated with low current consumption mode.

●

CAN communication is not active.

●

When CAN communication operation is detected, it switches to CAN communication status.

●

When a state of the following switches changes, it switches to CAN communication state:

–

Ignition switch

–

Key switch

–

Hazard switch

–

Door lock/unlock switch

–

Front door switch (LH, RH)

–

Rear door switch (LH, RH)

–

Back door switch

–

Glass hatch ajar switch

–

Combination switch (passing, lighting switch 1st position, front fog lamp)

–

Keyfob (lock/unlock signal)

–

Front door lock assembly LH (key cylinder switch)

●

When control performed only by BCM is required by switch, it shifts to CAN communication inactive
mode.

●

Status of combination switch reading function is changed.

SYSTEMS CONTROLLED BY BCM DIRECTLY

●

Power door lock system. Refer to

BL-16, "POWER DOOR LOCK SYSTEM"

●

Remote keyless entry system. Refer to

BL-41, "REMOTE KEYLESS ENTRY SYSTEM"

●

Power window system. Refer to

GW-15, "POWER WINDOW SYSTEM"

NOTE

●

Sunroof system. Refer to

RF-10, "SUNROOF"

NOTE

●

Room lamp timer. Refer to

LT-115, "INTERIOR ROOM LAMP"

●

Warning chime system. Refer to

DI-46, "WARNING CHIME"

●

Turn signal and hazard warning lamps system. Refer to

LT-64, "TURN SIGNAL AND HAZARD WARNING

LAMPS"

●

Trailer turn signal and hazard warning lamps system. Refer to

LT-106, "TRAILER TOW"

●

Rear wiper and washer system. Refer to

WW-31, "REAR WIPER AND WASHER SYSTEM"

NOTE:
Power supply only. No system control.

SYSTEMS CONTROLLED BY BCM AND IPDM E/R

●

Panic system. Refer to

BL-41, "REMOTE KEYLESS ENTRY SYSTEM"

●

Vehicle security system. Refer to

BL-68, "VEHICLE SECURITY (THEFT WARNING) SYSTEM"

●

NVIS (NATS) system. Refer to

BL-100, "NVIS(NISSAN Vehicle Immobilizer System-NATS)"

●

Headlamp, daytime light, auto light, tail lamp, fog lamp and battery saver control systems. Refer to

LT-5,

"HEADLAMP (FOR USA)"

LT-29, "HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -"

LT-40,

"AUTO LIGHT SYSTEM"

LT-56, "FRONT FOG LAMP"

, and

LT-90, "PARKING, LICENSE PLATE AND

TAIL LAMPS"

●

Front wiper and washer system. Refer to

WW-4, "FRONT WIPER AND WASHER SYSTEM"

●

Rear window defogger system. Refer to

GW-70, "REAR WINDOW DEFOGGER"

MAJOR COMPONENTS AND CONTROL SYSTEM

System

Input

Output

Remote keyless entry system

Remote keyless entry receiver (keyfob)

●

All door locking actuators

●

Turn signal lamps

Power door lock system

●

Front power door lock/unlock switch (LH, RH)

●

All door switches

●

Key switch

All door locking actuators

BCS-8

BCM (BODY CONTROL MODULE)

2006 Pathfinder

CAN Communication System Description

EKS00G0N

Refer to

LAN-25, "CAN COMMUNICATION"

Power supply [ignition (IGN)/retained
accessory power (RAP)] to power win-
dow and sunroof

IGN/RAP supply

Power supply to power window and
sunroof system

Power supply (BAT) to power window
and sunroof

Battery power supply

Power supply to power window and
sunroof system

Panic alarm

●

Key switch

●

Remote keyless entry receiver (keyfob)

IPDM E/R

Auto light system

●

Optical sensor

●

Combination switch

IPDM E/R

Battery saver control

●

Ignition switch

●

Combination switch

●

Front door switch LH and RH

IPDM E/R

Headlamp

Combination switch

IPDM E/R

Tail lamp

Combination switch

IPDM E/R

Front fog lamp

Combination switch

IPDM E/R

Turn signal lamp

Combination switch

●

Turn signal lamp

●

Combination meter

Hazard lamp

Hazard switch

●

Turn signal lamp

●

Combination meter

Room lamp timer

●

Key switch

●

Remote keyless entry receiver (keyfob)

●

Main power window and door lock/unlock switch

●

Front door lock assembly LH (key cylinder switch)

●

All door switches

Interior room lamp

Key warning chime

●

Key switch

●

Front door switch LH

Combination meter (warning
buzzer)

Light warning chime

●

Combination switch

●

Key switch

●

Front door switch LH

Combination meter (warning
buzzer)

Vehicle-speed-sensing intermittent
wiper

●

Combination switch

●

Combination meter

IPDM E/R

Rear window defogger

Rear window defogger switch

IPDM E/R

Air conditioner switch signal

Front air control

ECM

Blower fan switch signal

Front air control

ECM

Low tire pressure warning system

Remote keyless entry receiver

●

Combination meter

●

Display control unit (with NAVI)

Trailer tow

Combination switch

Trailer turn signal relays

Vehicle security system

●

Remote keyless entry receiver (keyfob)

●

Main power window and door lock/unlock switch

●

Power window and door lock/unlock switch RH

●

Front door lock assembly LH (key cylinder switch)

●

All door switches

●

Back door latch (door ajar switch)

●

IPDM E/R

●

Security indicator lamp
