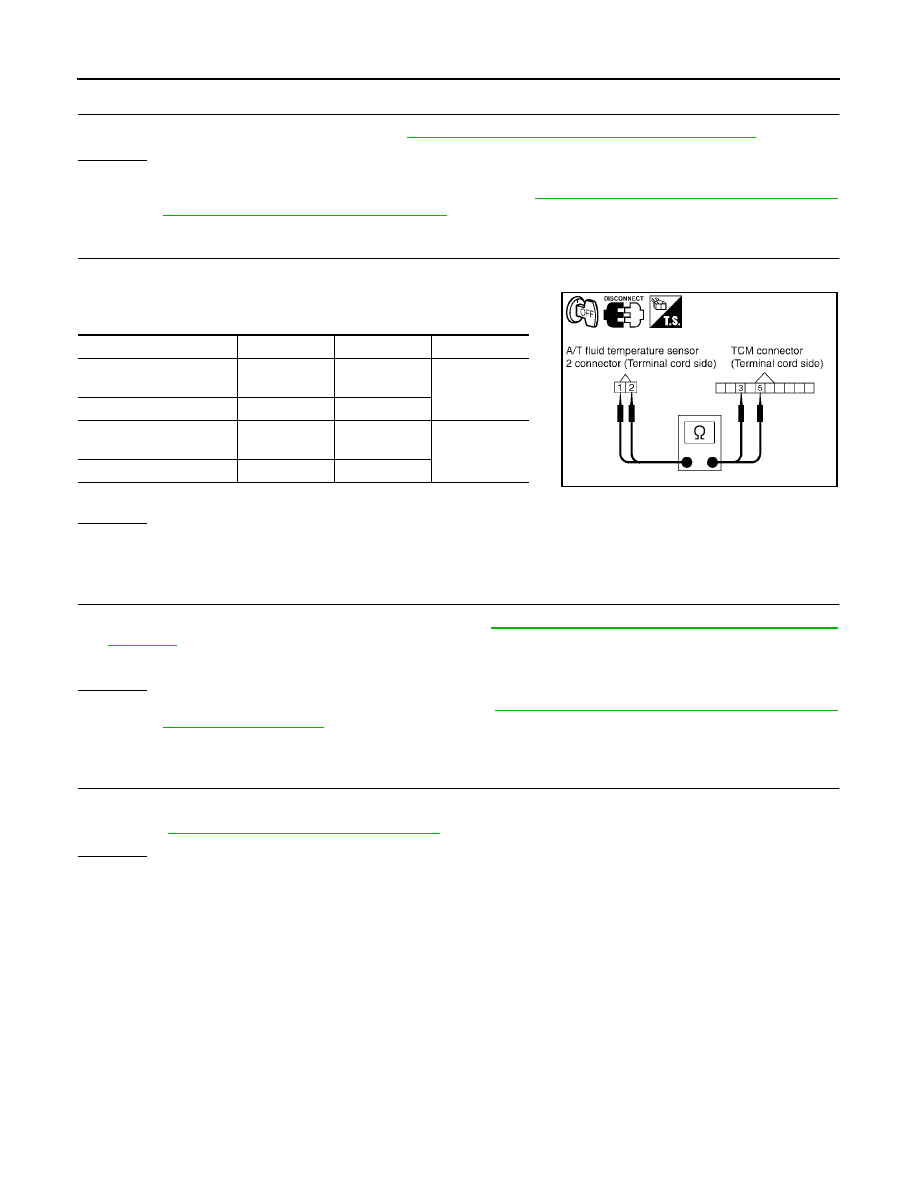

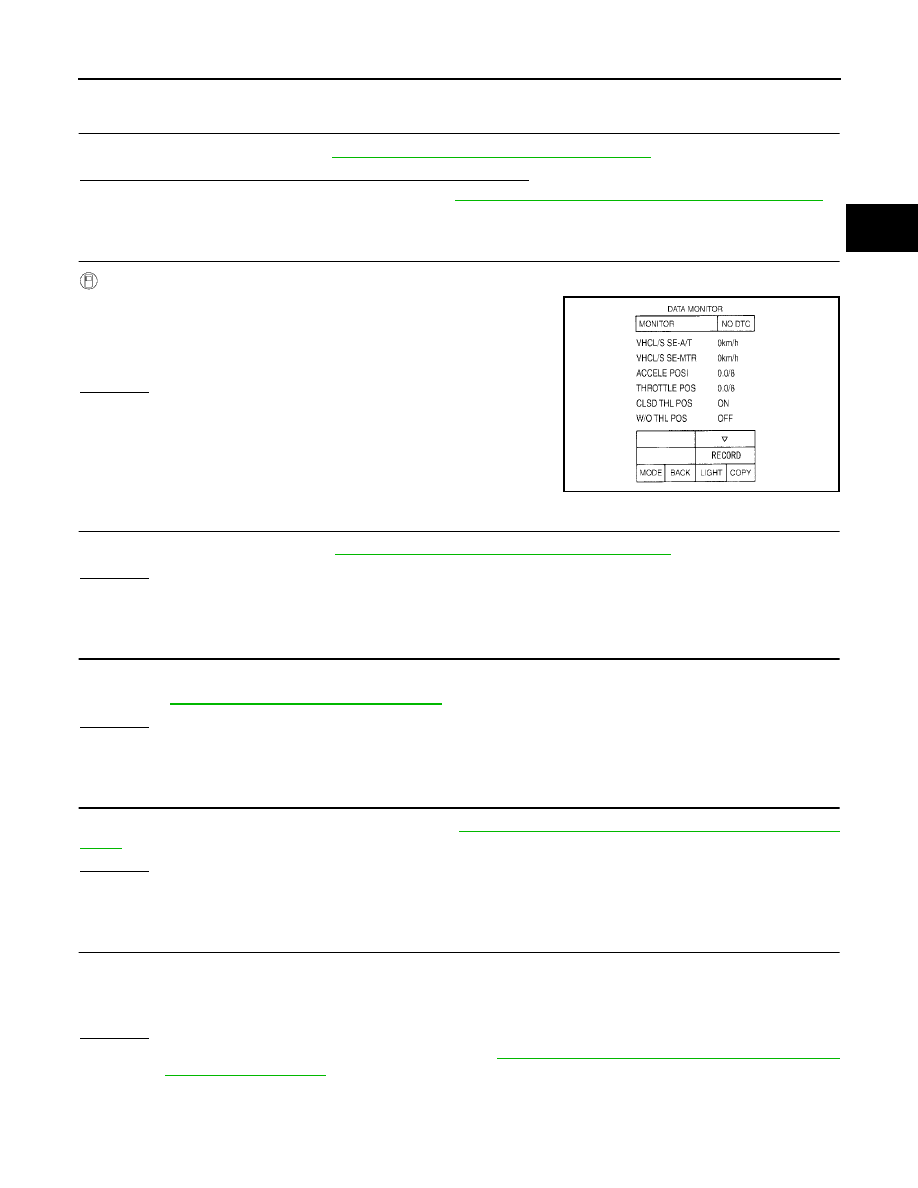

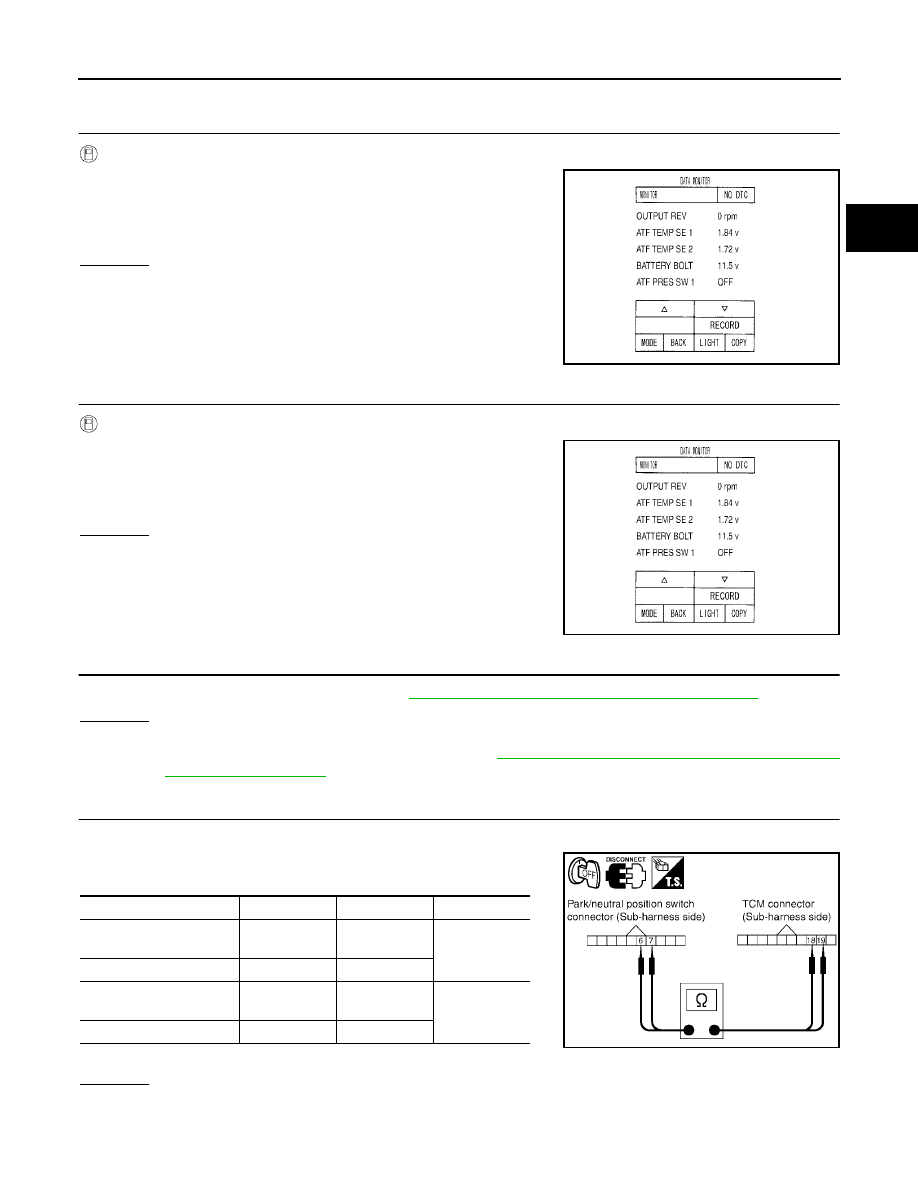

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT AT-135 D E F G H I J K L M A B AT 2006 Pathfinder Diagnostic Procedure ECS00EHO 1. CHECK A/T FLUID TEMPERATURE SENSOR 1 SIGNAL With CONSULT-II 1. Start engine. 2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for 3. Read out the value of “ATF TEMP SE 1”. OK or NG OK >> GO TO 2. NG >> GO TO 3. 2. CHECK A/T FLUID TEMPERATURE SENSOR 2 SIGNAL With CONSULT-II 1. Start engine. 2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for 3. Read out the value of “ATF TEMP SE 2”. OK or NG OK >> GO TO 8. NG >> GO TO 5. 3. CHECK A/T FLUID TEMPERATURE SENSOR 1 Check A/T fluid temperature sensor 1. Refer to AT-137, "A/T FLUID TEMPERATURE SENSOR 1" OK or NG OK >> GO TO 4. NG >> Replace the control valve with TCM. Refer to AT-233, "Control Valve With TCM and A/T Fluid . 4. CHECK SUB-HARNESS 1. Disconnect park/neutral position switch connector and TCM connector. 2. Check continuity between park/neutral position switch connector 3. If OK, check harness for short to ground and short to power. OK or NG OK >> GO TO 7. NG >> Replace open circuit or short to ground and short to power in harness or connectors. PCIA0039E PCIA0039E Item Connector Terminal Continuity Park/neutral position F505 6 Yes TCM connector F503 19 Park/neutral position F505 7 Yes TCM connector F503 18 SCIA5461E |
