CAN SYSTEM (TYPE 5) LAN-187 [CAN] C D E F G H I J L M A B LAN

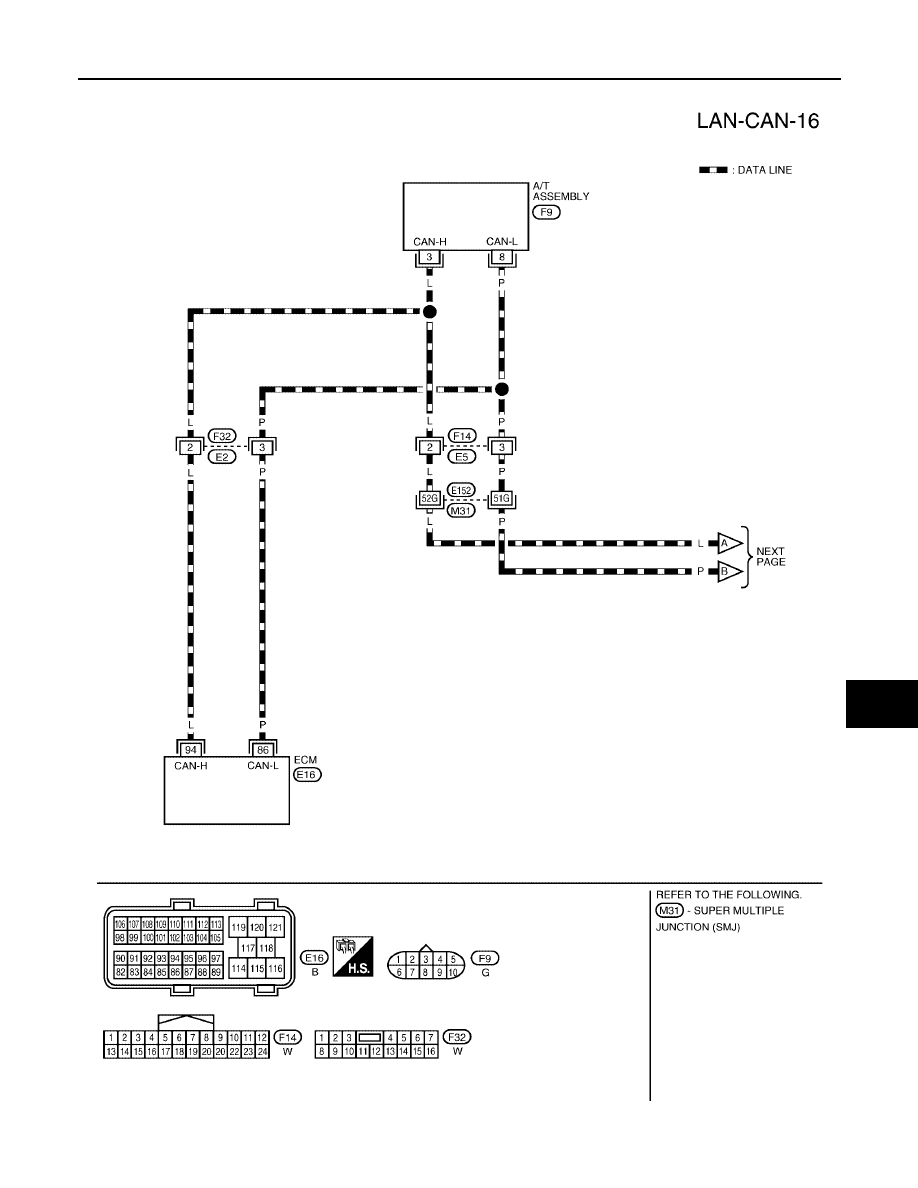

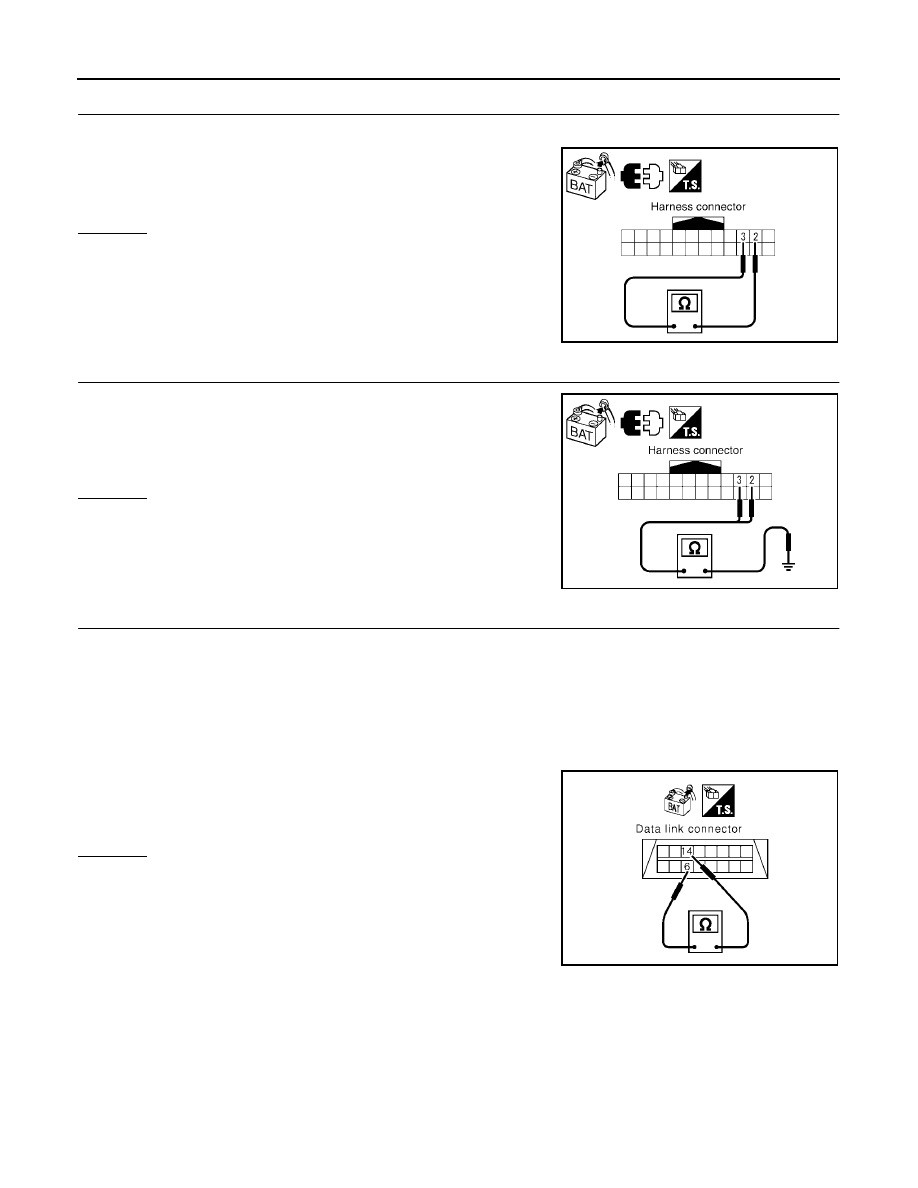

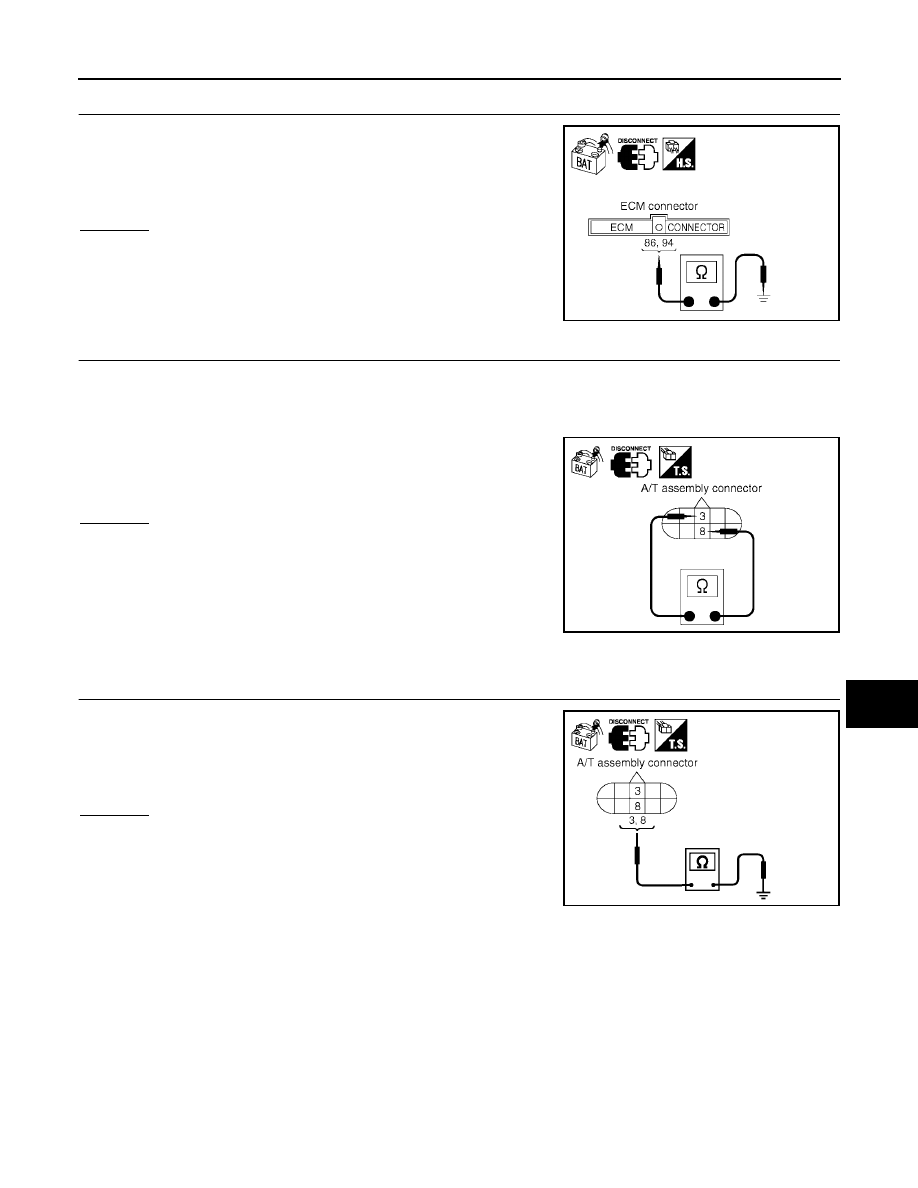

2005 Pathfinder 3. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between ECM harness connector E16 terminals 94 OK or NG OK >> GO TO 4. NG >> Repair harness between ECM and harness connector E2. 4. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. – A/T assembly connector – Harness connector F14 2. Check continuity between A/T assembly harness connector F9 OK or NG OK >> GO TO 5. NG >> Check the following harnesses. If any harness is dam- aged, repair the harness. ● Harness between A/T assembly and harness connec- ● Harness between A/T assembly and harness connec- 5. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between A/T assembly harness connector F9 ter- OK or NG OK >> GO TO 6. NG >> Check the following harnesses. If any harness is dam- aged, repair the harness. ● Harness between A/T assembly and harness connec- ● Harness between A/T assembly and harness connector F14 94 (L) – Ground : Continuity should not exist. 86 (P) – Ground : Continuity should not exist. SKIB0571E 3 (L) – 8 (P) : Continuity should not exist. SKIA6866E 3 (L) – Ground : Continuity should not exist. 8 (P) – Ground : Continuity should not exist. SKIA6875E |
