REAR WINDOW DEFOGGER GW-71 C D E F G H J K L M A B GW

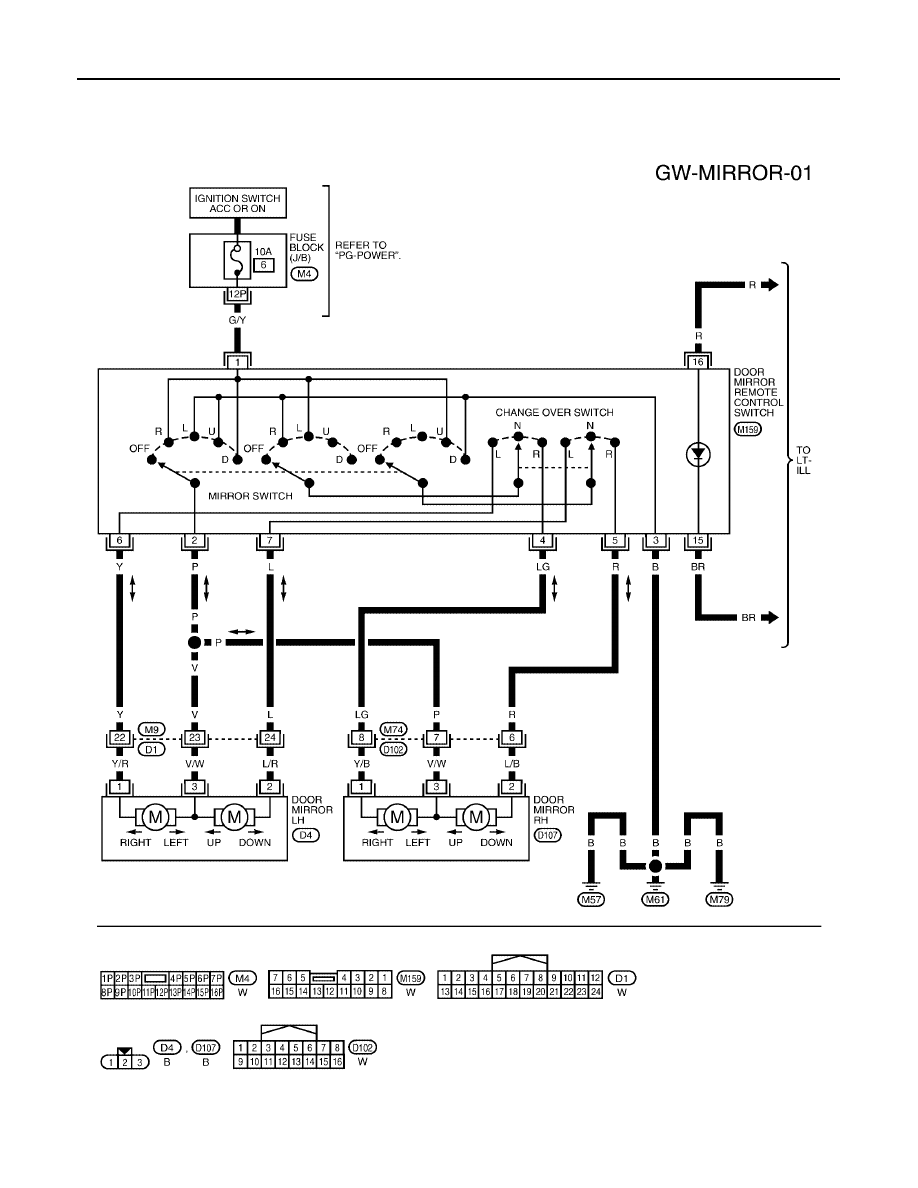

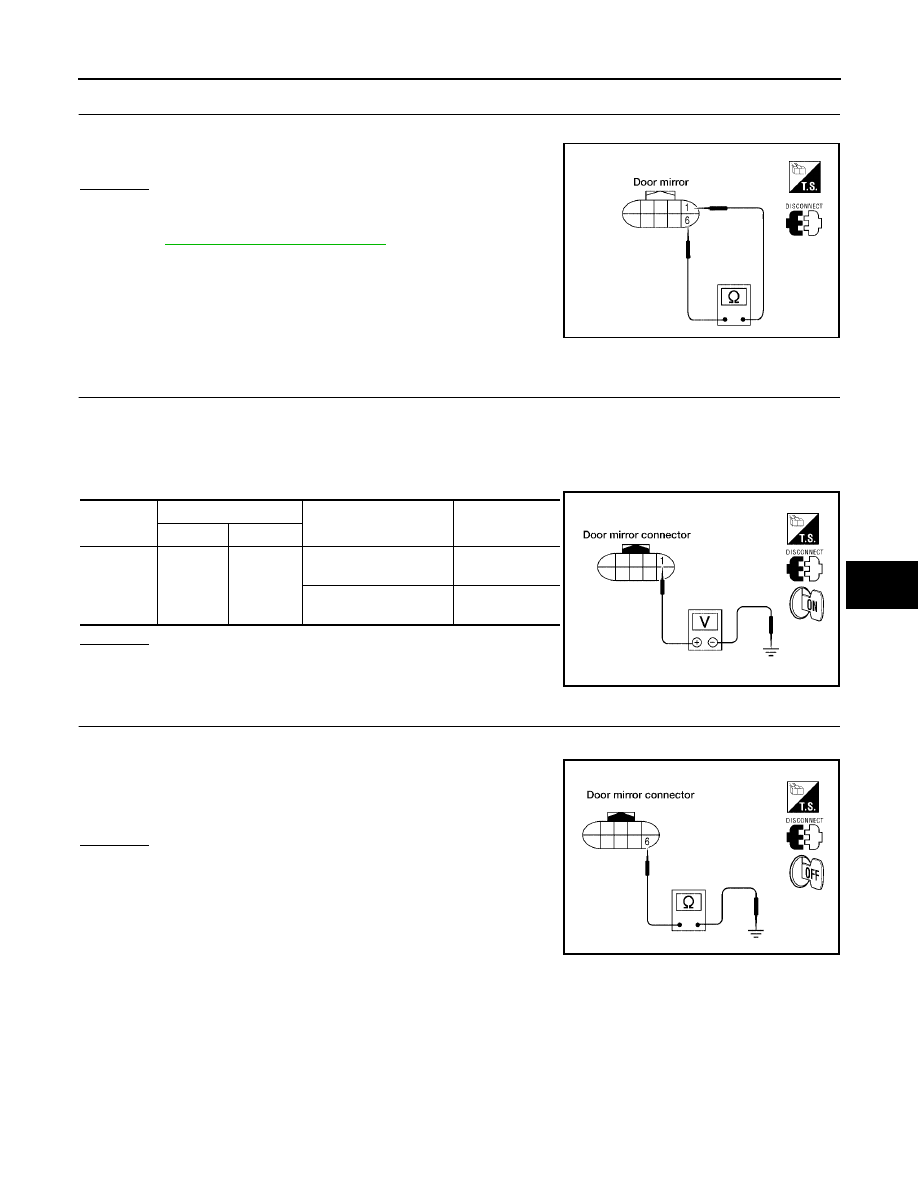

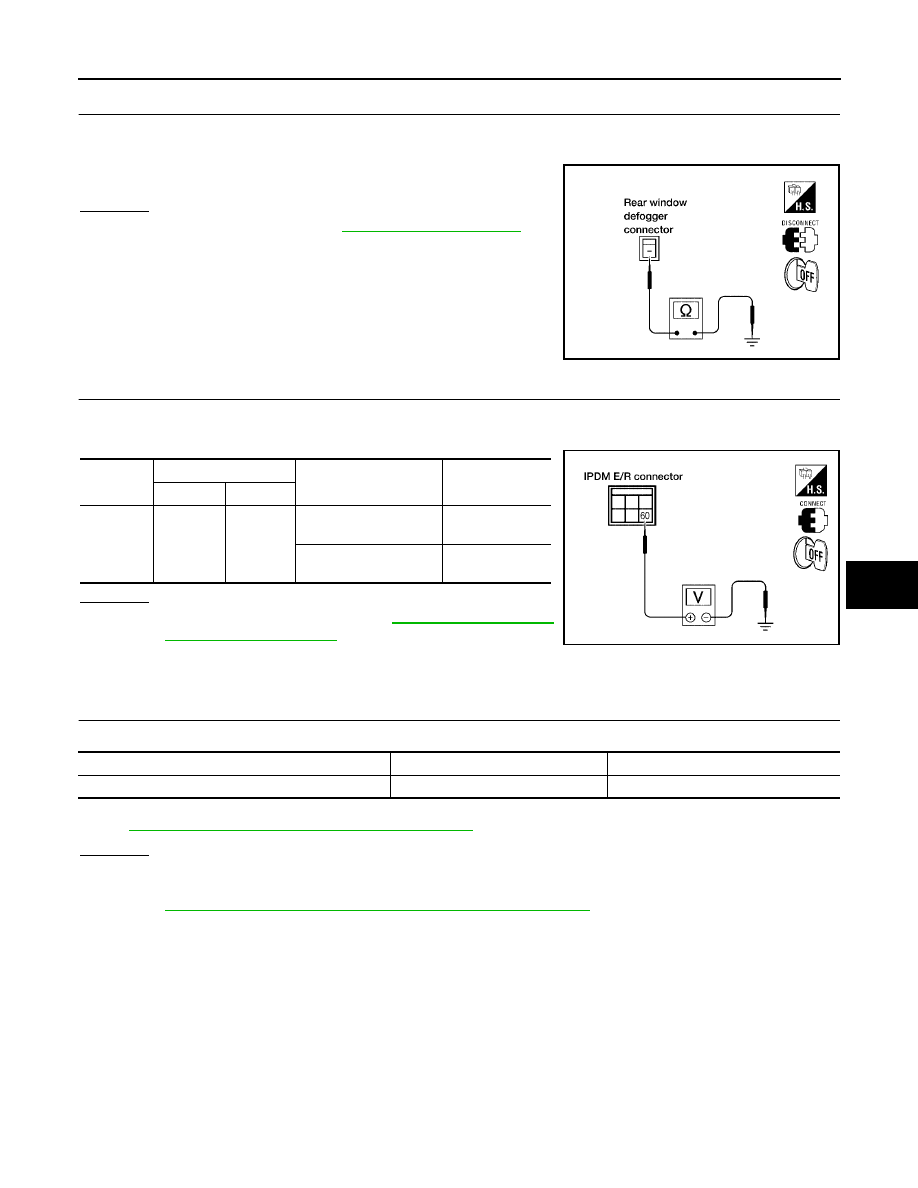

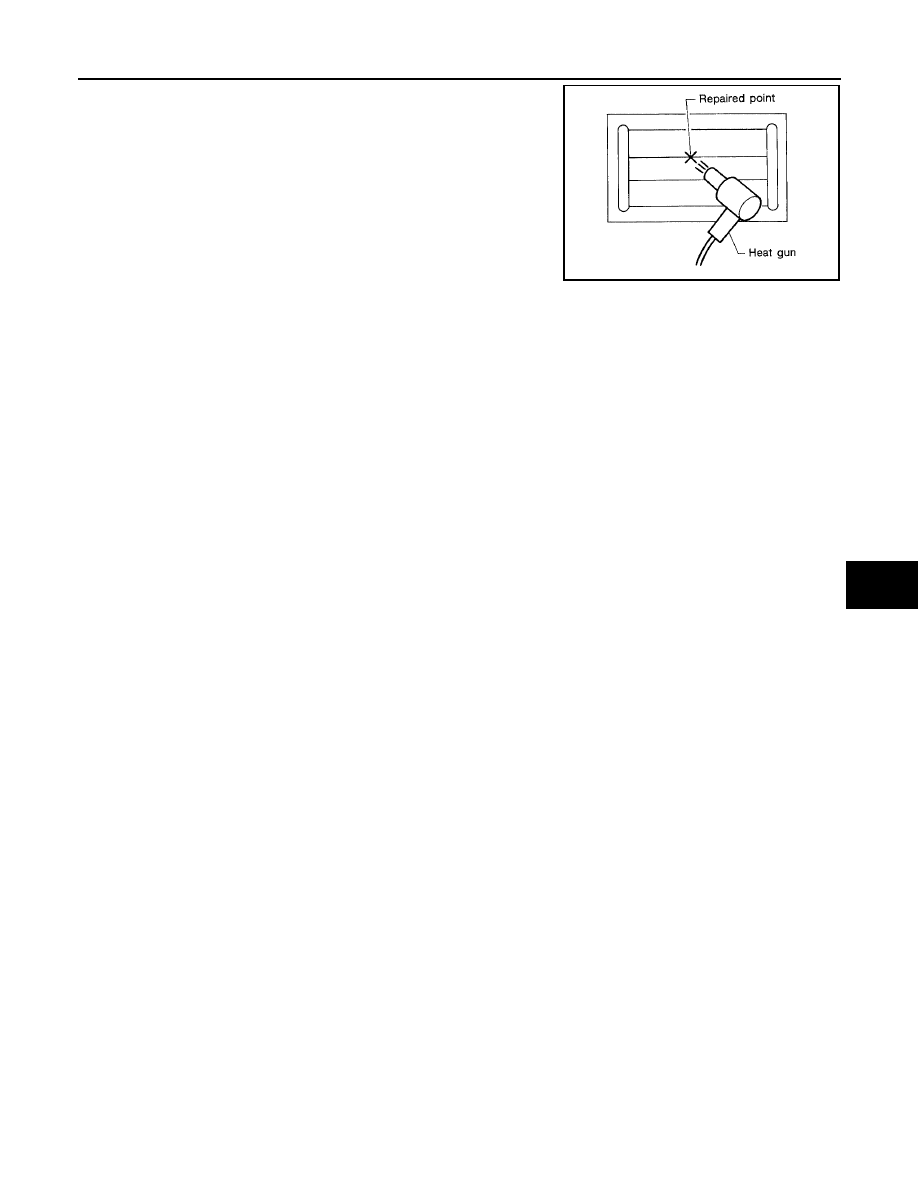

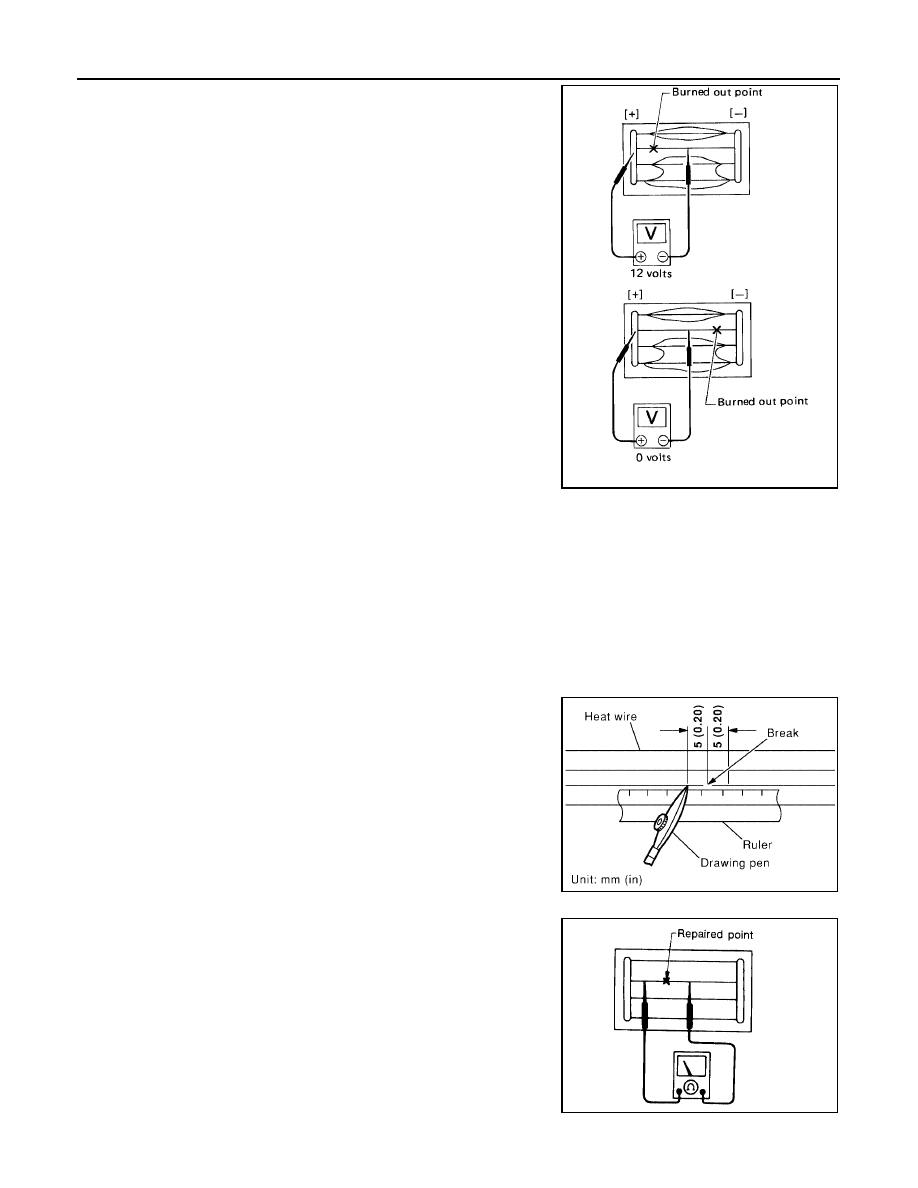

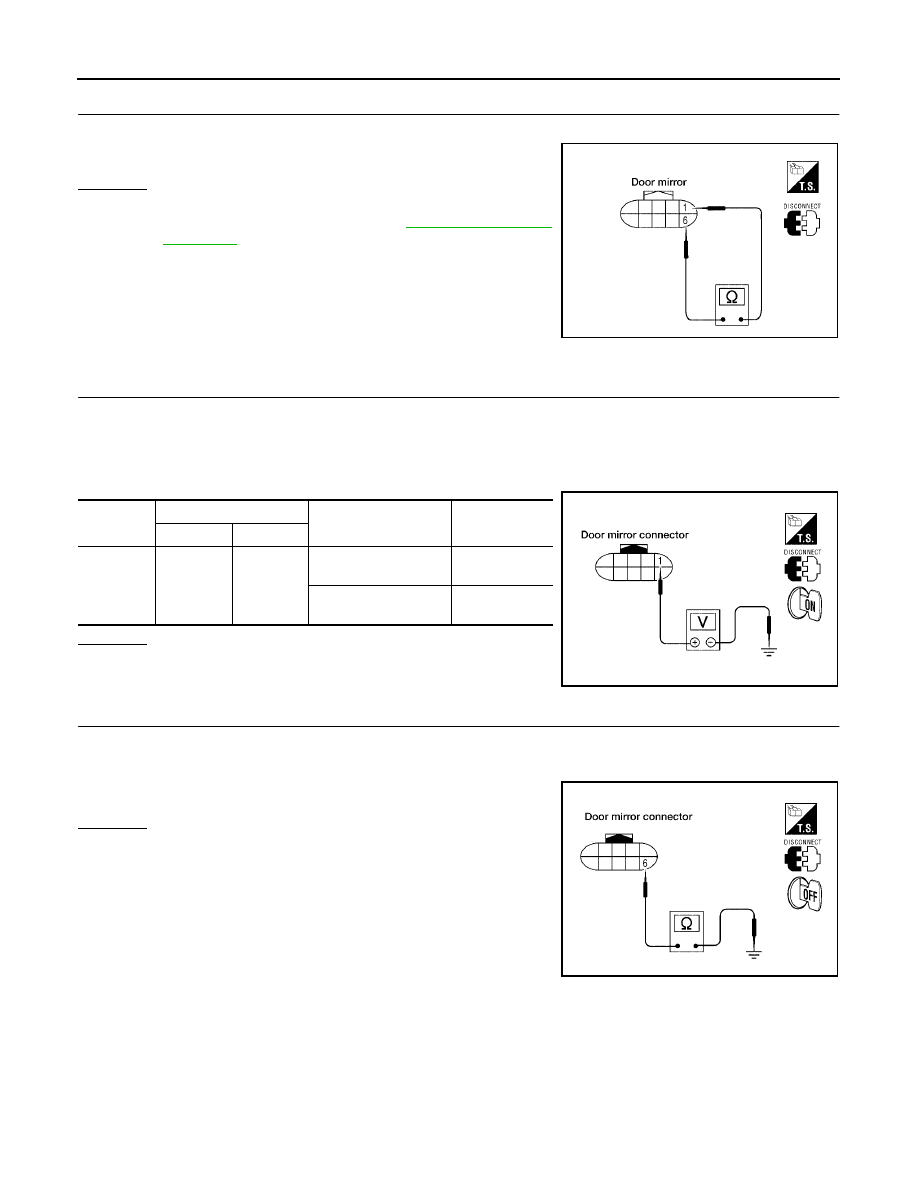

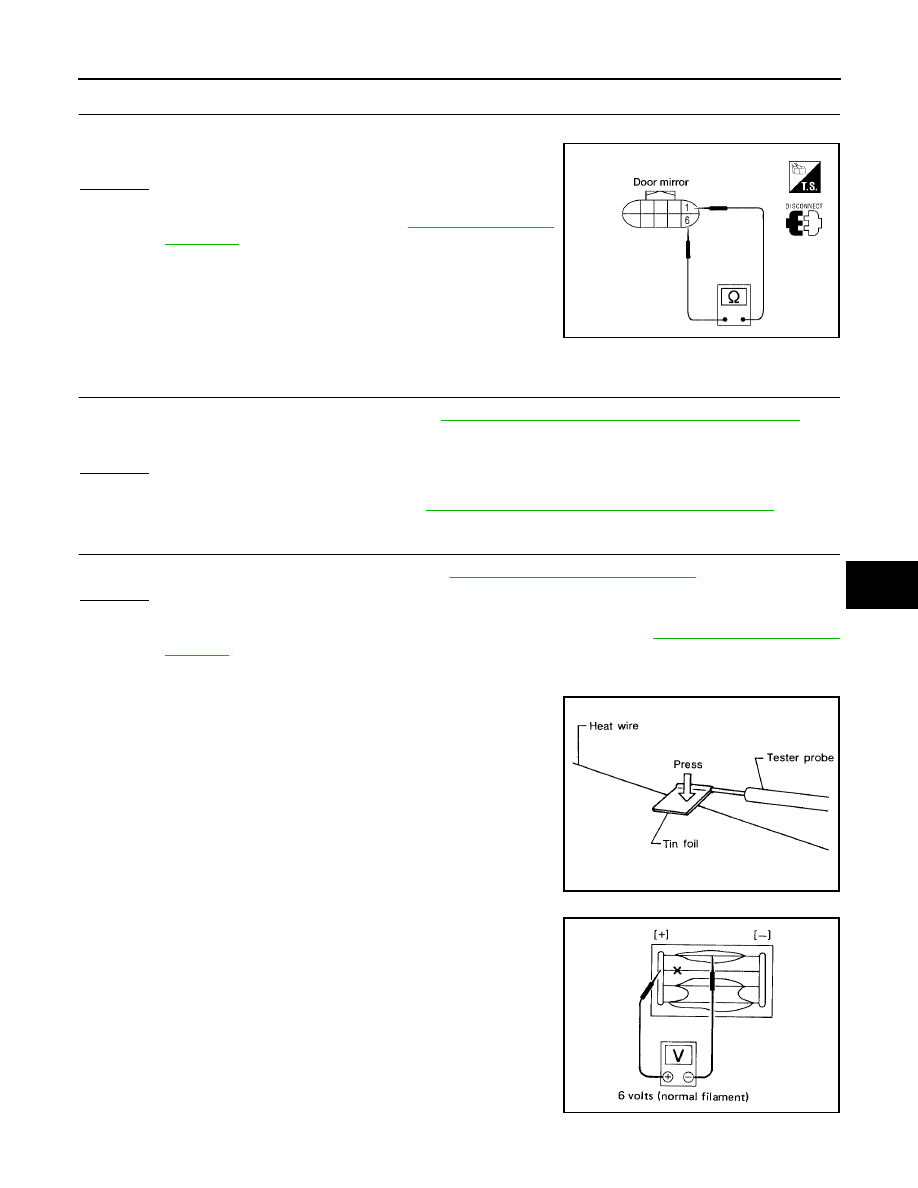

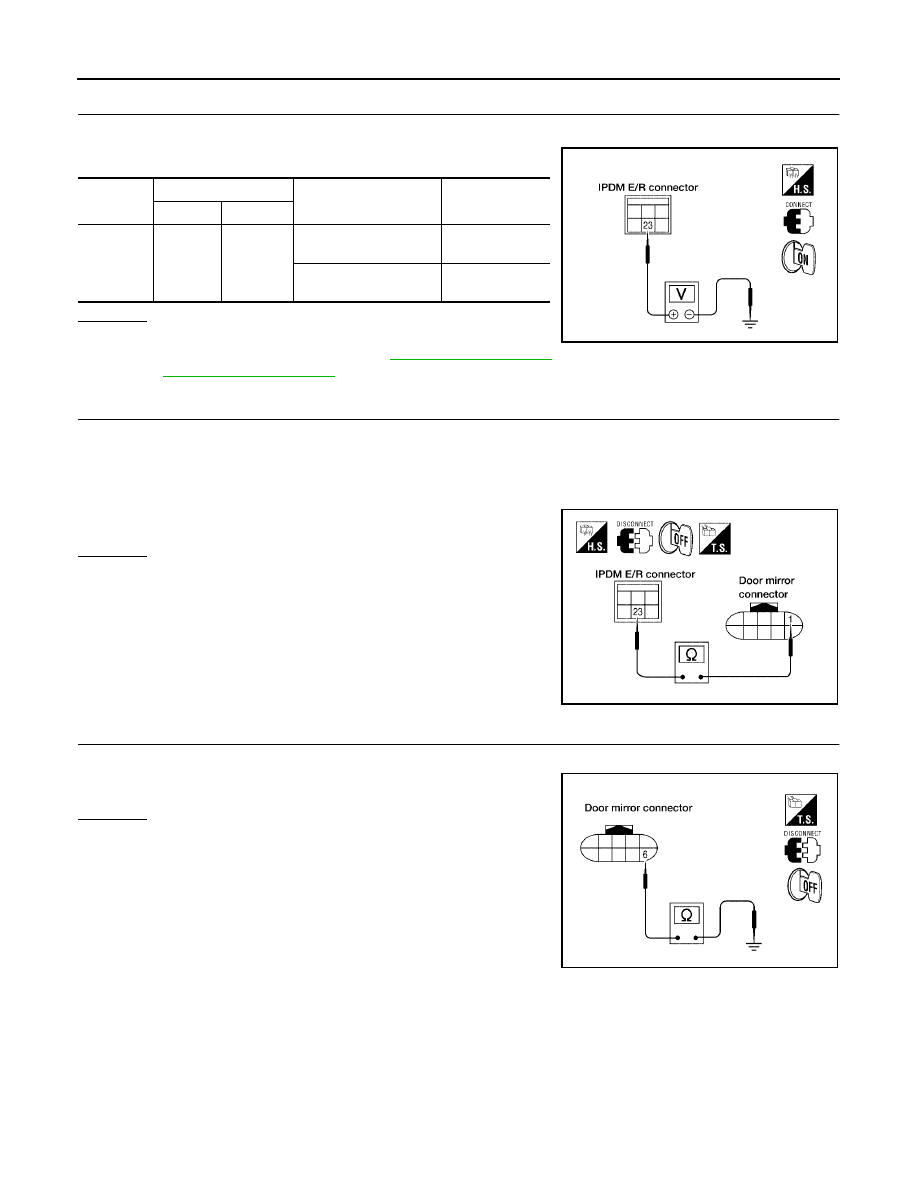

2005 Pathfinder 3. CHECK REAR WINDOW DEFOGGER GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Check continuity between rear window defogger connector D604 terminal - and ground. OK or NG OK >> Check filament. Refer to . ● If filament is OK. ● If filament is NG. NG >> Repair or replace harness. 4. CHECK REAR WINDOW DEFOGGER RELAY OUTPUT SIGNAL 1. Turn ignition switch ON. 2. Check voltage between IPDM E/R connector E124 terminal 60 and ground. OK or NG OK >> Replace IPDM E/R. Refer to . NG >> Repair or replace harness. Door Mirror Defogger Power Supply Circuit Check EIS0042U 1. CHECK FUSE Check if the following fuse for IPDM E/R is blown. NOTE: GW-58, "Component Parts and Harness Connector Location" . OK or NG OK >> GO TO 2. NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to GW-58, "Component Parts and Harness Connector Location" . - - Ground : Continuity should exist. LIIA0409E Connector Terminals Condition Voltage (V) (Approx.) (+) (–) E124 60 Ground Rear window defogger Battery voltage Rear window defogger 0 WIIA0525E COMPONENT PARTS AMPERE FUSE NO. IPDM E/R 15A 43 |
