AUTO LEVELIZER CONTROL UNIT

EXL-149

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AUTO LEVELIZER CONTROL UNIT

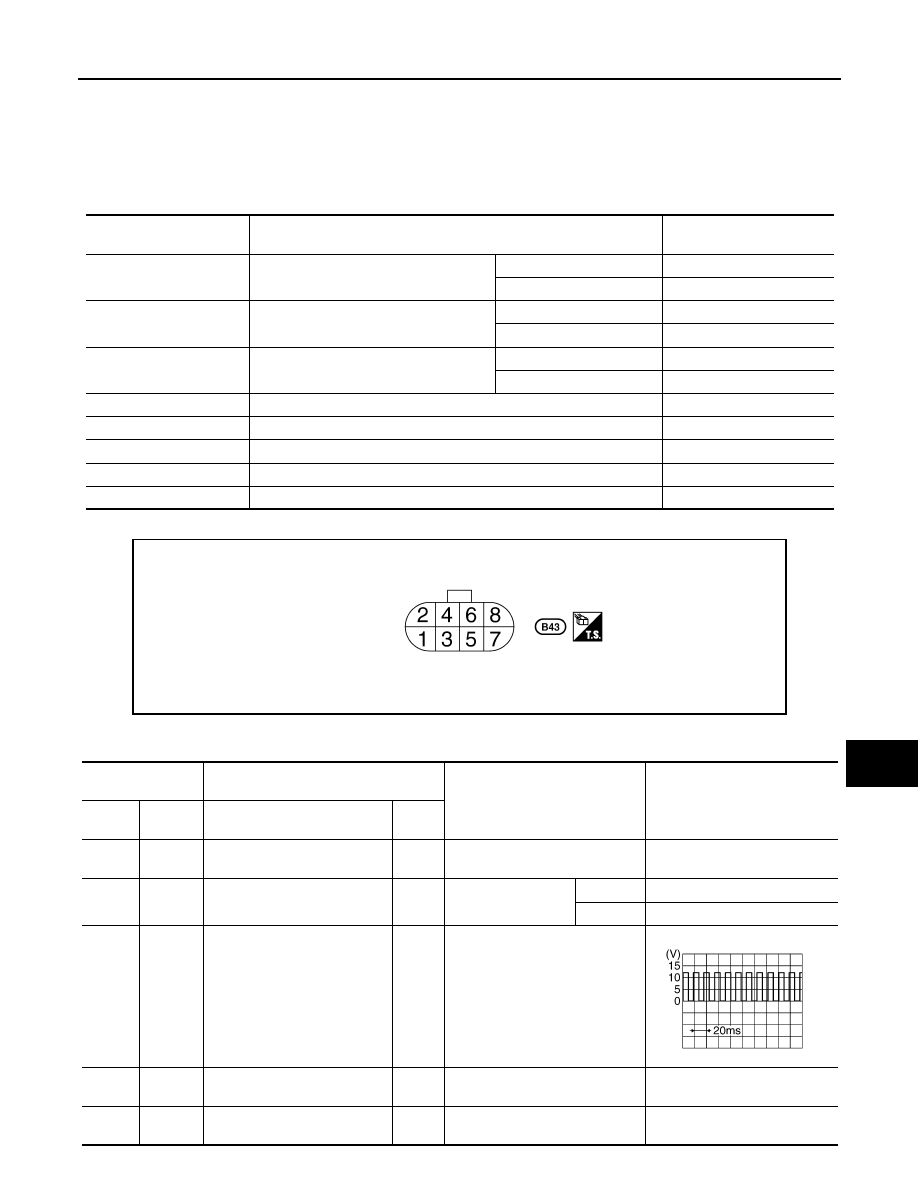

Reference Value

INFOID:0000000000955487

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor item

Operating condition

Display item

(Approx.)

INT SEN VALUE

Rear vehicle height

Detection upper limit

0 %

Detection lower limit

100 %

ACT OUTPUT

Headlamp light axis

Control upper limit

19.9 %

Control lower limit

73.8 %

ACT MEASURED

Headlamp light axis

Detection upper limit

19.9 %

Detection lower limit

73.8 %

VEHICLE SPEED SIGNAL

Vehicle running at approx. 40 km/h

40 km/h

LIGHT SIGNAL

Headlamp (LO) ON

Battery voltage

INT SEN VOLT

Headlamp (LO) ON

Battery voltage

EXT SEN VOLT

—

—

EXT SEN SIG

—

—

JSLIA0073ZZ

Terminal No.

(Wire color)

Description

Operating condition

Standard

(Approx.)

+

−

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0 V

2

(R)

Ground

Control unit power supply
[Headlamp (LO) signal]

Input

Headlamp (LO)

ON

Battery voltage

OFF

0 V

4

(Y)

Ground

Vehicle speed signal (8-pulse)

Input

Vehicle running at approx. 40 km/
h

5

(O)

Ground

K-LINE

—

—

—

6

(R/L)

Ground

Tail lamp signal

Input

Headlamp (LO) and tail lamp ON

Battery voltage

PKIA1935E

EXL-150

< ECU DIAGNOSIS >

[XENON TYPE]

AUTO LEVELIZER CONTROL UNIT

7

(V)

Ground

Headlamp aiming motor drive
signal

Output

Headlamp aiming

Under un-
laden
conditions

2.5 V

At aiming
operation
lower limit

9.2 V

Terminal No.

(Wire color)

Description

Operating condition

Standard

(Approx.)

+

−

Signal name

Input/

Output

AUTO LEVELIZER CONTROL UNIT

EXL-151

< ECU DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

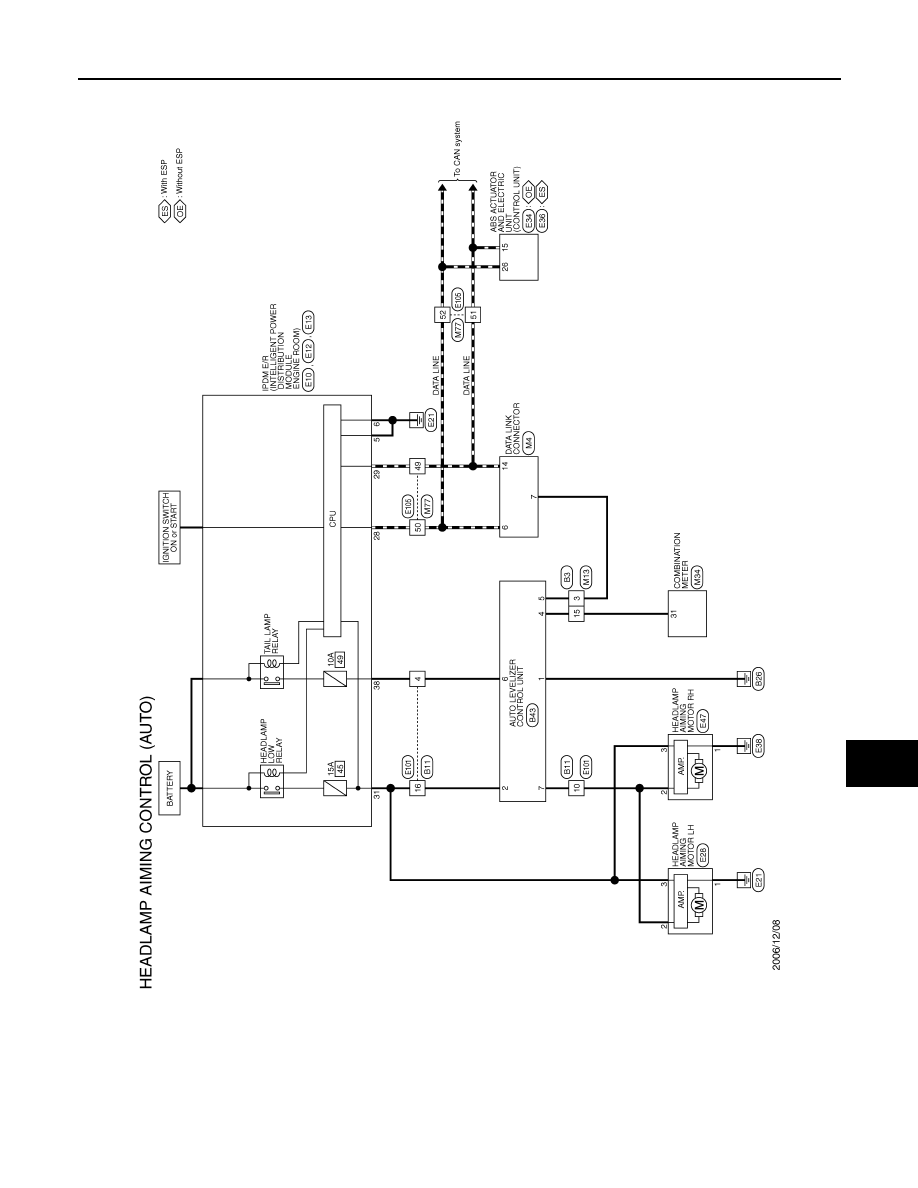

Wiring Diagram - HEADLAMP AIMING CONTROL SYSTEM (AUTO) -

INFOID:0000000000955488

JCLWA0353GB

EXL-152

< ECU DIAGNOSIS >

[XENON TYPE]

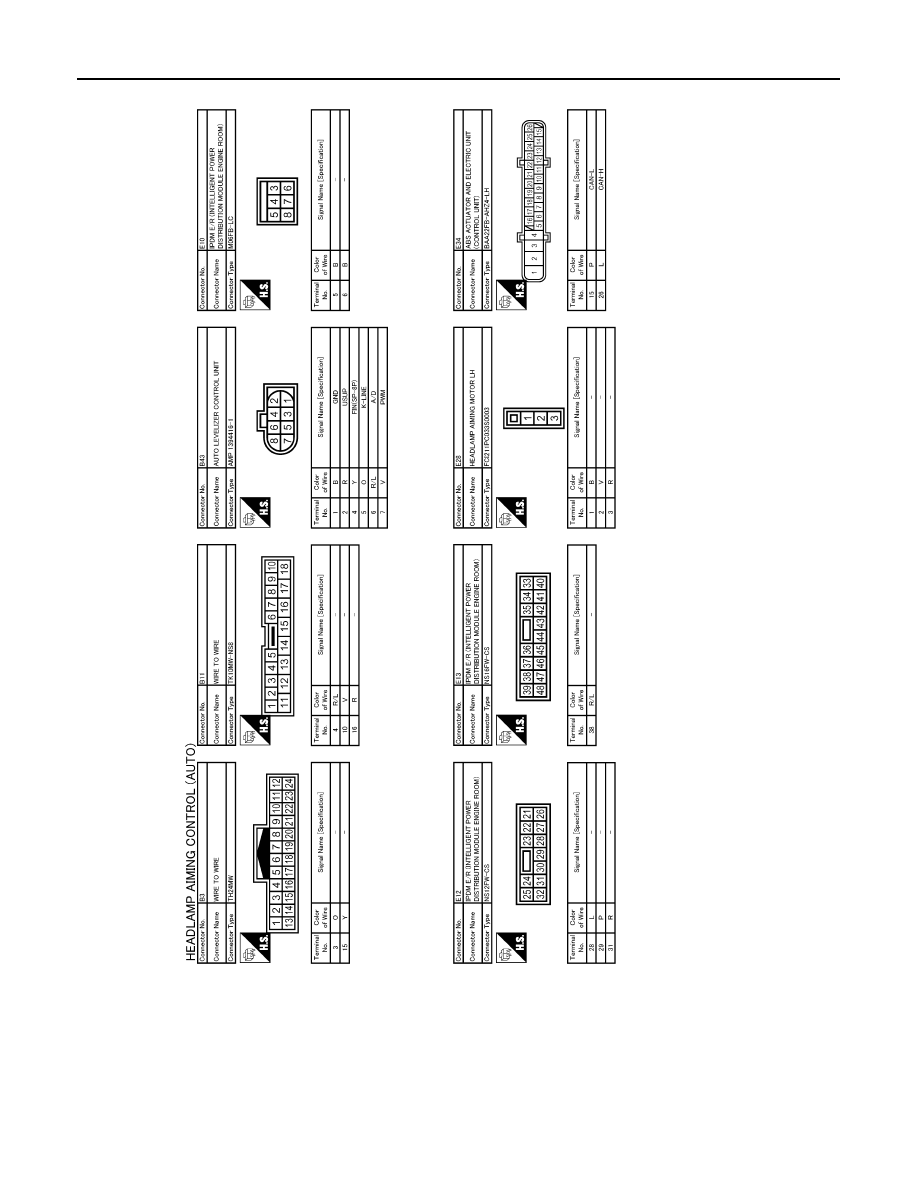

AUTO LEVELIZER CONTROL UNIT

JCLWA0354GB
