Mitsubishi L200 (2018 year). Manual

For ordinary demisting

RHD

LHD

For quick demisting

LHD

RHD

NOTE

To demist effectively, direct the air flow
from the side ventilators towards the door
windows.

Do not set the temperature control dial to the
max. cool position. Cool air will blow
against the window glasses and prevent de-
misting.

Introduction of outside air

E00702201522

LHD

RHD

Heater/Manual air conditioning*

7-08

OKTE18E1

For pleasant driving

Automatic climate control air conditioner*

E00702401638

The air conditioner can only be used while the engine is running.

CAUTION

The engine speed may increase when the air conditioning is operating. With an increased engine speed, an A/T vehicle will creep to a greater degree than
with a lower engine speed. Fully depress the brake pedal to prevent the vehicle from creeping.

Control panel

E00702502838

Automatic climate control air conditioner - Type 1

1- Temperature control switch
2- Air conditioning switch
3- MODE switch
4- Blower speed selection switch
5- Air selection switch

6- Demister switch
7- AUTO switch
8- Rear window demister switch

® p. 5-27

9- OFF switch

10- Temperature display

® p. 7-11

11- Air conditioning indicator
12- Mode selection display
13- Blower speed display

Automatic climate control air conditioner*

7-09

OKTE18E1

For pleasant driving

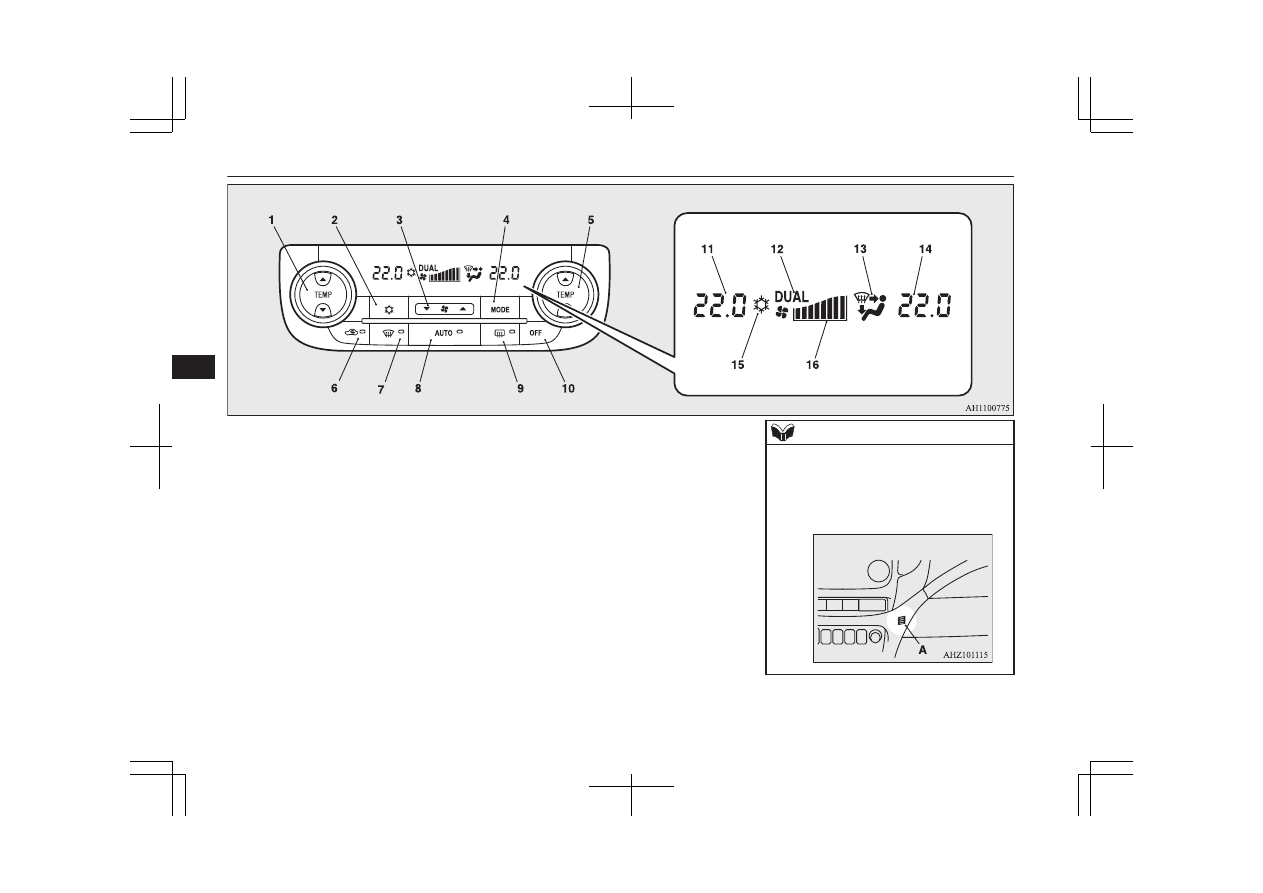

Dual-zone automatic climate control air conditioner - Type 2

1- Driver’s side temperature control switch

(LHD vehicles)
Passenger’s side temperature control
switch (RHD vehicles)

2- Air conditioning switch
3- Blower speed selection switch
4- MODE switch
5- Passenger’s side temperature control

switch (LHD vehicles)
Driver’s side temperature control switch
(RHD vehicles)

6- Air selection switch
7- Demister switch
8- AUTO switch
9- Rear window demister switch

® p. 5-27

10- OFF switch

11- Driver’s side temperature display (LHD

vehicles)

® p. 7-11

Passenger’s side temperature display
(RHD vehicles)

® p. 7-11

12- DUAL indicator
13- Mode selection display
14- Passenger’s side temperature display

(LHD vehicles)

® p. 7-11

Driver’s side temperature display (RHD
vehicles)

® p. 7-11

15- Air conditioning indicator
16- Blower speed display

NOTE

There is an interior air temperature sensor
(A) in the illustrated position.
Never place anything on top of the sensor,
since doing so will prevent it from function-
ing properly.

Automatic climate control air conditioner*

7-10

OKTE18E1

For pleasant driving

NOTE

In extreme cold, the air conditioning control
panel screen may operate sluggishly. This
does not indicate a problem.
It will disappear when the vehicle interior
temperature rises to a normal temperature.

Blower speed selection switch

E00702801456

Press

of the blower speed selection

switch to increase the blower speed.
Press

of the blower speed selection

switch to decrease the blower speed.
The selected blower speed will be shown in
the display (A).

Type 1

Type 2

1- Increase

2- Decrease

Temperature control switch

E00703001859

Press

of the temperature control

switch to the desired temperature.
The selected temperature will be shown in
the display (A).

NOTE

The  temperature  value  of  air  conditioner  is
switched  in  conjunction  with  outside  tem-
perature  display  unit  of  the  multi  informa-
tion display.
Refer to “Changing the temperature unit” on
page 5-10.

NOTE

While the engine coolant temperature is low,
the temperature of the air from the heater
will be cool/cold until the engine warms up,
even if you have selected warm air with the
switch.
To prevent the windscreen and windows
from fogging up, the ventilator mode will be
changed to “

” and the blower speed will

be reduced while the system is operating in
the AUTO mode.

When the temperature is set to the highest or
the lowest, the air selection and the air con-
ditioner will be automatically changed as
follows.
Also, if the air selection is operated manual-
ly after an automatic changeover, manual
operation will be selected.

•

Quick Heating (When the temperature is
set to the highest setting)
Outside air will be introduced and the air
conditioner will stop.

•

Quick Cooling (When the temperature is
set to the lowest setting)
Inside air will be recirculated and the air
conditioner will operate.

The  settings  described  above  are  the  factory
settings.
The  air  selection  and  air  conditioning
switches can be customised (function setting
changed), and the automatic switching of out-
side  air  and  the  air  conditioner  according  to
operating  conditions  can  be  changed  as  de-
sired.

Automatic climate control air conditioner*

7-11

OKTE18E1

For pleasant driving

For  further  information,  we  recommend  you
to  consult  a  MITSUBISHI  MOTORS  Au-
thorized Service Point.
Refer  to  “Customizing  the  air  conditioning
switch” on page 7-14.
Refer  to  “Customizing  the  air  selection”  on
page 7-13.

Synchronized mode and dual mode*
The driver’s side and the passenger’s side
temperature can be controlled independently.
At this time, the “DUAL” indicator will be
shown in the display (A).

Synchronized mode
If  the  driver’s  side  temperature  control
switch  is  pressed,  the  passenger’s  side
temperature will also be controlled to the
same  setting  temperature  as  the  driver’s
side.

Dual mode
If the passenger’s side temperature con-
trol switch is pressed under synchron-
ized mode, the system will switch to du-
al mode. In dual mode, the driver’s side
and the passenger’s side temperature can
be set separately by using each tempera-
ture control switch.
Press the AUTO switch to return to
synchronized mode.

Air selection switch

E00703401967

To change the air selection, simply press the
air selection switch.

Outside air: Indication lamp (A) is OFF
Outside air is introduced into the passen-
ger compartment.

Recirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.

CAUTION

Use of the recirculation position for exten-
ded time may cause the windows to fog up.

NOTE

Normally,  use  the  outside  position  to  keep
the  windscreen  and  side  windows  clear  and
quickly  remove  fog  or  frost  from  the  wind-
screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami-
nated  use  the  recirculation  position.  Switch
to  the  outside  position  periodically  to  in-
crease ventilation so that the windows do not
become fogged up.

Automatic climate control air conditioner*

7-12

OKTE18E1

For pleasant driving

NOTE

When  the  engine  coolant  temperature  rises
to  a  certain  level,  the  air  selection  is  auto-
matically switched to the recirculation posi-
tion  and  the  indication  lamp  (A)  comes  on.
At  this  time,  the  system  will  not  switch  to
the outside position even if the air selection
switch is pressed.

Customizing the air selection

E00739600123

Functions can be changed as desired, as sta-
ted below.

Enable automatic air control
When the AUTO switch is pressed, the
air selection switch is also controlled au-
tomatically.

Disable automatic air control
Even when the AUTO switch is pressed,
the air selection switch is not controlled
automatically.

Setting change method
Hold down the air selection switch for
approximately 10 seconds or more.

• When the setting is changed from ena-

ble to disable
3 sounds are emitted and the indica-
tion lamp flashes 3 times.

• When the setting is changed from dis-

able to enable
2 sounds are emitted and the indica-
tion lamp flashes 3 times.

NOTE

The factory setting is “Enable automatic air
control.”

When  the  demister  switch  is  pressed,  in  or-
der  to  prevent  misting  of  the  windows  the
ventilator  automatically  switches  to  outside
air even if “Disable automatic air control” is
set.

AUTO switch

E00702601135

When the AUTO switch is pressed, the indi-
cation  lamp  (A)  comes  on  and  the  mode  se-
lection,  blower  speed  adjustment,  recircula-
ted/outside  air  selection,  temperature  adjust-
ment, and air conditioner ON/OFF status are
all controlled automatically.

Automatic climate control air conditioner*

7-13

OKTE18E1

For pleasant driving

Air conditioning switch

E00703502574

Press the switch to turn the air conditioner
on, the “ ” indicator will be shown in the
display (A).

Press the switch again to switch it off.

Customizing the air conditioning switch

E00739700124

Functions can be changed as desired, as sta-
ted below.

Enable  automatic  air  conditioning  con-
trol
When  the  AUTO  switch  is  pressed,  or
the  temperature  control  switch  is  set  to
the minimum temperature, the air condi-
tioning switch is controlled automatical-
ly.

Disable  automatic  air  conditioning  con-
trol
The  air  conditioning  switch  is  not  con-
trolled  automatically  as  long  as  the  air
conditioning switch is not operated.

Setting change method
Hold down the air conditioning switch
for approximately 10 seconds or more.

• When the setting is changed from ena-

ble to disable
3 sounds are emitted and the “ ” in-
dicator flashes 3 times.

• When the setting is changed from dis-

able to enable
2 sounds are emitted and the “ ” in-
dicator flashes 3 times.

NOTE

The factory setting is “Enable automatic air
conditioning control”.

When the demister switch is pressed, in or-
der to prevent misting of the windows the air
conditioner operates automatically even if
“Disable automatic air conditioning control”
is set.

OFF switch

E00702701110

Press the switch to turn off the air condition-
ing system.

Automatic climate control air conditioner*

7-14

OKTE18E1

For pleasant driving

MODE switch

E00703301096

Each time the MODE switch is pressed, the
mode changes to the next one in the follow-
ing sequence: “

” → “

” →

“

” → “

”. The selected mode is

shown in the display (A). (Refer to “Mode
selection” on page 7-03.)

Demister switch

E00703901177

When this switch is pressed, the mode
changes to the “

” mode. The indication

lamp (A) will come on. The selected mode is
shown in the display (B). (Refer to “Mode se-
lection” on page 7-03.)

NOTE

When the demister switch is pressed, the air
conditioning  system  automatically  operates
and  outside  air  (as  opposed  to  recirculated
air)  is  selected.  This  automatic  switching
control  is  carried  out  to  prevent  misting  of
the  windows  even  if  “Disable  automatic  air
conditioning  control”  or  “Disable  automatic
air  control”  is  set.  (Refer  to  “Customizing
the  air  conditioning  switch”  on  page  7-14,
“Customizing  the  air  selection”  on  page
7-13.)

Operating the system in auto-

matic mode

E00704102492

In normal conditions, use the system in the
AUTO mode and follow these procedures:

1. Press the AUTO switch.
2. Set the temperature control switch to the

desired temperature.

The  mode  selection,  blower  speed  adjust-
ment,  recirculated/outside  air  selection,  tem-
perature  adjustment,  and  air  conditioner
ON/OFF status are all controlled automatical-
ly.

Automatic climate control air conditioner*

7-15

OKTE18E1

For pleasant driving

NOTE

If the blower speed selection switch, air con-
ditioning  switch,  Mode  switch,  or  air  selec-
tion  switch  is  operated  while  the  system  is
operating  in  the  AUTO  mode,  the  activated
function  overrides  the  corresponding  func-
tion of automatic control. All other functions
remain under automatic control.

Operating the system in man-

ual mode

E00704200239

Blower  speed  and  ventilator  mode  may  be
controlled  manually  by  setting  the  blower
speed selection switch and the MODE switch
to the desired positions.
To  return  to  automatic  operation,  press  the
AUTO switch.

Demisting of the windscreen
and door windows

E00704302263

CAUTION

For safety, make sure you have a clear view
through all the windows.

For ordinary demisting

Type 1

Type 2

1. Set the air selection switch to the outside

position.

2. Set the MODE switch to the “

” posi-

tion.

3. Select your desired blower speed by

pressing the blower speed selection
switch.

4. Select your desired temperature by

pressing the temperature control switch.

5. Press the air conditioning switch.

For quick demisting

Type 1

Type 2

1. Press the demister switch to change to

the “

” position.

2. Set the blower to the maximum speed.
3. Set the temperature to the highest posi-

tion.

NOTE

To demist effectively, direct the air flow
from the side ventilators towards the door
windows.

Do not set the temperature to the max. cool
position. Cool air will blow against the win-
dow glasses and prevent demisting.

Automatic climate control air conditioner*

7-16

OKTE18E1

For pleasant driving

NOTE

For  vehicles  with  the  Auto  Stop  &  Go
(AS&G)  system,  if  the  demister  switch  is
pressed,  the  Auto  Stop  &  Go  (AS&G)  sys-
tem will not operate and the engine will not
stop  automatically  even  if  the  vehicle  is
stopped. This is to ensure that good visibility
is maintained.

Important operation tips for
the air conditioning

E00708302128

Park the vehicle in the shade.
Parking in the hot sun will make the ve-
hicle inside extremely hot, and it will re-
quire more time to cool the interior.
If it is necessary to park in the sun, open
the windows for the first few minutes of
air conditioning operation to expel the
hot air.

Close the windows when the air condi-
tioning is in use. The entry of outside air
through open windows will reduce the
cooling efficiency.

Too much cooling is not good for the
health. The inside air temperature should
only be 5 to 6 °C below the outside air
temperature.

When  operating  the  system,  make  sure
the  air  intake,  which  is  located  in  front
of the windscreen, is free of obstructions
such as leaves and snow. Leaves collec-
ted in the air-intake plenum may reduce
air  flow  and  plug  the  plenum  water
drains.

Air conditioning system refrig-

erant and lubricant recommen-

dations

If  the  air  conditioning  seems  less  effective
than  usual,  the  cause  might  be  a  refrigerant
leak. We recommend you to have the system
inspected.
The  air  conditioning  system  in  your  vehicle
must  be  charged  with  the  refrigerant
HFC- 134a and the lubricant DH-PR.
Use of any other refrigerant or lubricant will
cause severe damage which will result in the
need to replace your vehicle’s entire air con-
ditioning  system.  The  release  of  refrigerant
into the atmosphere should be prevented.
It is recommended that the refrigerant be re-
covered and recycled for further use.

During a long period of disuse

The air conditioning should be operated for at
least five minutes each week, even in cold
weather. This is to prevent poor lubrication
of the compressor internal parts and to main-
tain the air conditioning in the best operating
condition.

Air purifier*

E00708401773

An air filter has been incorporated into this
air conditioner so that dirt and dust are
cleaned from the air.
Replace the air filter periodically as its ability
to clean the air will be reduced as it collects
pollen and dirt. For the maintenance interval,
refer to the “SERVICE BOOKLET”.

NOTE

Operation in certain conditions such as driv-
ing on a dusty road and frequent use of the
air conditioner can lead to reduction of serv-
ice life of the filter. When you feel that the
air flow is lower than normal or when the
windscreen or windows start to fog up easi-
ly, replace the air filter.
We recommend you to have it checked.

Important operation tips for the air conditioning

7-17

OKTE18E1

For pleasant driving

AM/FM radio/CD player
with AUX*

E00708503547

The audio system can only be used when the
ignition switch or the operation mode is in
ON or ACC.

NOTE

For  vehicles  equipped  with  the  Keyless  op-
eration system, if the operation mode is left
in ACC, the accessory power will automati-
cally  turn  off  after  a  certain  period  of  time
and you will no longer be able to use the au-
dio  system.  The  accessory  power  comes  on
again if the engine switch is operated with it
in the “ACC” position. Refer to “ACC pow-
er auto-cutout function” on page 6-15.

If a cellular phone is used inside the vehicle,
it may create noise from the audio equip-
ment. This does not mean that anything is
wrong with your audio equipment. In such a
case, use the cellular phone at a place as far
away as possible from the audio equipment.

If foreign objects or water get into the audio
equipment,  or  if  smoke  or  a  strange  odour
comes from it, immediately turn off the au-
dio  system.  We  recommend  you  to  have  it
checked.  Never  try  to  repair  it  by  yourself.
Avoid  continuous  usage  without  inspection
by a qualified person.

Important Points on Usage

E00735500023

iPod/iPhone Playback Func-

tion*

This product supports audio playback
from iPod/iPhone devices, however dif-
fering versions mean that playback can-
not be guaranteed.

Please be aware that depending on the
iPod/iPhone model or version, operation
may differ.

How to Clean

E00735700025

If the product becomes dirty, wipe with
a soft cloth.

If  very  dirty,  use  a  soft  cloth  dipped  in
neutral  detergent  diluted  in  water,  and
then  wrung  out.  Do  not  use  benzene,
thinners,  or  other  chemical  wipes.  This
may harm the surface.

Trademarks

E00735801241

Product names and other proper names
are the trademarks or registered trade-
marks of their respective owners.

Furthermore, even if there is no specific
denotation of trademarks or registered
trademarks, these are to be observed in
their entirety.

“Made  for  iPod”,  “Made  for  iPhone”  mean
that  an  electronic  accessory  has  been  de-
signed  to  connect  specifically  to  iPod  or
iPhone,  respectively,  and  has  been  certified
by the developer to meet Apple performance
standards.
iPhone,  iPod,  iPod  classic,  iPod  nano,  and
iPod touch are trademarks of Apple Inc., reg-
istered in the U.S. and other countries.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.

NOTE

iPod and iTunes licensing allows individual
users to privately reproduce and play
non-copyrighted material as well as material
that may be legally copied and reproduced.
Infringement of copyright is prohibited.

Supported models

iPhone5S

iPhone5c

iPhone5

iPhone4S

AM/FM radio/CD player with AUX*

7-18

OKTE18E1

For pleasant driving

iPhone4

iPhone3GS

iPhone3G

iPhone

iPod Nano (3

Generation ~ 7

Genera-

tion)

iPod Touch (1

Generation ~ 5

Gener-

ation)

iPod Classic

Handling of Discs

E00735901125

This explains care that should be taken in the
handling of discs.

Important Points on Handling

Fingerprints  or  other  marks  on  the  read
surface of the disc may result in its con-
tent  being  more  difficult  to  read.  When
holding the disc, grip both edges, or one
edge  and  the  centre  hole,  in  order  that
the read surface is not touched.

Do not affix paper or stickers, or other-
wise damage the disc.

Do not forcefully insert a disc if another
is already within the device. This can re-
sult in damage to discs, or malfunction.

Cleaning

Periodically clean the read surface of the
disc.  When  cleaning,  do  not  wipe  in  a
circular  motion.  Instead,  wipe  gently
outwards  from  the  centre  of  the  disc  to
the outer edge.

New discs may have burring around the
outer edge or in the hole in the centre.
Ensure you check for these. If there are
burrs, these may lead to faulty operation,
therefore ensure these are removed.

Important Points on Storage

When not using discs, ensure these are
kept in cases, and stored out of direct
sunlight.

If discs are not going to be used for a
long period of time, remove these from
the product.

Disc Playback Environment

In cold environments such as in mid-winter
when the interior of the vehicle is cold, turn-
ing the heater on and immediately trying to
use the product may cause condensation (wa-
ter droplets) to form on the disc and internal
optical components, and this may prevent the
product from operating correctly.
In these conditions, remove the disc, and wait
a short time before use.

Copyright

Actions  such  as  unauthorized  reproduction,
broadcast,  public  performance,  or  rental  of
discs  that  comprise  other  than  personal  use
are prohibited by law.

Types of Disc That Can Be

Played

E00736001123

The following marks are printed on the disc
label, package, or jacket.

Type

Size

Maxi-

mum

playing

time

Comments

CD-DA

12 cm 74 mi-

nutes

—

CD-
TEXT

12 cm 74 mi-

nutes

—

Handling of Discs

7-19

OKTE18E1

For pleasant driving

Type

Size

Maxi-

mum

playing

time

Comments

CD-
R/RW

12 cm —

•Disc contain-
ing MP3 files

Discs That May Not Be Played

Playback of discs other than those de-
scribed in “Types of Disc That Can Be
Played” is not guaranteed.

8 cm discs may not be used.

Do not insert irregularly-shaped discs
(for example, heart-shaped), as these
may result in malfunction. Additionally,
discs that have transparent portions may
not be played.

Discs that have not been finalized cannot
be played.

Even if recorded using the correct for-
mat on a recorder or computer, applica-
tion software settings and environments;
disc peculiarities, damage, or marking;
or dirt or condensation on the lens inside
the product may render the disc unplaya-
ble.

Depending on the disc, some functions
may not be used, or the disc may not be
played.

Do not use discs with cracks or warps.

If the disc has stickers affixed, remains
from removed stickers, or affixed adhe-
sive, then do not use the disc.

Discs that have decorative labels or
stickers may not be used.

Nonstandard CDs

This product will play audio CDs, however,
please be aware of the following points re-
garding CD standards.

Ensure that you use discs with

on the

label surface.

Playback of other than standard CDs is
not guaranteed. Even if the audio can be
played, the audio quality cannot be guar-
anteed.

When playing other than standard CDs,
the following may occur.

• There may be noise during playback.
• There may be jumping in the audio.
• The disc may not be recognized.
• The first track may not be played.
• It may take longer than usual before

start of playback of tracks.

• Playback may start from within the

track.

• Some parts may not be played.
• Tracks may freeze during playback.

• Tracks may be displayed erroneously.

Audio Files (MP3/WMA/
AAC)

E00736101094

This product can play MP3/WMA/AAC for-
mat audio files recorded on CD-ROM, CDR/
RW, and USB devices.

There  are  limitations  on  the  files  and  media
that can be used, therefore read the following
prior  to  recording  MP3/WMA/AAC  format
audio files on discs or USB devices.
Additionally,  ensure  you  read  the  user  man-
uals for your CD-R/RW drive and the writing
software, and ensure these are used correctly.
If the MP3/WMA/AAC format audio files in-
cludes  title  information  or  other  data,  then
this can be displayed.

CAUTION

Actions such as copying audio CDs or files
and either distributing these to others for
free or for charge, or uploading files via the
Internet or other means to servers is an in-
fringement of the law.

Audio Files (MP3/WMA/AAC)

7-20

OKTE18E1

For pleasant driving

CAUTION

Do  not  append  the  file  extensions  “.mp3”,
“.wma”,  or  “.m4a”,  to  other  than
MP3/WMA/AAC format files. Playing discs
with these types of files recorded upon them
may cause the files to be incorrectly identi-
fied  for  playback,  which  may  lead  to  loud
noise,  resulting  in  speaker  damage  or  acci-
dent.

NOTE

Depending  on  the  condition  of  the  disc  re-
corder  or  recording  software  used,  correct
playback  may  not  be  possible.  In  these  ca-
ses, refer to the user manual for your product
or software.

Depending  on  your  computer’s  operating
system,  version,  software,  or  settings,  files
may  not  have  a  file  extension  appended.  In
these  cases,  append  the  file  extensions
“.mp3”,  “.wma”,  or  “.m4a”  when  copying
the files.

Folder Structure

E00736301113

Up to 8 folder levels can be recognized.

You can create a folder structure as in Genre
- Artist - Album - Track (MP3/WMA/AAC
format audio files) for management of tracks.

ROOT

Folder

4 level

3 level

Audio file

5 level

2 level

1 level

Name

Speci-

fica-

tion

Explanation

Format

specifica-

tions

ISO96
60

Level
1

Maximum 8
character file
name, and 3
character file
extension. (sin-
gle-byte alpha-
numeric capital
letters, numer-
als, “_” may be
used)

ISO96
60 ex-
tension

Joliet

Files names up
to a maximum
64

characters

can be used.

Multises-

sion

Not supported (only first session
supported)

Maxi-

mum

number

of levels

8 levels (if the root is the 1

lev-

el)

Maximum

folder

number

(including

root)

255 folders

USB

100 folders

Audio Files (MP3/WMA/AAC)

7-21

OKTE18E1

For pleasant driving

Name

Speci-

fica-

tion

Explanation

Maxi-

mum file

number

(total

number

on me-

dia)

509 files

Maxi-

mum file

number

(total

number

on me-

dia)

USB

10,000 files
(Up to 100 files can be
stored in one folder.)

File name

and fold-

er name

restric-

tions

Maximum 64 bytes (for Uni-
code, 32 characters), files/ fold-
ers with file/ folder names longer
than this will not be displayed or
played.

USB sup-

ported

formats

The recommended file system is
FAT32.
1 partition only

NOTE

The order in which folders and audio files
are displayed on this product may be differ-
ent to how they are displayed on a computer.

What Is MP3?

E00736401039

MP3 is the abbreviation of “MPEG-1 Audio
Layer 3”. MPEG is an abbreviation of “Mo-
tion Picture Experts Group”, and this is a vid-
eo compression standard used in video CDs,
etc.
MP3  is  one  of  the  audio  compression  meth-
ods  contained  in  the  MPEG  audio  standard,
and reduces the quality of sounds that are be-
yond the auditory resolution of the human ear
and  that  are  hidden  by  louder  sounds,  thus
creating  high-quality  data  with  a  lower  data
size.
This can compress CD audio to approximate-
ly 1/10 its original data size without percepti-
ble loss, approximately 10 CDs can be writ-
ten to a single CD-R/RW disc.

CAUTION

MP3 files different to the standards at right
may not be played correctly, or file/folder
names may not be displayed correctly.

Standards for MP3 Files That

Can Be Played

Specifications for MP3 files that can be
played are as shown below.

Item

Details

Specifica-

tion

MPEG-1 AUDIO LAYER3

MPEG-2 AUDIO LAYER3

Sampling

frequency

[kHz]

MPEG-1: 32/44.1/48

MPEG-2: 16/22.05/24

Bit rate

[kbps]

MPEG-1: 32 to 320

MPEG-2: 8~180

VBR (var-

iable bit

rate)

Support

Channel

mode

Stereo/ Joint stereo/ Dual chan-
nel/ Monaural

File ex-

tension

mp3

Supported

tag infor-

mation

ID3 tag Ver. 1.0, Ver. 1.1, Ver.
2.2, Ver. 2.3, Ver. 2.4
(ISO-8859-1, UTF-16 (Uni-
code)), Titles, Artist name, Al-
bum name

Audio Files (MP3/WMA/AAC)

7-22

OKTE18E1

For pleasant driving

Item

Details

Maximum
number of

characters

that can

be indica-
ted on the

display

64 characters

What Is WMA?

E00736601044

WMA is the abbreviation of Windows Media
Audio, and this is an audio compression for-
mat from Microsoft. This is a compression
format that has a higher compression ratio
than MP3.

NOTE

Microsoft, Windows Media, and Windows
are registered trademarks of Microsoft Cor-
poration (USA) and in other countries.

CAUTION

WMA supports digital rights management
(DRM). This product cannot play WMA
files protected using this system.

WMA files different to the standards at right
may not be played correctly, or file/folder
names may not be displayed correctly.

CAUTION

“Pro”, “Lossless”, and “Voice” are not sup-
ported.

Standards for WMA Files That

Can Be Played

Specifications for WMA files that can be
played are as shown below.

Item

Details

Specification Windows Media Audio

Version7.0/8.0/9.0

Sampling

frequency

[kHz]

32/44.1/48

Bit rate

[kbps]

32 to 192

VBR (varia-

ble bit rate)

Support

Channel

mode

Stereo/Monaural

File exten-

sion

wma

Supported

tag informa-

tion

WMA tags
Title name, Artist name, Al-
bum name

Item

Details

Maximum
number of

characters

that can be

indicated on

the display

64 characters

What is AAC?

E00736801059

AAC is the abbreviation of Advanced Audio
Coding, and this is an audio compression
standard used in “MPEG-2” and “MPEG-4”.
This features 1.4x the compression of MP3,
with comparable audio quality.

CAUTION

AAC supports digital rights management
(DRM). This product cannot play AAC files
protected using this system.

AAC files different to the standards at right
may not be played correctly, or file/folder
names may not be displayed correctly.

Standards for AAC Files That

Can Be Played

Specifications for AAC files that can be
played are as shown below.

Audio Files (MP3/WMA/AAC)

7-23

OKTE18E1

For pleasant driving

Mitsubishi L200 (2018 year). Manual - part 14
