AR05.20-P-6010-01VB

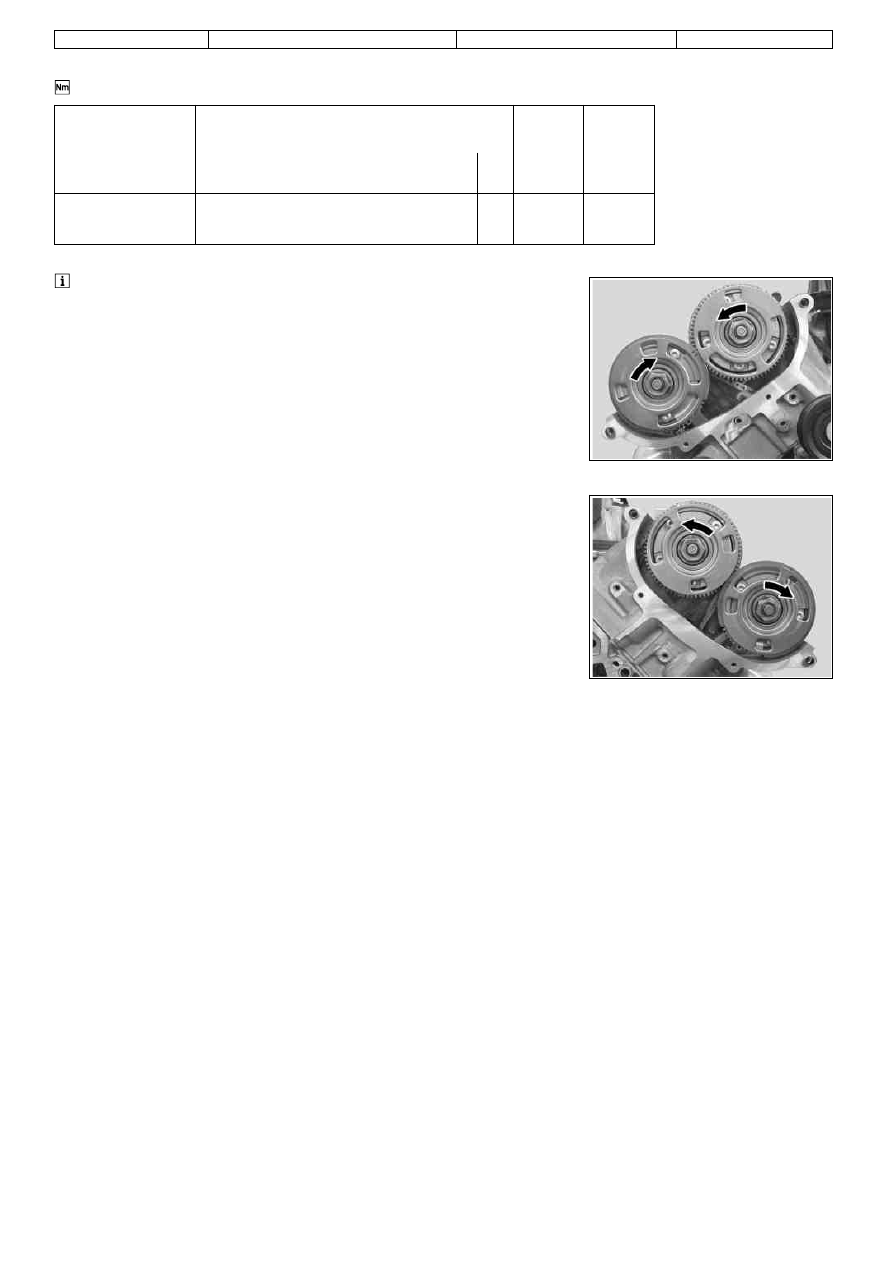

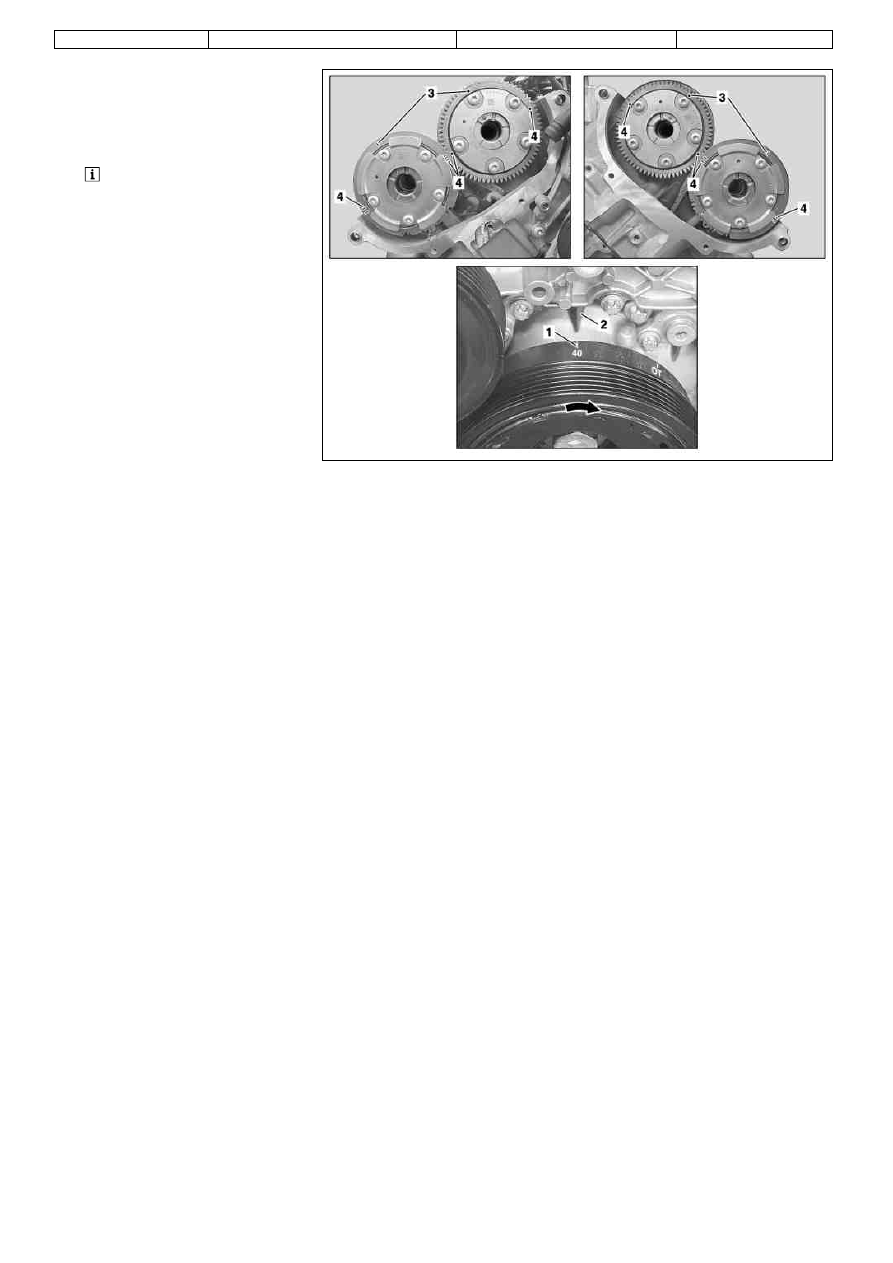

Inspect basic position of camshaft
Shown without pulse wheels on the
camshaft adjusters
1
Crank the engine at the crankshaft in
Turn the direction of engine rotation
(arrow) to 40° crank angle after ignition
TDC.
The 40° marking (1) on the belt
pulley must be aligned with the
positioning edge (2) on the timing case
cover.

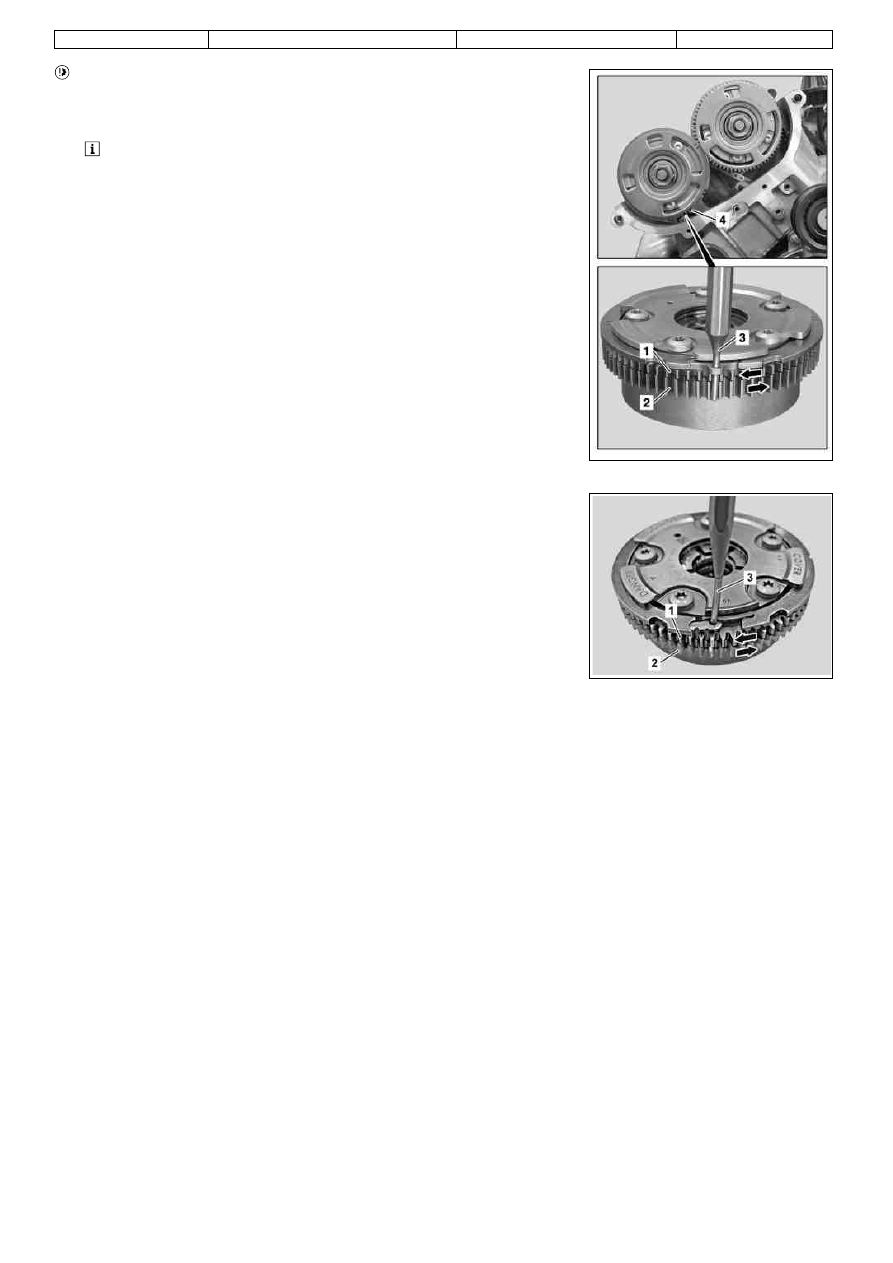

The markings (3) on the camshaft
adjusters face upward, and the
markings (4) align with the contact
surfaces on the cylinder head covers.
P05.20-2164-06
Страница 1 из 1
© Daimler AG, 07.04.13, G/07/14, ar05.20-p-6010-01vb, Inspect basic position of camshaft
ENGINE 272, 273 Grundstellung der Nockenwellen bei ausgebauten vorderen Deckeln am Zylinderkopf bei 40° Kurbelwinkel nach OT'
