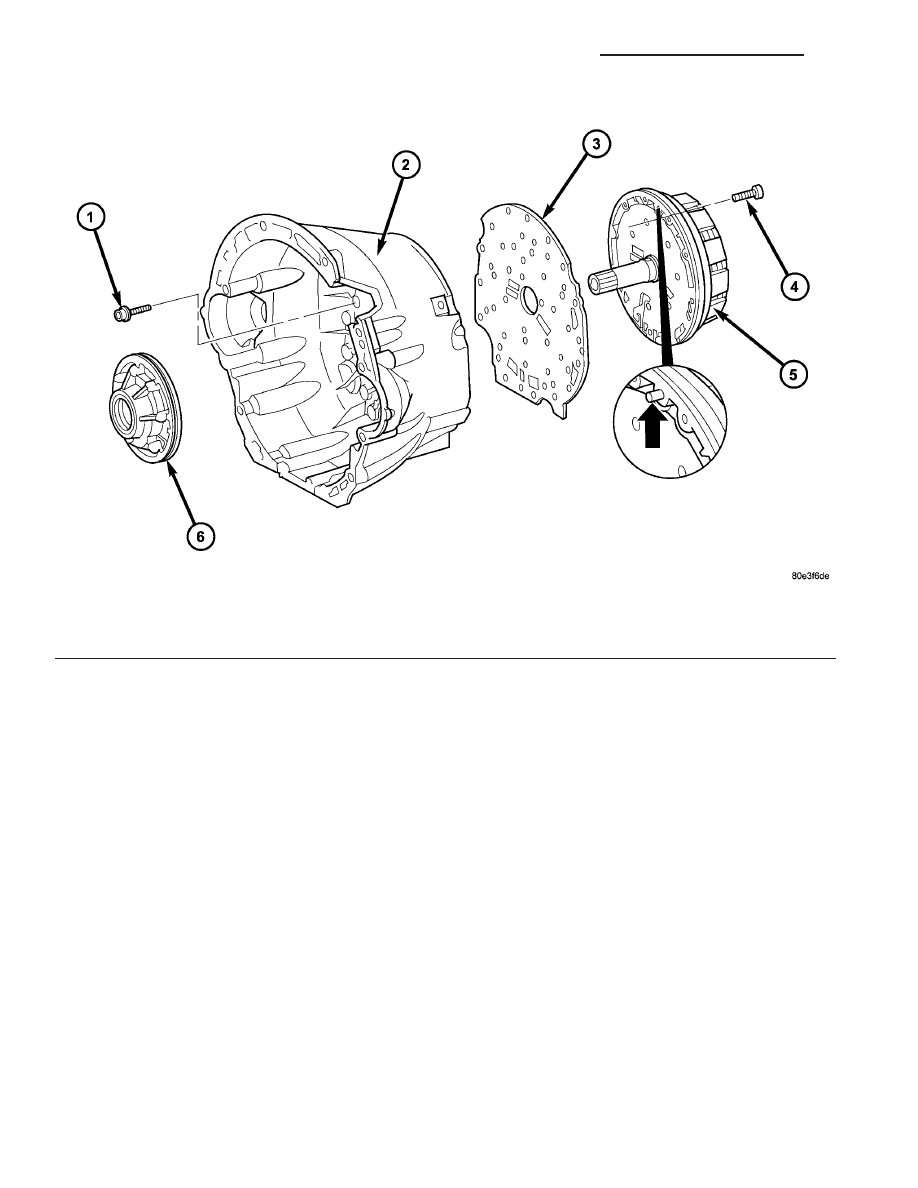

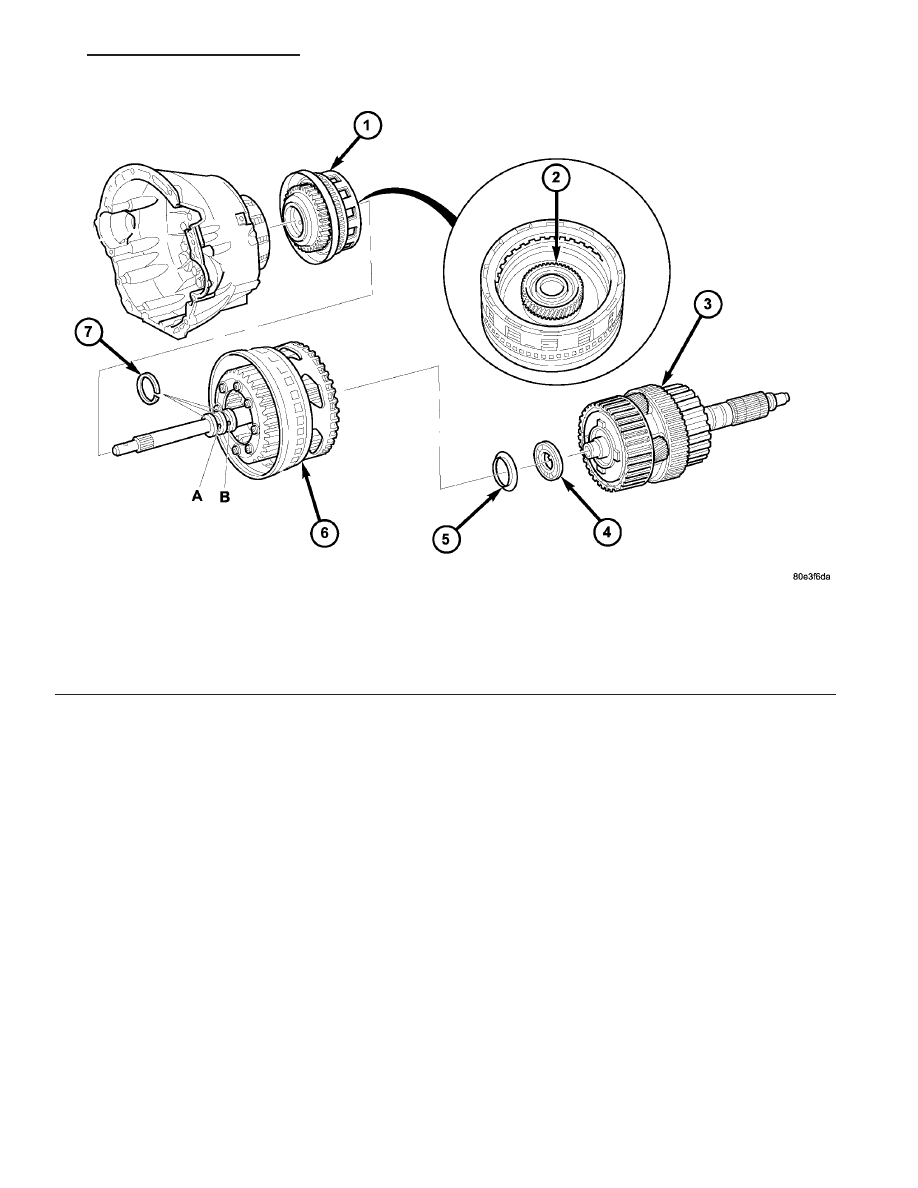

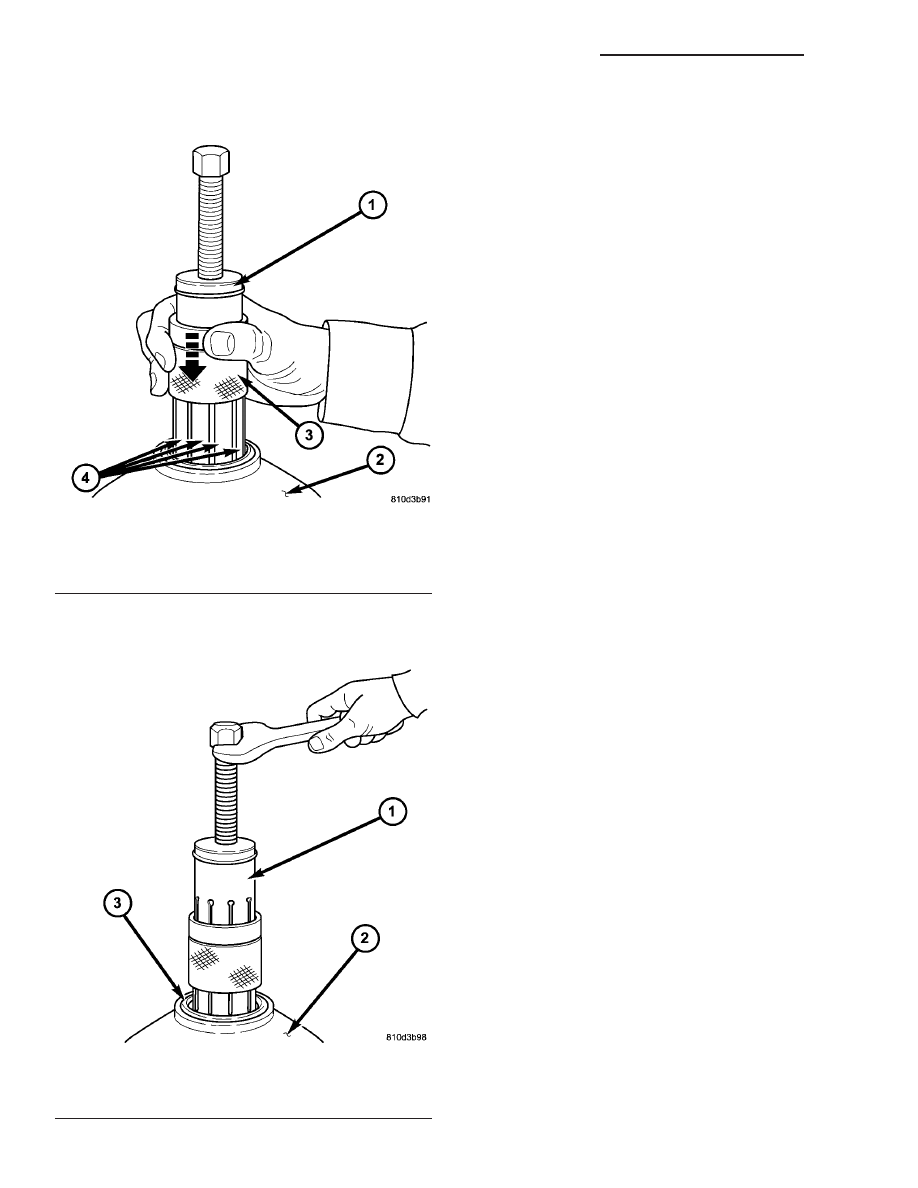

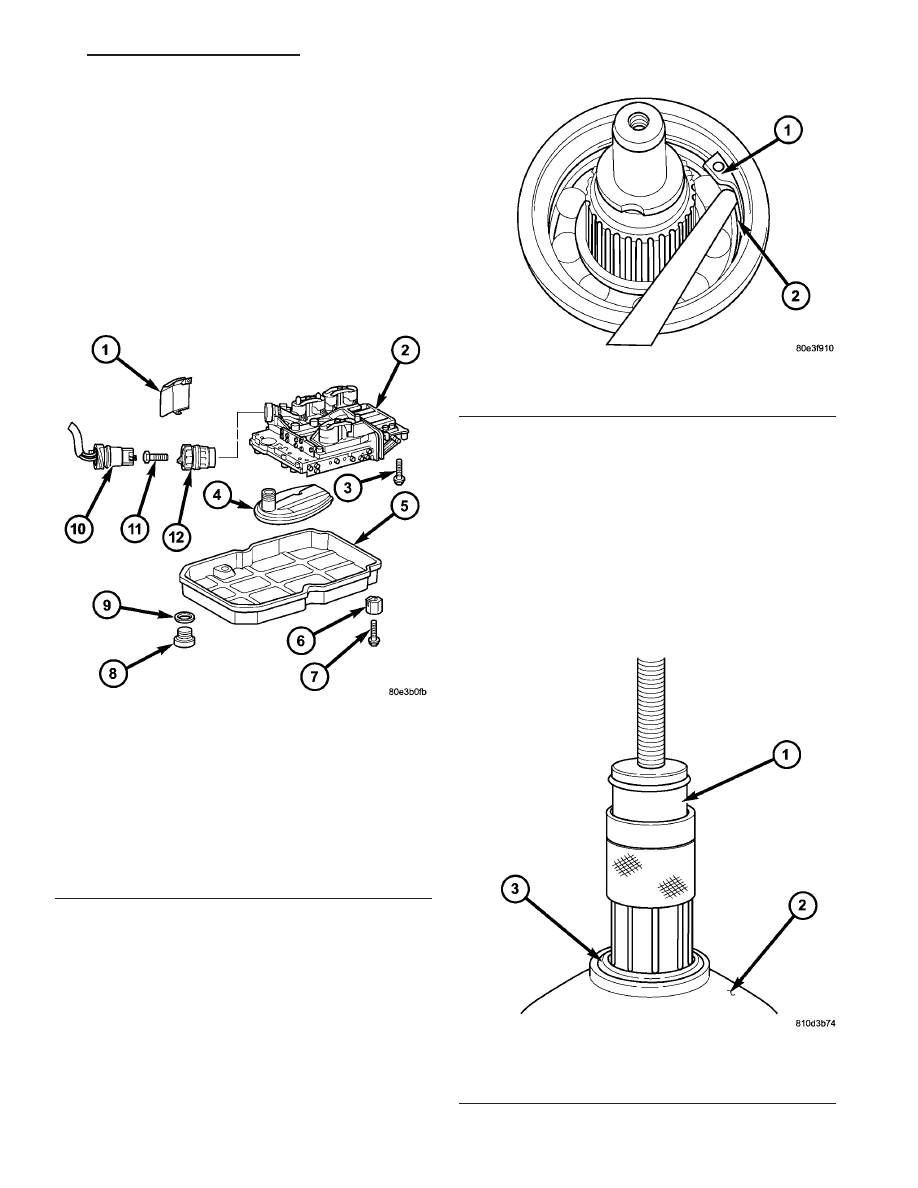

(a) Attach Adapter 8266-18 (2) to Handle 8266-8 (1). (b) Attach dial indicator C-3339 (3) to Handle 8266-8 (1). (c) Install the assembled tool onto the input shaft of the transmission and tighten the retaining (d) Position the dial indicator plunger against a flat spot on the oil pump and zero the dial indica- (e) Move the input shaft in and out. Record the maximum travel for assembly reference. (4) Loosen guide bushing (12) (Fig. 40) and remove from transmission housing. (5) Detach oil pan (5) (Fig. 40). trohydraulic unit (2). (8) Place the transmission in PARK to prepare for the removal of the output shaft nut. (9) Remove the nut holding the propeller shaft flange to the output shaft and remove the flange. (10) Remove the transmission rear oil seal with a suitable slide hammer and screw. (11) Remove the transmission output shaft washer. Be sure to tag the washer since it is very similar to (12) Remove the transmission rear output shaft bearing retaining ring (1) (Fig. 41). Fig. 40 Remove Electrohydraulic Unit 1 - HEAT SHIELD Fig. 41 Remove Rear Output Shaft Retaining Ring 1 - RETAINING RING Fig. 42 Position Remover 9082 On Bearing 1 - BEARING REMOVER 9082 VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 47 |
