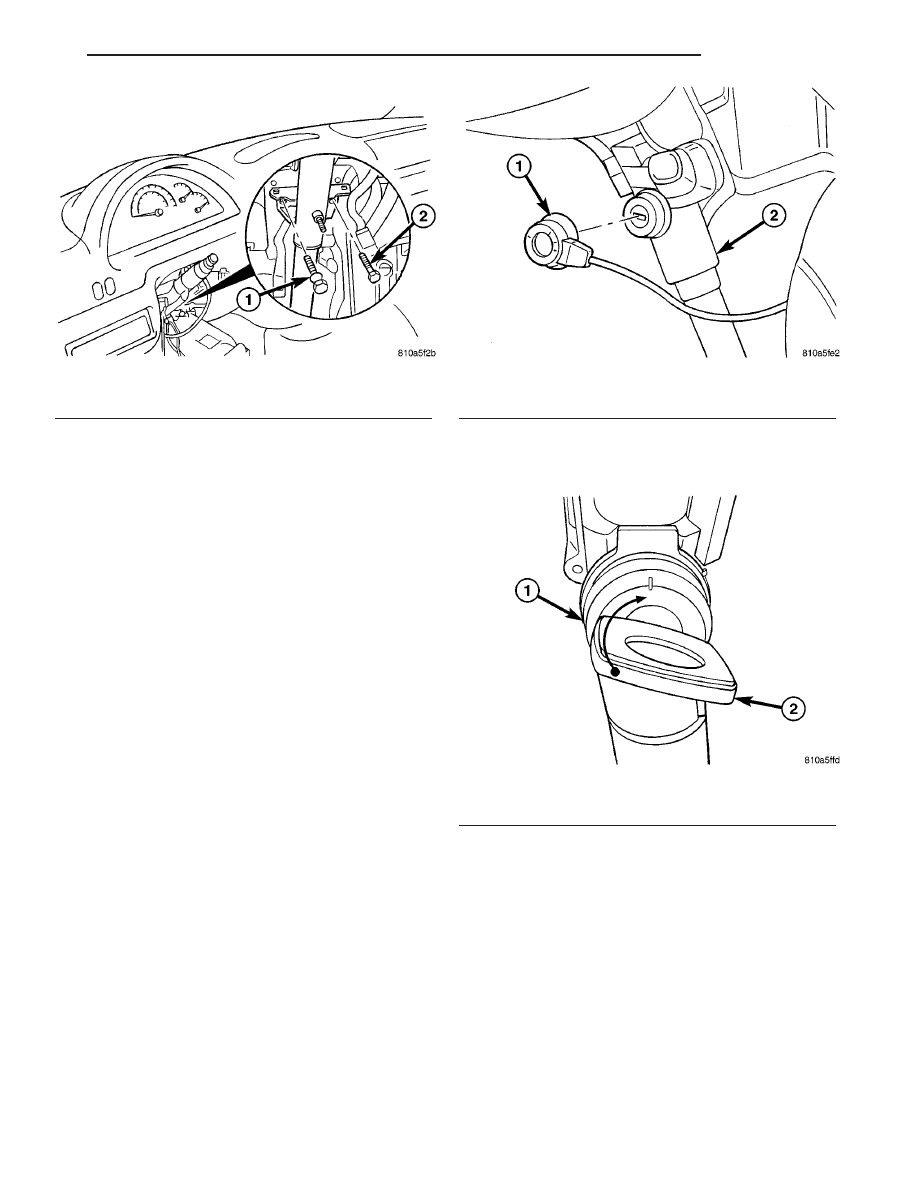

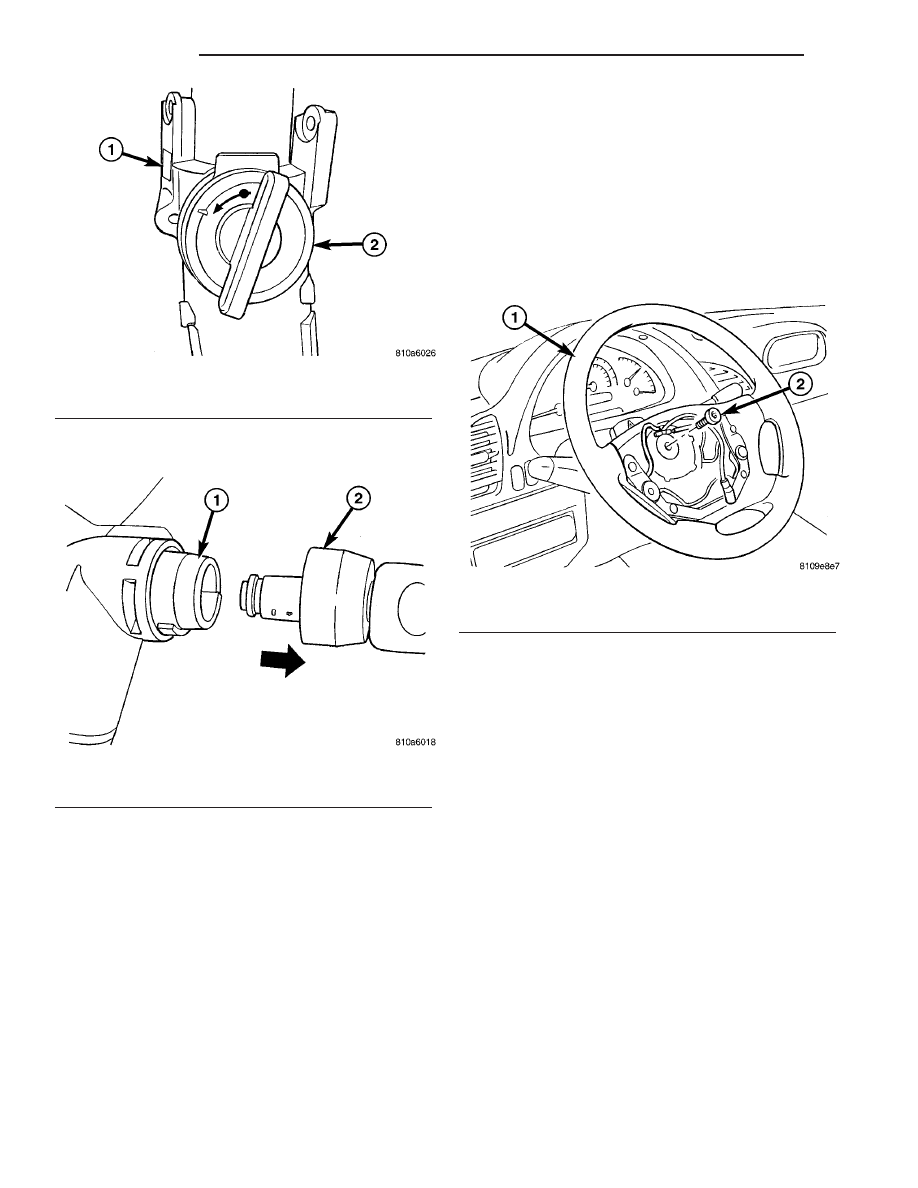

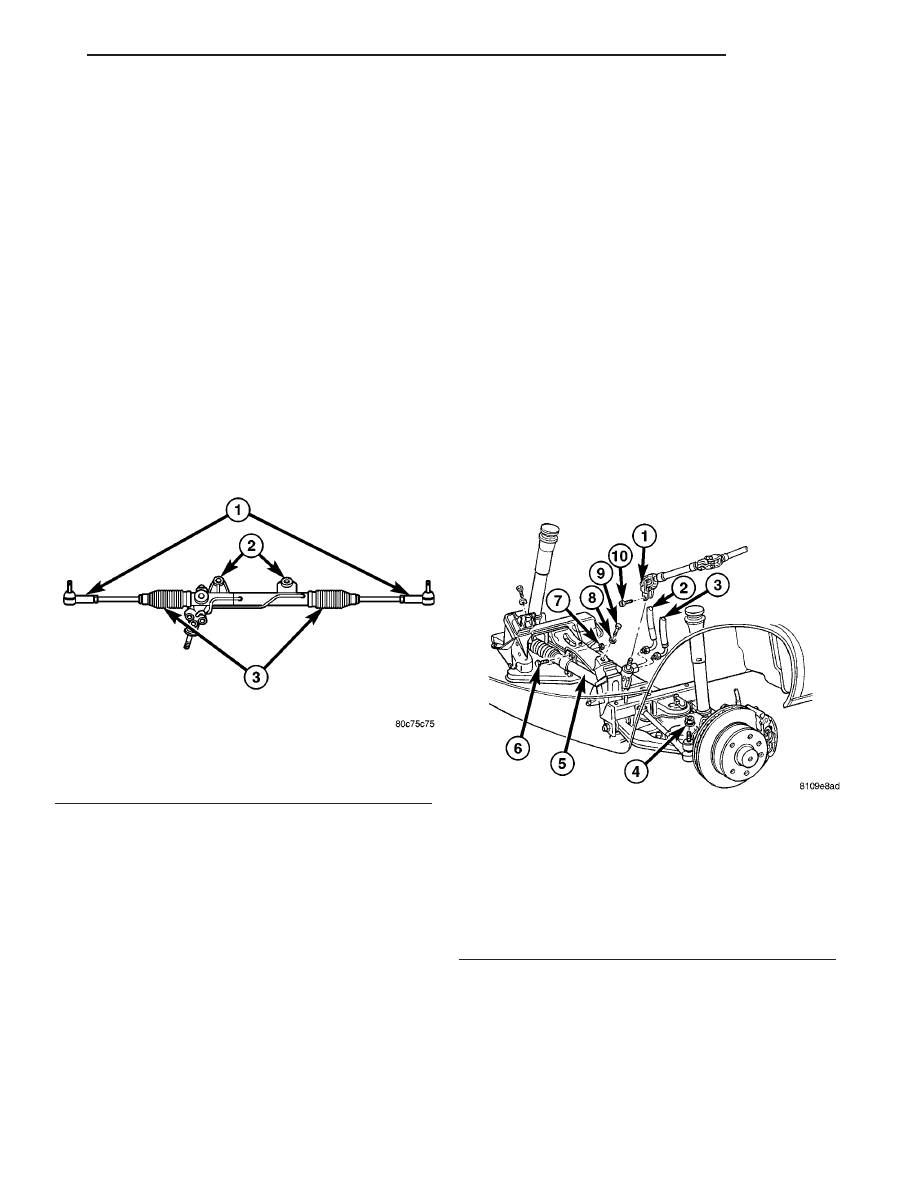

(13) Remove the steering shaft with the universal joint off the steering gear drive shaft (Fig. 1). (14) Pull the steering shaft out of the rubber grom- met in the cab floor. INSTALLATION (1) Install the steering shaft through the rubber grommet in the cab floor. Ensure that the rubber (2) Install the steering shaft with the universal joint onto the steering gear shaft (Fig. 1). (3) Install the bolts in the steering column bracket (Fig. 2). Tighten to 24 N·m (18 ft. lbs.). (4) Install the universal joint on the steering gear shaft (Fig. 1). Tighten to 24 N·m (18 ft. lbs.). (5) Install the spring for the brake pedal to the steering column. (6) Reconnect the electrical connector to the igni- tion lock. (7) Install the combination switch. KEY / LOCK CYLINDER REMOVAL (1) Remove the securing cover for the central elec- tronics. (2) Remove the steering column shroud. lock (Fig. 3). (4) Insert the key into the ignition lock. 4). (6) Turn the cap a 1/4 turn to the left (Fig. 5). Fig. 2 STEERING COLUMN BOLTS 1 - BOLT Fig. 3 TRANSPONDER 1 - TRANSPONDER Fig. 4 IGNITION LOCK FIRST DETENT 1 - LOCK HOUSING VA COLUMN 19 - 5 |
