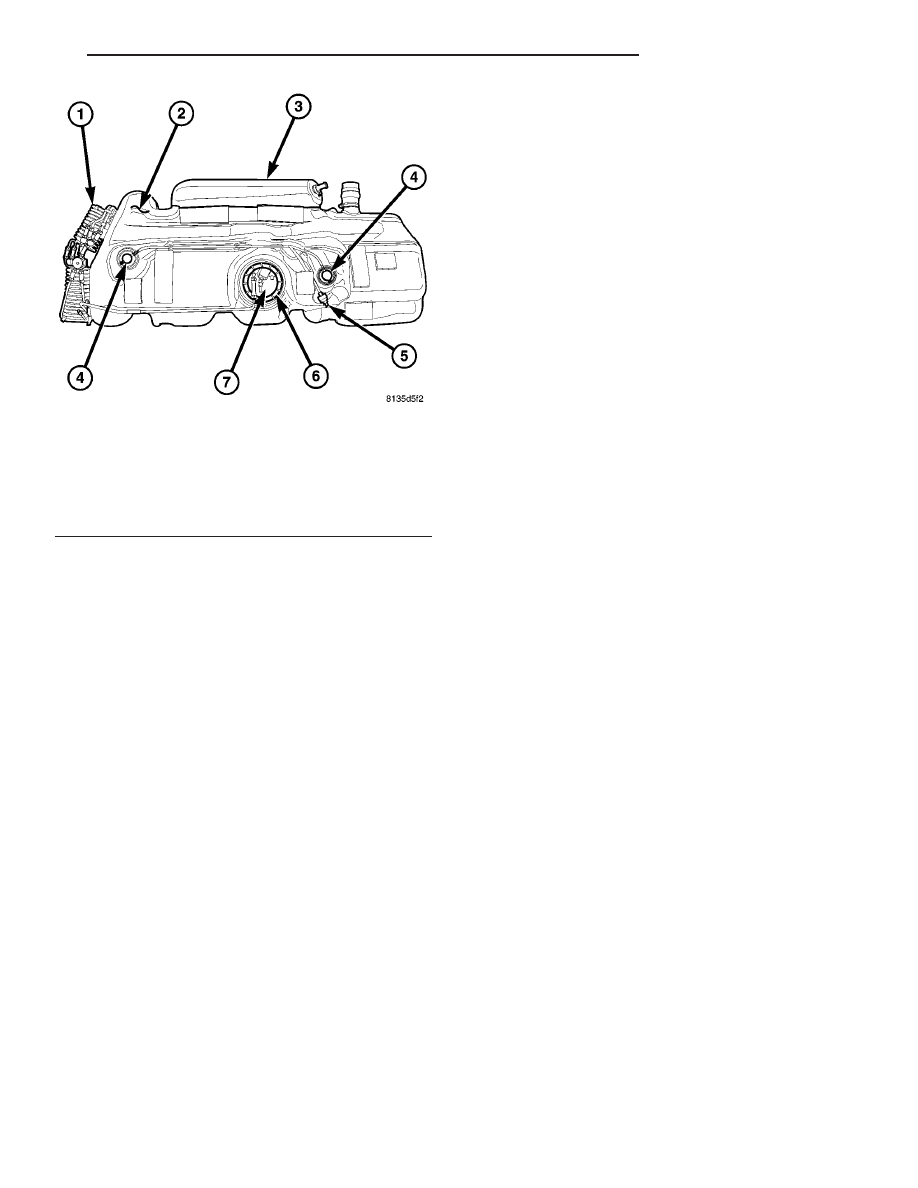

REMOVAL (1) Drain diesel fuel from tank. Refer to Standard Procedure — Draining Fuel Tank — Diesel. (2) Disconnect fuel fill and vent lines from body. position straps (7) towards left side of vehicle. (6) Carefully lower tank a few inches and discon- nect electrical connector at top of fuel pump module. (7) Disconnect fuel supply line at tank. oughly clean area at top of fuel pump around module. (11) If fuel tank is to be replaced, remove fuel pump module from tank. Refer to Fuel Pump Module (12) If fuel cooler lines (Fig. 24) are to be removed, use special pliers #9539 (Fig. 25). Fig. 22 TOP OF FUEL TANK 1 - Cooler Lines VA FUEL DELIVERY 14 - 25 |
