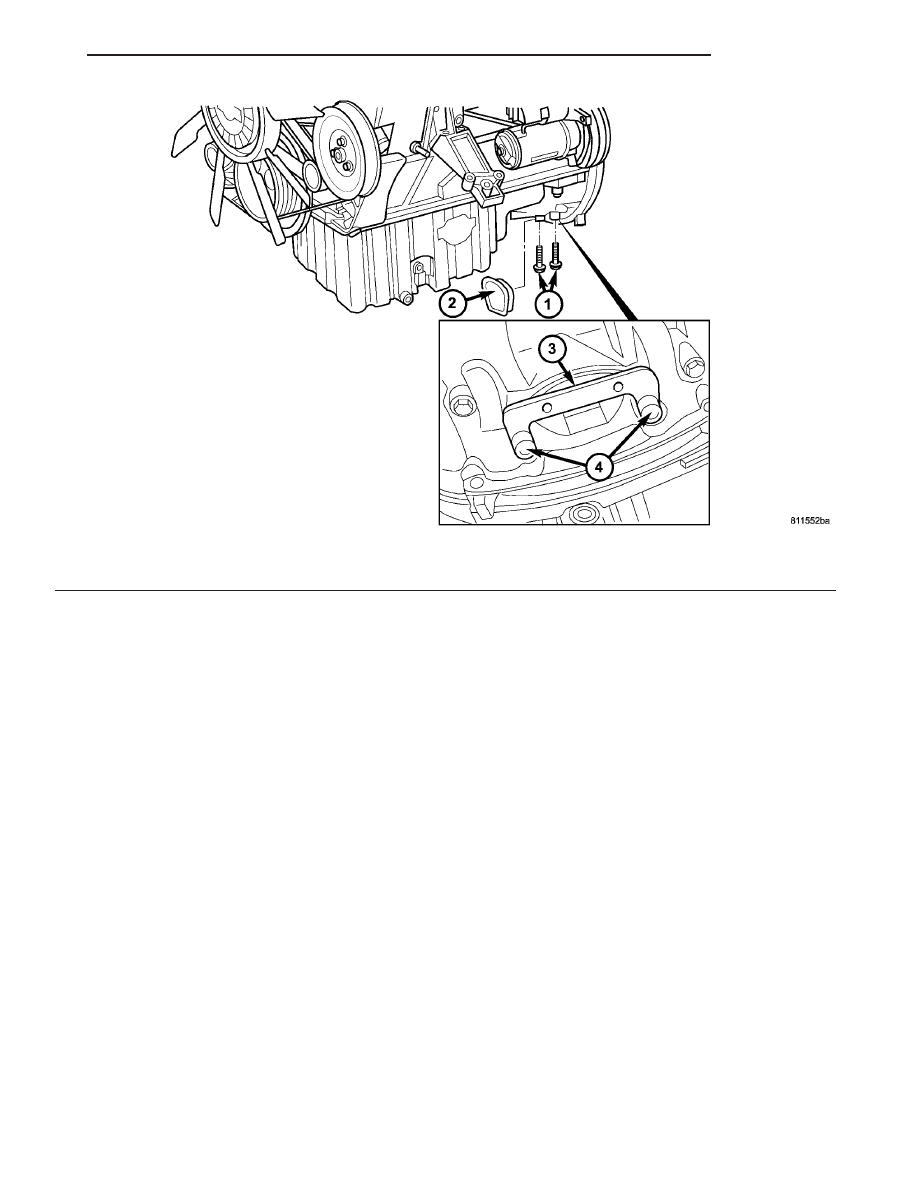

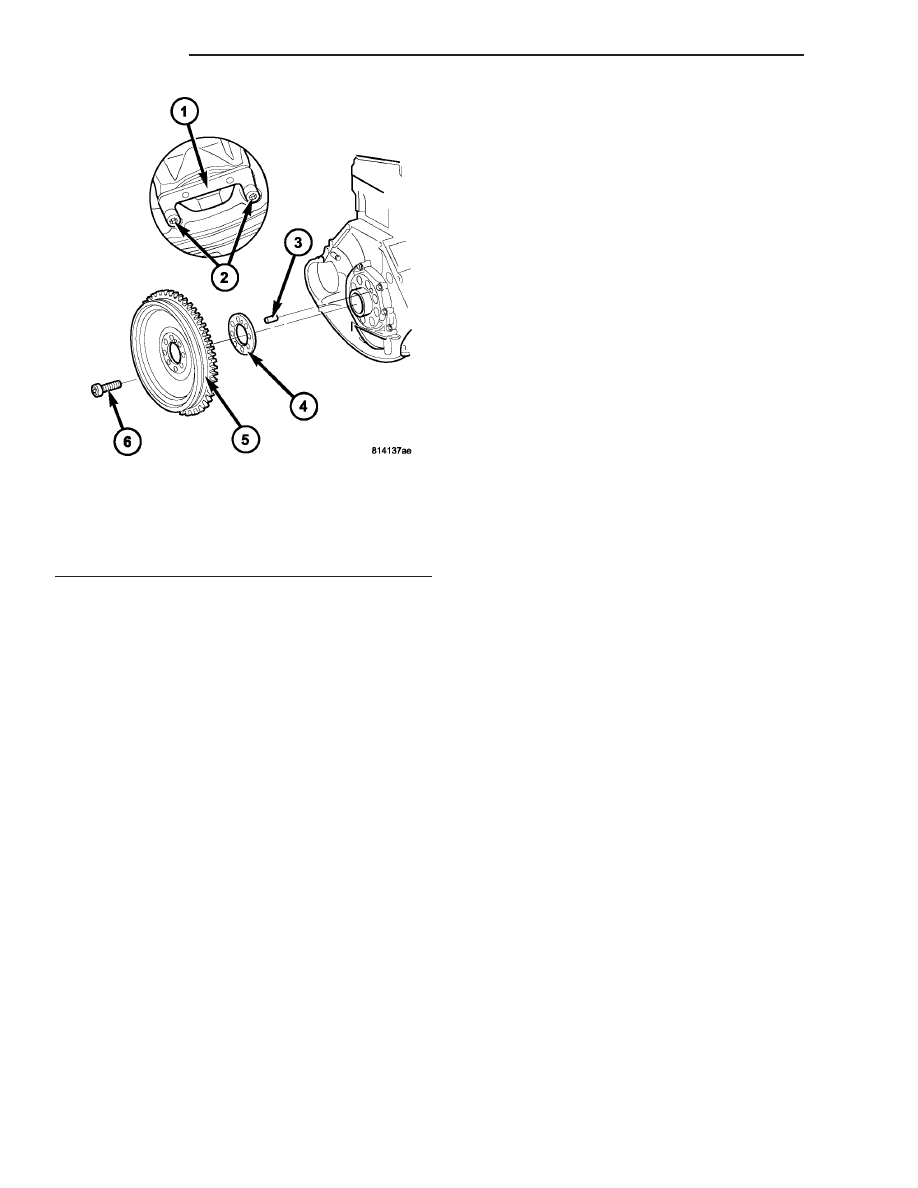

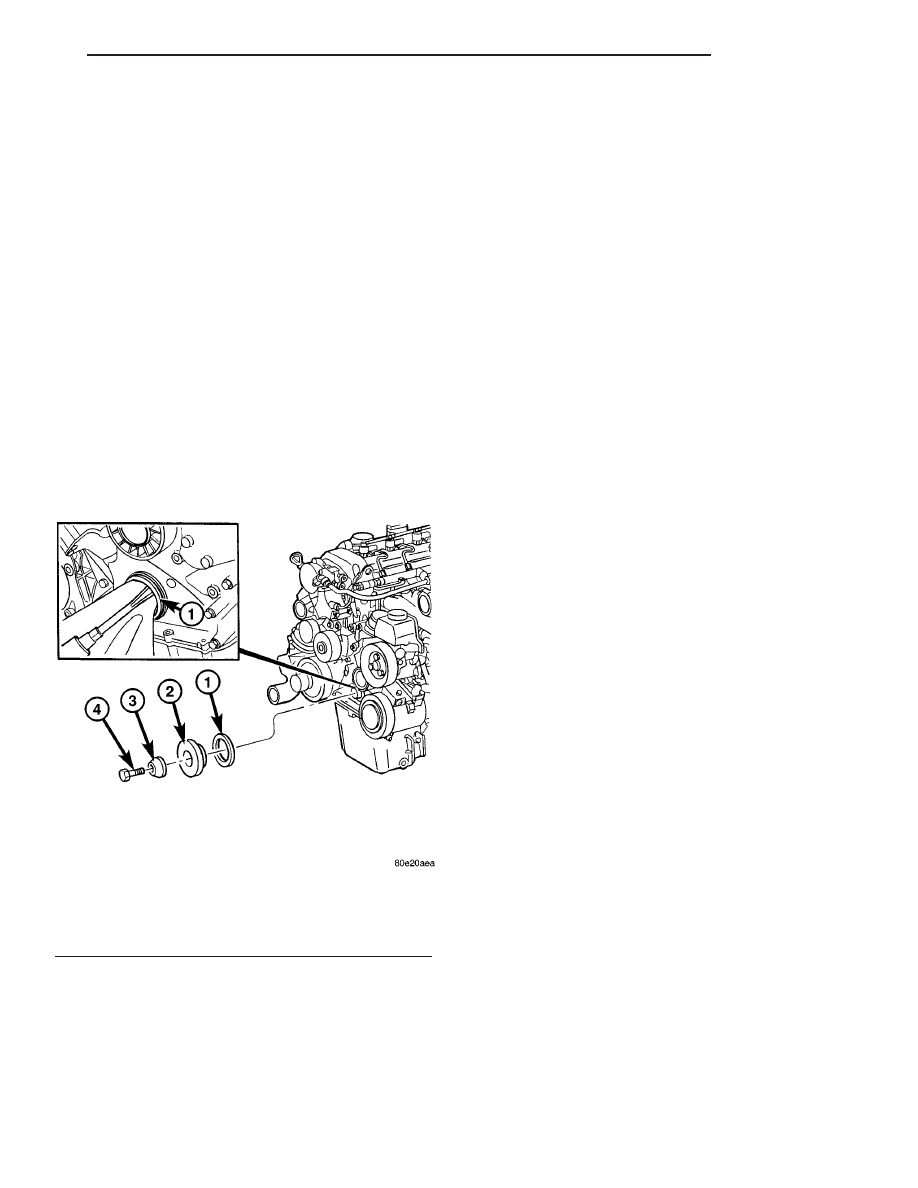

(3) Install the retaining lock for the crankshaft/ ring gear. NOTE: If the hub of the belt pulley/vibration damper NOTE: Inspect the running surface of the belt pulley (4) Remove the belt pully/vibration damper. CAUTION: Care must be taken to prevent severe (5) Using a suitable prying tool, remove the front crankshaft seal from the timing cover (Fig. 34). INSTALLATION NOTE: Thoroughly clean all mating surfaces with NOTE: Carefully position the front crankshaft seal (1) Install the front crankshaft seal. to 9 - ENGINE/ENGINE BLOCK/VIBRATION DAMPER - INSTALLATION). (3) Remove the retaining lock for the crankshaft/ ring gear. (4) Install the accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION). (5) Reconnect the negative battery cable. the proper level. WARNING: USE EXTREME CAUTION WHEN THE (7) Start the engine and inspect for leaks. FLYWHEEL REMOVAL (1) Remove transmission (Refer to 21 - TRANS- MISSION/TRANSAXLE/AUTOMATIC - W5J400 - REMOVAL). NOTE: M6x90 bolts must be used with retaining (2) Install retaining lock for crankshaft/starter ring gear. NOTE: Flywheel does not need balancing or should (3) Remove flywheel with inner washer (Fig. 35). Fig. 34 FRONT SEAL REMOVAL/INSTALLATION 1 - FRONT CRANKSHAFT OIL SEAL VA ENGINE 9 - 43 |
