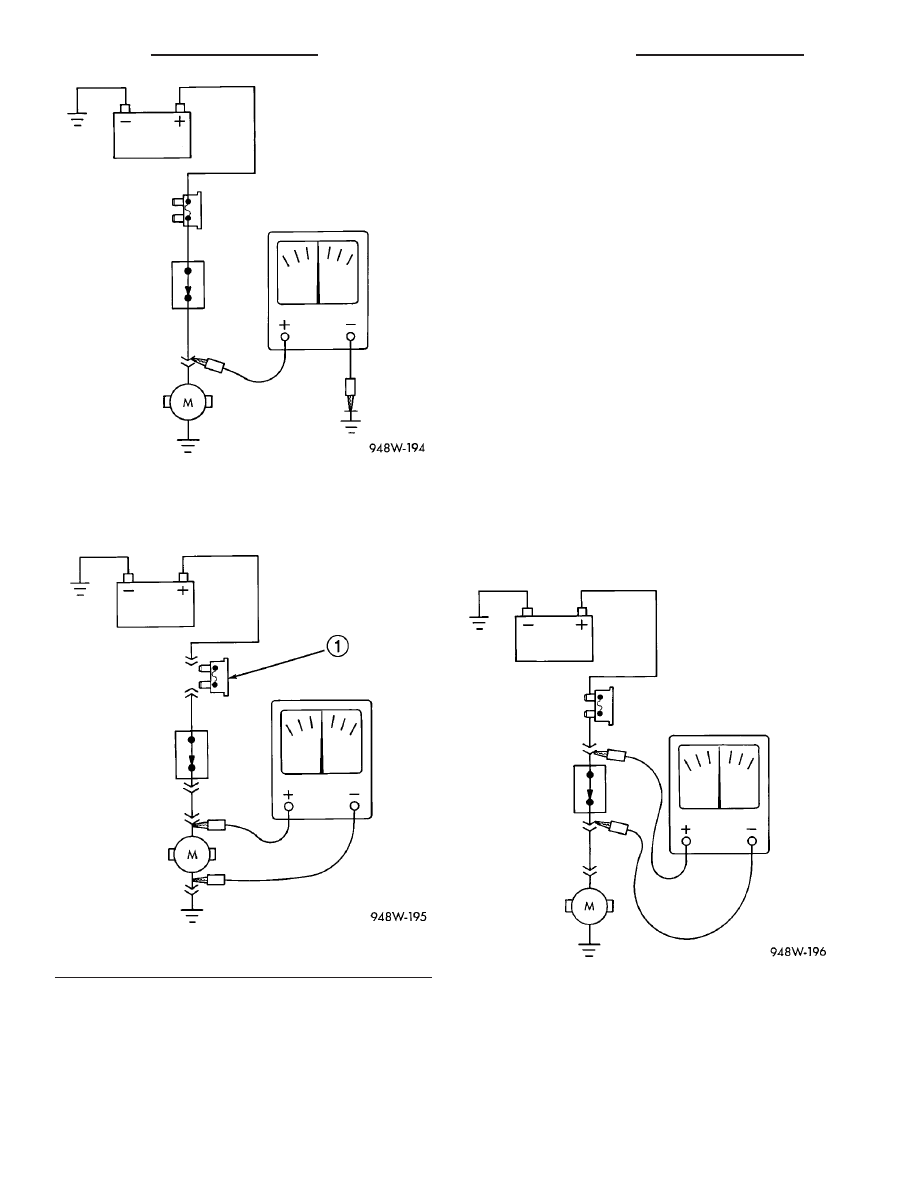

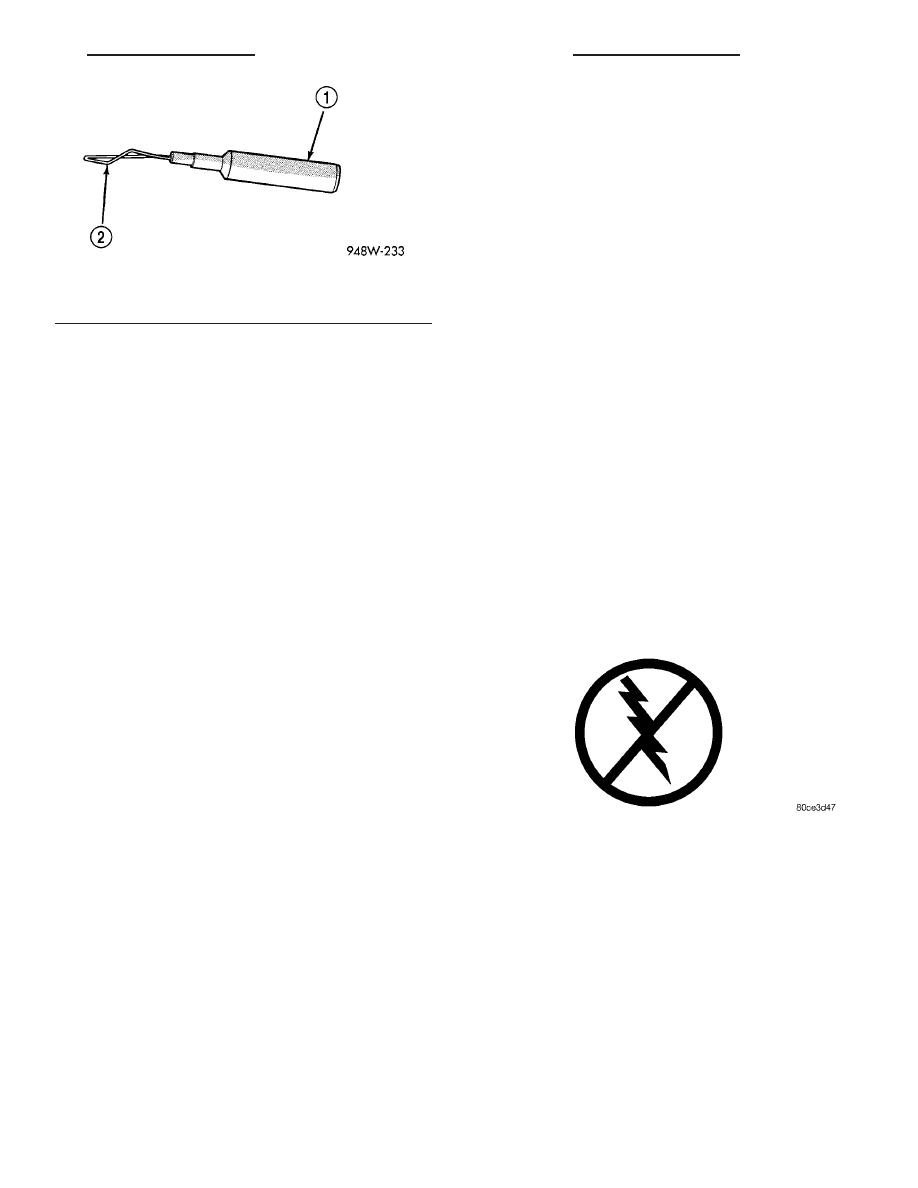

TERMINOLOGY This is a list of terms and definitions used in the wiring diagrams. LHD . . . . . . . . . . . . . . . . . Left Hand Drive Vehicles Markets Other Than North America Except Built-Up-Export . Vehicles Built For Sale In North America CIRCUIT INFORMATION Each wire shown in the diagrams contains a code which identifies gage of wire, and color. WIRE COLOR CODE CHART COLOR CODE COLOR BL BLUE BK BLACK BR BROWN DB DARK BLUE DG DARK GREEN GY GRAY LB LIGHT BLUE LG LIGHT GREEN OR ORANGE PK PINK RD RED TN TAN VT VIOLET WT WHITE YL YELLOW * WITH TRACER SECTION IDENTIFICATION AND INFORMATION The wiring diagrams are grouped into individual sections. If a component is most likely found in a par- Splice diagrams in Section 8W-70 show the entire splice and provide references to other sections the splices serves. Section 8W-70 only contains splice dia- Section 8W-80 shows each connector and the cir- cuits involved with that connector. The connectors WIRING SECTION CHART GROUP TOPIC 8W-01 thru 8W- General information and Diagram 8W-10 thru 8W- Main Sources of Power and Ve- 8W-20 thru 8W- Starting and Charging 8W-30 thru 8W- Powertrain/Drivetrain Systems 8W-40 thru 8W- Body Electrical items and A/C 8W-50 thru 8W- Exterior Lighting, Wipers and 8W-60 thru 8W- Power Accessories 8W-70 Splice Information 8W-80 Connector Pin Outs 8W-91 Connector, Ground and Splice CONNECTOR, GROUND, AND SPLICE INFOR- CAUTION: Not all connectors are serviced. Some IDENTIFICATION In-line connectors are identified by a number, as follows: • In-line connectors located in the engine compart- ment are C100 series numbers • In-line connectors located in the Instrument Panel area are C200 series numbers. • In-line connectors located in the body are C300 series numbers. • Jumper harness connectors are C400 series numbers. VA 8W-01 WIRING DIAGRAM INFORMATION 8W - 01 - 5 |
