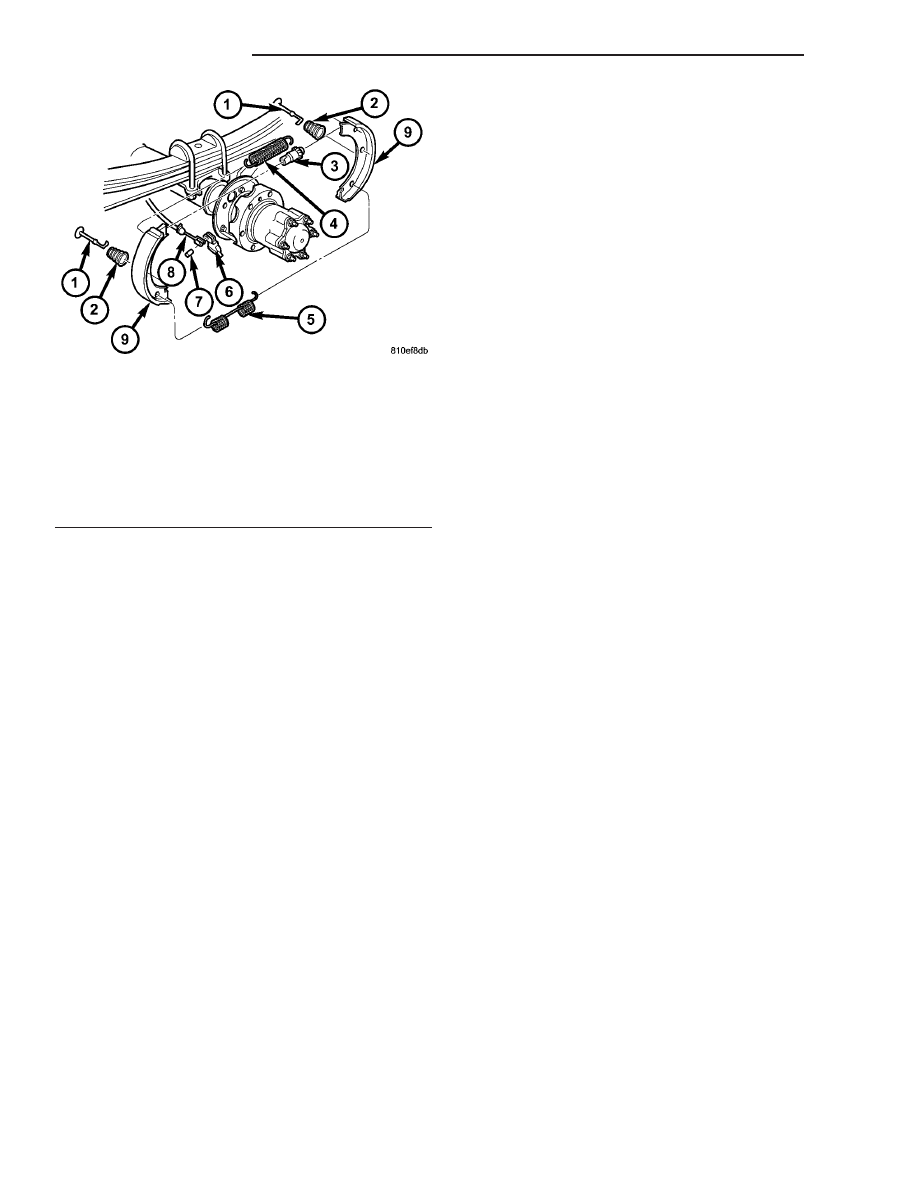

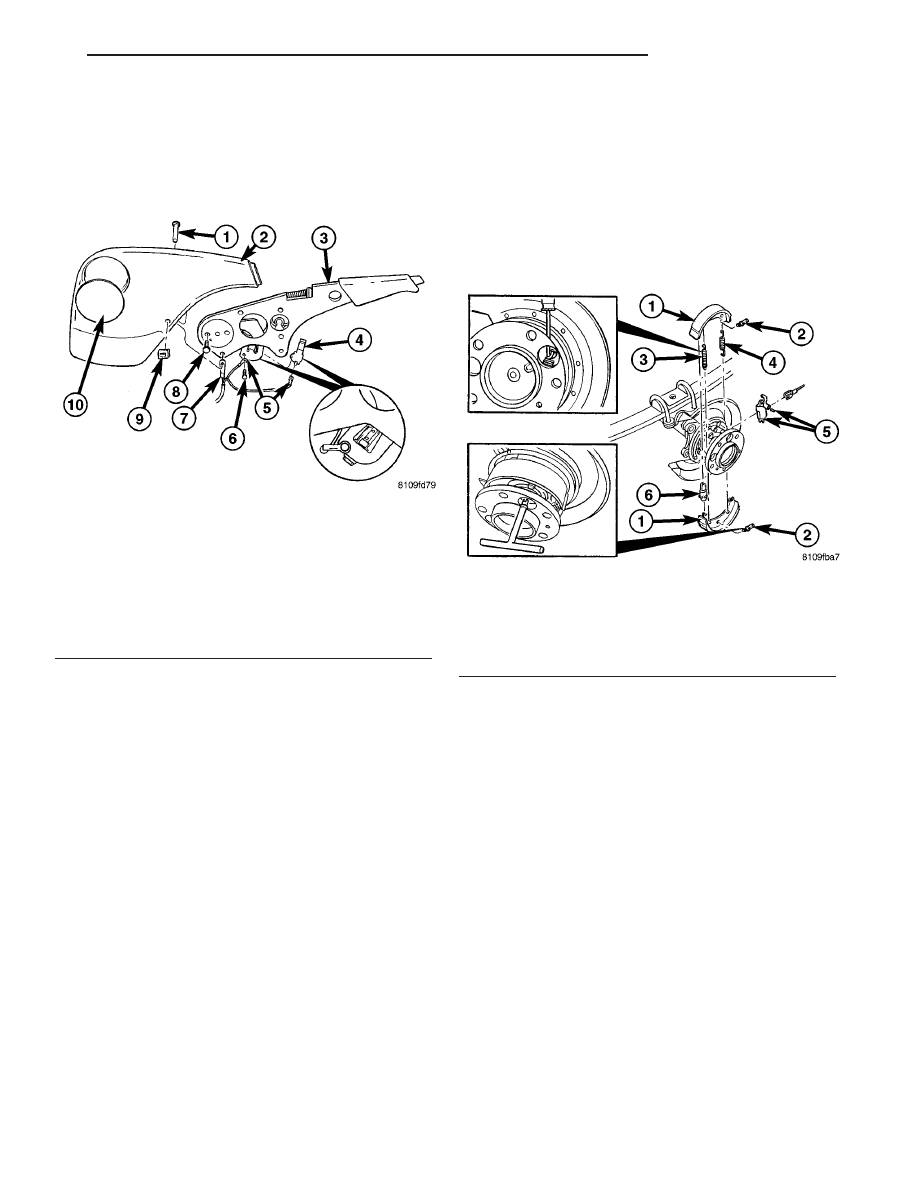

(4) Unclip the guides at the frame cross members for the front cable at the vehicle (Fig. 30). (5) Pull off the locking clips at the floor opening and pull the front brake cable down and out (Fig. (6) Press together the locking ring and pull out the front brake cable to the front (Fig. 30). (7) Remove the front park brake cable at the vehi- cle using special tool 9289. REMOVAL - REAR (1) Raise and support the vehicle. (Fig. 31). (5) Remove all the connections on the hand brake cable (Fig. 31). (6) Remove the park brake cable lock (Fig. 31). Observe the installed position of the brake (7) Remove the hand brake cable from the anchor plate (Fig. 31). (8) Remove the park brake cable from the vehicle. Compress the locking ring on the pulley unit. INSTALLATION INSTALLATION - FRONT (1) Install the front park brake cable to the vehi- cle. (2) Clip the cable guides at the frame cross mem- bers (Fig. 32). (3) Install the front park brake cable to the hand brake lever (Fig. 29). (4) Reconnect the front park brake cable to the pulley unit (Fig. 32). (5) Adjust the parking park. Fig. 29 FRONT PARK BRAKE CABLE AT LEVER 1 - LOCKING CLIP Fig. 30 REMOVING FRONT PARK BRAKE CABLE AT THE VEHICLE 1 - UNCLIP CABLE GUIDES Fig. 31 REAR PARK BRAKE CABLE REMOVE / INSTALL 1 - PARK BRAKE ADJUSTER VA BRAKES - BASE 5 - 25 |
