Mercedes-Benz ML320. Service manual - part 789





AR46.40-P-0400GH

Check and replace rubber boot

12.3.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

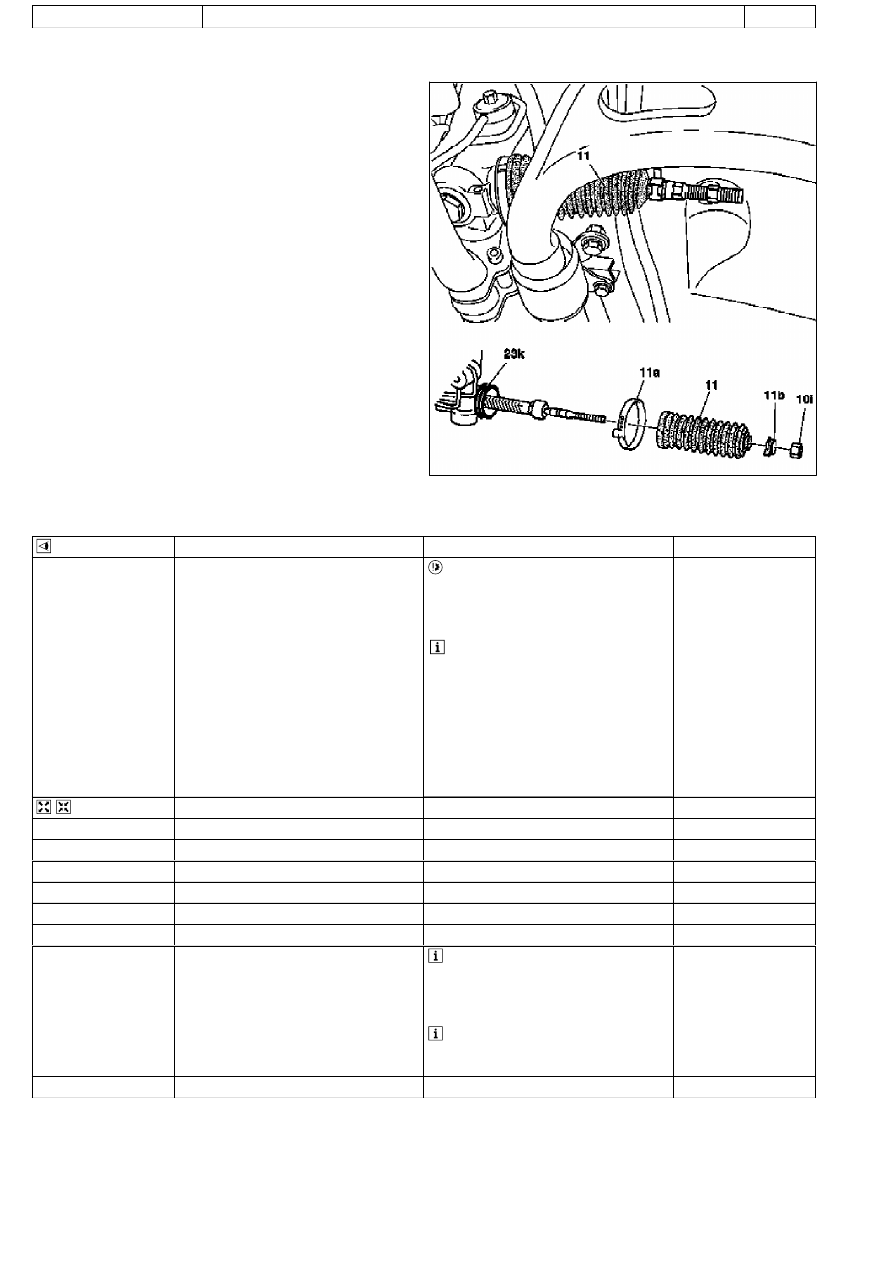

P46.40-0263-12

10i

Clamp nut

11

Boot

11a

Inner clamp nut

11b

Outer clamp

23k

O-ring



Inspect

1

Check bellows (11)

 Never check bellows  by pressing in or

around the bead, as this leaves behind
damage to the plastic and results in leaks in
the long-term.

 Because the seals on the rubber boots

must be absolutely tight and leak-free to
ensure that the steering rack continues to
provide reliable operation, a visual inspection
should be carried out as follows:

D Raise vehicle at the front axle

D Extend the bellows by turning the steering

onto left or right lock and in the process
check for damage (cracks, chafing marks
and intrusions) and replace if necessary.



Remove/Install

2

Remove track rod

AR46.40-P-0200GH

3

Unscrew clamping nut (10i)

4

Detach outer clamp (11b)

5

Detach inner clamp (11a)

AR46.40-P-0400-01GH

6

Pull off bellows (11)

7

Replace O-ring (23k)

8

Check steering rack and inner tie rod thrust
joint for corrosion and play

 If the rack is already corroded and the

steering has a leak as a result, it is then
necessary to replace the complete rack-and-
pinion steering:

#

Remove/install rack-and-pinion steering

AR46.20-P-0600GH

 If axial joint is worn, replace the inner

track rod:

#

Remove/install inner tie rod with axial joint

AR46.40-P-0201GH

9

Install in the reverse order

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AF77.20-P-2005A

Seal on sliding/pop-up roof gutter loosens

28.6.00

MODEL

163.113 /136 /154 /172 /174 with CODE (414a) Electric glas sliding/pop-up roof

Modification notes

15.11.00

Damage code added

Damage code

Cause

Remedy

The seal on the sliding/pop-up roof loosens
when the sliding/pop-up roof moves

1

Remove sliding/pop-up roof

AR77.20-P-1000GH

2

Remove seal (1) from gutter (2)

3

Apply MB special glue along retaining
lip of gutter (arrows)

*BR00.45-Z-1003-02A

4

Install seal (1)

 Allow MB special glue to dry before

installing sliding/-pop-up roof.

5

Install sliding/pop-up roof

AR77.20-P-1000GH

6

Adjust sliding/pop-up roof

AR77.20-P-1100GH

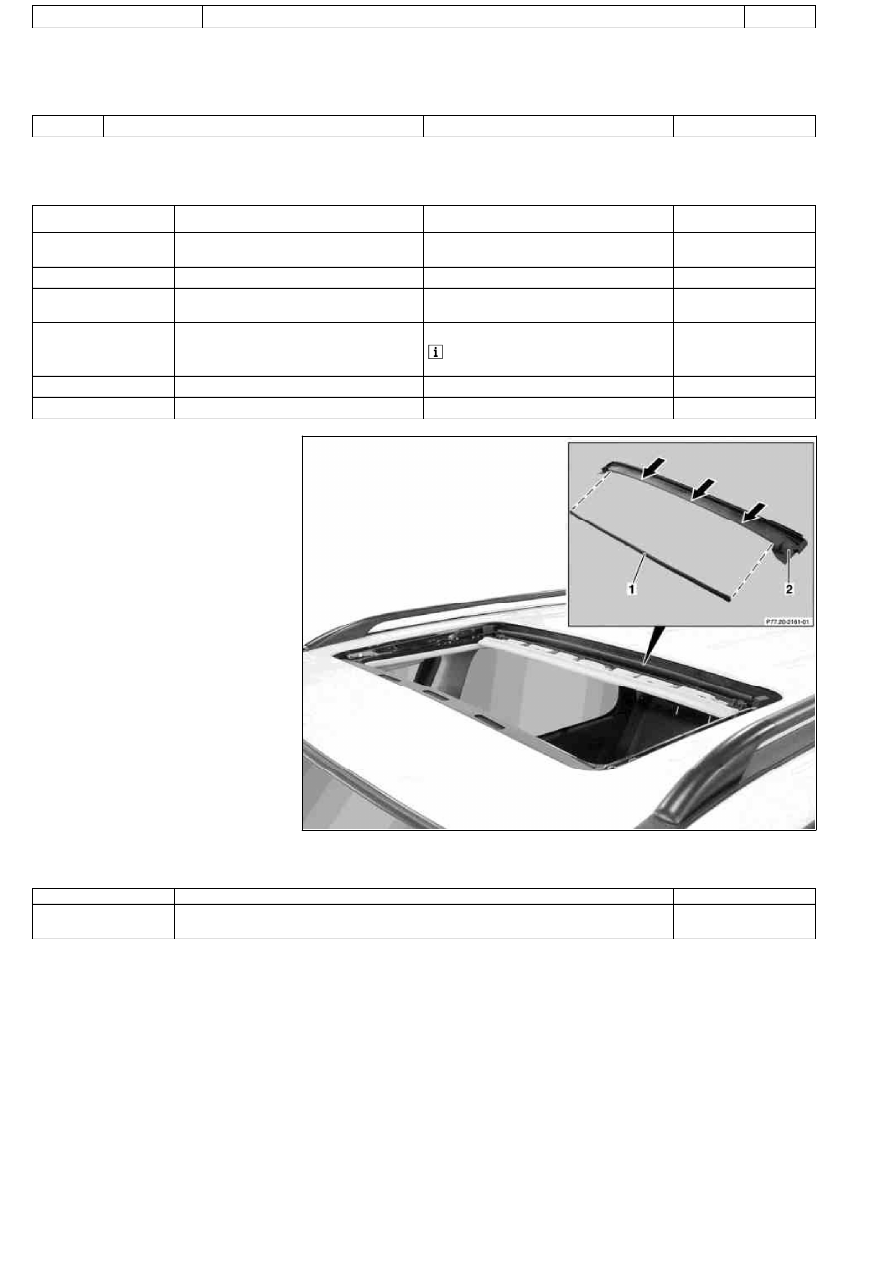

P77.20-2162-06

1

Seal

2

Gutter

Arrows

Retaining lip

Repair products

Number

Designation

Order number

BR00.45-Z-1003-02A

MB special glue for gluing metal, leather, felt, rubber to each other and to sheet metal (340 g
brush can)

000 989 92 71

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR91.29-P-0008GH

Remove/install seat adjustment control module

23.6.99

MODEL

163.113 /128,

163.136 /154 as of 1.9.99,
163.157,
163.172 as of 1.9.99,
163.175
with CODE (241) Memory for electrically adjustable left front seat
with CODE (242a) Memory for electrically adjustable right front seat
MODEL

163.174

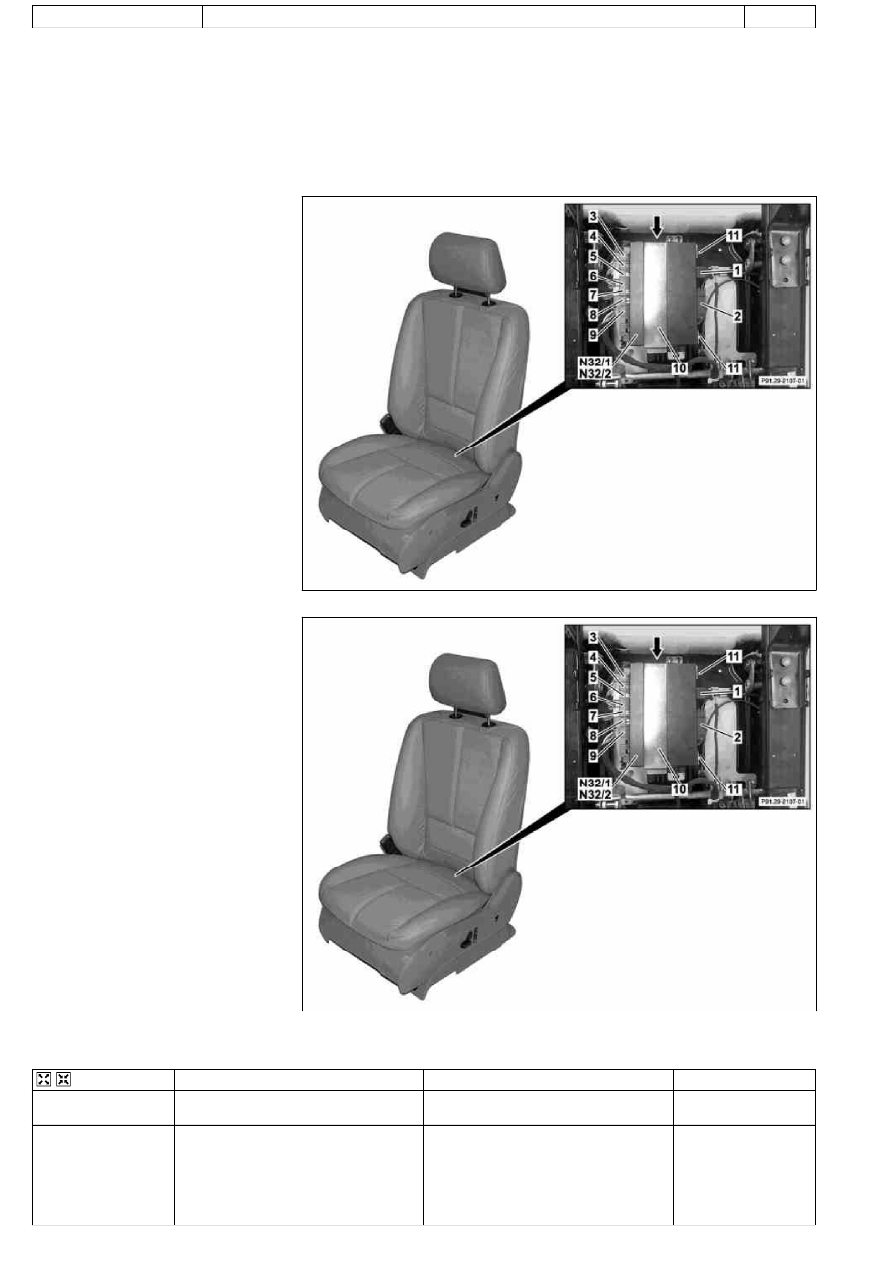

P91.29-2108-06

1

Coupling for left front seat
adjustment switch or right front seat
adjustment switch

2

Coupling for interior wiring harness

3

Coupling for height adjustment
motor for rear front seat cushion

4

Coupling for horizontal adjustment
motor for front seat

5

Coupling for height adjustment
motor for front front seat cushion

6

Coupling for electrical line for seat
belt buckle of front seat

P91.29-2108-06

7

Coupling for front seat backrest
angle motor

8

Coupling for automatic child seat
recognition

9

Coupling for heated seats

10

Bracket

11

Retaining lugs

N32/1

Left front seat adjustment control
module with memory

N32/2

Right front seat adjustment control
module with memory



Remove/Install

1

Move front seat forwards and adjust rear front
seat cushion upwards

2

Disconnect connector from coupling for left
front seat adjustment switch or right front seat
adjustment switch (1) and from the coupling
for interior wiring harness (2) on the left front
seat adjustment control module with memory
(N32/1) or right front seat adjustment control
module with memory (N32/2)

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

3

Unscrew bolt (arrow) from bracket (10),
unhook front bracket and remove

4

Remove left front seat adjustment control
module with memory (N32/1) or right front
seat adjustment control module with memory
(N32/2) from bracket on front seat frame

 Unhook two retaining lugs (11) on the side.

5

Disconnect the remaining connectors on the
left front seat adjustment control module with
memory (N32/1) or right front seat adjustment
control module with memory (N32/2)

6

Remove left front seat adjustment control
module with memory (N32/1) or right front
seat adjustment control module with memory
(N32/2)

7

Install in the reverse order

8

Perform function check

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
