25.1

Fit on automatic transmission

Models 463.206/ 209/ 232/ 233/ 240/ 241

AR27.10-P-0500BD

Models 463.243/ 244/ 245/ 246/ 247/ 248/
249/ 250/ 254

AR27.10-P-0500GA

Model 230.475

AR27.10-P-0500R

Model 230.474

Model 220 without 4MATIC

AR27.10-P-0500I

Model 220 with 4MATIC

AR27.10-P-0500IW

Models 210, 208, 202,170. 129

AR27.10-P-0500B

Model 203 without 4MATIC, 209 with engines
112,113

AR27.10-P-0500P

Model 203 with 4MATIC

AR27.10-P-0500PW

Models 211.061/065/070

AR27.10-P-0500T

Model 163

AR27.10-P-0500GH

25.2

Fit on manual transmission

Models 210, 202, 129

AR26.10-P-0020A

Models 203, 209 with engine 112

AR26.10-P-0020P

Model 211.061

AR26.10-P-0020T

Model 208 with transmissions 716.662/622

AR26.10-P-0020E

Model 170,

Model 208 with transmission 716.663

AR26.10-P-0020D

26

Install engine

Models 463.243/ 244/ 245/ 246/ 247/ 248/
249/ 250/ 254

AR01.10-P-2400CC

Model 230.475

AR01.10-P-2400R

Model 230.474

AR01.10-P-2400RVK

Model 220 without 4MATIC

AR01.10-P-2400AB

Model 220 with 4MATIC

AR01.10-P-2400IW

Model 210 with 4MATIC

AR01.10-P-2400C

Model 210 without 4MATIC, 208, 202, 129

AR01.10-P-2400CB

Model 203 without 4MATIC, 209 with engine
112

AR01.10-P-2400PV

Model 203 with 4MATIC

AR01.10-P-2400PW

Model 209 with engine 113

AR01.10-P-2400Q

Models 211.061/065/070

AR01.10-P-2400TC

Model 170

AR01.10-P-2400SV

Model 163

AR01.10-P-2400CA

Inspection data of conrod bolts

Number

Designation

Engine
112 except
112.951,
113.94/96/980/
981/982/984/986

Engine
113.992

BE03.10-P-1001-03A

Conrod bolts

Thread

4

M

8

B

1

8

B

1

Shank length

when new

mm

47

42

max.

mm

47.6

42.6

Part no.

-

-



Connecting rod

Number

Designation

Engines
112 except
112.951,
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/965/966/
967/968/980/
981/982/984/
986/987/988/
990/991/992/
993

BA03.10-P-1001-01E

Connecting rod bolt

Stage 1

Nm

5

2nd stage

Nm

25

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 4

Stage 3

(

°

90

Retaining strap

000 589 04 14 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 5

BT27.50-P-0002-02A

Plain bearing of input shaft changed to an anti-
friction bearing

TRANSMISSION 722.60# /61# /660 /662 /664 /665 /69# ## as of 1317917 as of  7.1.99,
722.62# /63# /661 /663 /666 /669 ## as of 1324240 as of 12.1.99

P27.51-2006-05

1

Needle bushing

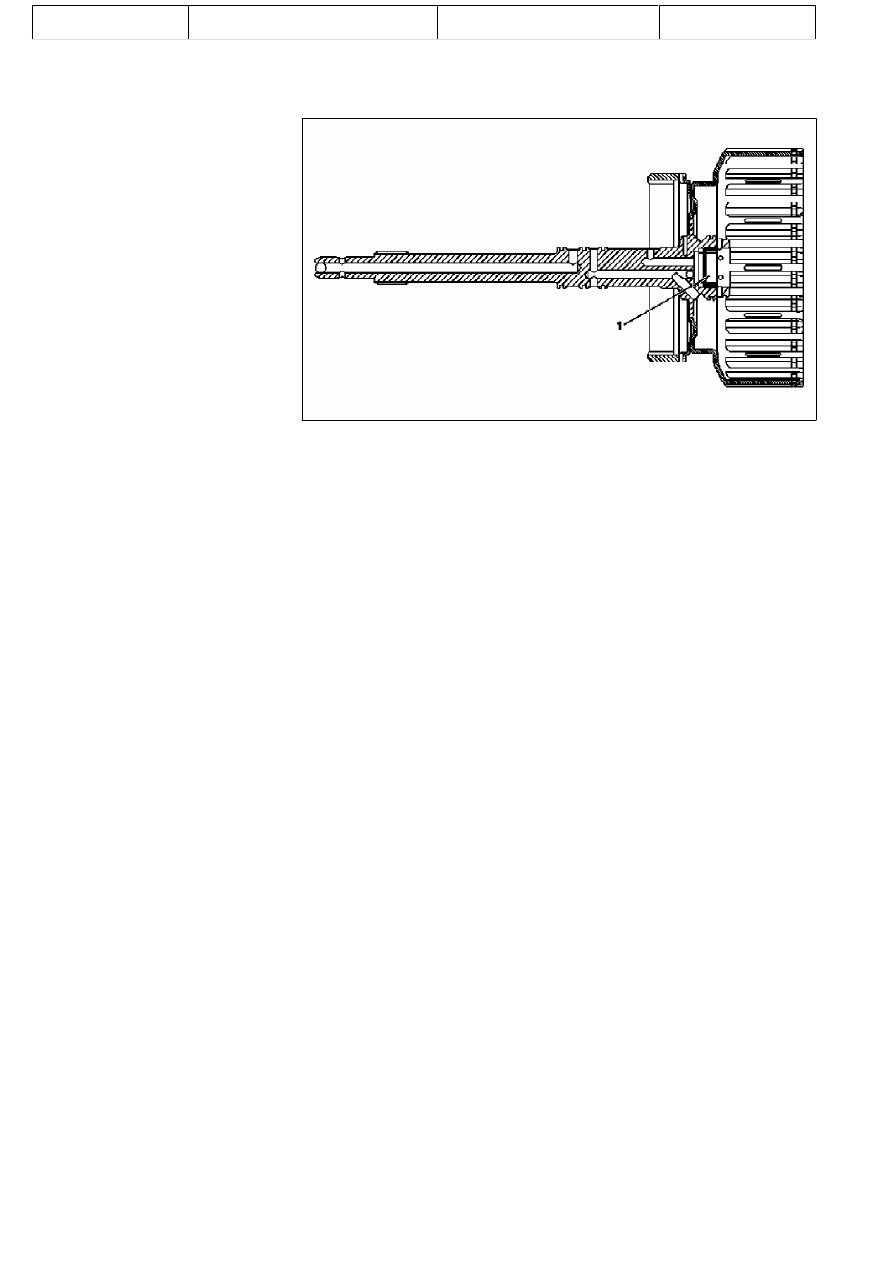

The plain bearing in the input shaft was
replaced by an anti-friction bearing (needle
bushing).
As a result, the inside diameter of the needle
bushing in the input shaft and the outside
diameter of the journal at the output shaft
have also changed.
When repairing a vehicle, therefore, both
shafts must be replaced.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BT27.35-P-0003-01A

Primary pump non-return valve dispensed with 722.5

k

TRANSMISSION

722.5## ## as of 3652931

Serieneinsatzdaten/Änderungen/Neuerungen

Getriebe/

Lenk-
getriebe

Füll-

Nr.

Gertr.-End-

Nr. ab

Gertr.-End-

Nr. bis

Prod.-Zeit-

raum ab

Prod.-Zeit-

raum bis

Art und Grund der Änderung

Verweis/Bemerkung

722.5

3652931

P27.35-0214-06

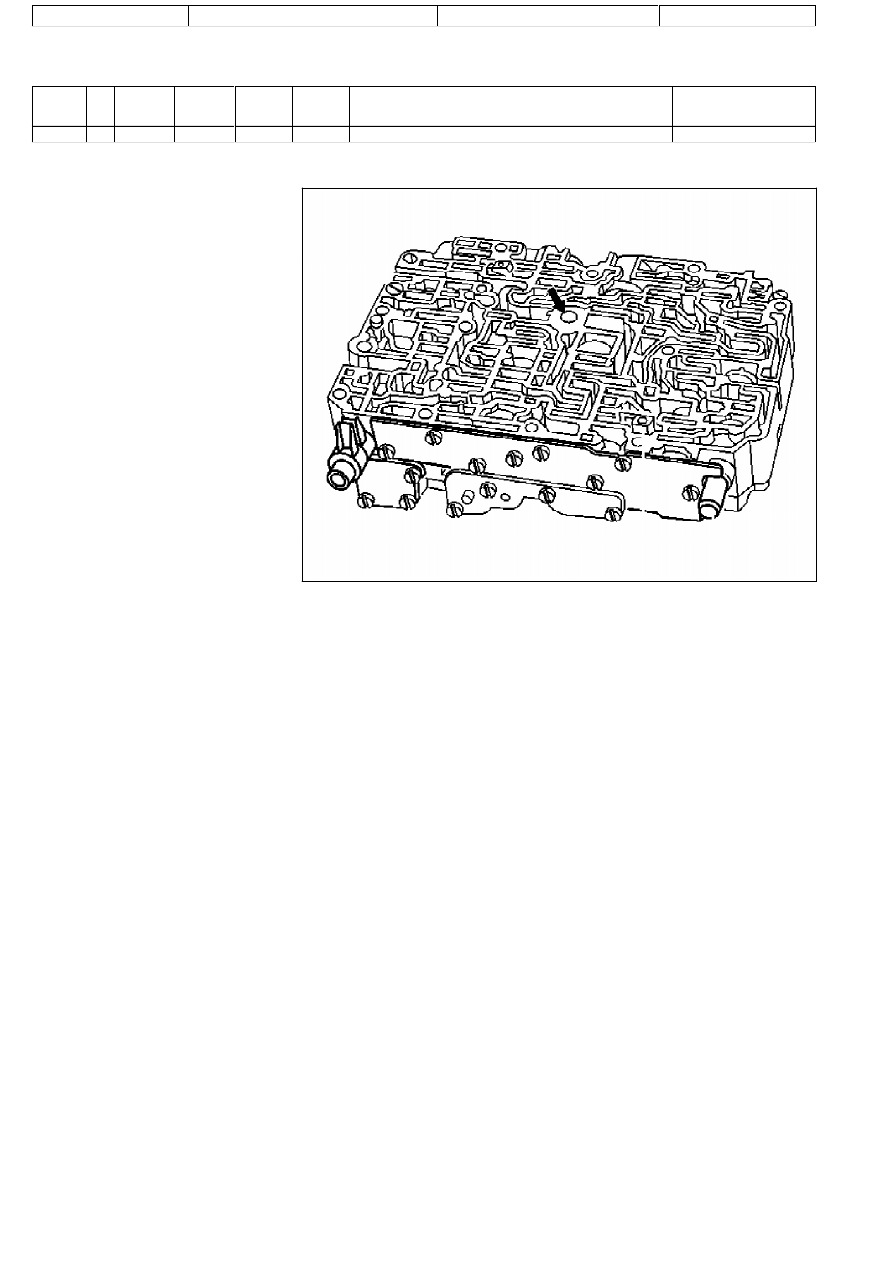

The primary pump non-return valve (arrow) is
dispensed with as of transmission ident. end
no. 3652931

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
