Mercedes-Benz ML320. Service manual - part 699





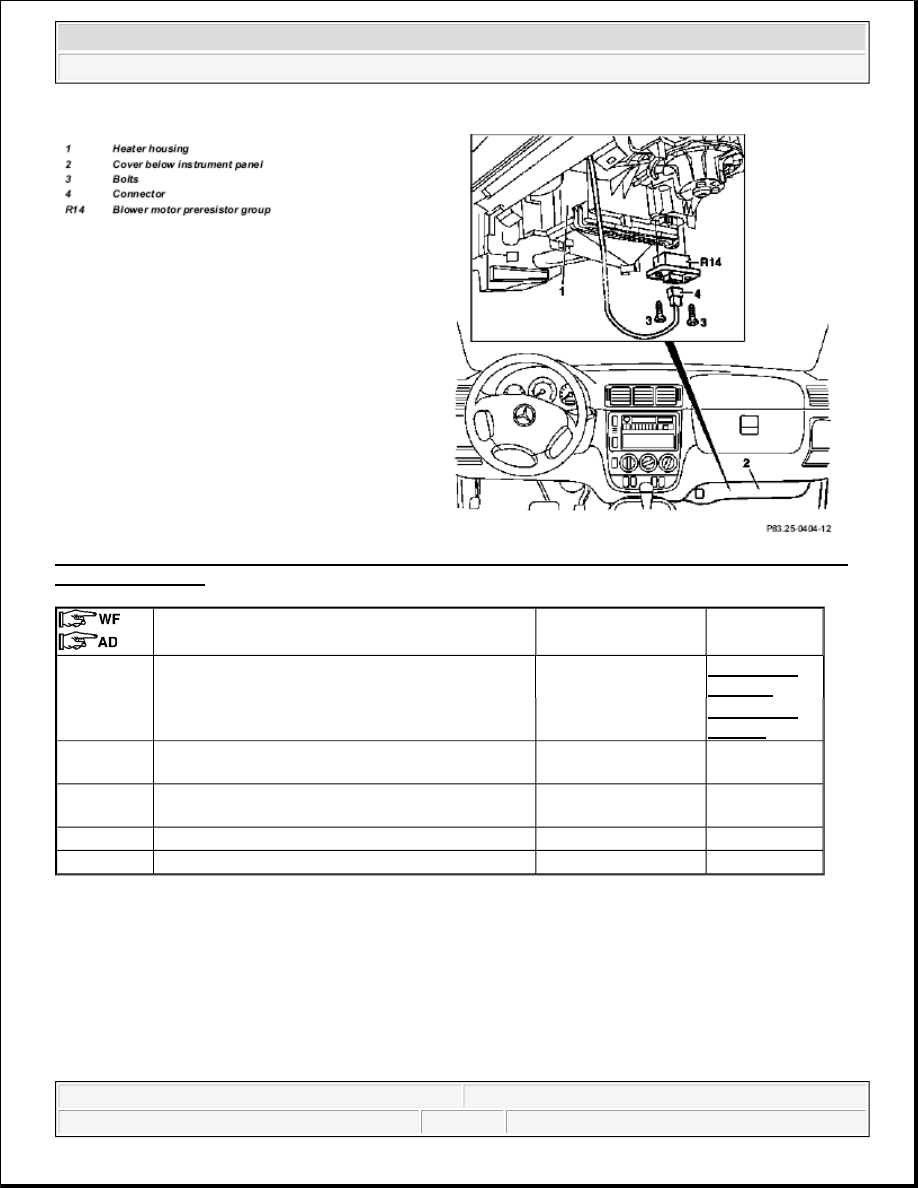

Fig. 153: Identifying Series Resistor For Heater Blower Components (Shown On Model 163 Up To VIN
A289564, X754619)


REMOVE/INSTALL COVER AT AIR INTAKE - AR83.25-P-1405GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175





Remove/install





1

Remove cover below instrument panel (2) (on right)

Up to VIN A145272,
X708318.

AR68.10-P-
1520GH






As of VINA145273,
X708319.

AR68.10-P-
1520GI


2

Disconnect connector (4) on blower motor series
resistor group (R14)





3

Unscrew screws (3) from blower motor series
resistor group (R14) on heater housing (1)





4

Remove blower motor series resistor group (R14)





5

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



Fig. 154: Identifying Components For Cover At Air Intake - Model
163.113 /128 /136 /154 /157 /172 /174 /175


CHECKING AIR CONDITIONING SYSTEM FOR LEAKAGE - AR83.30-D-1209-01A

Workshop equipment





Remove/install







Injury hazard by trapping or crushing, in
extreme cases with loss of limbs when
reaching into windshield wiper mechanism

Always remove ignition key when
working on windshield wiper
mechanism.

AS82.30-Z-
0001-01A


1

Remove wiper arms (1)



AR82.30-P-
6100GH


2

Detach rubber seal (2) from firewall





3

Remove metal clips (5)





4

Unscrew nuts (4) at firewall

 Remove foam insert.



5

Seal off washer fluid hose at check valve





6

Remove cover (3) together with water
deflector panel (6)

 If damaged, detach water

deflector panel (6) from cover (3).

 Installation: Lubricate upper

edge of cover and windshield at
bottom with soapy water.



7

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



1. Start vehicle engine and switch on air conditioning system.

2. Check entire air conditioning circuit using leak detector probe (1).

Remain for some time in areas where leaks are suspected.



Since refrigerant is heavier than air and sinks, always guide leak detector probe (1) underneath the locations
where leaks are suspected.

Line connections, screwed pipe connections, condensers and evaporators are the most frequent cause of
refrigerant leaks.

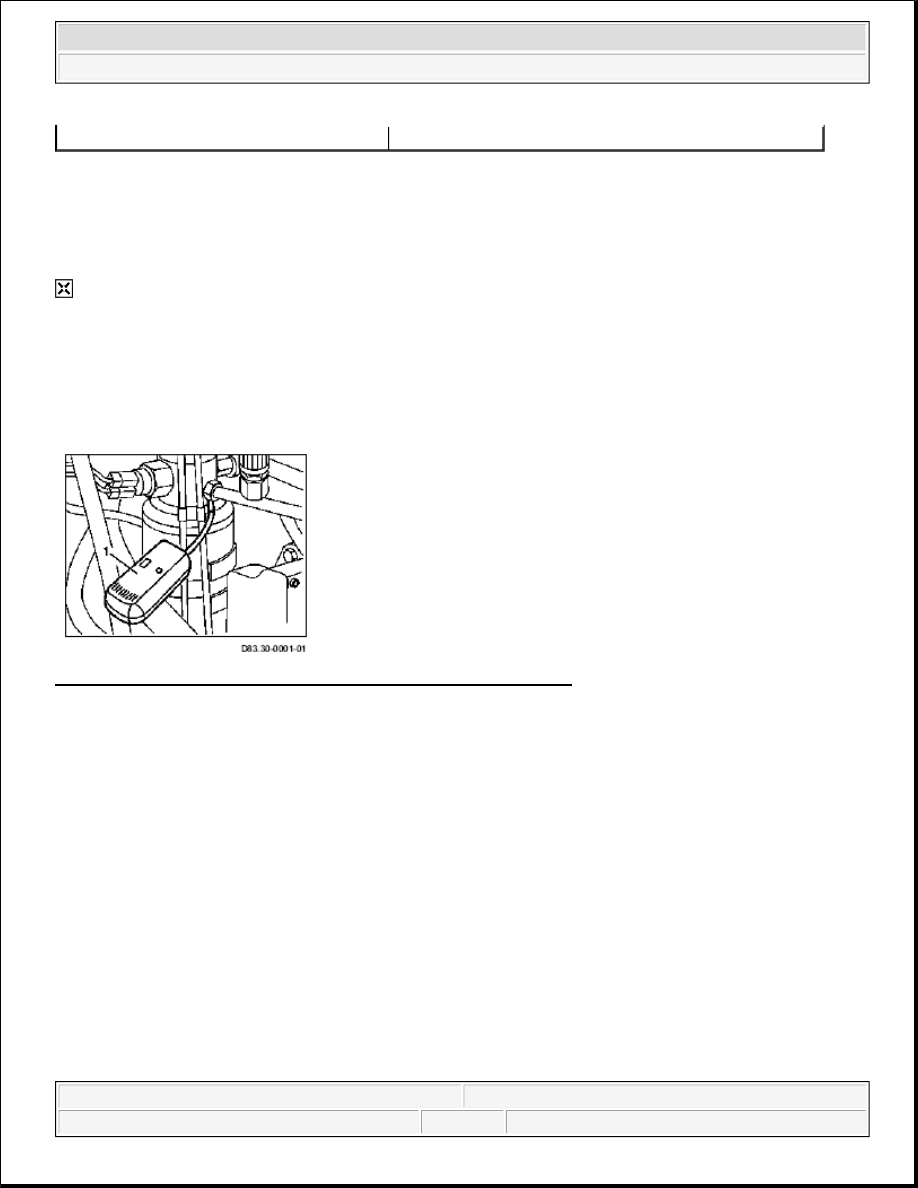

Fig. 155: Identifying Air Conditioning System Leak Detector Probe

CARRY OUT QUICK TEST ON AIR CONDITIONING SYSTEM - AR83.30-D-1209A

MODEL 163 with CODE (580) Air conditioning or Tempmatic for USA

MODELS 901.0/3 /4, 902.0/3 /4, 903.0/3 /4, 904.0/3 /4 with CODE (H06) Air conditioning

WE58.40-Z-1002-20A

Air conditioning leak detector



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



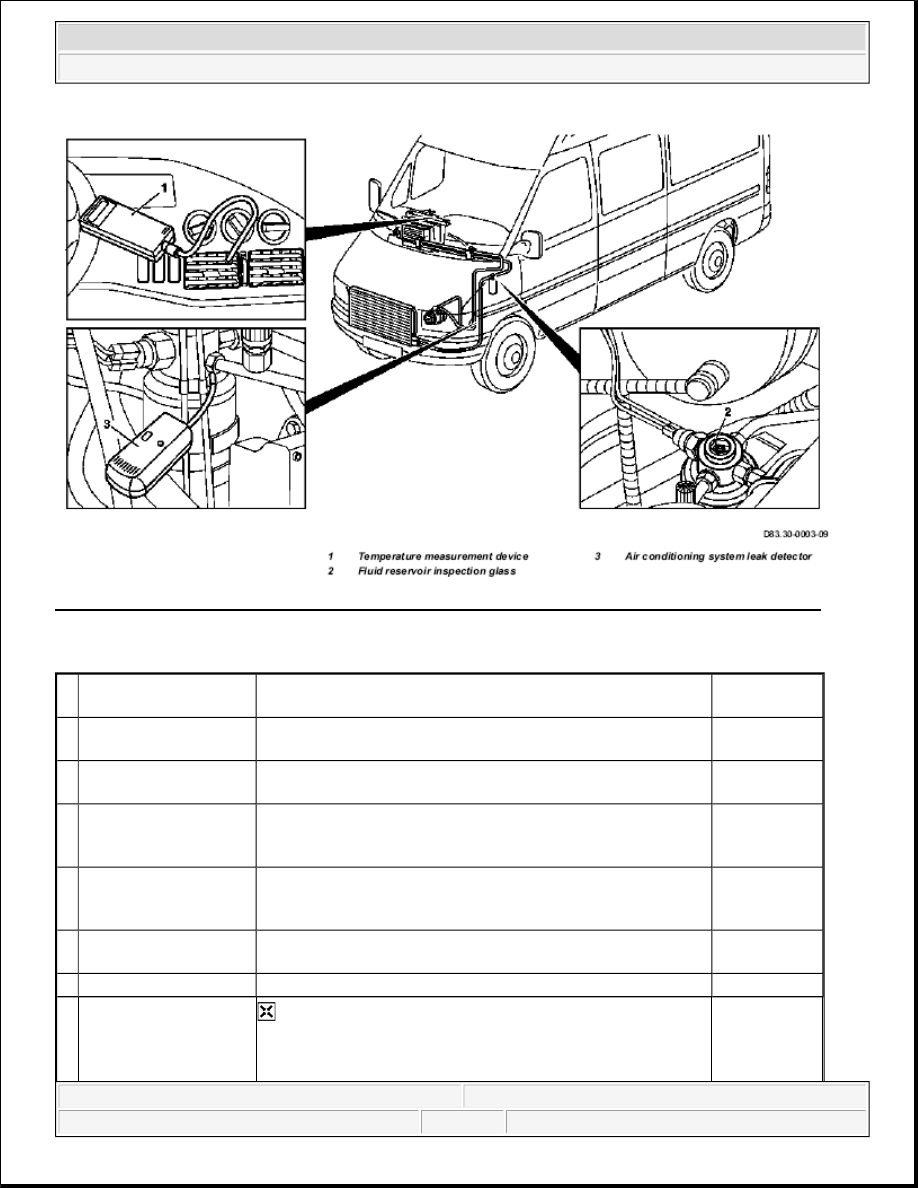

Fig. 156: Identifying Quick Test On Air Conditioning System - Shown On Models 901, 902, 903, 904

Shown on models 901, 902, 903, 904



Prerequisites for
testing





1

Place vehicle with open
windows in the shade





2

Set heater control valve
to "cold"





3

Set heating and
ventilation system to
fresh air mode





4

Fully open lateral
nozzles, center nozzles
and footwell flaps





5

Start vehicle engine and
allow to idle







Inspecting





6

Switch air conditioning
on

 When the air conditioning is switched on, the vehicle

engine's idle speed must increase. No idle speed increase ?
Check function of refrigerant compressor RPM sensor in the
event of complaint ?





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me
