Mercedes-Benz ML320. Service manual - part 674





AUTOMATIC AIR CONDITIONING PUSH-BUTTON CONTROL MODULE, FUNCTION - GF83.40-P-2000GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

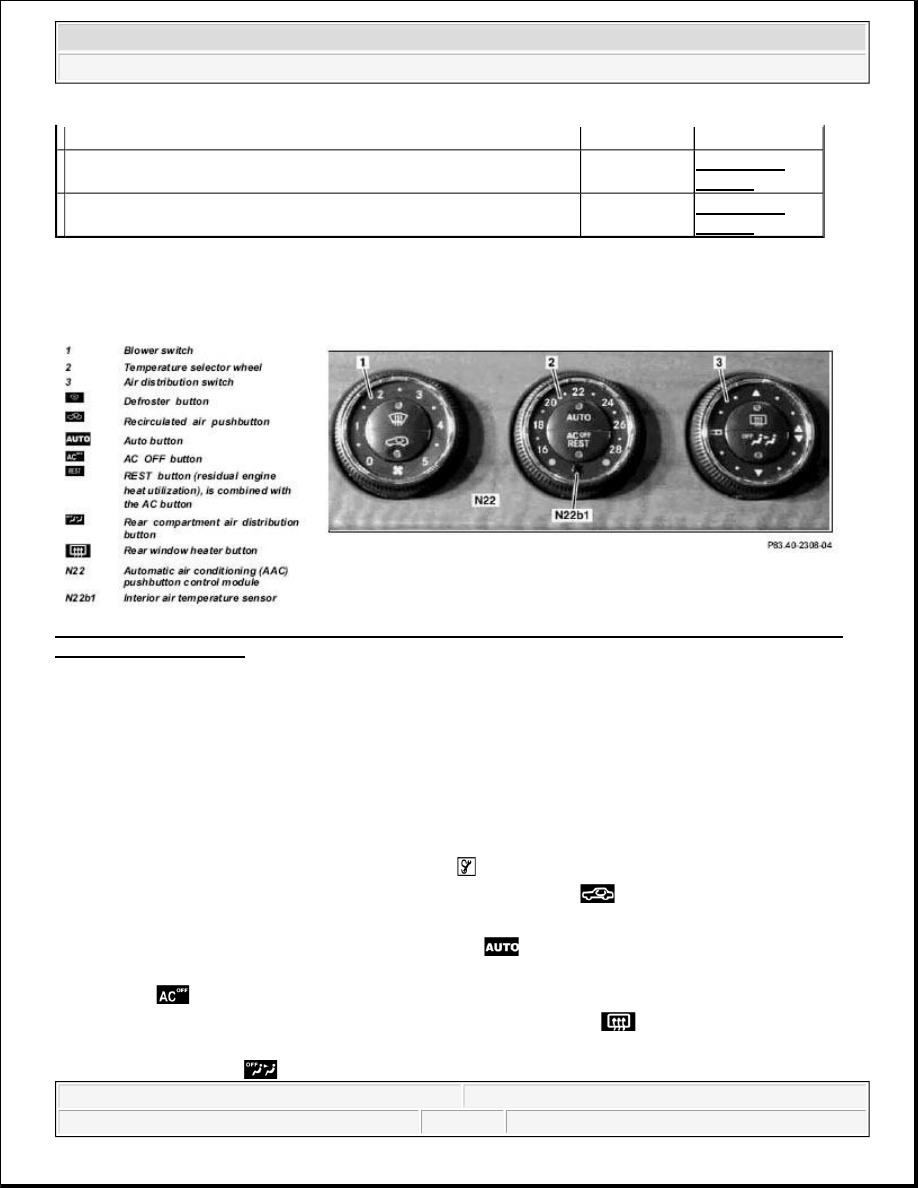

Fig. 69: Identifying Blower Switch, Temperature Selector Wheel, Air Distribution Switch And Interior
Air Temperature Sensor


Function

The AAC push-button control module (N22) makes it possible to make adjustments coming from the driver
such as:

air quantity, by adjusting the blower switch setting (1)

temperature by setting the temperature selector wheel (2)

air distribution, by setting the air distribution switch (3)

defrost function by pressing the defroster button (

 )

recirculated air mode by pressing the recirculated air push-button (

 )

automatic air distribution/blower speed by pressing the Auto

switching off the cooling by pressing the AC button (

 )

activating the residual engine heat utilization system with the ignition switched off by pressing the REST
button (

 )

heating the rear window by pressing the rear window heating button (

 )

switching off the air distribution to the rear compartment by pressing the rear compartment air
distribution button (

 )

612.963

2005GH

  Residual engine heat utilization system, function



GF83.75-P-
2000GI



Automatic air conditioning system component summary,
location/purpose/design/function



GF83.40-P-
9990GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



The control module integrated in the AAC push-button control module (N22) looks after all system regulation
and control functions such as:

comparing preselected and actual temperatures and controlling the air temperature at the air outlets

automatic switchover from fresh air to recirculated air mode

electrical control of refrigerant compressor

controlling the auxiliary fan or the electric suction-type fan motor/ air conditioning with integrated
control

The AAC push-button control module (N22) has a diagnostic capability. Consequently, any faults which occur
are stored in the fault memory which can be read with the help of the diagnosis assistant system (DAS).

When the AAC push-button control module is replaced (N22), variant coding must be carried out using the
Diagnosis Assistant System (DAS).

The AAC push-button control module (N22) also performs the following actuations:

direct: refrigerant compressor; heating water circulation pump; PTC heater booster (OM 612 only), rear
window heater

via the CAN BUS: auxiliary fan, electric suction-type fan motor/air conditioning with integrated control,
blower control and air distribution in the rear compartment (automatic mode)

via the AC bus: blower motor; 8 stepping motors for air distribution

The following sensor signals are read in by the AAC push-button control module (N22):

direct: temperature sensor evaporator, pressure and temperature sensor refrigerant, in-car temperature
sensor, center nozzle vent air temperature sensor, footwell and rear passenger compartment, sun sensor

via the CAN BUS: Ambient temperature display temperature sensor, sensor for specified values in rear
control panel

REFRIGERANT CIRCUIT FUNCTION - GF83.40-P-2001GH

MODEL 163 up to 31.8.01 with CODE (580) Air conditioning or Tempmatic for USA

  Blower switch, location/task/design/function

  GF83.25-P-2100GI

  Temperature selector wheel, location/task/ design/function

  GF83.25-P-2102GI

  Air distribution switch, location/task/design/ function

  GF83.25-P-2101GI

  Defroster button, location/task/function

  GF83.40-P-2139GI

  Recirculating air push-button, location/task/ function

  GF83.40-P-2145GI

  Auto button, location/task/function

  GF83.40-P-2147GI

  AC OFF button, location/task/function

  GF83.40-P-2107GI

  Rest push-button, location/task/function

  GF83.40-P-2148GI

  Rear passenger compartment air distribution button, location/task/function

  GF83.40-P-2173GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



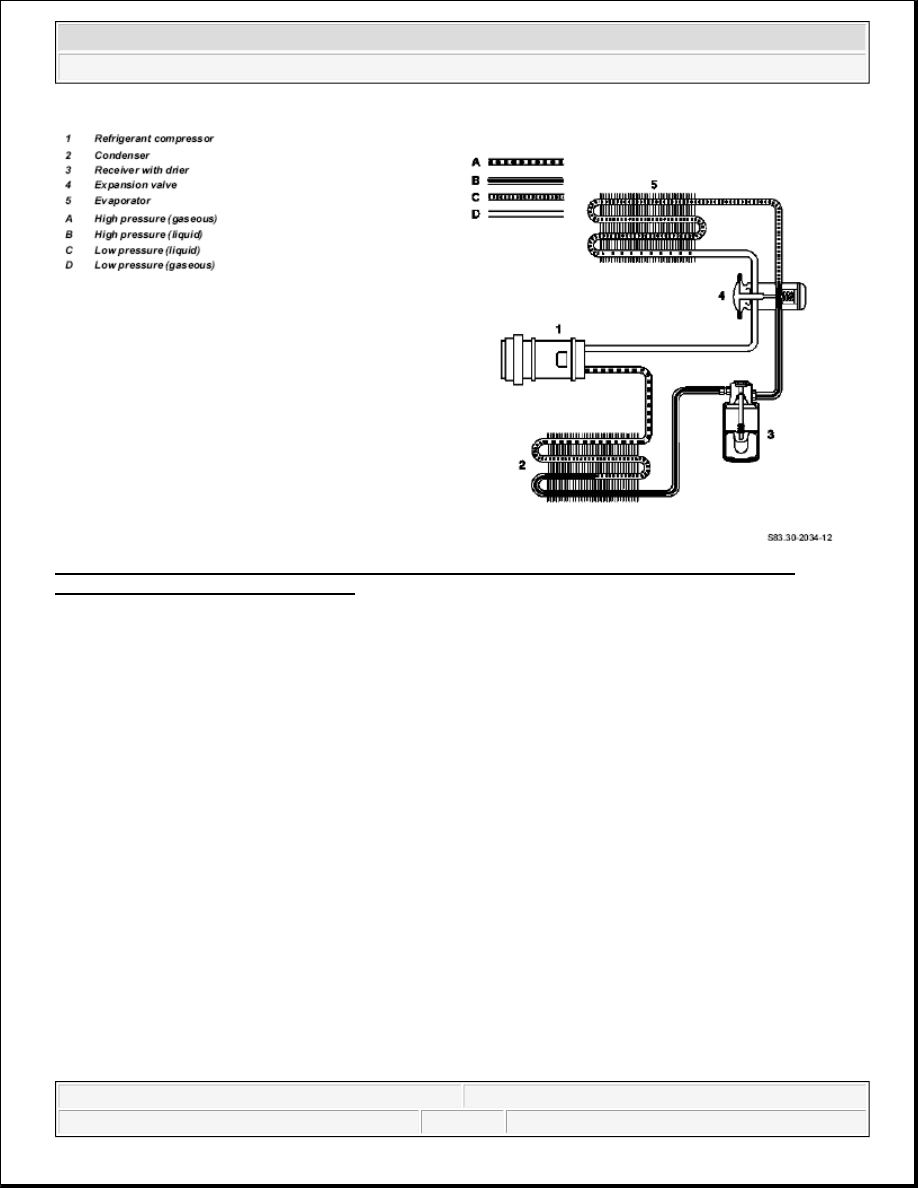

Fig. 70: Identifying Refrigerant Circuit Function (Model 163 Up To 31.8.01 With Code (580) Air
Conditioning Or Tempmatic For USA)


The refrigerant compressor (1) driven by motor compresses the gaseous refrigerant, which is thereby heated up
and routed to the condenser (2).

The condenser's (2) surface withdraws the refrigerant's compression heat. When cooling down the refrigerant
liquefies.

When flowing through the fluid reservoir (3) the refrigerant is purified of any chemicals and mechanical
impurities and the water in the refrigerant is separated and collected.

The expansion valve (4) injects the cooled down and liquefied refrigerant in the evaporator (5), which is located
in the fresh air flow. Here the refrigerant is vaporized. This vaporization process then withdraws heat from the
blow-by fresh air which comes in from outside over the pipe and monolith systems with the result that it cools
down.

The humidity carried along with it is converted to condensed water which is routed to the outside. The air is
dried.

The refrigerant compressor (1) draws in the refrigerant which has turned gaseous on account of the heat
absorption and compresses it again.

When the engine is running and the blower switched on, the passenger compartment can have cool air supplied
to it by various outlet nozzles. The intensity of the cooling process depends on the previously set in-car
temperature and the blower output.



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



REFRIGERANT CIRCUIT, FUNCTION - GF83.40-P-2001GI

MODEL 163 as of 1.9.01 with code (580a) Automatic air conditioning

  Auxiliary fan, location/task/function

 Engines 111.977, 112.942

GF83.40-P-
2162GH



Electric fan motor/air conditioning,
location/task/function

 Engines 113.942/981 and

612.963

GF83.40-P-
2151GH

  Condenser position/task/function



GF83.40-P-
2152GC

  Evaporator, location/purpose/design/function



GF83.40-P-
2121GC

  Fluid reservoir (TAC), location/task/function



GF83.30-P-
2120GC

  Expansion valve, location/task/design/function



GF83.40-P-
2123GC

  Refrigerant pressure sensor, location/task/ function

GF83.40-P-
2156GH



Refrigerant compressor, location/task/design/
function



GF83.55-P-
2100GH



Air conditioning control module, location/task/
function



GF83.30-P-
2102GH

  All-activity module, location/task/design/ function



GF54.21-P-
4110GH


  Extended-activity module, position/task



GF54.21-P-
4106GH


  Extended-activity module, location/task/design

as of 1.12.99

GF54.21-P-
4107GK


  CDI control module, location/task/function

 Engine 612.963

GF07.16-P-
3102IA



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me
