Mercedes-Benz ML320. Service manual - part 645





AR88.40-P-3010GH

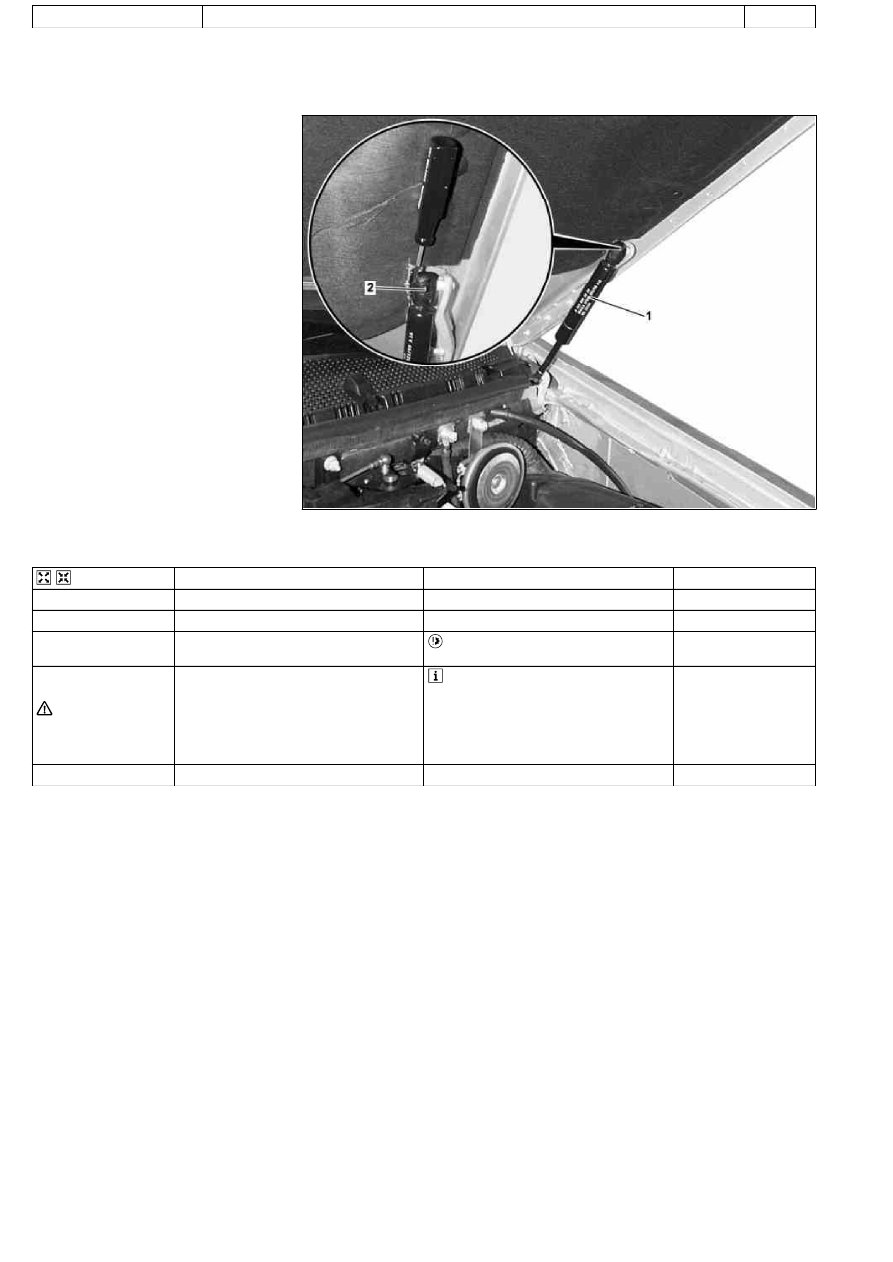

Remove/install gas-operated strut on engine hood

6.4.99

MODEL

163.136 /154 /172 #A as of 145273,

163.136 /154 /172 #X as of 708319,
163.113 /128 /157 /174 /175

P88.40-2063-06

1

Gas pressure strut

2

Fuse



Remove, Install

1

Open engine hood

2

Secure engine hood

3

Lift retainer (2) on top of gas-operated strut
(1) and detach gas-operated strut at the top



Risk of breakage. Do not remove the

retainer otherwise the preload will be lost.

4

Lift retainer on bottom of gas-operated strut
and remove gas-operated strut (1)

 When replacing gas pressure strut:

#

 Danger!

Risk of injury due to drilling gas-filled
equipment or components (gas filling not
flammable)

Wear safety goggles and face mask.

AS00.00-Z-0006-01A

o



Degas and drain gas pressure strut

OS00.00-P-1001-01A

5

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

2000-01 MANUAL A/C-HEATER SYSTEMS

ML 320, ML 430 & ML 55

SPECIFICATIONS

SPECIFICATIONS

DESCRIPTION & OPERATION

A/C CONTROL PANEL

The A/C control panel contains switches to control A/C functions such as blower motor speed, mode control,
in-vehicle temperature, A/C on/off, and fresh/recirculated air control. See Fig. 1 .

Application

Specification

Compressor Type

Nippondenso 7SB16 7-Cyl.

Compressor Belt Tension

(1)

Compressor Oil Capacity

(2)

 5.6-6.3 ozs.

Refrigerant (R-134a) Capacity

26.4 ozs.

System Operating Pressures

(3)

(1)

Belt tension is automatically adjusted by belt tensioner.

(2)

Use Densooil 8 (A 001 989 08 03).

(3)

Information is not available from manufacturer.

WARNING:

To avoid injury from Accidental air bag deployment, read and carefully
follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR
BAG SYSTEM procedures in AIR BAG SYSTEM SAFETY article in
GENERAL SERVICING.



2001 Mercedes-Benz ML320

2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 & ML 55





2001 Mercedes-Benz ML320

2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 & ML 55



me



me

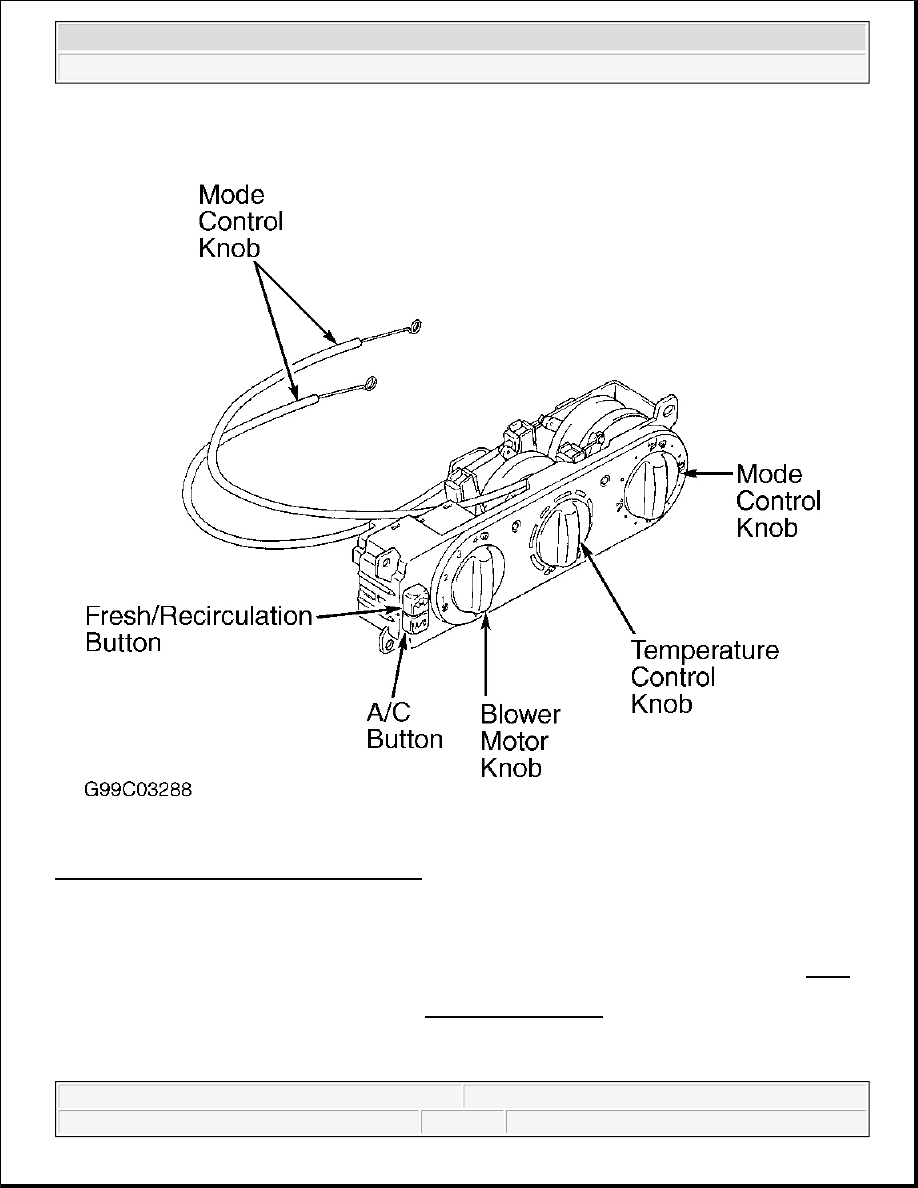

Fig. 1: Identifying A/C Control Panel Functions
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

BLOWER MOTOR KNOB

Located in the A/C control panel, the blower motor knob controls blower motor speed in 4 settings. See Fig. 1 .
The blower motor knob sends a voltage signal through the blower motor resistor in "1" to "3" positions and by-
passes blower motor resistor in position No. 4. See WIRING DIAGRAMS . Setting blower motor knob to "0"
position will turn system off.

MODE CONTROL KNOB



2001 Mercedes-Benz ML320

2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 & ML 55



me



Mode control knob controls air distribution throughout the passenger compartment. Air distribution doors are
controlled by cables activated by the mode control knob. See Fig. 1 . Four mode positions are available with
detents in-between to adjust airflow for personal comfort.

Defrost

Set mode control knob to 12-o'clock position. Air will exit from defrost outlets and side window vents.

Vent

Set mode control knob to 9-o'clock position. Air will exit from instrument panel outlets.

Floor

Set mode control knob to 6-o'clock position. Air will exit from floor outlets.

Blend/Bi-Level

Set mode control knob to 3-o'clock position. Air will exit from defrost, instrument panel, and floor outlets.

TEMPERATURE CONTROL KNOB

Air temperature is controlled by a variable resistor rotary control switch. See Fig. 1 . Switch receives voltage
signal and depending upon position, controls voltage signal sent to air mix damper door motor. See Fig. 2 .
Voltage controls position of motor for heating and cooling.



2001 Mercedes-Benz ML320

2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 & ML 55



me
