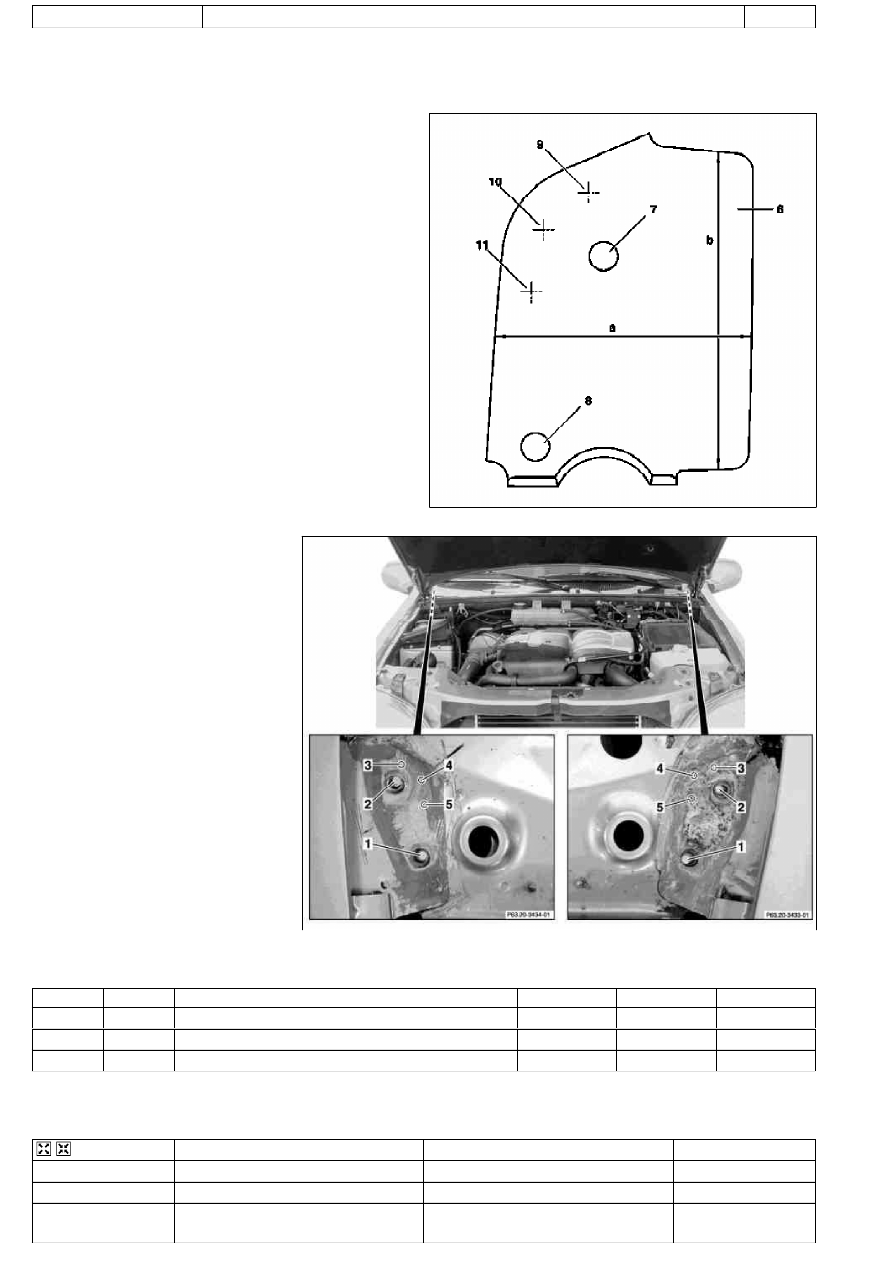

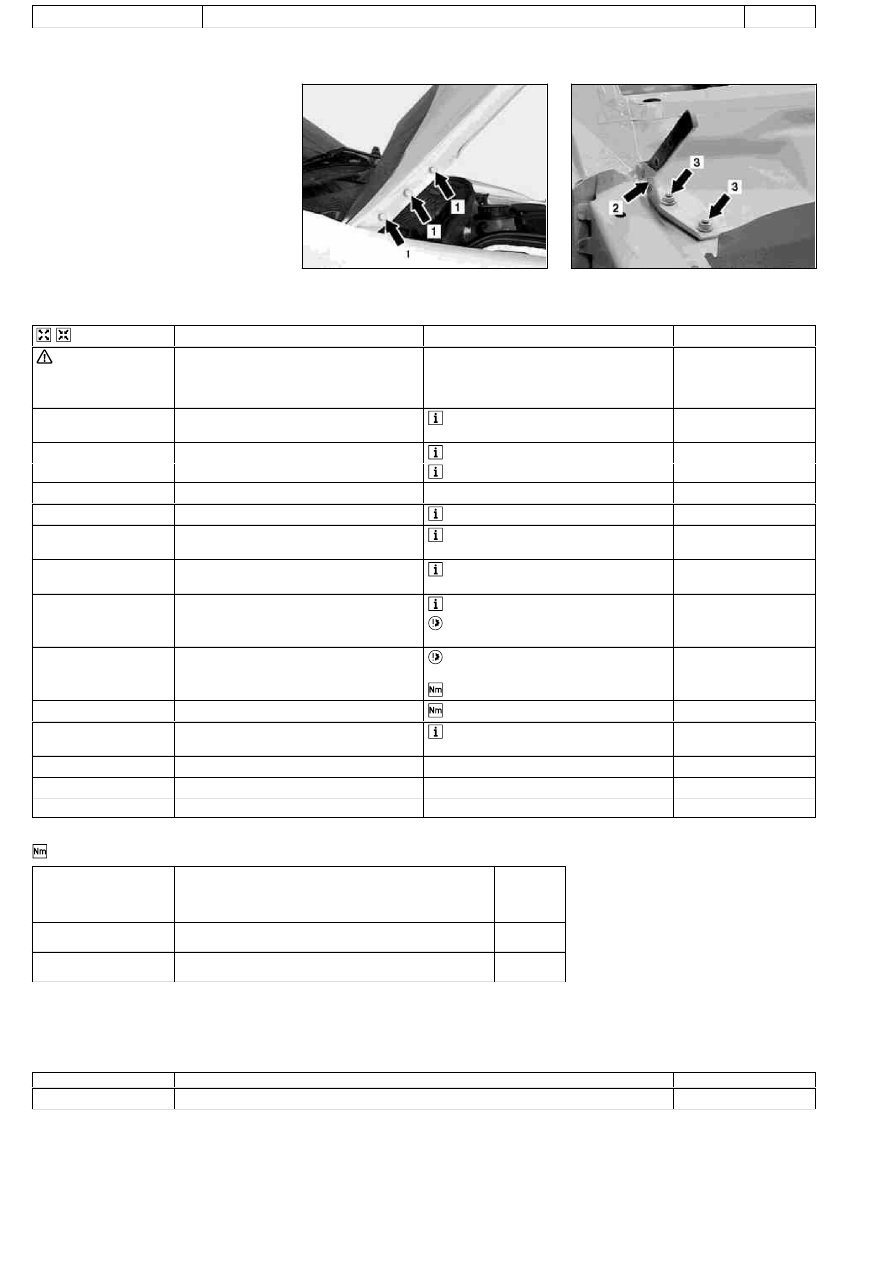

AR88.40-P-3060GH Remove/install engine hood hinge 16.4.97 MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 P88.40-0365-01 P88.40-0364-01 1 Screws 2 Engine hood hinge 3 Nuts
Removing and installing
Danger! Risk of injury to fingers being jammed or When moving components, ensure that no AS00.00-Z-0011-01A 1.1 Remove engine hood Only when both engine hood hinges are removed. AR88.40-P-3000GH 1.2 Open engine hood and raise to vertical position Up to VIN A145272, X708318. AR88.40-P-1000GH As of VIN A145273, X708319. AR88.40-P-1000GI 2 Remove cover on air intake AR83.25-P-1405GH 3 Remove rubber cover from engine hood hinge
Installation: Replace rubber cover. 4 Cut joint seal along engine hood hinge so that
Installation: Replace seam sealing. Paint sealant after curing. *BR00.45-Z-1004-01A 5 Mark installation position of engine hood Facilitates installation. 6.1 Remove gas strut As of VIN A145273, X708319. AR88.40-P-3010GH Danger of breaking! Do not remove the retainer otherwise the preload will be lost. 7 Remove screws (1)
Support engine hood at rear to prevent damage.
*BA88.40-P-1001-01C 8 Unscrew nuts (3)
*BA88.40-P-1002-01C 9 Remove engine hood hinge (2) Installation: Align engine hood hinge at marks made previously. 10 Install in the reverse order 11 Check alignment of engine hood If necessary: # Adjust engine hood AR88.40-P-3020GH
Engine hood Number Designation Model 163 BA88.40-P-1001-01C Screw for engine hood hinge on engine hood Nm 10 BA88.40-P-1002-01C Nut for engine hood hinge on body Nm 18 Repair products Number Designation Order number BR00.45-Z-1004-01A MB body sealant for sealing seams (suitable for painting) 001 989 63 20 Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services. Page 1 |
