AR68.10-P-1300GH

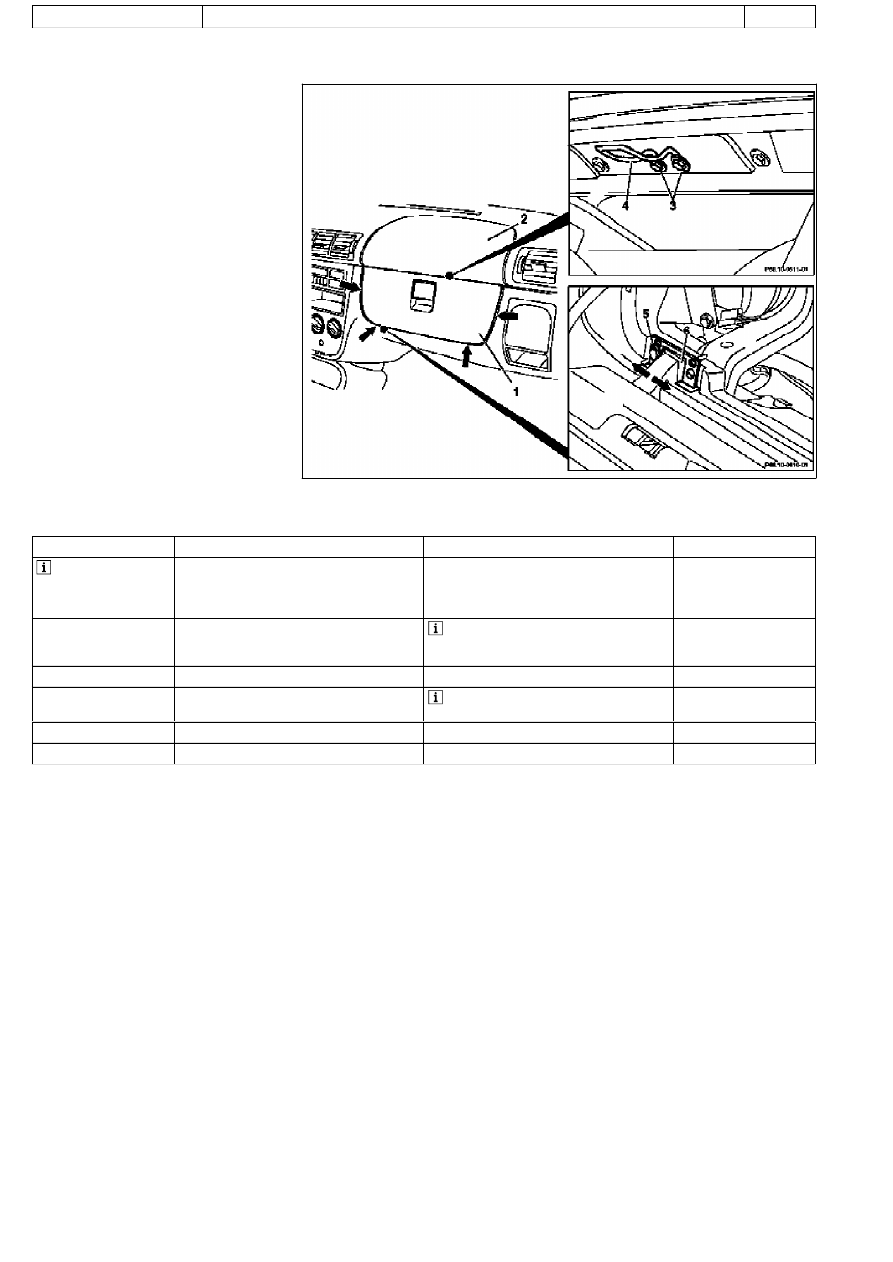

Adjust glove compartment lid

4.2.97

MODEL

163.136 /154 /172 #A up to 145272

P68.10-0517-06

1

Glove compartment lid

2

Instrument panel

3

Screws

4

Striker eye

5

Hinge screw

6

Hinge

Arrows

Air gap and adjustment possibilities
on hinge

Adjusting



During entire operation pay attention to
uniform transition, gap and adjustment
possibilities on hinge (arrows) between glove
compartment lid (1) and instrument panel (2).

1

Loosen screws (3) on striker eye (4)



Installation: Adjust transition at top of

striker eye (4).Glove compartment lid (1)
should make slight contact to stop buffers.

2

Remove glove compartment

AR68.10-P-1400GH

3

Adjust gap

 For this purpose loosen hinge screw (5)

from hinge (6).

4

Install glove compartment

AR68.10-P-1400GH

5

Check for easy motion and proper function

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.10-P-1300GH

Adjust glove compartment lid

4.2.97

MODEL

163.136 /154 /172 #A up to 145272

P68.10-0517-06

1

Glove compartment lid

2

Instrument panel

3

Screws

4

Striker eye

5

Hinge screw

6

Hinge

Arrows

Air gap and adjustment possibilities
on hinge

Adjusting



During entire operation pay attention to
uniform transition, gap and adjustment
possibilities on hinge (arrows) between glove
compartment lid (1) and instrument panel (2).

1

Loosen screws (3) on striker eye (4)



Installation: Adjust transition at top of

striker eye (4).Glove compartment lid (1)
should make slight contact to stop buffers.

2

Remove glove compartment

AR68.10-P-1400GH

3

Adjust gap

 For this purpose loosen hinge screw (5)

from hinge (6).

4

Install glove compartment

AR68.10-P-1400GH

5

Check for easy motion and proper function

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.10-P-1400GH

Remove/install glove compartment

4.2.97

MODEL

163.136 /154 /172 #A up to 145272

P68.10-0515-05

1

Striker eye

2-7

Screws

8-9

Stop buffer

10

Glove compartment

E13/1

Glove compartment lamp



Remove/Install

1

Open glove compartment lid

2

Unclip glove compartment lamp (E13/1) and
disconnect connector

3

Remove striker eye (1)



Installation: Check adjustment.Refer to:

#

Adjust glove compartment lid.

AR68.10-P-1300GH

4

Unscrew screws (2-7)

5

Pry glove compartment (10) out of arrest at
bottom and pull out

6

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.10-P-1220GH

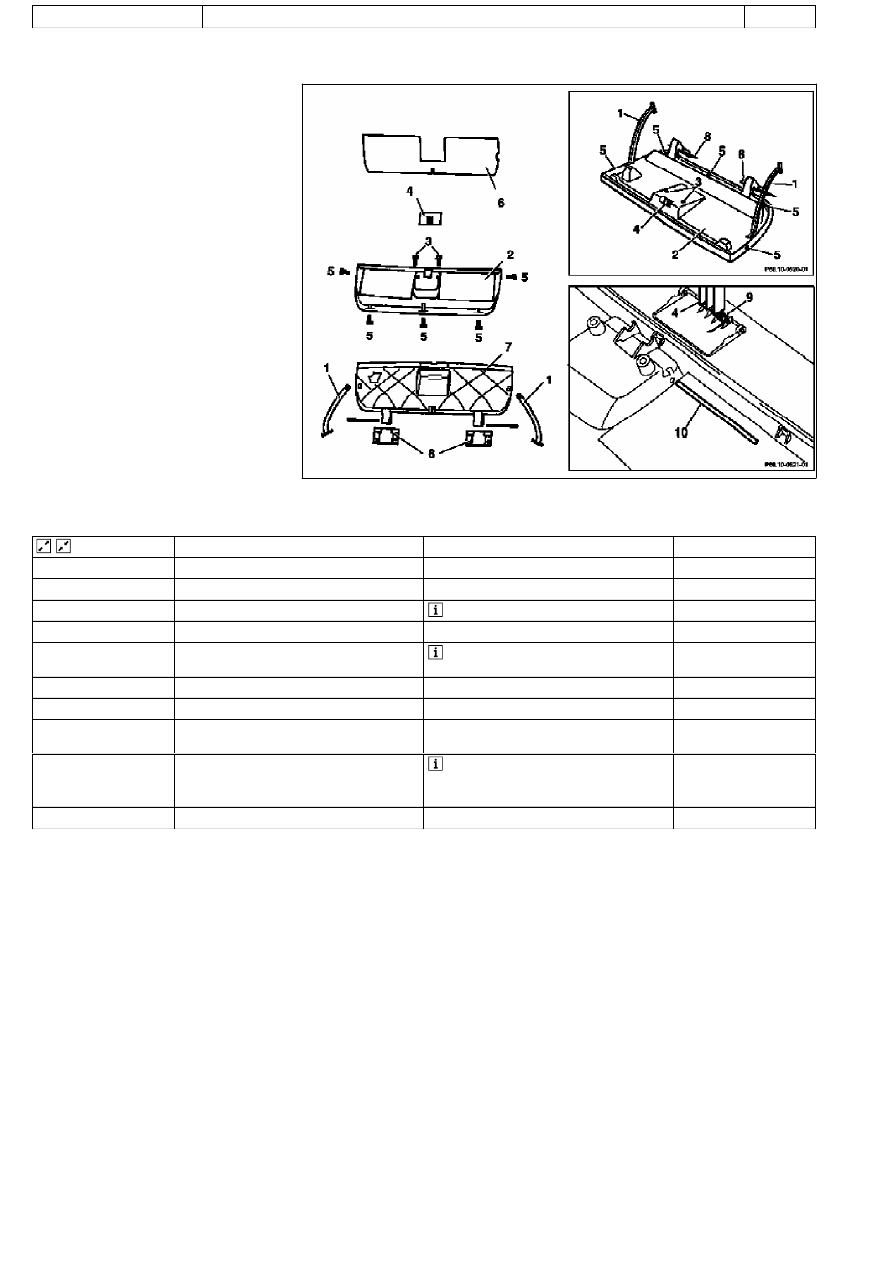

Disassembling and assembling glove compartment lid

4.2.97

MODEL

163.136 /154 /172 up to 31.8.99

P68.10-0518-06

1

Stop lever

2

Inner section

3

Screw for catch

4

Glove compartment catch

5

Screw for inner section

6

Insert

7

Glove compartment lid

8

Hinge

9

Spring for catch

10

Pin for catch



Disassembly, assembly

1

Remove glove compartment lid

AR68.10-P-1200GH

2

Unclip stop lever (1) from inner section (2)

3

Remove hinges (8) on inner section (2)

 Remove hinge pins

4

Unscrew screws (3) from lock (4)

5

Unscrew screws (5) from glove compartment
inner section (2)

 5 each.

6

Remove inner section (2)

7

Remove insert (6) from inner section (2)

8

Unhook glove compartment catch (4) and
spring (9)

9

Remove glove compartment catch (4) from
glove compartment lid (7)

 Drive out pin (10).

Installation: Observe installation position for
spring (9).

10

Install in opposite order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
