2001-04 ELECTRICAL

Fuses & Circuit Breakers - 163 Chassis

IDENTIFICATION

MODEL IDENTIFICATION - 463 CHASSIS

FUSE & RELAY IDENTIFICATION

Vehicles have 2 fuse boxes located in the following areas:

1. Left rear of engine compartment - fuse and relay box F1 (fuses f1-f48 and relays). See Fig. 1 .

2. Right front footwell - fuse and module box F2 (fuses f1-f26 and relays). See Fig. 2 .

To identify fuse assignments, see FUSE ASSIGNMENTS . To identify relay assignments, see RELAY
ASSIGNMENTS .

NOTE:

The following table identifies applicable models covered in this article.

Model (Year)

Chassis Number

Engine Number

ML430 (2001)

163.172

113.942

ML320 (2001-03)

163.154

112.942

ML55 AMG (2001-03)

163.174

113.981

ML500 (2002-04)

163.175

113.965

ML350 (2003-04)

163.157

112.970

NOTE:

The vehicle's electrical systems are protected by an assortment of fuses and
relays. Protective fuses should only be replaced by fuses of correct rating.



2001 Mercedes-Benz ML320

2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis





2001 Mercedes-Benz ML320

2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis



me



me

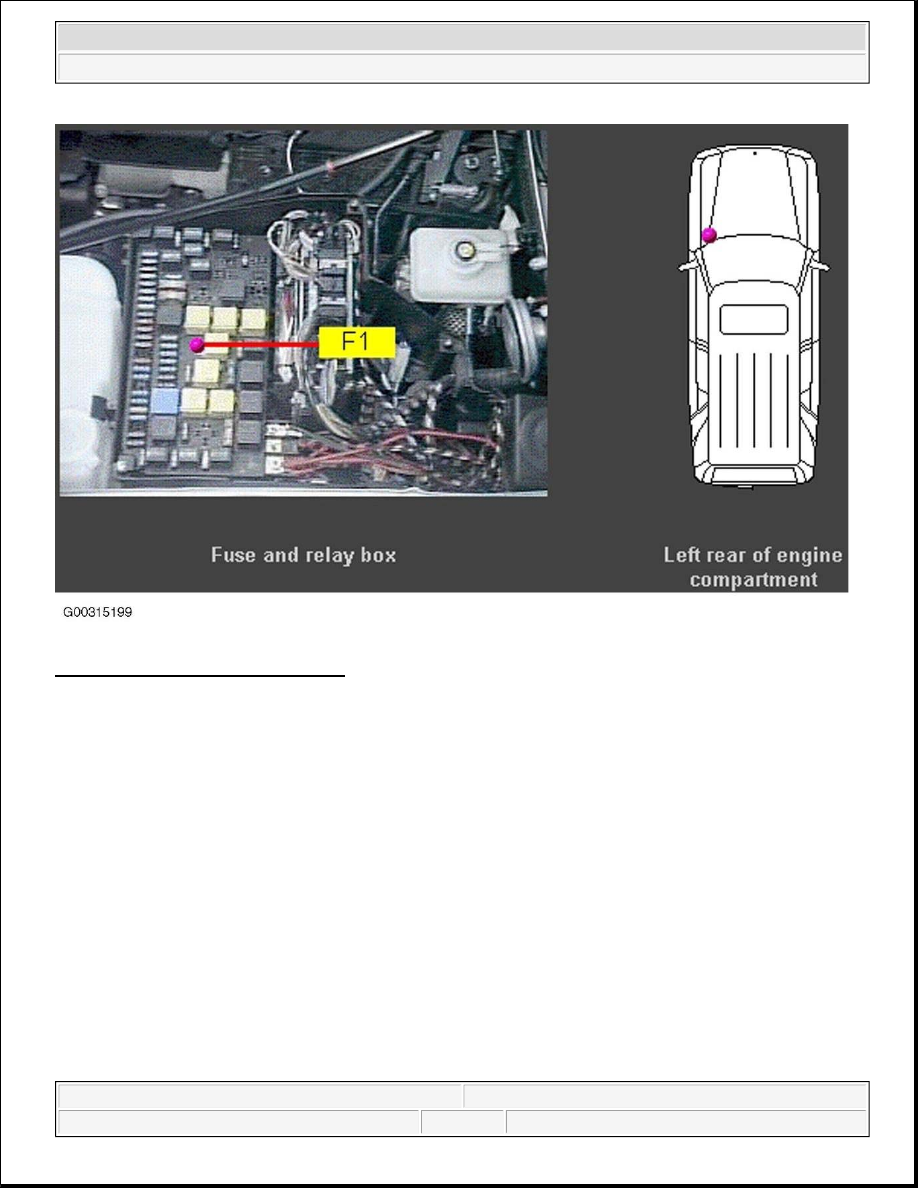

Fig. 1: Locating Fuse & Relay Box F1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis



me

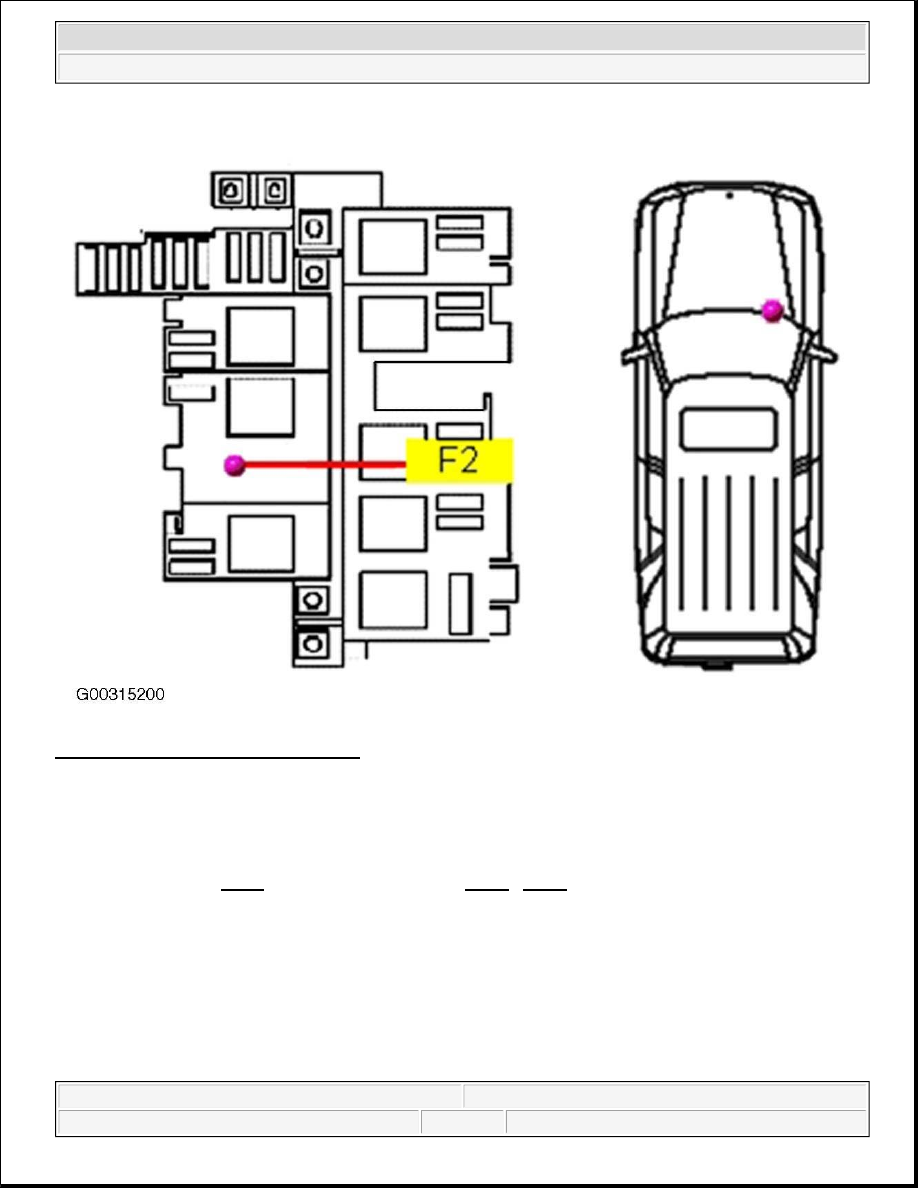

Fig. 2: Locating Fuse & Module Box F2
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

FUSE ASSIGNMENTS

Fuse & Relay Box F1 Fuse Assignments (Up-To-08/31/01)

For fuse locations, see Fig. 3 . For fuse assignments, see Fig. 4 - Fig. 9 .



2001 Mercedes-Benz ML320

2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis



me

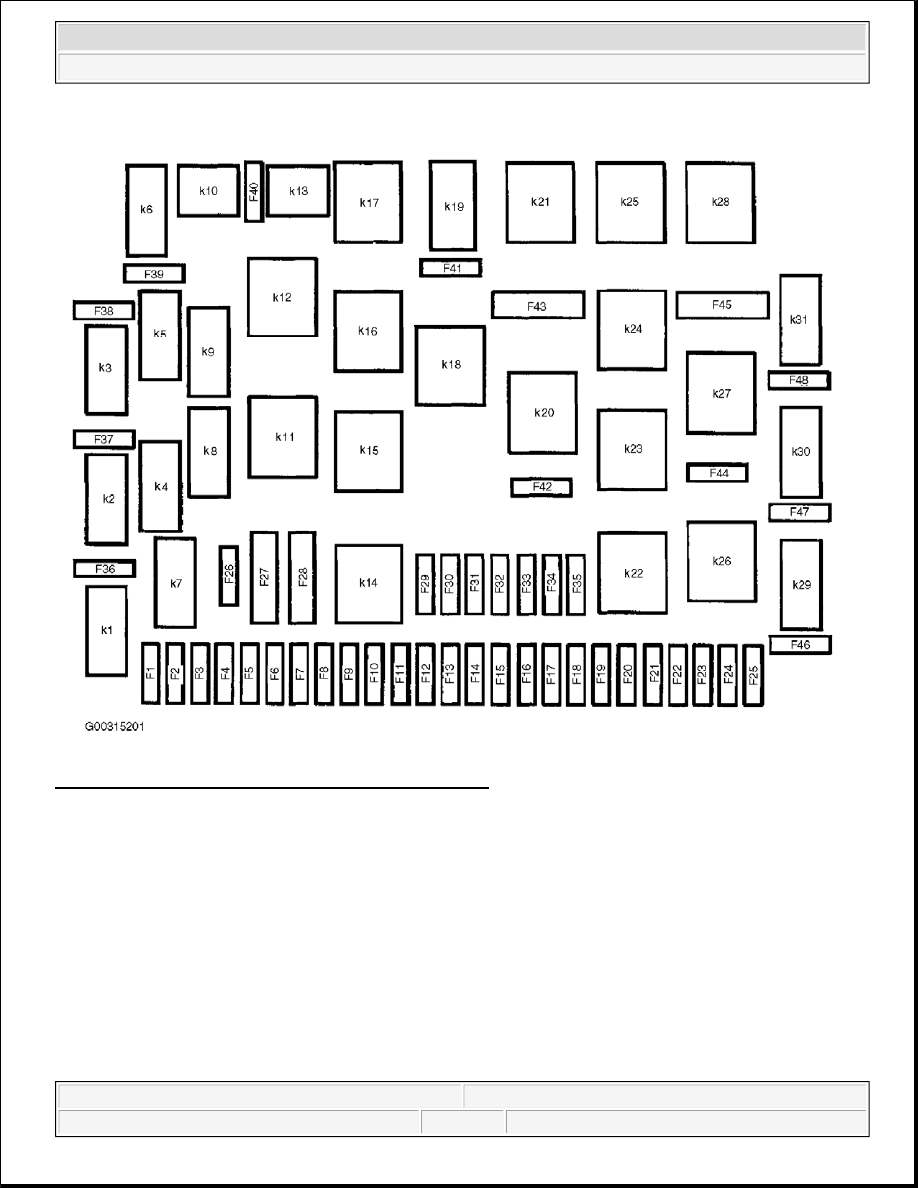

Fig. 3: Locating Fuses & Relays In Fuse & Relay Box F1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis



me
