BF47.10-P-1000-01A

Fuel tank capacity

Model 124, 129, 140, 163, 168, 170,
171, 199, 202, 203, 208, 209, 210, 211,
215, 220, 230, 240,
414, 463

i



Modification notes

26.4.04

Value modified from 87.6 Nm to 97 Nm

Value modified in series 1001 for model 199



Fuel tank

Number

Designation

Model
124.008/019/
022/028/
029/032/040/
042/052

Model
124.07/
08/09

Model
124.034/
036

Model
124 with
increased tank
capacity code
915

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 70

72

90

90

Reserve capacity

Liters 9

9

11

11.5



Fuel tank

Number

Designation

Model
124.06

Model
129

Model
140
without
code
282a or
code 308

Model
140 with code
282a
or
code 308

Model
163.113/
136/154/
172 up to
31.08.01

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 70

80

100

90

72

Reserve capacity

Liters 11

10

12.5

12.5

10



Fuel tank

Number

Designation

Model
163.113/
136/154/
172 as of
01.09.01
Model
163.157/
175

Model
163.128

Model
163.174

Model
168.006/
007/ 008/
009/131/
132/133

Model
168.031/
032/033

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 83

83

93

54

54

Reserve capacity

Liters 12

12

12

8

8



Fuel tank

Number

Designation

Model
170.43/
445/447/46

Model
170.444/
449

Model
171

Model
199

Model
202.018/020/023/
024/025/026 /
029/033/078 /
080/082/083 /
085/086/089/093

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 53

60

70

87,6

62

Reserve capacity

Liters 7

8

9

10

8

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1



Fuel tank

Number

Designation

Model
202.121/122/128/
133/180/182/
188/193

Model
203

Model
208

Model
209

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 62

62

62

62

Reserve capacity

Liters 7

8

8

8



Fuel tank

Number

Designation

Model
210 with
code 282a
or
code 308

Model
210.0
without code
915

Model
210.0
with code
915

Models
210.2/6

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 70

65

80

70

Reserve capacity

Liters 9

8

10

9



Fuel tank

Number

Designation

Model
211.004/006/042/606
without code 915 (fuel
tank with increased
capacity)

Model
211.004/006/016/042/
061/080/206/216/242/
261/280/606/616
with code 915 (fuel
tank with increased
capacity)

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 65

80

Reserve capacity

Liters 8...9

8...9



Fuel tank

Number

Designation

Model
211.016/061/080/616
without code
915 (fuel tank with
increased capacity),
954a (Avantgarde),
955a (Elegance)

Model
211.016/061/080/
216/261/280 /616
with code 954a
(Avantgarde),
955a (Elegance)

Model
211.023/026/
028/065/070/
076/082/083/
223/226/265/
270/276/282/
283

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 65

80

80

Reserve capacity

Liters 8...9

8...9

8...9



Fuel tank

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

Number

Designation

Model
211.206
without code 915 (fuel
tank with increased
capacity)

Model
211.216/242/
261/280
without code 915 (fuel
tank with increased
capacity),
954a (Avantgarde),
955a (Elegance)

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 70

70

Reserve capacity

Liters 8...9

8...9



Fuel tank

Number

Designation

Model
215 with
code 282a
or
code 308

Model
215
without
code
282a or
code 308

Model
220 with
code 282a
or
code 308

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 78

88

78

Reserve capacity

Liters 10

11

10



Fuel tank

Number

Designation

Model
220
without
code
282a or
code 308

Model
230

Model
240

Model
414

Model
461, 463

BF47.10-P-1001-01A

Fuel tank capacity Total capacity

Liters 88

80

110

54

96

Reserve capacity

Liters 11

10

14

8

20

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 3

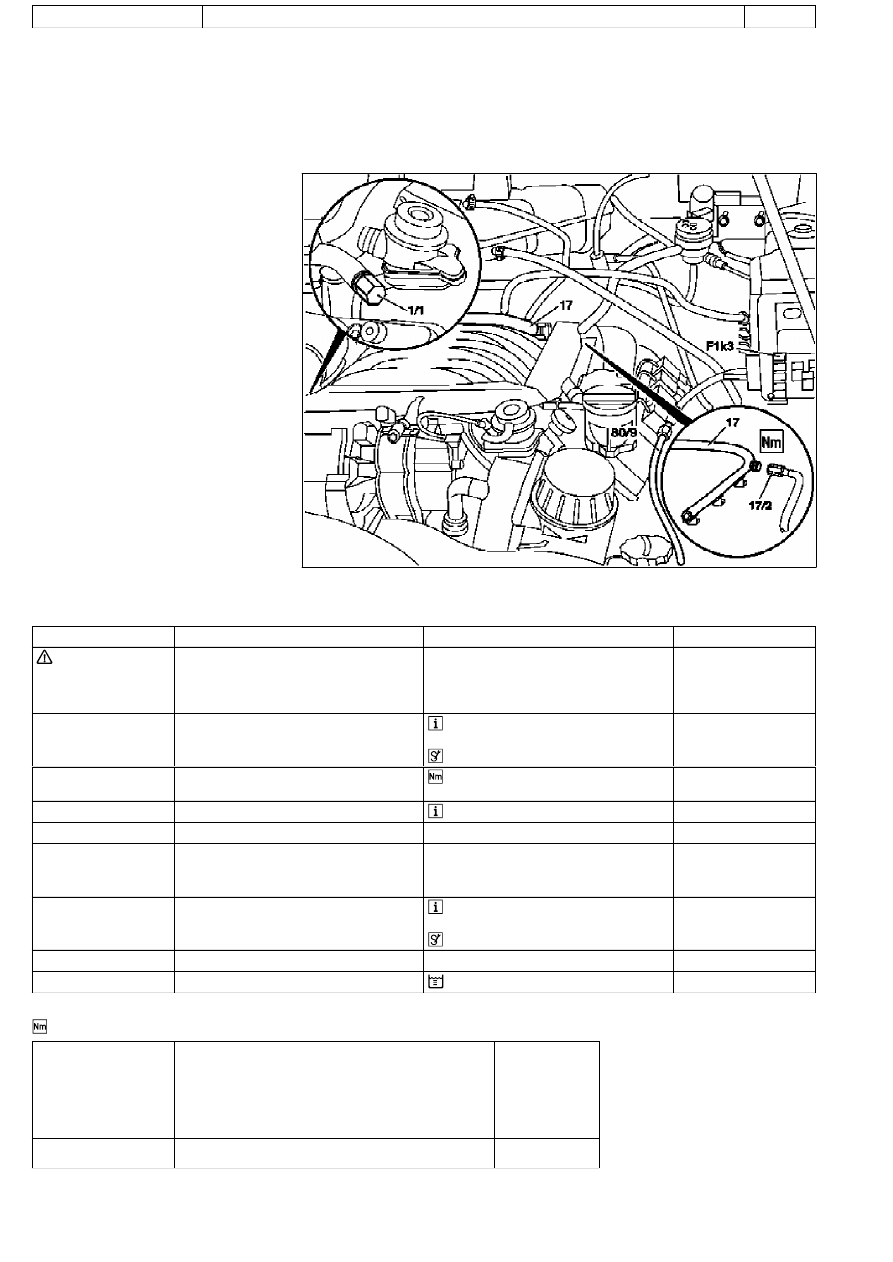

AR47.10-P-4001GH

Emptying, filling the fuel tank

11.3.97

Model  163.136 with engine 111.977
Model  163.154 with engine 112.942
Model  163.157 with engine 112.970
Model  163.172 with engine 113.942
Model  163.174 with engine 113.981
Model  163.175 with engine 113.965

P47.10-0411-06

1/1

Service valve

17

Fuel rail

17/2

Fuel feed line

80/9

Fuel hose

F1K3

Fuel pump relay

Draining or pumping out

Danger!

Risk of explosion if ignition takes place, risk
of poisoning
 caused by inhaling fuel vapors
or swallowing fuel as well as risk of injury  to
skin and eyes exposed to fuel.

No fire, sparks, open flames or smoking.
Only pour fuels into suitable and appropriately
marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1

Release fuel pressure through service valve
(1/1)

 Collect fuel.

 Pressure hose

*119589046300

2

Unscrew fuel feed line (17/2) at fuel distributor
(17)



*BA07.52-P-1001-01A

3

Connect fuel hose (80/9) to fuel feed line (17/2)

 Use 10 mm diameter fuel hose.

4

Insert fuel hose (80/9) into safety reservoir

5

Pull fuel pump relay (F1k3) out of relay holder

n



Assignment and cable connections of fuse
blocks

GF54.15-P-1255GH

6

Bridge fuel pump

 Connect slot 30 (battery positive) to slot

87 (relay contact input).



*220589009900

7

Switch on ignition

8

Pump fuel out into safety canister



*BF47.10-P-1001-01A



Fuel rail

Number

Designation

Engine
112 except
112.945/951/
960/961

BA07.52-P-1001-01A

Fuel feed line on fuel distributor

Nm

38

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
