Mercedes-Benz ML320. Service manual - part 477

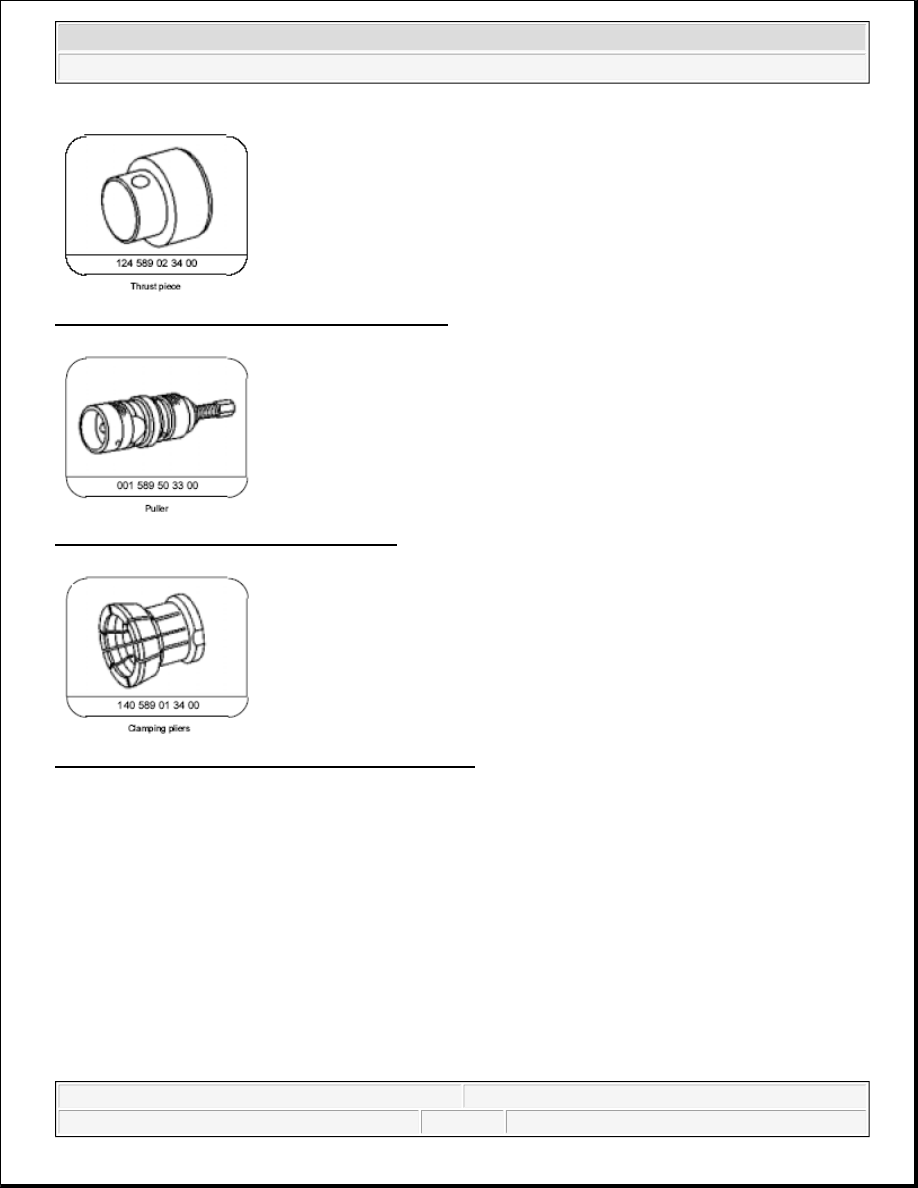

Fig. 26: Identifying Thrust Piece (124 589 02 34 00)

Fig. 27: Identifying Puller (001 589 50 33 00)

Fig. 28: Identifying Clamping Pliers (140 589 01 34 00)

1. Screw clamping pliers to puller and tighten.

2. Clamp front axle shaft flange in vise with aluminum jaws.

3. Place thrust piece (010e) with large diameter on front axle shaft flange.



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me

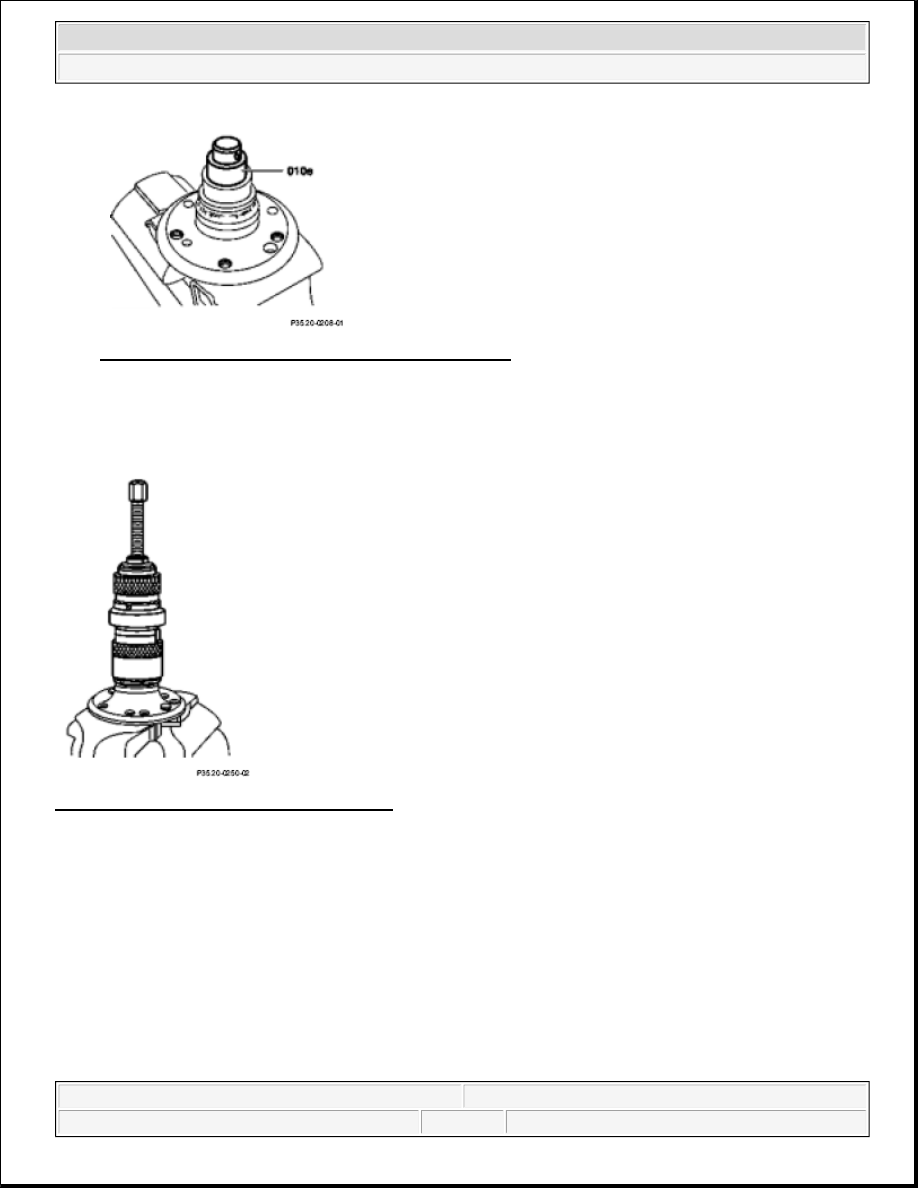

Fig. 29: Identifying Thrust Piece & Axle Shaft Flange

4. Insert complete puller over inner bearing race. Clamp tensioning pliers around upper grooves using

conical sleeve of puller.

5. Pull off and remove bearing inner race from front axle shaft flange using puller.

Fig. 30: Identifying Front Axle Shaft Flange

REMOVE/INSTALL FRONT AXLE SHAFT FLANGE AND DOUBLE-ROW ANGULAR BALL BEARING - AR33.20-P-0315GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Shown on vehicle with floating caliper



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



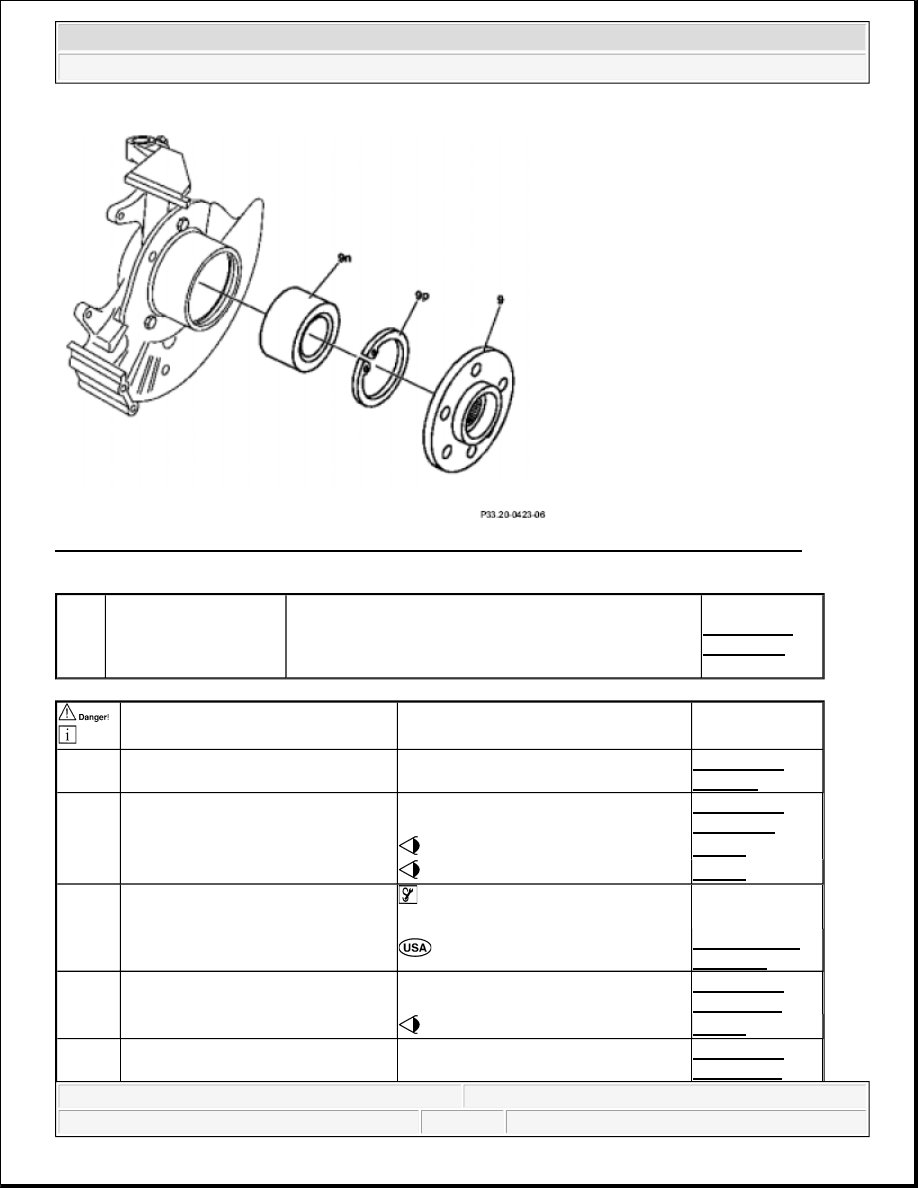

Fig. 31: Identifying Front Axle Shaft Flange And Double-Row Angular Ball Bearing Components

Modification notes

7.8.00

Pulling out front axle
shaft flange, changed

Step 2:
The front axle shaft flange is now pulled out using a
stationary press and not with the auxiliary hydraulic
press.

AR33.20-P-
0315-01GI





Remove/Install





1

Remove steering knuckle



AR33.25-P-
0400GH

2

Pull out front axle shaft flange (9)



AR33.20-P-
0315-01GI

 Extractor tool

Fig. 19

 Extraction and insertion tool

Fig. 20

3

Detach circlip (9p)

 Installation: Ensure that the circlip

seats securely in the wheel carrier.



 Pliers for locking ring

*WH58.30-Z-
1009-02A

4

Pull double-row angular ball bearing
(9n) out of steering knuckle



AR33.20-P-
0315-03GH

 Extraction and insertion tool

Fig. 20



AR33.20-P-
0315-04GH



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me



Test values for wheel location, wheel hub

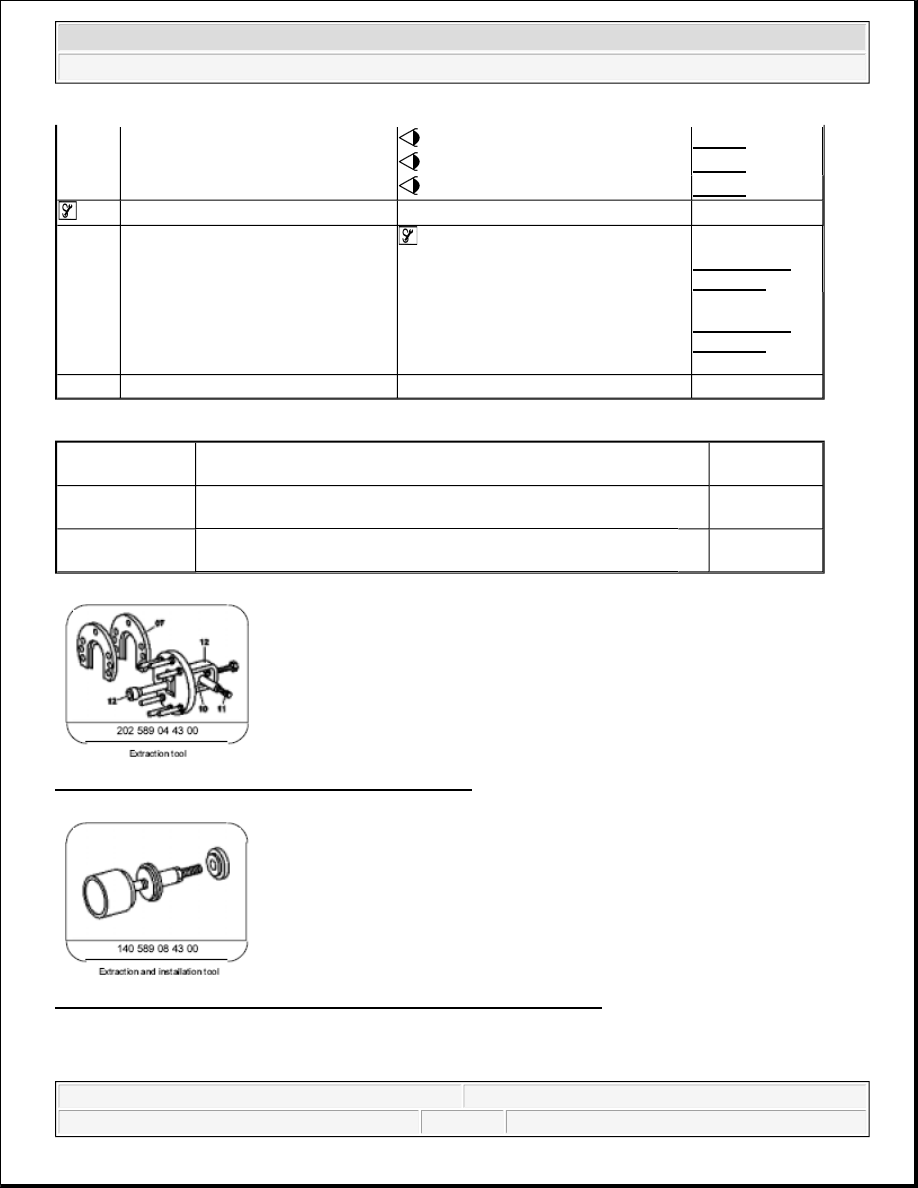

Fig. 32: Identifying Extraction Tool (202 589 04 43 00)

Fig. 33: Identifying Extraction And Installation Tool (140 589 08 43 00)

5

Pulling inner bearing race off front
axle shaft flange

 Thrust piece

Fig. 26

 Puller

Fig. 27

 Tensioning clamp

Fig. 28



Inspect





6

Check lateral and radial runout of
front axle shaft flange (9)

 Following predefined repair plan.



Permissible lateral runout

*BE33.20-P-
1001-01B

Permitted vertical runout
If readings are lower than specification,
it may be necessary to: ?
Replace front axle shaft flange.

*BE33.20-P-
1002-01B

7

Install in the reverse order





Number

Designation

Model Series
163

BE33.20-P-1001-
01B

Permissible lateral runout of front axle shaft flange when removed mm 0.03

BE33.20-P-1002-
01B

Permissible radial runout of front axle shaft flange at center
centering when removed

mm 0.03



2001 Mercedes-Benz ML320

1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis



me
