Mercedes-Benz ML320. Service manual - part 455





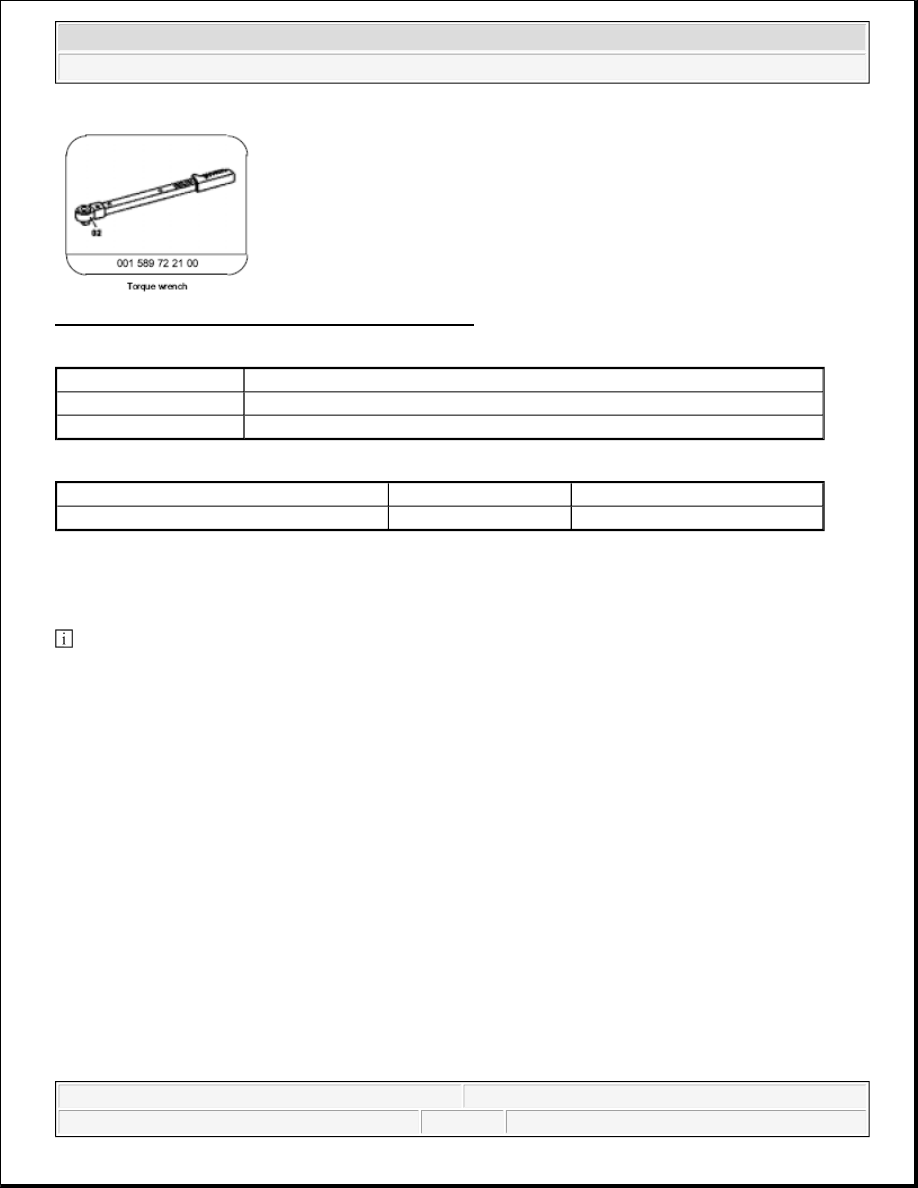

Fig. 92: Identifying Torque Wrench (001 589 72 21 00)

Commercially available tools

Repair materials

SCREW DIAGRAM FOR TIMING CASE COVER - AR01.40-P-8000-01B

Assignment of bolts for timing case cover

 Apply sealant at the bolts marked (arrows).

Number

Designation

WH58.30-Z-1001-06A

6 mm socket hexagon on flexible shaft for hose clamps with worm drive

WH58.30-Z-1002-06A

7 mm socket hexagon on flexible shaft for hose clamps with worm drive

Number

Designation

Order number

BR00.45-Z-1013-01A

Sealant

A 003 989 98 20



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me

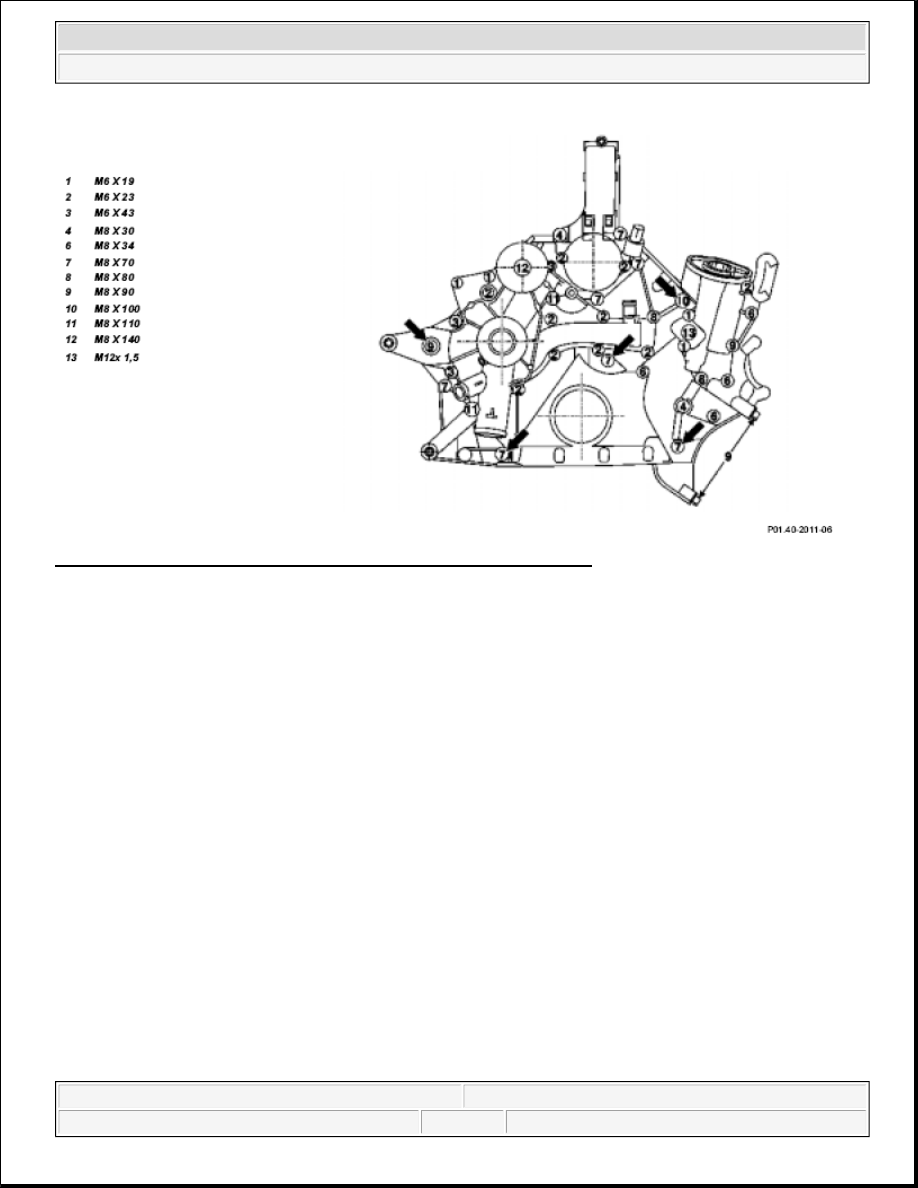

Fig. 93: Identifying Timing Case Cover Bolts & Bolts Needing Sealant

REMOVE/INSTALL TIMING CASE COVER - AR01.40-P-8000B

ENGINE 112 in model 129, 163, 170, 202, 208, 210.061 /063 /065 /261 /263 /265 /663, 220

ENGINE 113 (except 113.991) in MODELS 129,163, 202, 208, 210, 215, 220, 230.475 /474 (except,
215.374,220.074/174)


Shown on engine 112 in model 210



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



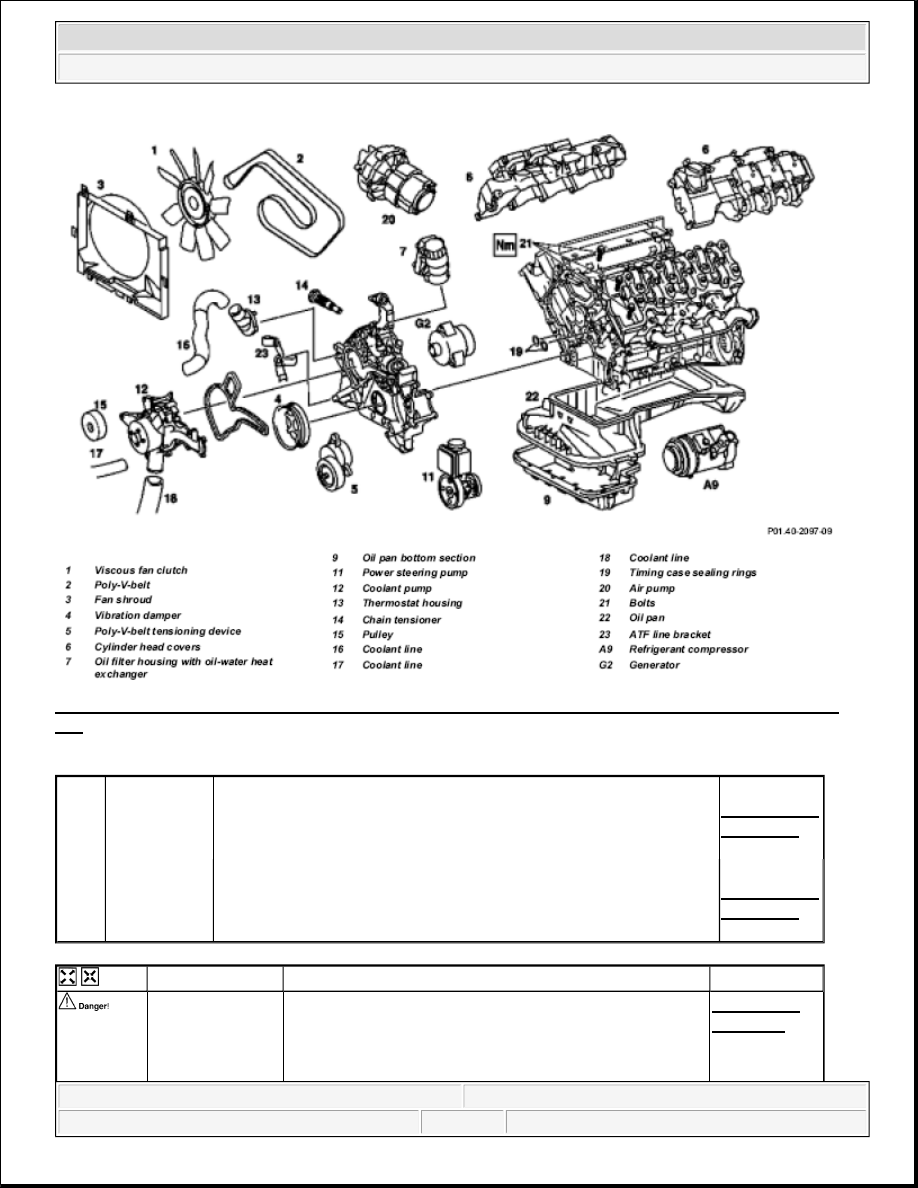

Fig. 94: Identifying Timing Case Cover Remove/Install Components - Shown On Engine 112 In Model
210


Modification notes

1.9.04

Value
changed from
10 Nm to 14
Nm

Value in row 1003 changed for engine
112.910/911/912/913/914/915/916/917/
920/921/922/923/940/941/942/943/944/
945/946/947/949/953/954/955/960/961 / 970/972/973/975

*BA20.10-P-
1003-01M

Value
changed from
10 Nm to 14
Nm

Value in series 1004 changed for engine
112.910/911/912/913/914/915/916/917/
920/921/922/923/940/941/942/943/944/
945/946/947/949/953/954/955/960/961 / 970/972/973/975

*BA20.10-P-
1004-01M





Remove/install







Risk of explosion
caused by
oxyhydrogen gas.
Risk of

No fire, sparks, open flames or smoking. Wear acid-
resistant gloves, clothing and safety glasses. Only pour
battery acid into suitable and appropriately marked
containers.

AS54.10-Z-
0001-01A




2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



poisoning and
caustic burns

caused by
swallowing
battery acid. Risk
of injury
 caused
by burns to skin
and eyes from
battery acid or
when handling
damaged lead-
acid batteries

1

Disconnect
battery ground
cable

Models 129, 163, 170, 202, 208, 210

AR54.10-P-
0003A


Model 215, 220

AR54.10-P-
0003I

Model 230.474 /475

AR54.10-P-
0003R



Notes on battery

All models

AH54.10-P-
0001-01A


2

Remove engine
compartment
paneling

Model 129,202,208,210

AR61.20-P-
1105AB

Models 163.172/174/175

AR61.20-P-
1105GH


Model 170

AR61.20-P-
1105A

Model 215, 220

AR61.20-P-
1105M

Model 230

AR61.20-P-
1105R



Risk of injury to
skin and eyes
caused by
scalding from
contact with hot
coolant spray.
Risk of
poisoning
 from
swallowing
coolant.

Do not open cooling system unless coolant temperature is
below 90°C. Open cap slowly and release the pressure. Do
not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety
glasses.

AS20.00-Z-
0001-01A


3

Drain coolant
from radiator

Engine 112, 113 in models 129, 163, 202, 208,
210,215,220

AR20.00-P-
1142HA


Engine 113.963 in models 230.475



Engine 112.960 in model 170.466

AR20.00-P-
1142RVK

Engine 113.992 in model 230.474





2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me
