Mercedes-Benz ML320. Service manual - part 432





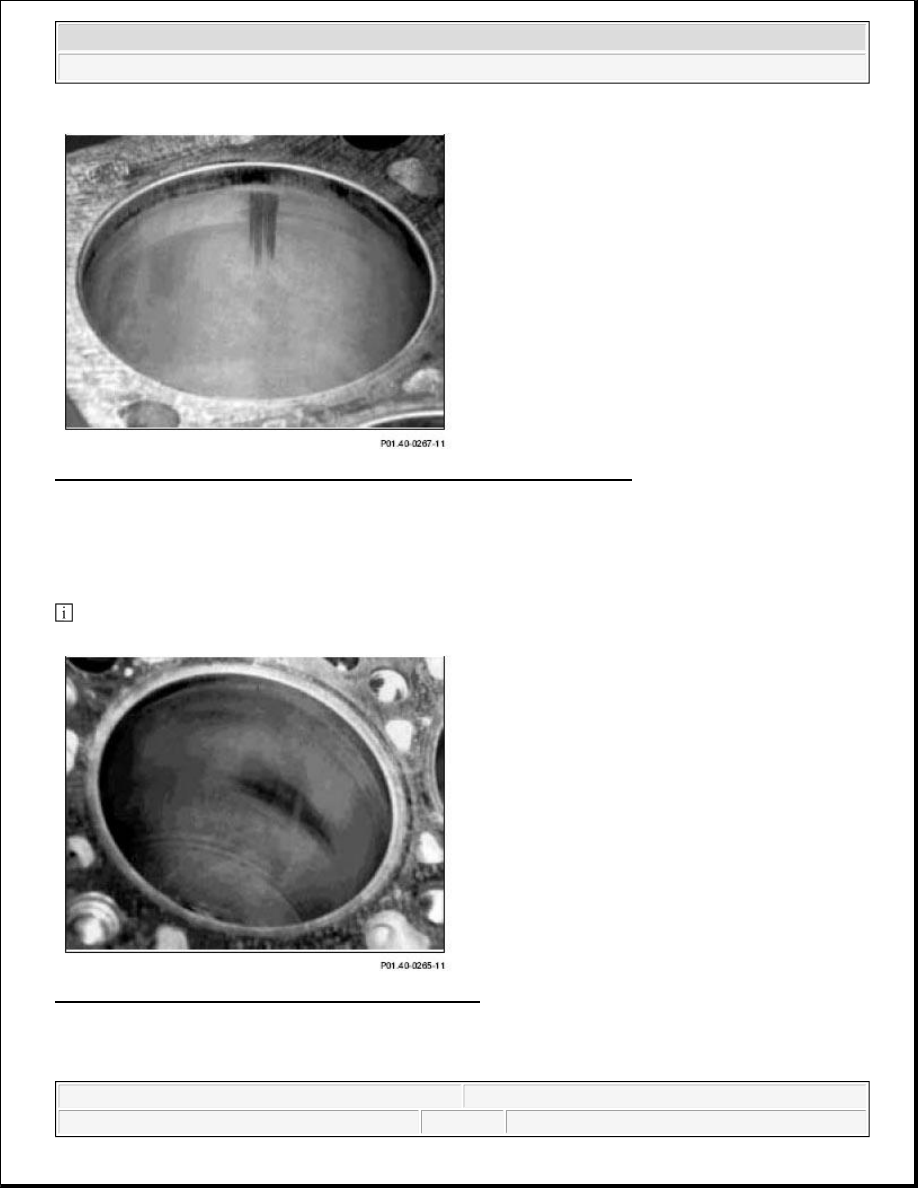

Fig. 2: Identifying Visible Mottling And Friction Marks On Cylinder Walls

Ring shaped imprints

Visible imprints on cylinder barrel in the upper and lower reverse area of piston rings are not a cause for
complaint.

 The crankcase can be reused.

Fig. 3: Identifying Visible Imprints On Cylinder Barrel

Rotary bright, specular, polished upper surfaces of cylinder

Starting from the reverse area of the upper piston ring with measurable, partial cylinder wear.



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



 The cylinder barrel is unusable.

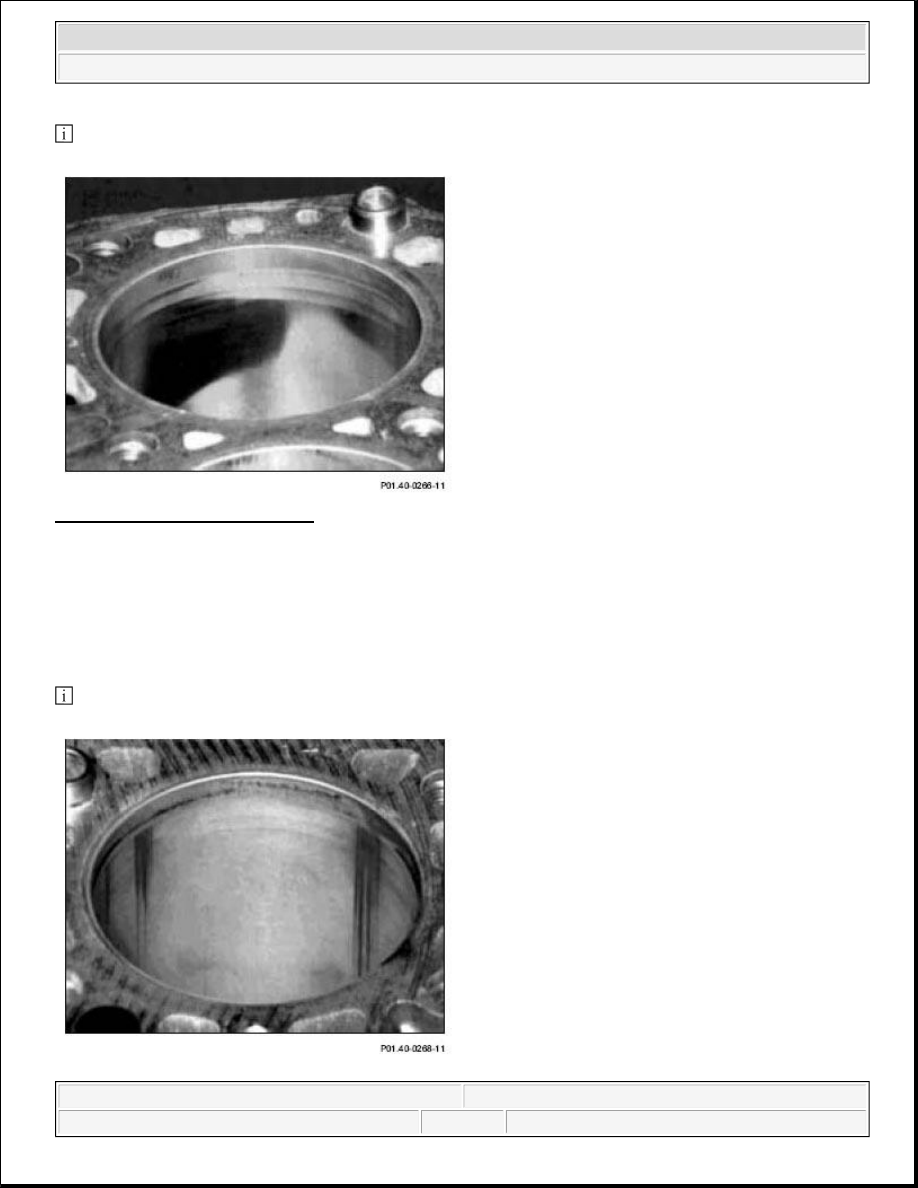

Fig. 4: Identifying Cylinder Wear

Roughened mottling, friction scoring

Starting from first and second piston ring, tapering to an end only in bottom part of cylinder. Progressive signs
of friction lead to friction score marks.

Where these signs of friction are perceptible, the cylinder barrel is unusable.

 The piston rings may be damaged.

Fig. 5: Identifying Friction Score Marks



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



Continuous individual traces of scratch

Caused by dirt, for example, through back pulsation of soot particles from the exhaust.

 The crankcase can be reused.

Piston seizure

Most of cylinder wall perceptibly roughened over the entire length.

Material deposits and perceptible scoring marks on cylinder wall and at piston skirt.

 The cylinder barrel is unusable.

Brown coloring of cylinder upper surface.

A brown coloration over large areas of the cylinder barrel is oil varnish and indicates that the engine has been
driven at a high temperature level.

 The crankcase can be reused if no impermissible cylinder warping is visible

Oil varnish above piston ring zone is normal and is not a reason for complaint.
