Mercedes-Benz ML320. Service manual - part 421

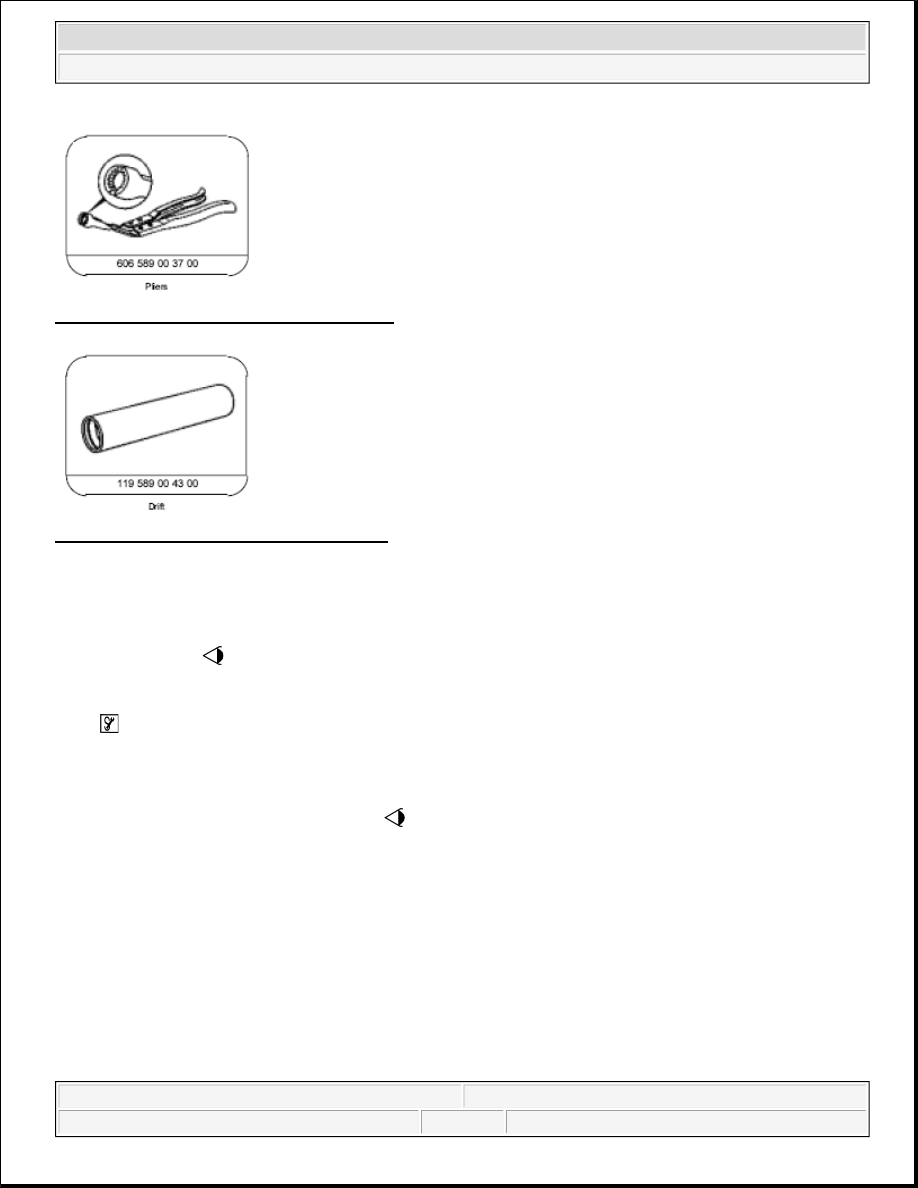

Fig. 77: Identifying Pliers (606 589 00 37 00)

Fig. 78: Identifying Drift (119 589 00 43 00)

Engine 111, 271

Shown on engine 111

1. Use pliers (1)

to pull off valve stem seals (86)

2. Check surface of valve stems for roughness and formation of burrs (visual inspection or with a nail).

Replace valves with a rough stem surface or formation of burrs.

3. Fit protective sleeve (2) onto valve stem.

4. Oil valve stem seals (86).

5. Press on the valve stem seals (86) with

a drift (3).

2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis

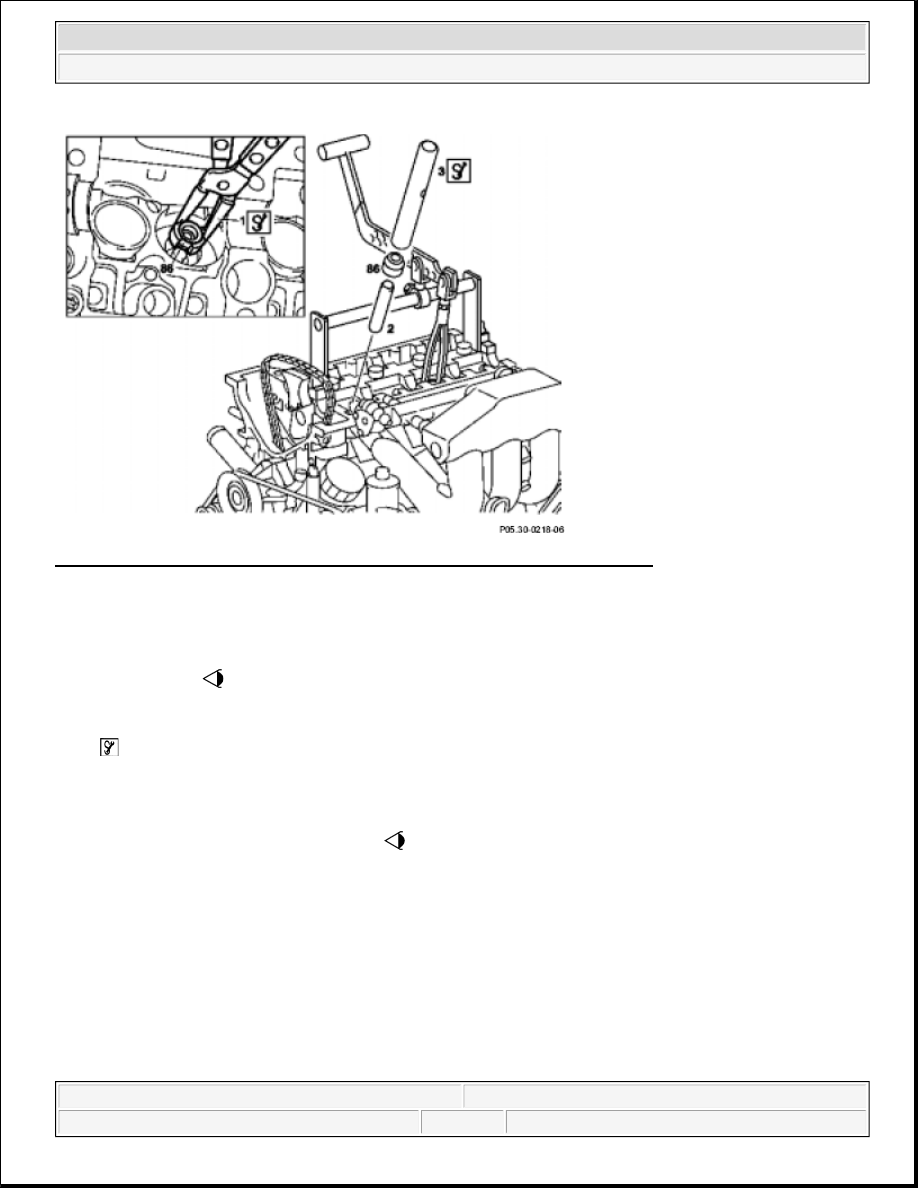

Fig. 79: Identifying Replacement Of Valve Stem Seals - Shown On Engine 111

Engines 112, 113

Shown on Engine 112

1. Use pliers (1)

to pull off valve stem seals (86)

2. Check surface of valve stems for roughness and formation of burrs (visual inspection or with a nail).

Replace valves with a rough stem surface or formation of burrs.

3. Fit protective sleeve (2) onto valve stem.

4. Oil valve stem seals (86).

5. Press on the valve stem seals (86) with

a drift (3).

2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis

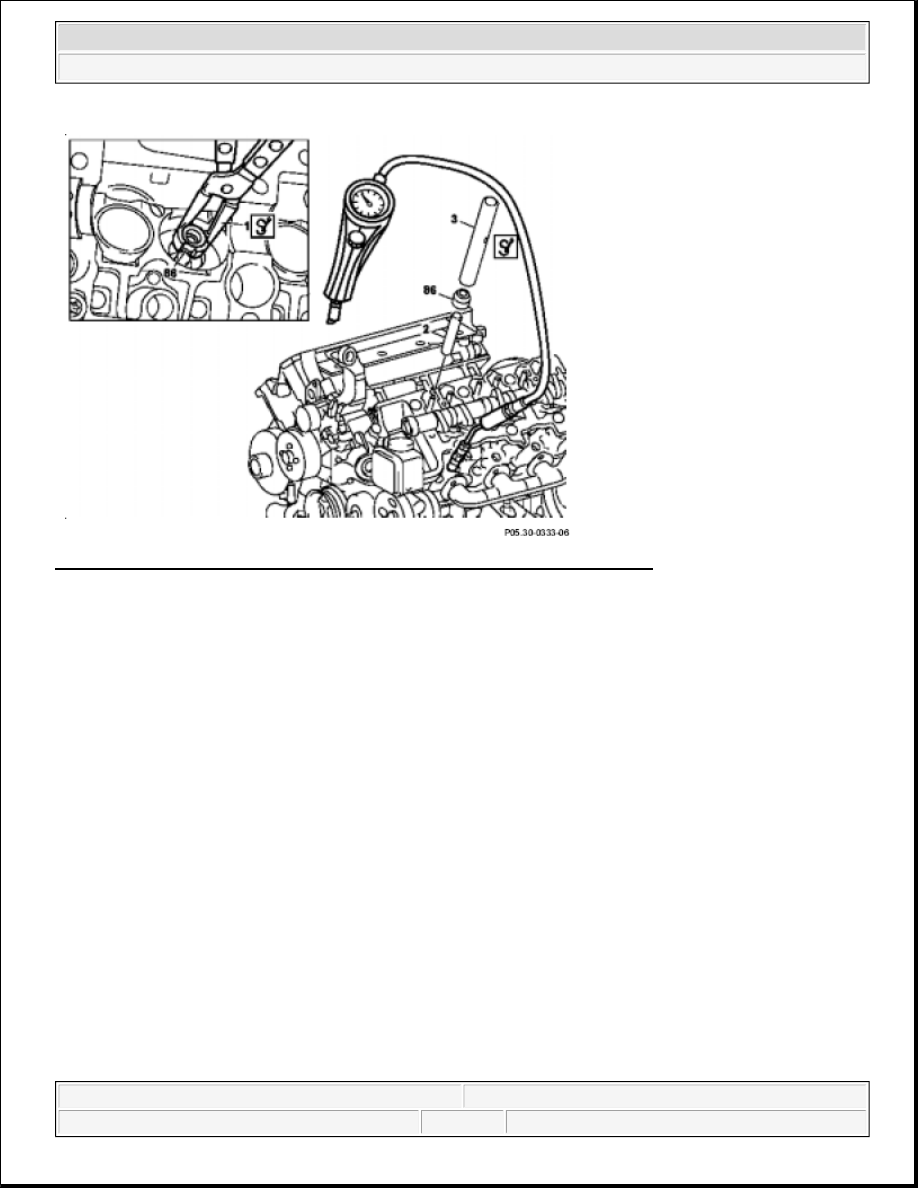

Fig. 80: Identifying Replacement Of Valve Stem Seals - Shown On Engine 112

REMOVE/INSTALL VALVE SPRINGS AND / OR VALVE STEM SEALS - AR05.30-P-3500B

ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250

ENGINE 112 in MODELS 129, 163

ENGINE 113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113 in MODELS 129, 163, 202, 208, 210

ENGINE 113.982 in MODELS 463.243 /246

2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis

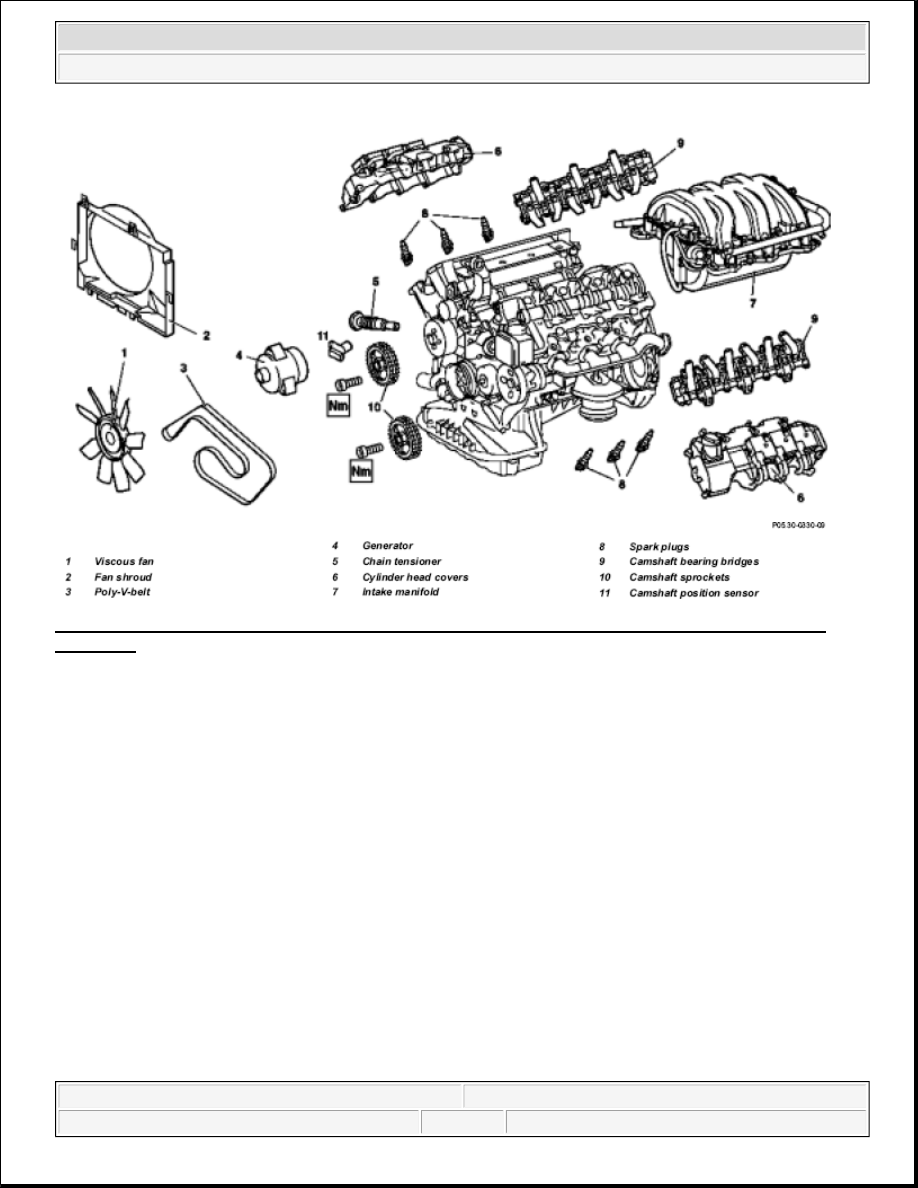

Fig. 81: Identifying Valve Springs And / Or Valve Stem Seal Components - Shown On Engine 112 In
Model 129

Shown on ENGINE 112 in MODEL 129
