Mercedes-Benz ML320. Service manual - part 418





 Camshaft

 Position sensor

Fig. 63: Identifying Locating Plate (112 589 00 32 00)

Number

Designation

Engine
112.951/976

Engine
113.960 with
code 479

BA05.20-P-
1001-01B

Bolt,
camshaft
sprocket

M1x245 Stage 1

Nm

50

50

Stage 2

Angle°

90

90

Number

Designation

Engine
113.987/988/
990/993

Engine
113.987/988/1

BA05.20-P-
1001-01B

Bolt,
camshaft
sprocket

M12x45 Stage 1

Nm

50

50

Stage 2

Angle°

90

90

Number

Designation

Engines
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975/976

Engines
113.940/941/
942/943/944/
948/960/961/
962/963/964/
965/966/967/
968/969/971/
980/981/982/
984/986/992/
993/995

Engines
113.987/988/990/991

BA15.10-P-
1002-03A

Camshaft Hall
sensor to
cylinder head

Nm 8

8

8



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me

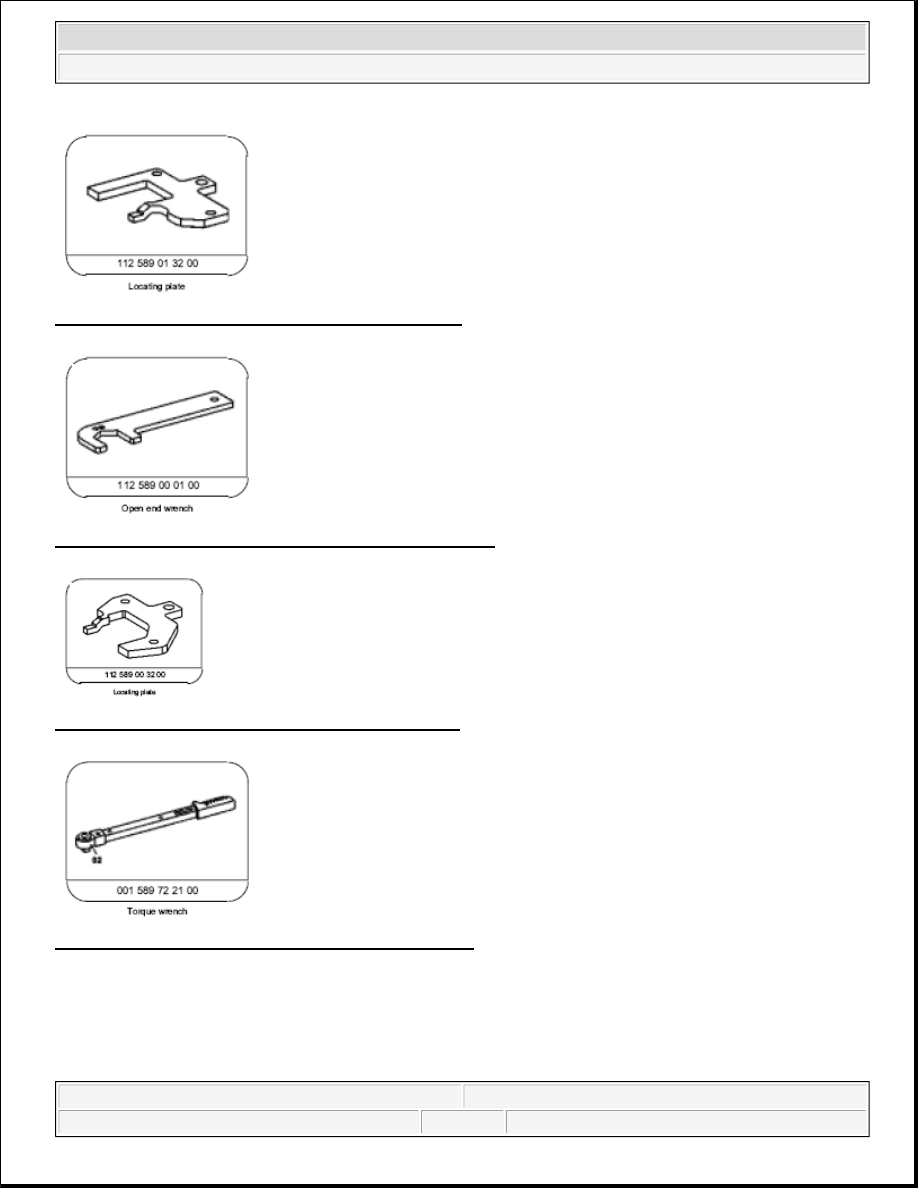

Fig. 64: Identifying Locating Plate (112 589 01 32 00)

Fig. 65: Identifying Open End Wrench (112 589 00 01 00)

Fig. 66: Identifying Insertion Tool (112 589 01 03 00)

Fig. 67: Identifying Torque Wrench (001 589 72 21 00)

REMOVE/INSTALL CAMSHAFTS - AR05.20-P-6992AU

ENGINE 112

ENGINE 112.945 in MODELS 463.209 /232 /233 /244 /245 /250



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



ENGINE 113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODEL 463.243/246

ENGINE 113 in MODELS 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230

Fig. 68: Identifying Camshaft Components - Shown On Engine 112

Shown on engine 112

Modification notes

18.6.97

M112: Procedure modified, new special tool.

Step 1-14

Fig. 66



Removing





1

Remove cylinder head
covers

Air filter mounted on vehicle AR01.20-P-5014B
Air filter mounted on engine AR01.20-P-5014BV

2

Position piston of
cylinder 1 at 40° after
TDC

 Rotate engine at

crankshaft in direction of
rotation until 40° marking on
belt pulley/ vibration damper
is aligned with marking on
timing case cover. The

AR05.10-P-6858V



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



grooves on the camshafts
must be pointing toward the
inner V.

 Engine must not be

rotated backwards.

3

Remove chain tensioner
(2)

Model 129, 463

AR05.10-P-7800C

Model 163 except
163.174 /175



Model 202, 208, 210 with
engine 113



Model 170, 202, 203, 208,
209, 210 with engine 112

AR05.10-P-7800CA

Model 163.174/175



Model 209.375 /475



Model 209.376 /476 up to
23.4.04



Model 203 with engine 113 AR05.10-P-7800AC
Model 209.376/ 476 as of
24.4.04



Model 211.0 with engine
112, 113



Model 211.276



Model 215 Model



220, 230 with engine 112,
113



Model 211.2 except 211.276
with engine 112, 113



Model 171 with engine 113

4

Remove camshaft Hall
sensor (1)

Model 129, 163, 170, 202,
203, 208, 209, 210, 215, 220
with engine 112

AR15.10-P-2000A

Model 129, 163, 202, 208,
210 with engine 113 except
engine 113.990 /991
Model 209 except 209.475
Model 211 except
211.076 /261 /265 /270 /276
Model 463 with engine
113.962
Model 463 with engine
113.982



Model 211.076/276
Model 215.374,
220.074 /174

AR15.10-P-2000RVK

Model 203 with engine 113 AR15.10-P-2000AC



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me
