Mercedes-Benz ML320. Service manual - part 410





camshafts

 The copper plates of the

timing chain must be
aligned with the scribe
marks on the camshaft
sprockets.



Owing to the unevenly long
paths of the timing chain it
may be necessary to crank
the engine as many as 14
times till the copper plates
get aligned with the scribe
marks on the camshaft
sprockets.



 On vehicles equipped

with an air pump, the
combination valve must be
unbolted before the right
locking plate is inserted.



 Installation: Replace

combination valve gasket.





*BA09.20-P-1001-01D

 Locating plate

Fig. 11

 Locating plate

Fig. 12



Timing chain drive -
general

Engines 112, 113

GF05.10-P-9611-01C

6

Remove chain tensioner

Models 163.174, 215, 220
Models 170, 202, 203,
208.365/465
Models 209, 210,
211061/065/070
Model 230.474 with engine
113.992

AR05.10-P-7800CA

7

Remove camshaft
position sensor



AR15.10-P-2000A

8

Crank engine in direction
of rotation until the link
for separating the timing
chain is easily accessible

 The separation point for

the timing chain is one link
down from the copper tab
(right).
See new timing chain.



9

Remove camshaft bearing
bridge on right

Engine 112, 113

AR05.20-P-7103AU

Engine 113.960 with code
(479) Cylinder shutoff

AR05.20-P-7103AV

10

Install holding bush (3)
onto camshaft on right

 Only insert bolts (4)

until they make contact.

Fig. 40



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



 Holding bush

11

Bolt on holding devices
(1, 2) for timing chain at
right and left cylinder
heads

 Retainer

Fig. 39

12

Disconnect timing chain

 Cover over timing case

recess with a clean cloth.
Parts which have dropped
into the timing case recess,
must be removed.

 To pull out the old

timing chain, connect the
old chain to the new timing
chain.

AR05.10-P-7601-01AV



Install





13

Draw in new timing chain

 Pull in the new timing

chain by turning the
crankshaft in its standard
direction of rotation.

AR05.10-P-7601-04AV

 Assembly links

Fig. 32

 Case

Fig. 16

14

Remove retaining devices
(1, 2) for timing chain at
right and left cylinder
head

 Retainer

Fig. 39

15

Rivet new timing chain



AR05.10-P-7601-02AV

16

Crank engine in direction
of rotation





17

Check timing of engine



AR05.10-P-6858V

18

Take off holding bush (3)
on right camshaft

 Holding bush

Fig. 40

19

Install camshaft bearing
bridge on right

Engines 112, 113

AR05.20-P-7103AU

Engine 113.960 with code
(479) Cylinder shutoff

AR05.20-P-7103AV

20

Install camshaft position
sensor



AR15.10-P-2000A

21

Installing chain tensioner Models 163.174, 215, 220

Models 170, 202, 203,
208.365/465
Models 209, 210,
211061/065/070
Model 230.474 with engine
113.992

AR05.10-P-7800CA

22.1

Install fan shroud

 Not model

AR20.40-P-6800AB



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



 Intake manifold

211.061/065/070, 230.475
Models 220, 230.474

22.2

Install electric fan

Model 170

AR20.40-P-5000SV

Models 203, 209

AR20.40-P-5000PV

Model 163.174

AR20.40-P-5000GH

23

Install cylinder head
covers

Air filter located at vehicle
side.

AR01.20-P-5014B

Air filter located on engine
side.

AR01.20-P-5014BV

24

Install spark plugs







Replace spark plugs

Models 220, 230.474/475

AP15.10-P-1580AB

Models 210, 208, 202

AP15.10-P-1580A

Models 170, 203, 209, 211
with engine 112



Models 209, 211 with
engine 113



Model 163

AP15.10-P-1580GH

25

Connect ground cable

Model 203

AR54.10-P-0003P

Models 129, 163, 170, 202,
208, 210

AR54.10-P-0003A

Model 209

AR54.10-P-0003Q

Models 211.061/065/070

AR61.20-P-1105T

Model 215, 220

AR54.10-P-0003I

Model 230.474/475

AR54.10-P-0003R

All models 463 except
463.241/248 with code 979

AR54.10-P-0003G

Model 463.241 with code
979

AR54.10-P-0003PV

Model 463.248 with code
979

AR54.10-P-0003PM



Risk of accident caused
by vehicle starting off by
itself when engine is
running. Risk of injury
caused by contusions and
burns during starting
procedure or when
working near the running
engine

Secure vehicle to prevent it
from moving by itself.
Wear closed and snug-
fitting work clothes.
Do not grasp hot or rotating
parts.

AS00.00-Z-0005-01A

26

Run engine and inspect
for leaks





Number

Designation

Engines 112, 113



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me



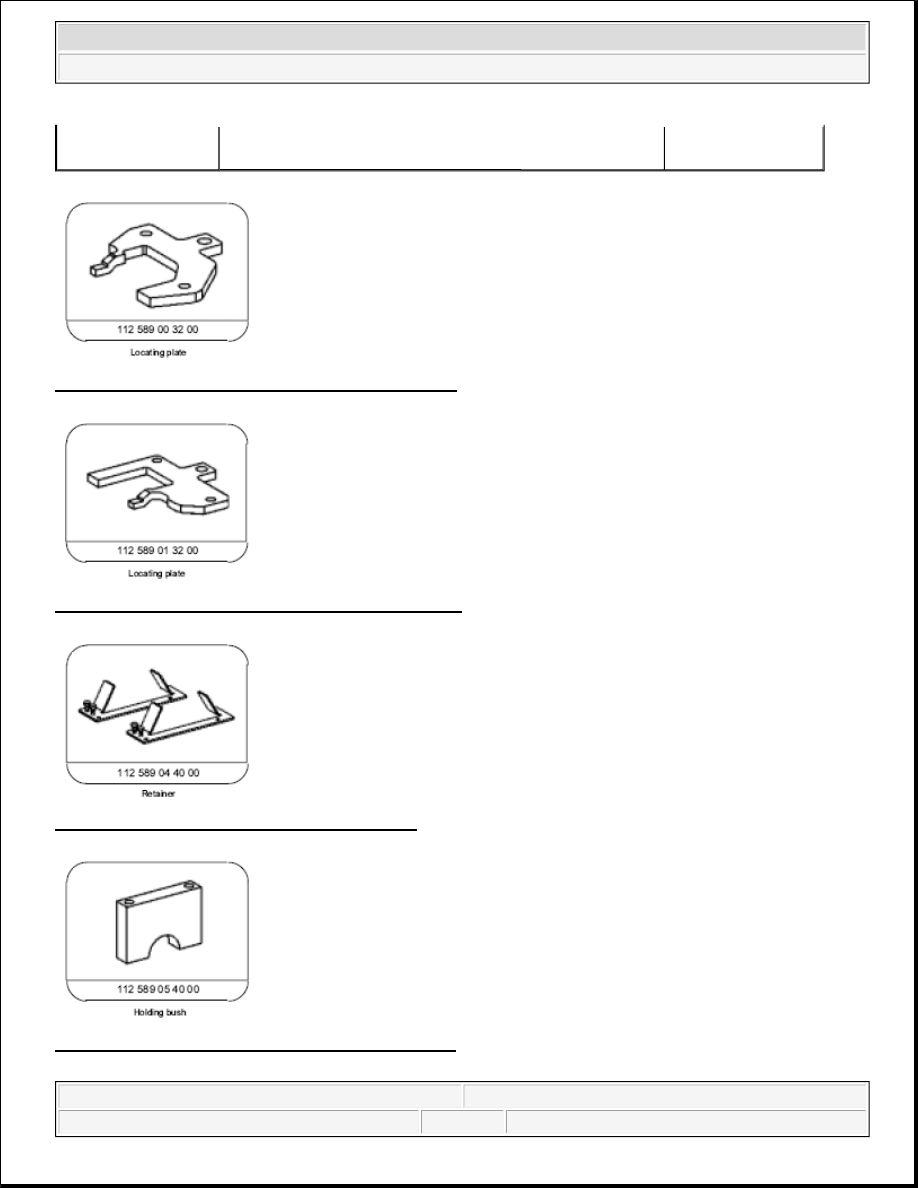

Fig. 37: Identifying Locating Plate (112 589 0032 00)

Fig. 38: Identifying Locating Plate (112 589 01 32 00)

Fig. 39: Identifying Retainer (112 589 04 40 00)

Fig. 40: Identifying Holding Bush (112 589 05 40 00)

BA09.20-P-1001-
01D

Bolt, intake manifold
to cylinder head

M8

Nm

20



2004 Mercedes-Benz ML350

1998-2005 ENGINE Engine timing - 163 Chassis



me
