Mercedes-Benz ML320. Service manual - part 386





ANTI-KNOCK CONTROL FUNCTION - GF15.12-P-4024F

ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model Year 97 Japanese version

ENGINE 111.921 /942 as of 1.9.98,

111.943,

111.944 as of 1.8.96,

111.946 as of 1.6.98,

111.947/973,

111.975 as of 1.8.96

ENGINE 111.945

in MODEL 208.335 /435 as of 1.6.98,

202.020/080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983

ENGINE

Model 211, 230

GF42.45-P-4500SL



ETC control unit, location/task

Transmission 722.6

GF27.19-P-4012G



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me



112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /95

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/983

ENGINE 137.970

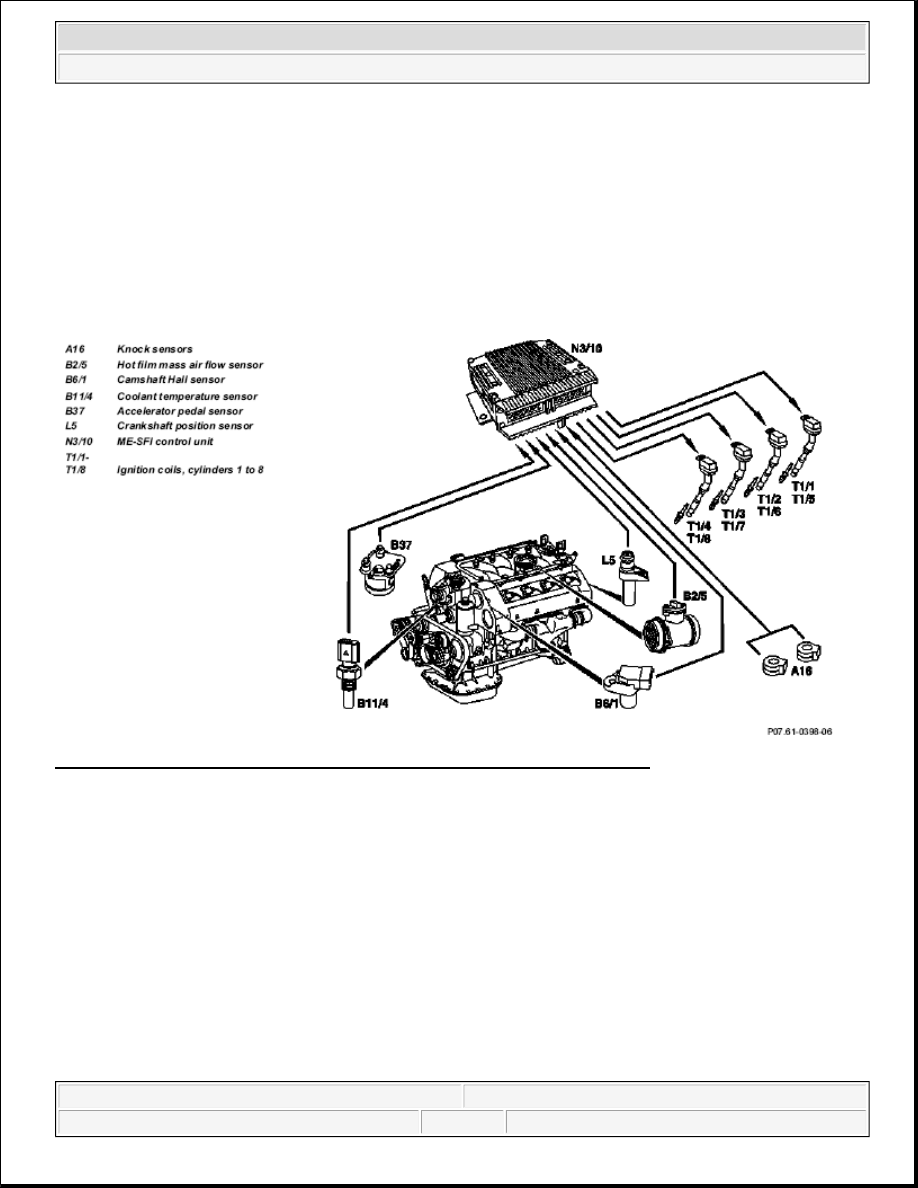

Fig. 15: Identifying Anti-Knock Control Components - Shown On Engine 119

Task

Ensuring knock-free operation of the engine with different fuels in all operating conditions from idling speed up
to maximum speed of engine, from an engine load of more than approx. 40%. For this purpose, if uncontrolled
combustion (knocking) occurs, the ignition angle at the relevant cylinder or cylinders is retarded.

Design/function

The anti-knock control (AKC) function is integrated in the ME-SFI control unit. The range of functions has
been enlarged compared to previous versions.

Input signals:

Engine speed (crankshaft position sensor)



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me



Camshaft position (camshaft Hall sensor)

Knock identification:

Engine 104, 111, 112, 113, 119, 120 by means of knock sensors Engine 137 by ionic current
measurement

Engine temperature (coolant temperature sensor)

Engine load (hot film air flow sensor or pressure sensor on supercharged engines)

Accelerator pedal position (accelerator pedal sensor)

Precontrol by means of automatic RON switch (internal)

Output signals:

Cylinder specific ignition angle correction on the calculated map value of the ME control unit.

Ignition angle emergency mode if fault identified.

Basic function

The anti-knock control is active from a coolant temperature of 70 °C. If knocking is detected at a cylinder above
an engine load of approx. 40%, its ignition angle is retarded from the next ignition by about 2.3° crank angle
(e.g. M119) or by about 3.0° crank angle (e.g. M120). If knocking continues to be detected, the ignition angle is
continuously retarded in steps of 2.3° crank angle (e.g. M119) until the maximum retardation is reached
(approx. 10 to 15° crank angle, depending on engine speed). In addition, the automatic RON switch influences
the maximum retarding of the ignition timing - the higher the selected RON stage, the less is the maximum
retarding of the ignition timing.

If knocking-free combustion exists, the retardation is reduced in steps of approx. 0.75° crank angle after a few
ignitions (depending on engine speed) until the map value (a) is achieved, or knocking once again occurs.

Adaptation of anti-knock control

The adaptation of the anti-knock control is active from a coolant temperature of approx. 75 °C. Any corrections
required to the ignition angle because of knocking combustion are constantly detected for the specific cylinder
and stored together with the relevant operating state of the engine (engine load/speed range).

The stored adaptation value is taken into account in the output of the individual cylinder angle so that each
cylinder is immediately operated with the optimal ignition angle.

During abrupt acceleration, no values are stored for about 2 seconds in order to avoid any incorrect adaptation
values.

Faults in the case of knocking detection

If no signals are received from the knock sensors or from the ionic current measurement, the ignition angle of
all the cylinders is retarded, for safety reasons, by as much as approx. 11° crank angle depending on engine



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me



speed and temperature. The anti-knock control and the adaptation are deactivated and a fault is stored.

Automatic RON switch

In addition to the RON correction using the HHT, the anti-knock control features an automatic RON switch.
This detects a persistent high knocking tendency of the engine and assists the anti-knock control by means of an
appropriate pre-control.

This is done by analyzing the stored adaptation values, the ignition angles of all the cylinders and the number of
control interventions in certain engine load and speed ranges. Depending on the threshold which has been
exceeded, the RON value is adjusted by one or several stages. The value is retained until the engine is switched
off.

After engine start, only the RON correction which is carried out by means of the HHT/STAR DIAGNOSIS is at
first active.

KNOCK SENSORS, LOCATION - GF15.12-P-4101-01A



Crankshaft position sensor,
location/task/ design/function



GF07.04-P-4116F



Camshaft Hall sensor,
location/task/design/ function



GF07.04-P-4117F



Knock sensors,
location/task/design/function



GF15.12-P-4101F



Coolant temperature sensor,
location/task/ design/function

Engine 119, 120

GF07.04-P-5026F

Engine 104, 111

GF07.04-P-5026G

Engine 112, 113, 137

GF07.04-P-5026A



Hot film mass air flow sensor,
location/task/ design/function

Engine 119, 120 (round
connector)

GF07.07-P-4118E

Engine 104, 111, 112,
113, 137

GF07.07-P-4118G

Engine 111 EVO

GF07.07-P-4118GS



Pedal value sensor,
location/task/design/ function



GF30.20-P-4011L



ME-SFI control unit
position/task/design/ function



GF07.61-P-5000F

Engine 111 EVO

GF07.61-P-5000GS



ME-SFI synchronizing fuel
injection and firing order function



GF07.61-P-4009F

Engine 111 EVO

GF07.61-P-4009GS



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me
