Mercedes-Benz ML320. Service manual - part 308





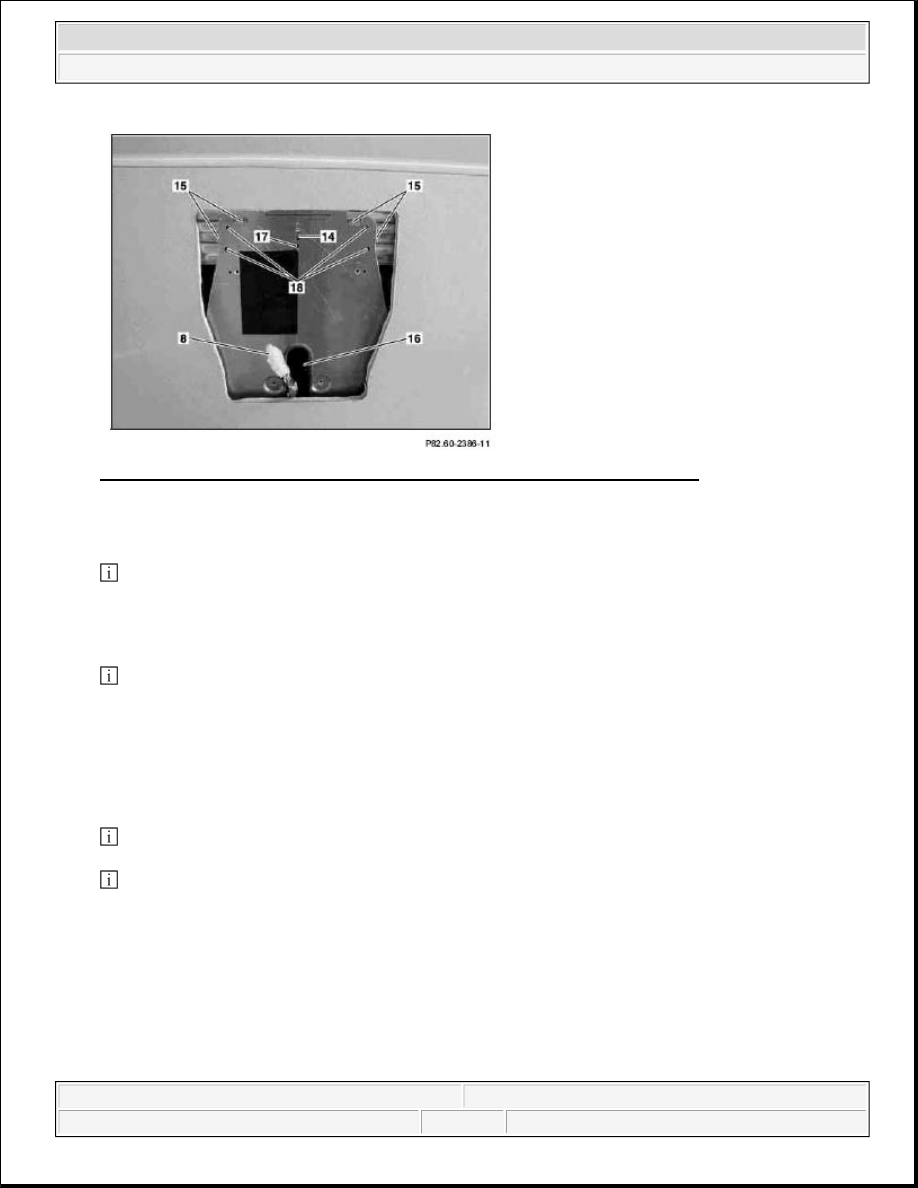

Fig. 280: Identifying Guide Hole, Crossmember And Monitor Wiring Harness

16. Provide four further bore holes with Ø = 5 mm through bracket and crossmember of tilting/sliding roof

frame.

 Use guide holes (18) provided in the bracket. To prevent damage to the vehicle roof, limit drilling

depth to 10 mm. Cover interior to collect the chips.

17. Rivet bracket with rivets supplied to crossmember of tilting/ sliding roof frame.

 4 rivets.

18. Install edge guard for sliding/pop-up roof cutout in headliner.

19. Insert monitor wiring harness into video monitor unit (19).

20. Open video display (20) and remote control storage compartment (21).

21. Secure video monitor unit (19) to bracket.

 Do NOT overtighten mounting screws.

 Use guide pins of video monitor unit to locate the installation position and secure at 4 points (22) with

bolts provided.

22. Close video display (20) and remote control storage compartment (21).



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



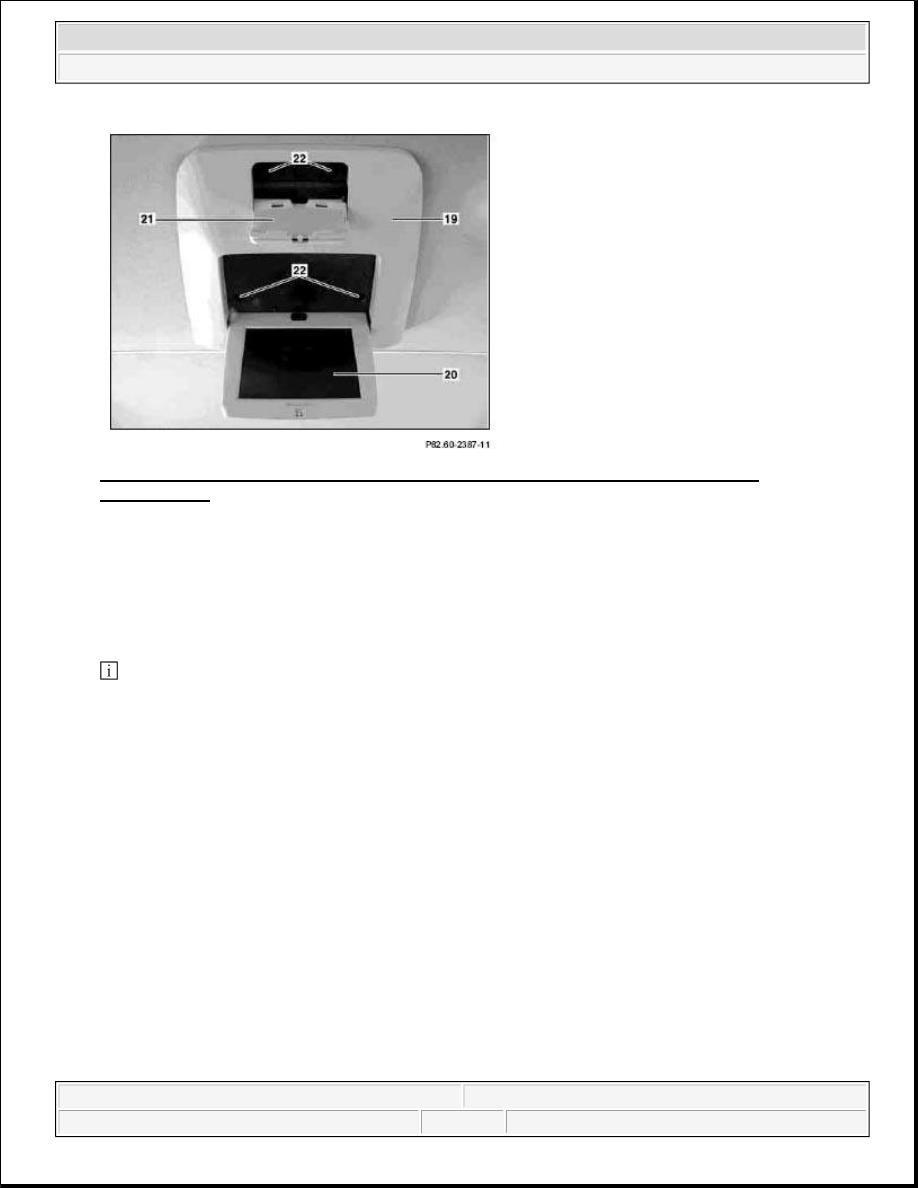

Fig. 281: Identifying Video Display, Video Monitor Unit And Remote Control Storage
Compartment


RETROFIT VIDEO SYSTEM MONITOR - AZ82.60-P-0004-02D

Model 163.136 /154 /172 2A as of 145273, Models 163.136 /154 /172 2X as of 708319, Models
163.113/128 /157 /174 /175 2#, except power tilting/sliding roof in glass version, Code 414a


1. Attach adhesive tape from the interior lamps (1) as far as the rear handles.

 The adhesive tape should have the same width as the interior lamps (1). Use lightly adhering adhesive

tape to prevent damage to the headliner.

2. Measure off distance (a) between the rear fastening points of the front handles (23), halve distance and

mark on the strips of adhesive tape.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



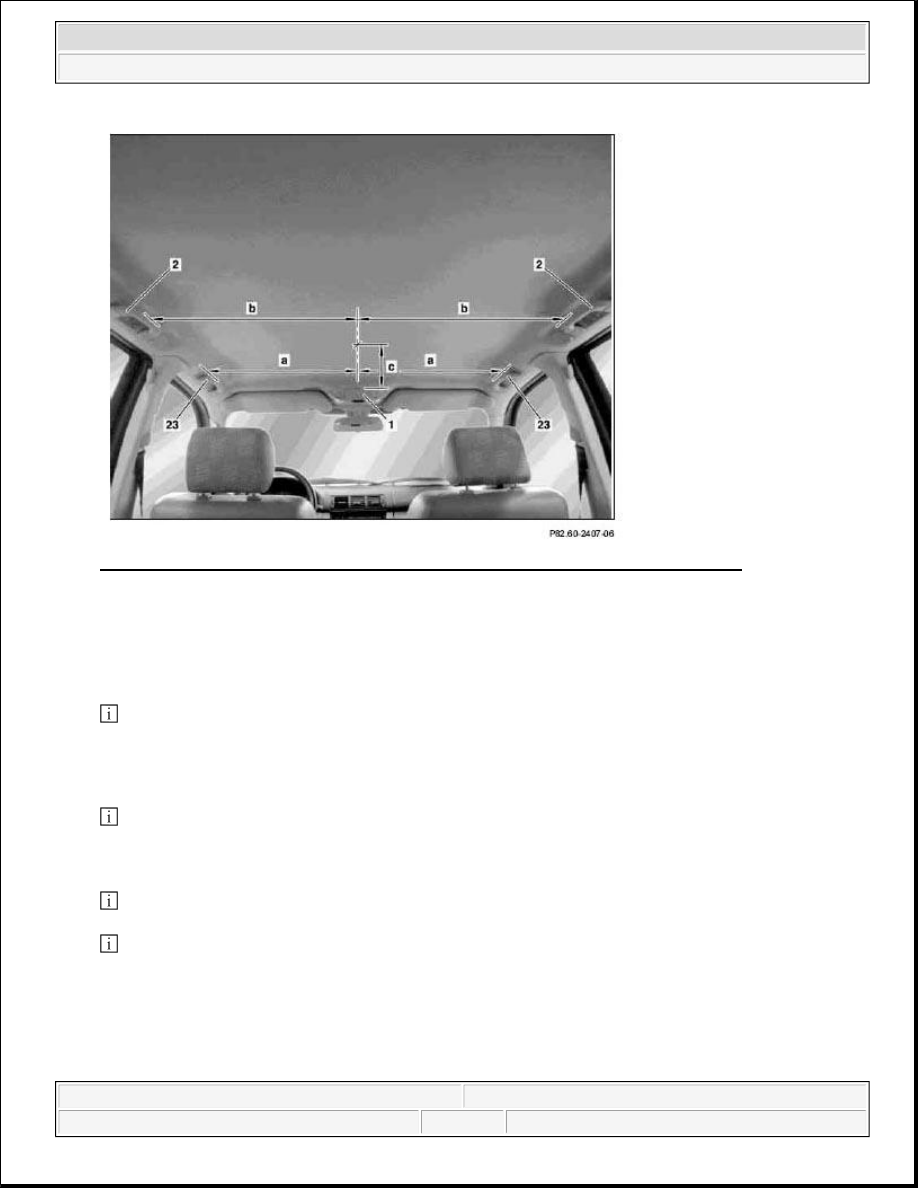

Fig. 282: Identifying Distance (A) Between Rear Fastening Points Of Front Handles

3. Measure off distance (a) between the rear fastening points of the front handles (2), halve distance and

mark on the strips of adhesive tape.

4. Join these two marks by a line.

5. Measure from the trailing edge of the interior lamp (1) 340 mm (c) and mark on the center line.

 This is where the leading edge of the monitor bracket is applied.

6. Align the V-shaped cutout (3) on the rear side of the monitor bracket (4) at the marking on the adhesive

tape.

 The bracket should be at a distance of 340 mm from the interior lamp.

7. Use monitor bracket (4) as template for marking the adhesive tape.

 Do NOT mark beyond the edge of the template.

 To mark the adhesive tape, use the rear side of the bracket. Mark headliner at side along the bracket as

far as the front incisions (6) and the rear incision (7). Mark inside of the front incision (6) and the rear
incision (7)to determine the front and rear edges of the monitor cutout. Complete front and rear mark of
the cutout using straightedge.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



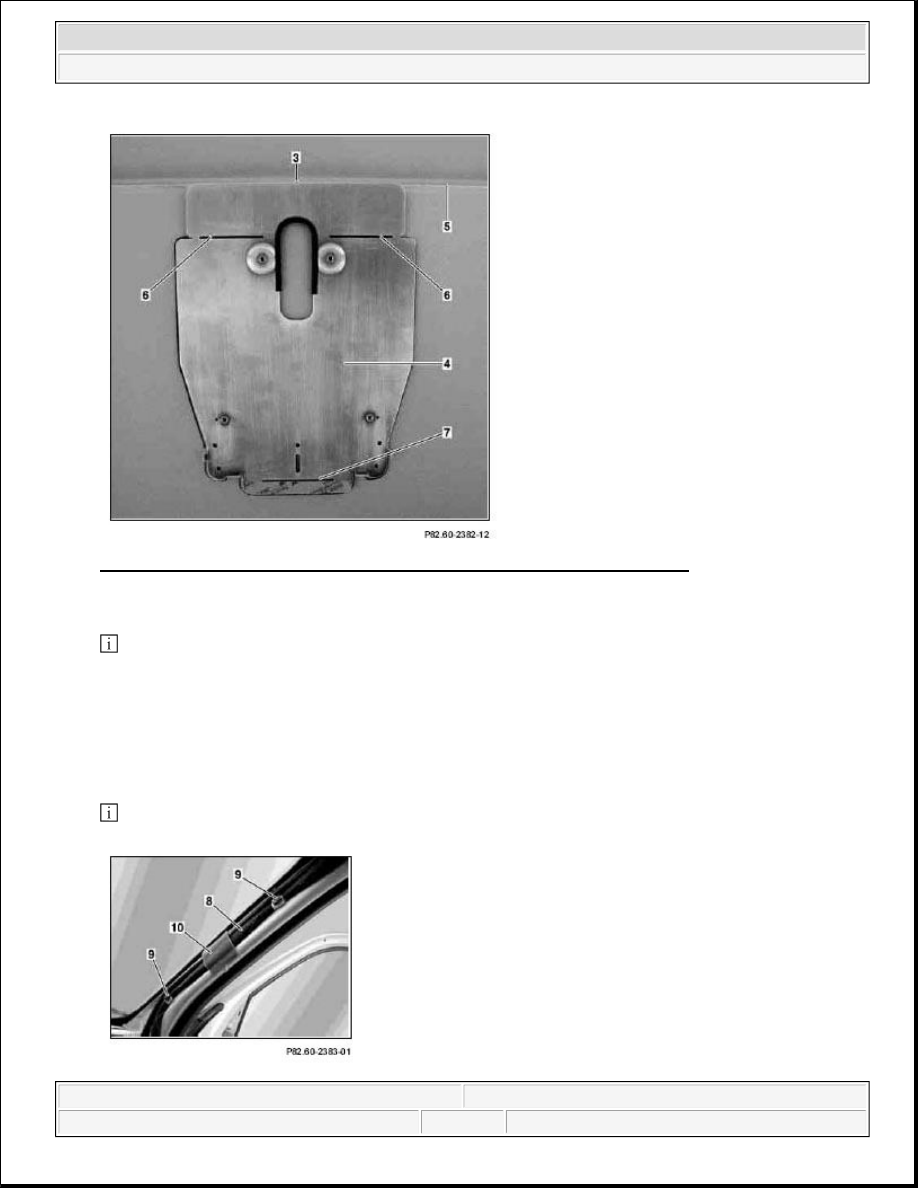

Fig. 283: Identifying V-Shaped Cutout (3) On Rear Side Of Monitor Bracket

8. Remove marked area of the headliner.

 In order not to damage the headliner if the blade slips, cut inward starting from the corners. NEVER

remove the cutout until the headliner has been removed completely along the mark.

9. Fasten monitor wiring harness (8) at the white adhesive tape markings using the available clips (9) and

the attached, self-adhesive foamed material (10) to the left-hand A-pillar.

10. Route monitor wiring harness at top between the headliner and vehicle roof, next to the shock absorber at

the left-hand A-pillar.

 Carefully pull headliner downward. Do not tear or bend headliner.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
