CONSTANT MAP MATCHING, FUNCTION - GF82.61-P-2002GI

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version






Models 208, 210

GF82.61-P-0002-
02C



Audio 30 APS operating instructions

Models 163, 168,
170, 208, 210

GF82.61-P-0002-
03A





Model 203, 209

GF82.61-P-0002-
03E



Switch on/off behavior, function



GF82.85-P-2006B



Navigation mode, function

Models 163, 168,
170, 208, 210

GF82.85-P-2012B





Model 203, 209

GF82.85-P-2012EE



Radio operation, function



GF82.60-P-2001B



CD-player mode, function



GF82.60-P-2002B



Telephone mode, function

Model 209

GF82.85-P-2007QA



Volume/tone adjustments, function



GF82.60-P-2003B



Loading language, function



GF82.61-P-3003B



Basic location finding, function



GF82.61-P-3006D



Global positioning system location
finding, function



GF82.61-P-3007C



Map-supported location finding,
function



GF82.61-P-3008C



Route calculation, function



GF82.61-P-3011E



Destination guidance, function



GF82.61-P-3012D



Destination guidance in digitalized map
area, function



GF82.61-P-4000C



Destination guidance in non-digitalized
map area, function



GF82.61-P-4001C



Dynamic route guidance, function



GF82.61-P-4003QA



Survey of system components, Audio
30 APS, location/task/design/function



GF82.61-P-9998ZZ



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



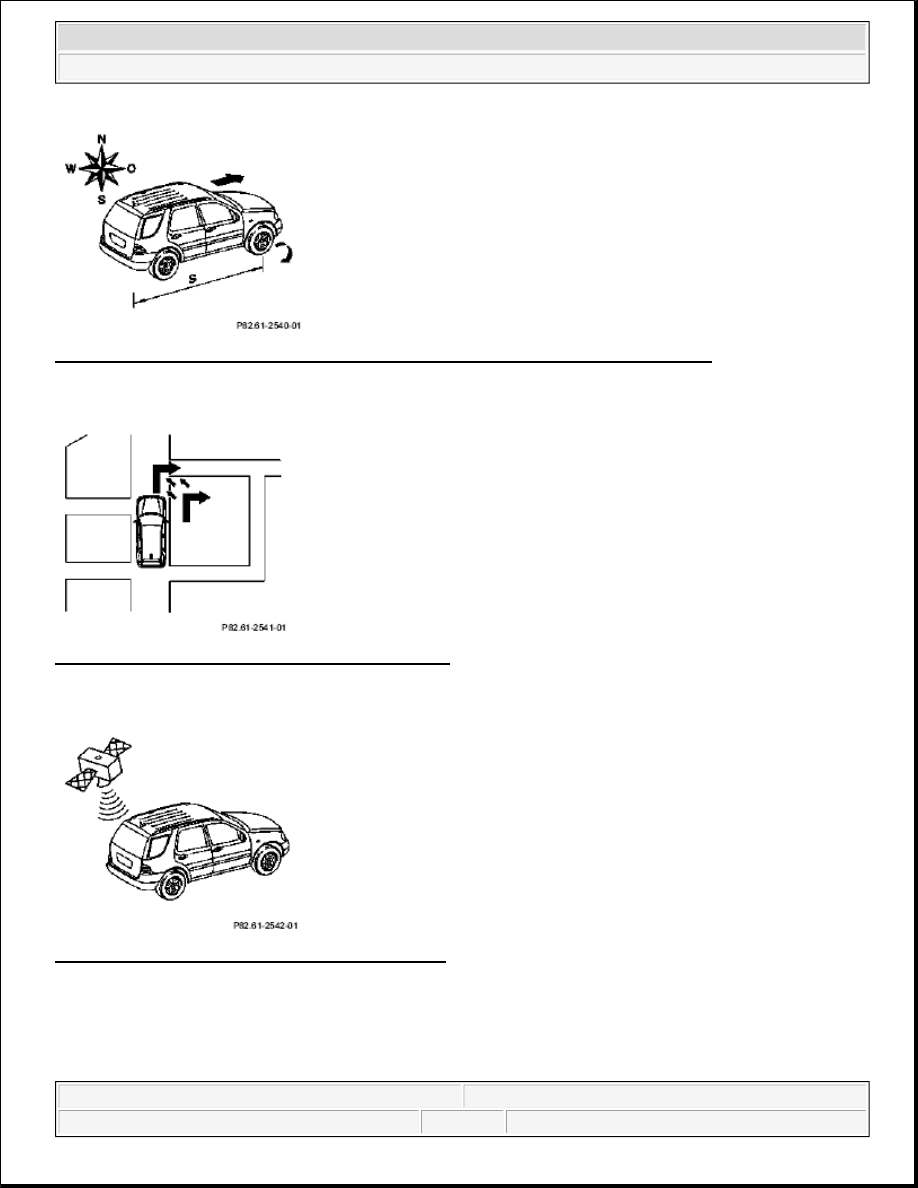

Fig. 43: Identifying Basic Location Finding Via Compass Direction Distance Traveled

Basic location finding (dead reckoning) via compass direction and distance traveled

Fig. 44: Identifying Map-Supported Map Matching

Map-supported map matching (map matching)

Fig. 45: Identifying GPS Satellite Location Finding

GPS satellite location finding

Permanent location finding

Is the calculation of the current vehicle position. It is active when the ignition is switched on and is performed



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



by the navigation processor Integrated Into the radio and navigation module (A2/56) .

During the switch-on phase (software is loaded), only basic map matching is available.

When the ignition is switched off all important location finding parameters are stored for the duration of the
shut-off delay (approx. 60 min) .

The permanent location finding feature uses three procedures which supplement each other ensuring very
precise and reliable location finding:

Basic location finding (dead reckoning)

Map-supported location finding (map matching)

GPS location finding

 Manual entry of vehicle location

It is possible to enter the location manually on the operating and display module. This can be useful in the
following cases:

Following vehicle transport

(e.g. ferry or train) or

when GPS reception is not present when trip is started

LOADING LANGUAGE, FUNCTION - GF82.61-P-3003B

MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS

Function

The data for navigation voice output is stored originally on the navigation DVD. They are transmitted with the
help of the DVD drive of the radio (A2) into the memory of the navigation processor and are then available
anytime for navigation.

The language is reloaded in the following cases:



Basic location finding,
function



GF82.61-P-3006GI



Global positioning system
location finding, function



GF82.61-P-3007GI



Map-supported location
finding, function



GF82.61-P-3008GI



Radio and navigation
module, location/purpose/
design/function



GF82.61-P-4109GI



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



automatically, after voltage to the radio (A2) was interrupted

manually, by activating the "SPRA" menu in the navigation mode

 Loading the language requires approx. 20 s.

If the system is switched off while loading the language, the language data is lost and must be reloaded again.
Avoid strong vibrations to the vehicle (e.g. extremely bumpy roads) while the language is being loaded.

 The navigation processor is integrated in the radio (A2).

BASIC LOCATION FINDING, FUNCTION - GF82.61-P-3006D

MODELS 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS

Basic representation of the basic location finding shown on model 210

Basic location finding (dead reckoning) is the basic function of continuous location finding. It is permanently
carried out by the navigation processor that is integrated in the radio (A2) when the ignition is switched on
(approx. once per second) and is irrespective of the data of the DVD map. After switching off the ignition, the
current position is stored for the duration of the system shut-off delay time.

Fig. 46: Identifying Basic Location Finding Function

The following information is calculated with the aid of basic location finding:

Distance traveled

Absolute vehicle direction (compass direction)

Direction of travel (forward or reverse)

Calculation of distance traveled

The navigation processor receives the wheel speed signal of the following components:



Route calculation,
function



GF82.61-P-3011E



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
