Mercedes-Benz ML320. Service manual - part 225





MODEL 163 as of 1.12.99

The entrance and exit lamps in the front and rear doors (E17/3, E17/4, E17/5 and E17/6) are actuated by
the extended activity module (EAM) when the corresponding door is opened and when the dome lamp is
switched on.

The switch-on time for the entrance/exit lamps corresponds to that of the interior lighting.

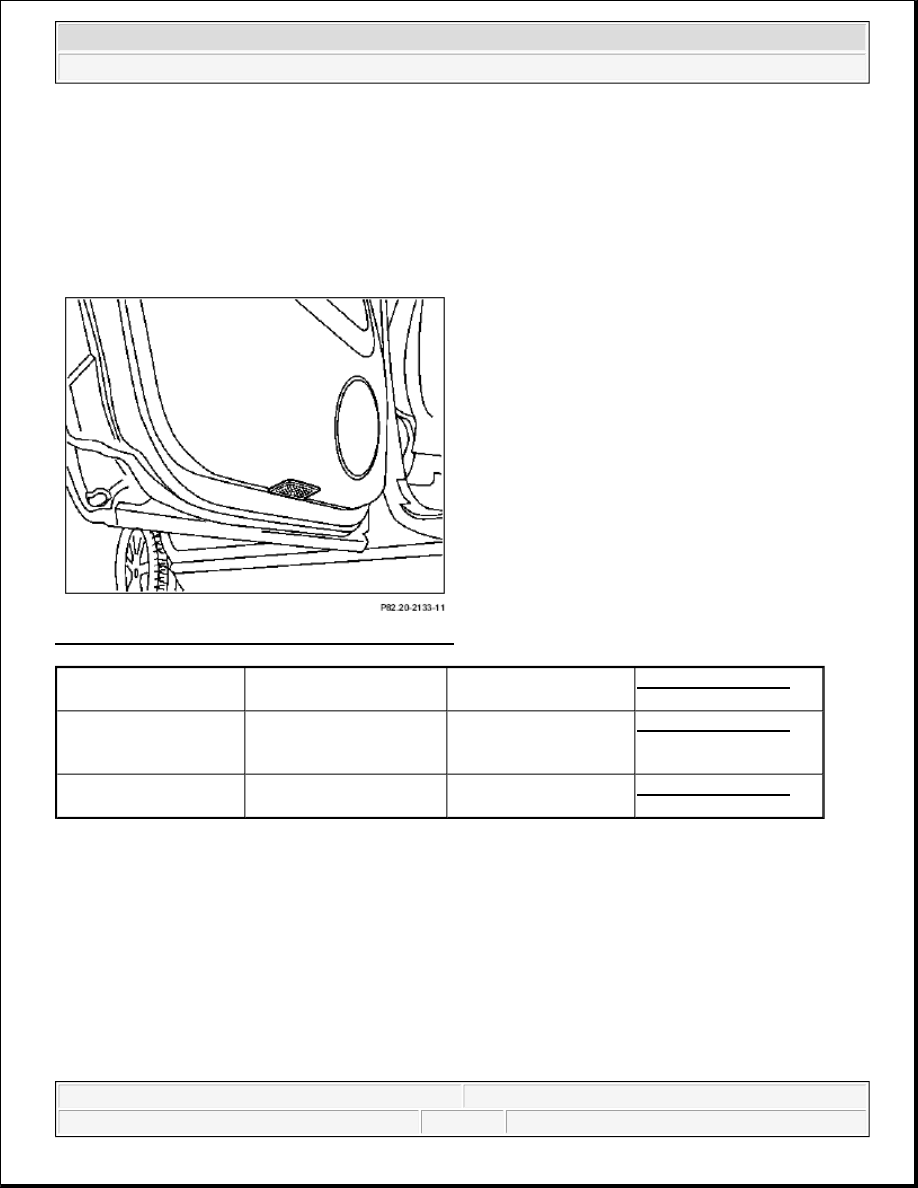

Fig. 18: Identifying Actuating Entrance/Exit Lamps

ACTUATING REAR DOME LAMP, FUNCTION - GF82.20-P-4005GH

MODEL 163

A slide switch with three positions is integrated into the rear dome lamp (E15/3) . The lamp is connected to
circuit 30. Three modes can be selected with the slide switch:

"Automatic" (1). The second lamp terminal is connected to the rotary tumbler/tailgate microscwitch
(S88/1)
 which completes the circuit to circuit 31 when the tailgate is opened.

Continuous "on" (2). The second terminal in the lamp is connected to circuit 31.

Continuous "off" (3).



Switching interior lighting
on/off manually, function



GF82.20-P-2009GH



Switching interior lighting
on/off automatically,
function



GF82.20-P-2010GH



Extended activity module,
location/purpose



GF54.21-P-4106GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



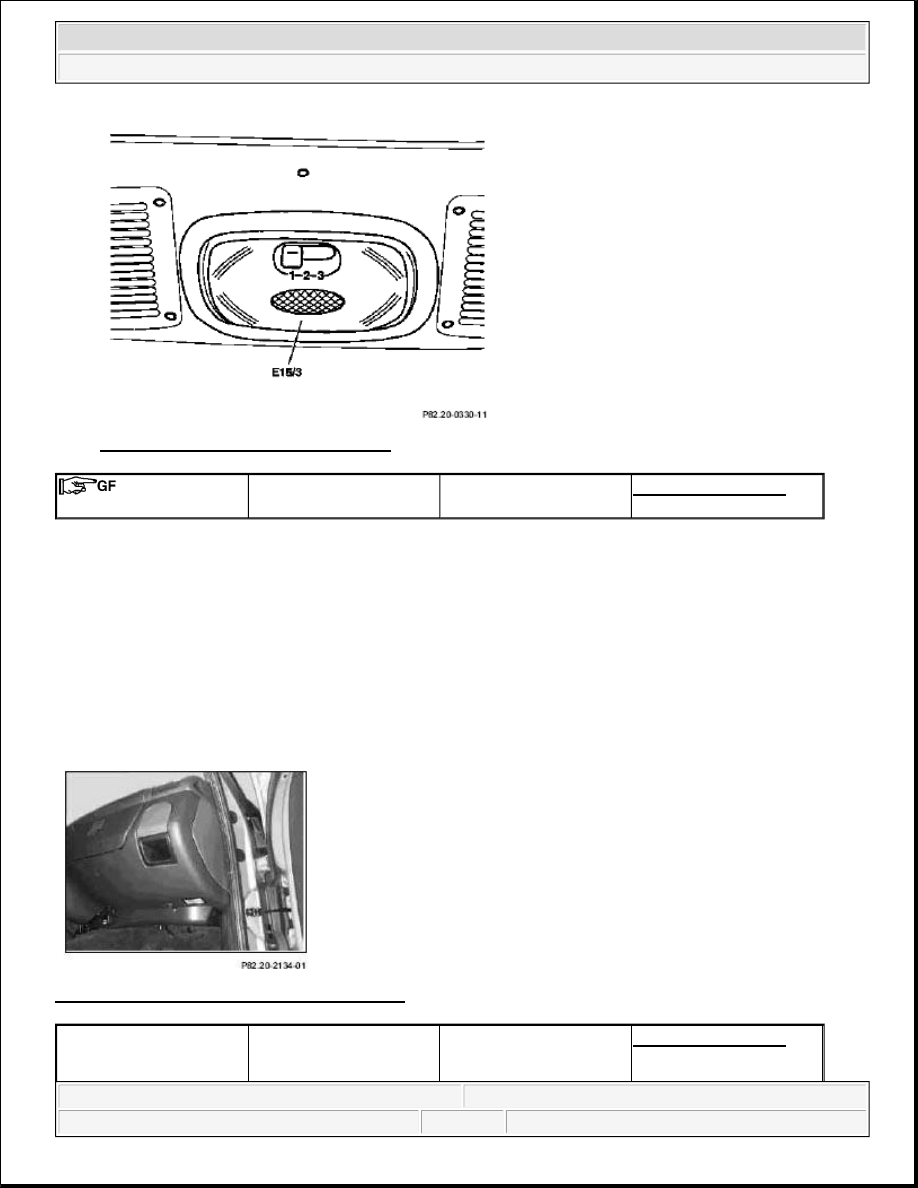

Fig. 19: Identifying Rear Dome Lamp

ACTUATING FOOTWELL LAMPS, FUNCTION - GF82.20-P-4008GH

MODEL 163 as of 1.12.99

The front left and right footwell lamps (E17/16 and E17/15) dome lamp (with shut-off delay and reading
lamp) (E15/2)
 automatically.

The switch-on time of the footwell lamps depends on the dome lamp.

are actuated each time the front is switched on manually or

Fig. 20: Identifying Actuating Footwell Lamp



Rotary tumbler
microswitches



GF82.20-P-4105GH



Switching interior
lighting on/off manually,



GF82.20-P-2009GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

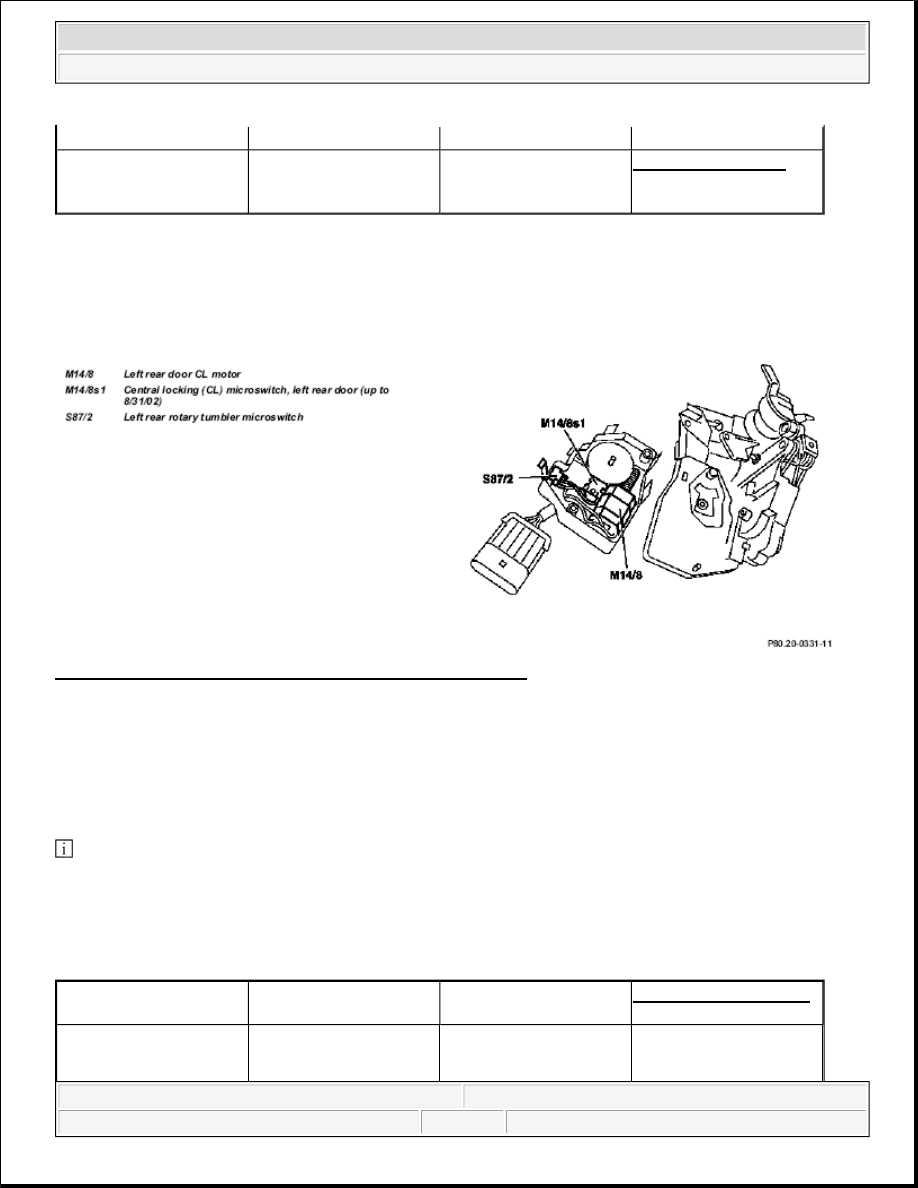

ROTARY TUMBLER MICROSWITCHES, LOCATION - GF82.20-P-4105-01GH

The rotary tumbler microswitch is installed in the rotary tumbler.

Left rear rotary tumbler is shown

Fig. 21: Identifying Rotary Tumbler Microswitches, Location

ROTARY TUMBLER MICROSWITCHES, FUNCTION - GF82.20-P-4105-02GH

The contact in the left rear rotary tumbler microswitch (S87/2), the right rear rotary tumbler microswitch
(S87/3), the right front door rotary tumbler microswitch (S87/6), the left front door rotary tumbler microswitch
(S87/7) or the rear door rotary tumbler microswitch (S88/1) is closed when the respective door is closed (rotary
tumbler snapped in place). The status of the switch contact is read by the All Activity Module (AAM)(N10).

 The central locking microswitches, which are also installed in the rotary tumbler, indicate whether a door is

locked or unlocked. These microswitches are no longer used as of 31.08.02.

ROTARY TUMBLER MICROSWITCHES, LOCATION/TASK/DESIGN/FUNCTION - GF82.20-P-4105GH

MODEL 163

function



Switching interior
lighting on/off
automatically, function



GF82.20-P-2010GH



Rotary tumbler
microswitches, location



GF82.20-P-4105-01GH



Rotary tumbler
microswitches, task

Signal whether vehicle
doors are closed/open to





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



WIPER SYSTEM (WS), FUNCTION - GF82.30-P-0003GH

MODEL 163

Function

The windshield wiper system is operated with the combination switch (S4) .

The following functions can be selected with the switch:

Actuating switch upward: Wiping windshield at slow (stage 1) or fast (stage 2) speed.

Actuating switch downward: Intermittent windshield wiping (on vehicles with rain sensor (code 345a)
this function is actuated by the rain sensor (B38).

Actuating switch indirection of steering column: Washing windshield

The wiper system of the rear window is operated with the wipe/wash rear window switch (S78) . The
following functions can be selected:

Intermittent rear window wiping (on vehicles with rain sensor (code 345a) this function is actuated by
the rain sensor (B38).

Washing rear window

AAM.



Rotary tumbler
microswitches, design

The rotary tumbler
microswitches are single-
pole normally open
contacts.





Rotary tumbler
microswitches, function



GF82.20-P-4105-02GH



Windshield wiper



GF82.30-P-3004GH



Intermittent wiping on
windshield



GF82.30-P-3003GH



Windshield washer



GF82.35-P-3002GH



Rear window washer



GF82.35-P-3001GH



Intermittent wiping for
rear window

up to 31.8.00

GF82.30-P-3001GH





as of 1.9.00

GF82.30-P-3001GK



Location of components,
wiper system Windshield



GF82.30-P-0005-01GH



Location of components,
wiper system Rear
window



GF82.30-P-0004-01GH



All-activity module

up to 30.11.99

GF54.21-P-4100GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
