Traction system control module (N47)



Rear Right Wheel Speed



Rear Left Wheel Speed

The following information is sent:

ETC (EGS) control module (N15/3)



Selector lever position



Kickdown switch (S16/6)



Touch button +/-

Electronic Selector Lever Module Control Module, Design



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

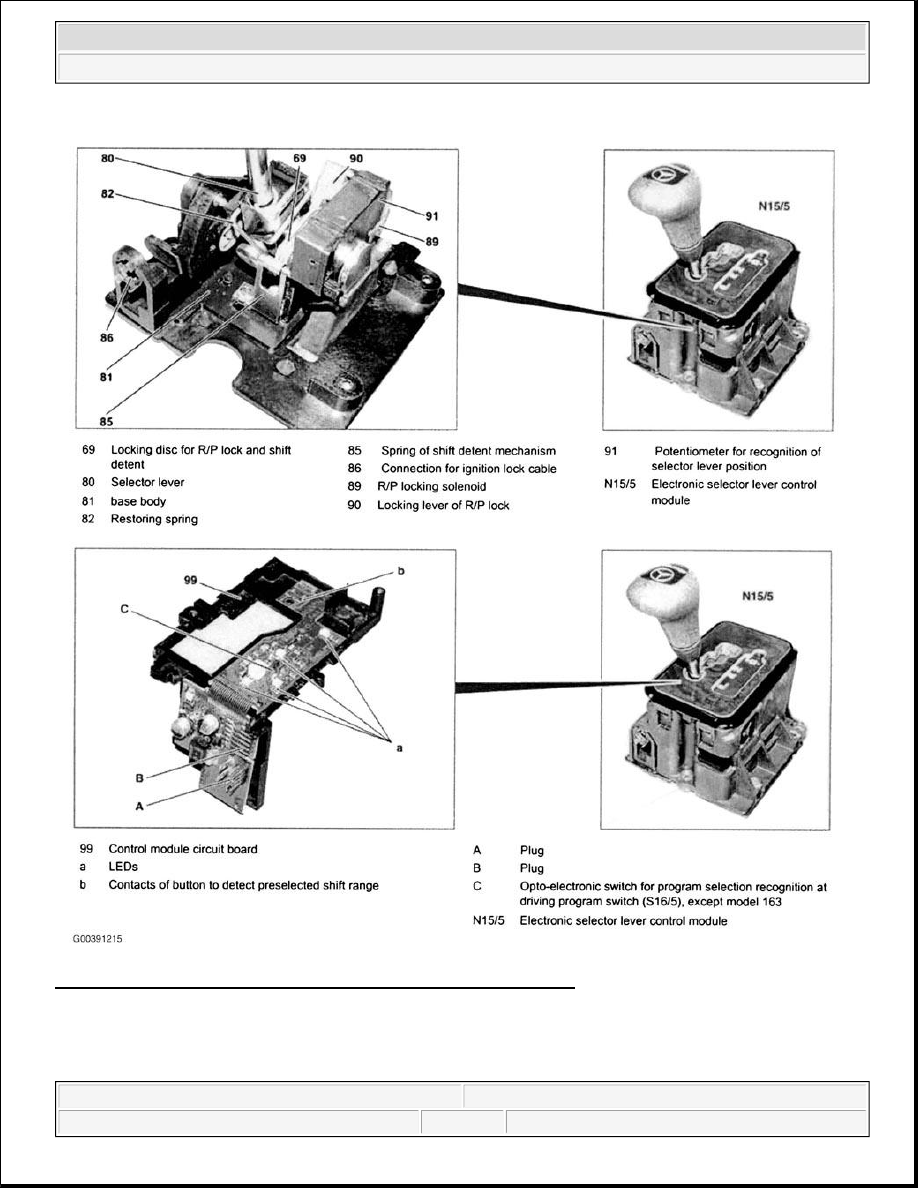

Fig. 101: Electronic Selector Lever Module Control Module, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Temperature Sensor, Location/Task/Design/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

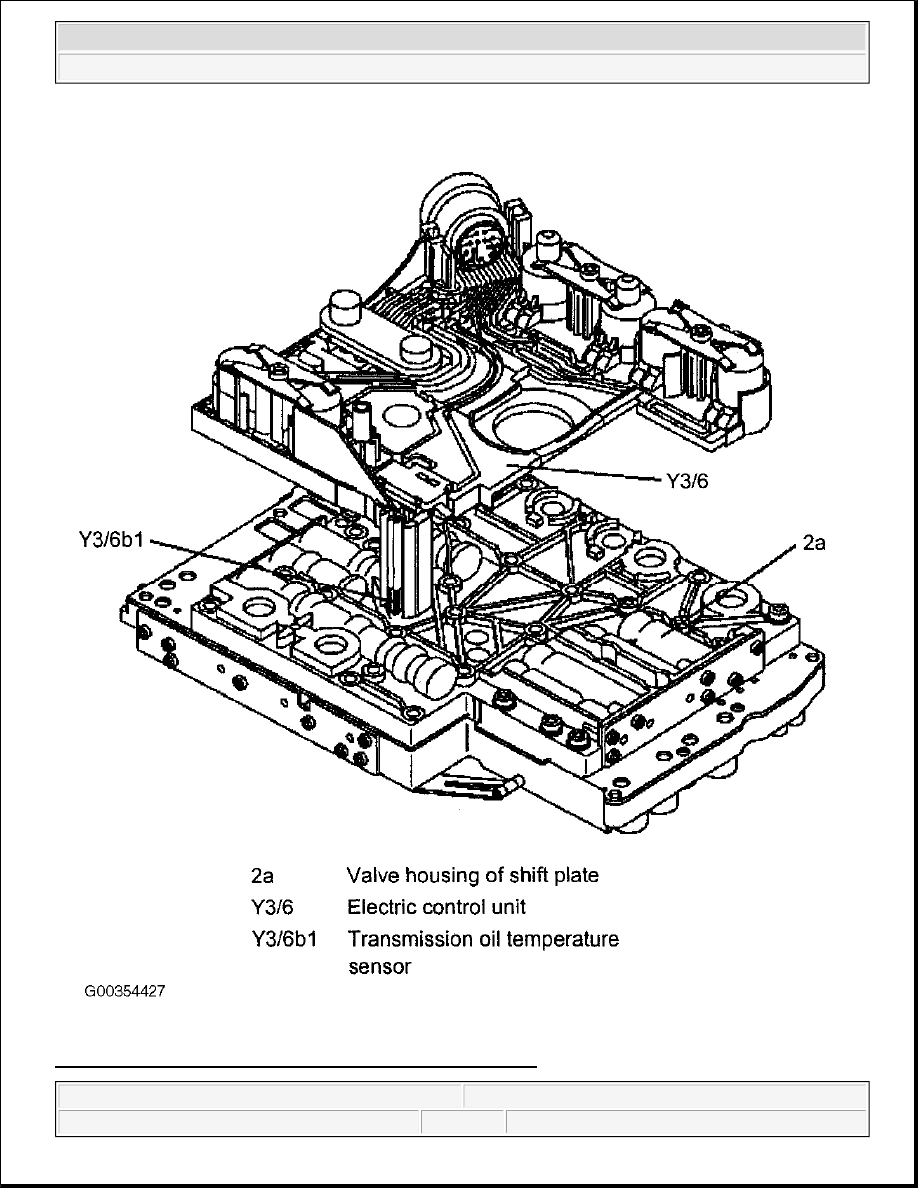

Fig. 102: Temperature Sensor, Location/Task/Design/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Courtesy of MECHANICS MONTHLY MAGAZINE

Temperature Sensor, Location

The transmission oil temperature sensor (Y3/6bl) is located in the electrical control unit (Y3/6) and is
permanently connected to the conductor tracks. See Fig. 102.

Temperature Sensor, Task

To measure the temperature of the transmission oil and pass the temperature to the ETC control unit
(N15/3) as an input signal.

Temperature Sensor, Design

Temperature-dependent resistor (PTC).

Temperature Sensor, Function

See TEMPERATURE SENSOR, FUNCTION.

Temperature Sensor, Function
