Mercedes-Benz ML320. Service manual - part 165

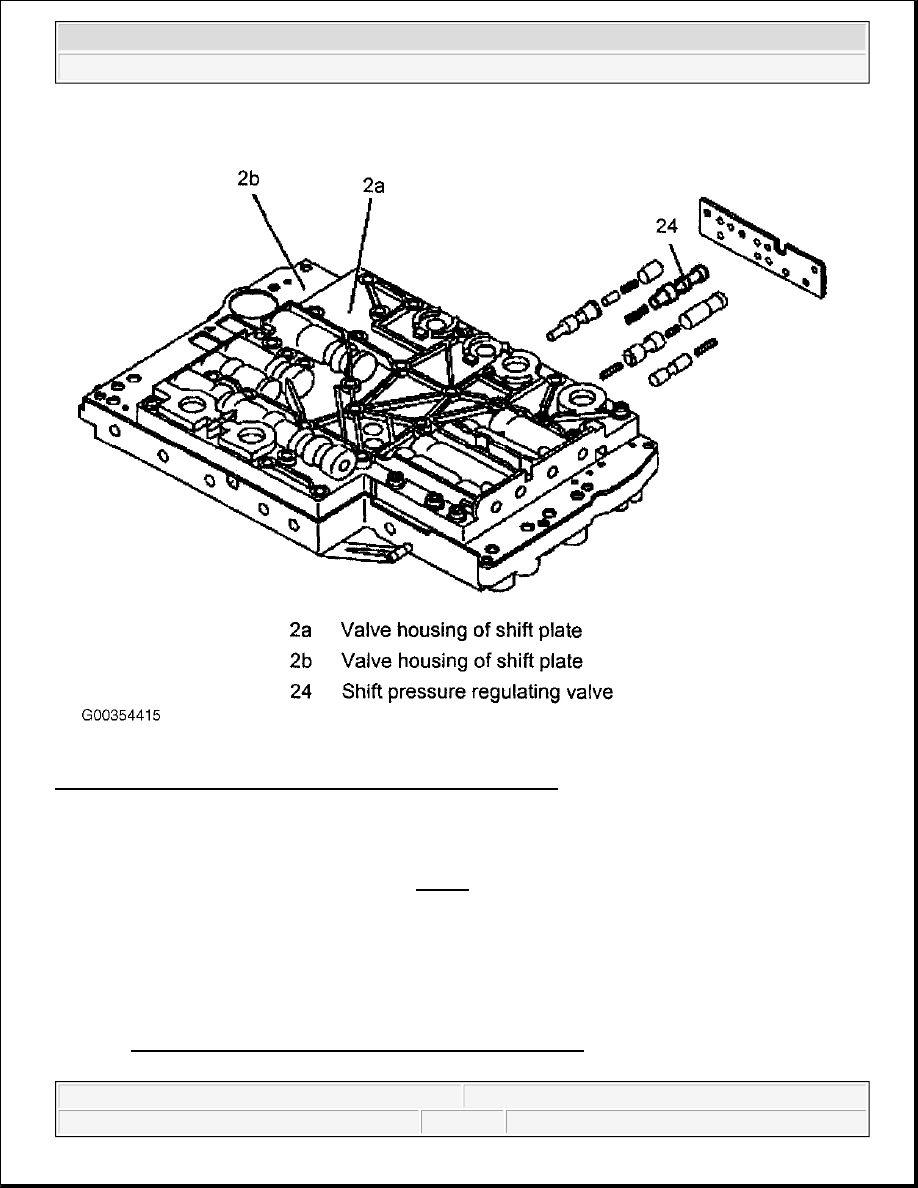

Fig. 67: Shift Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Pressure Regulating Valve, Location

In the valve housing of shift plate (2b). See Fig. 67

Shift Pressure Regulating Valve, Task

Control of shift pressure.

Shift Pressure Regulating Valve, Function

See SHIFT PRESSURE REGULATING VALVE, FUNCTION



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Shift Pressure Regulating Valve, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

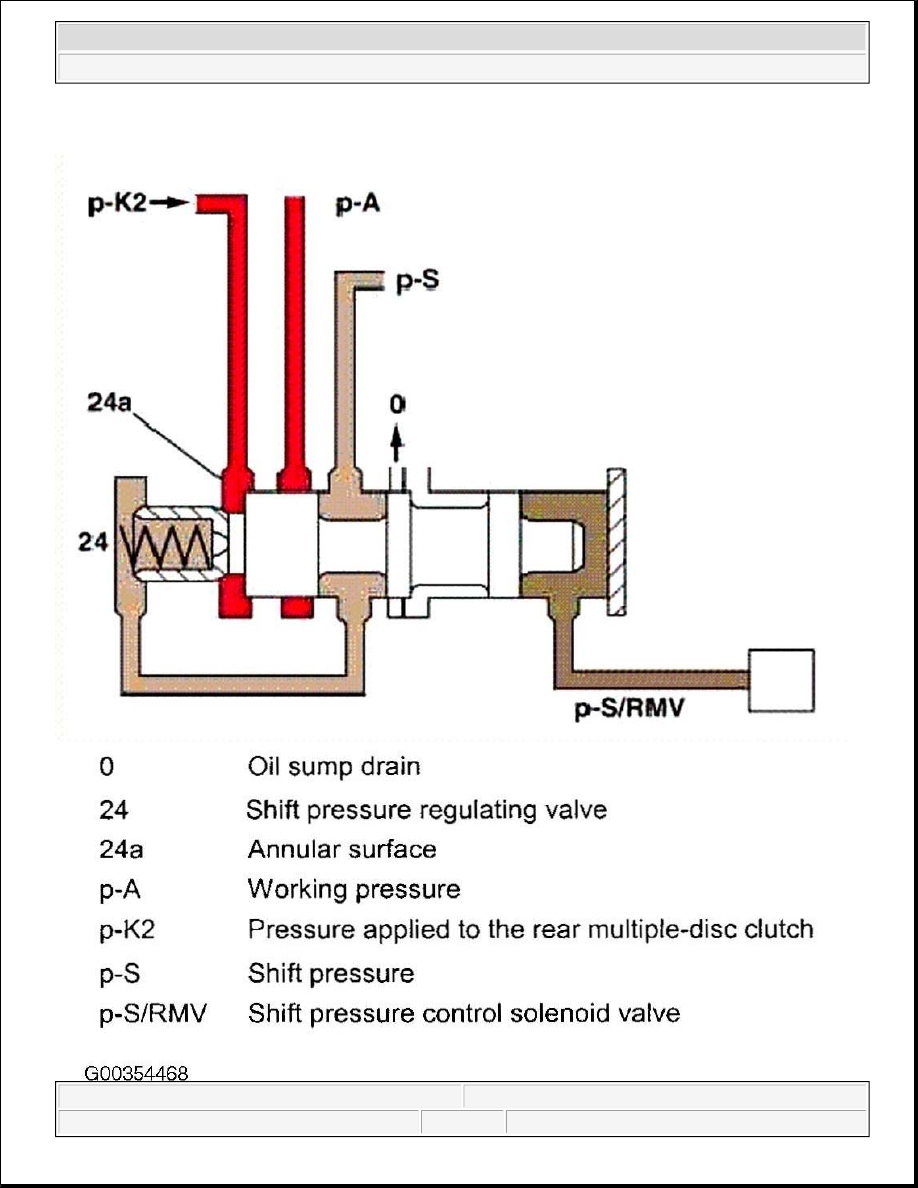

Fig. 68: Shift Pressure Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.


Operation - The shift pressure (p-S) is determines by the shift pressure regulating solenoid valve (Y3/6y2) and
the shift pressure regulating valve (24). See Fig. 68. In addition, pressure from the multiple-disc clutch K2 (p-
K2) is also present at the annular surface (24a) of the shift pressure regulating valve (24). This reduces the shift
pressure in 2nd gear.

Working Pressure Regulating Valve, Location/Task/Function

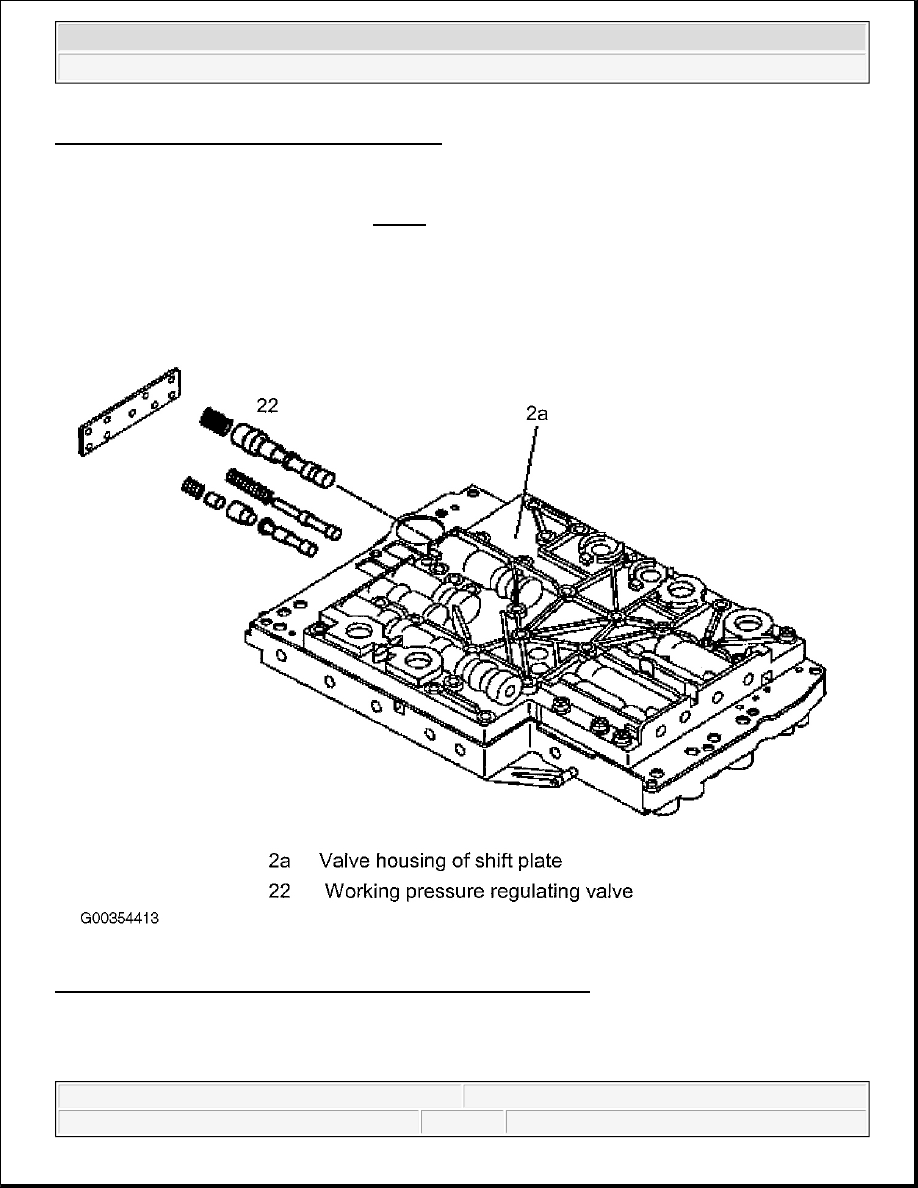

Fig. 69: Working Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Working Pressure Regulating Valve, Location




2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
