Practical hints

Fuses

Fuses

The fuse chart is printed on the corre-
sponding fuse box cover. The amperages
of the fuses are also indicated there.

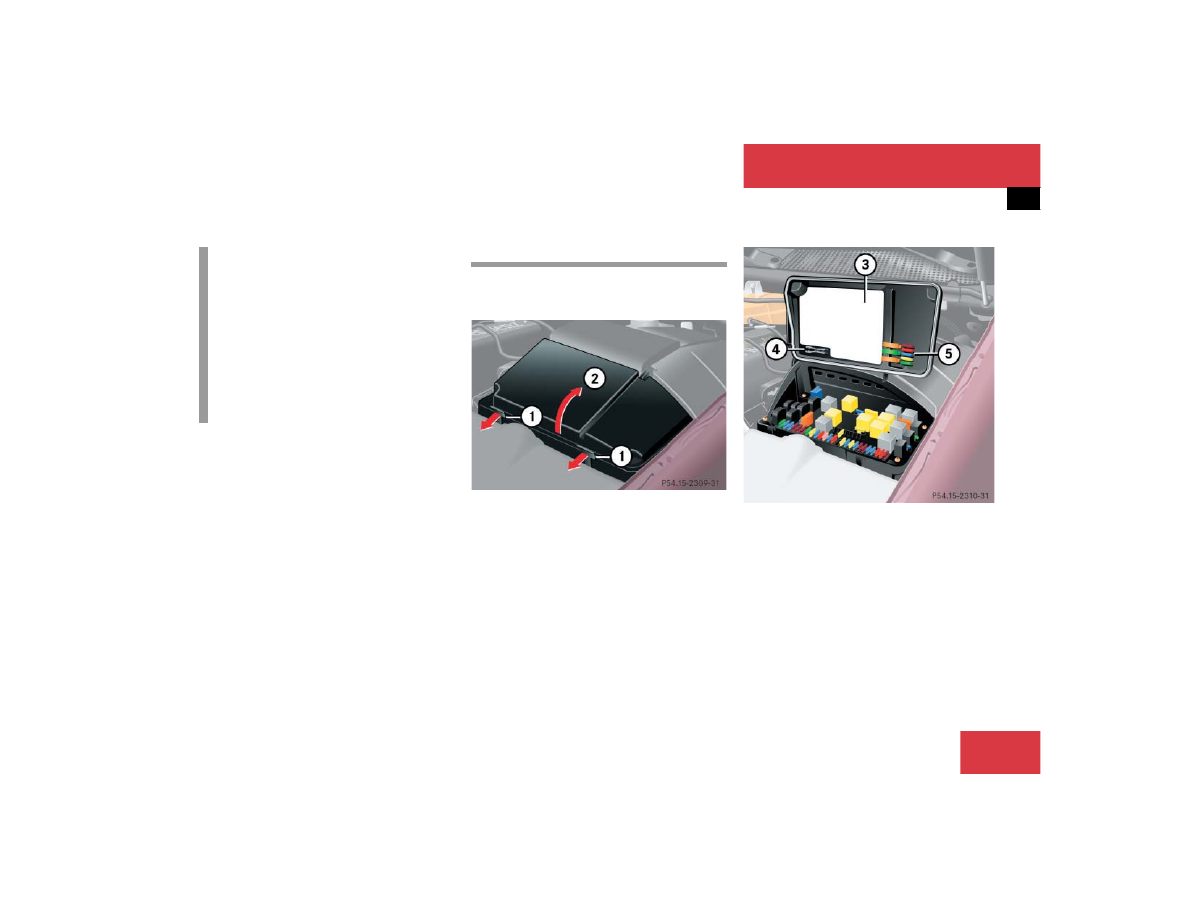

Fuse box in engine compartment

The fuse box is located in the engine com-
partment on the left-hand side.

1 Clamps
2 Fuse box cover

Removing / installing cover

Release clamps 1.

Lift fuse box cover 2 up.

Install cover 1 in reverse order.

3 Fuse chart
4 Fuse extractor
5 Spare fuses

i

Only install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.

Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Light Truck Center.

288

Practical hints

Fuses

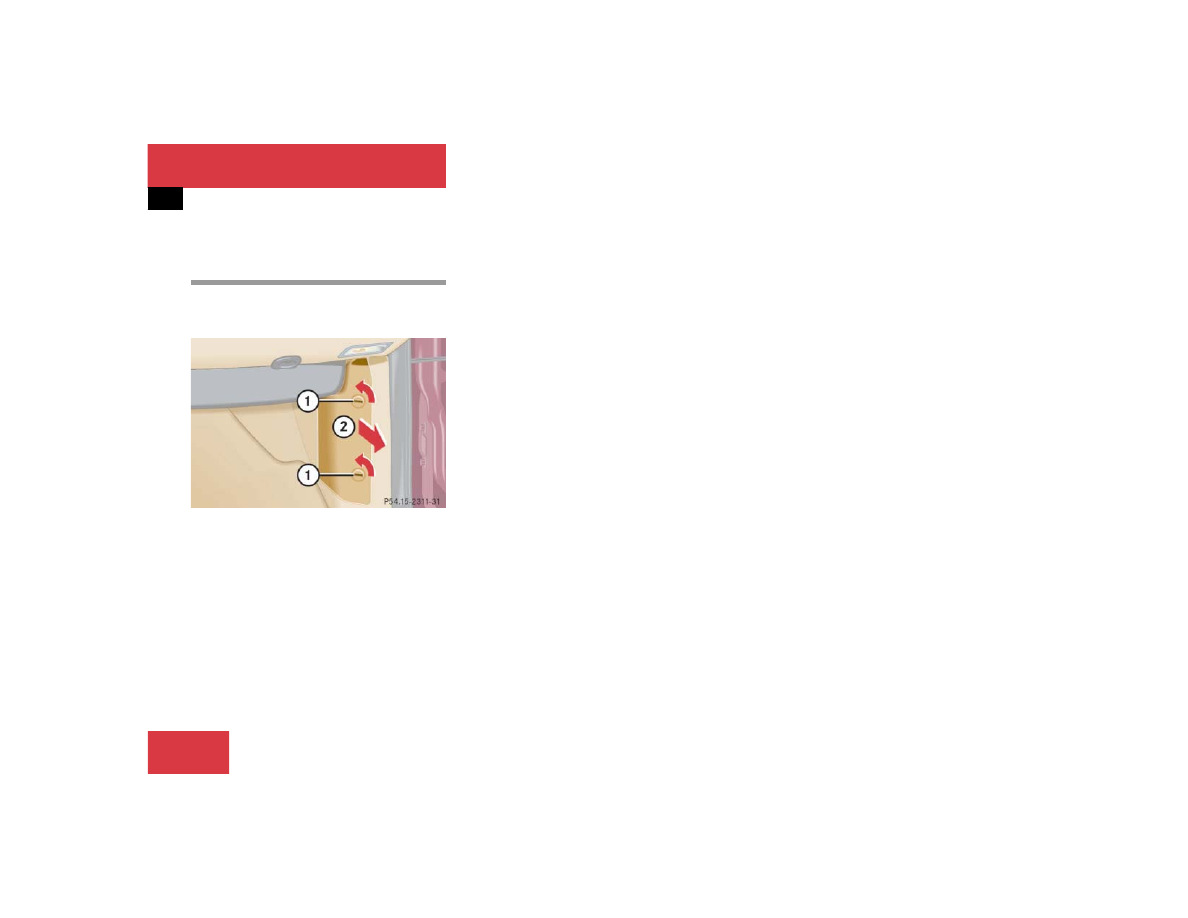

Auxiliary fuse box in front passenger
footwell

The auxiliary fuse box is located in the
front passenger compartment.

1 Lock
2 Cover

Removing / installing cover

Turn both locks 1 90° counterclock-
wise.

Remove cover 2 in direction of arrow.

Install cover 2 in reverse order.

289

Technical data

Spare parts service

Warranty coverage

Identification labels

Layout of poly-V-belt drive

Engine

Rims and tires

Electrical system

Main Dimensions

Weights

Fuels, coolants, lubricants etc.

Consumer information

290

Technical data

Spare parts service

The “Technical data” section provides the
necessary technical data for your vehicle.

Spare parts service

All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz Parts parts required for
maintenance and repair work. In addition,
strategically located parts distribution cen-
ters provide quick and reliable parts ser-
vice.

More than 300 000 different spare parts
for Mercedes-Benz models are available.

Genuine Mercedes-Benz spare parts are
subjected to stringent quality inspections.
Each part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.

Therefore, genuine Mercedes-Benz spare
parts should be installed.

!

The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.
