23

At a glance

Cockpit

Item

Page

1 Hood lock release

217

2 Parking brake pedal

53

3 Parking brake release

53

4 Left cup holder

166

5 Combination switch

앫

Exterior lights

앫

High beam

앫

Turn signals

49

6 Cruise control lever

150

7 Instrument cluster

116

8 Hazard warning flasher

switch

112

9 Lever for voice control

system*, see separate
operating instructions

Item

Page

a Windshield wiper/washer

switch

49

b Front Parktronic* warning

indicator

155

c Glove box

164

d Right cup holder

166

e Storage compartment
f Electrical outlet

170

g Horn
h Headlamp washer button*

131

j Steering lock with ignition

33

k Steering wheel lever

39

24

At a glance

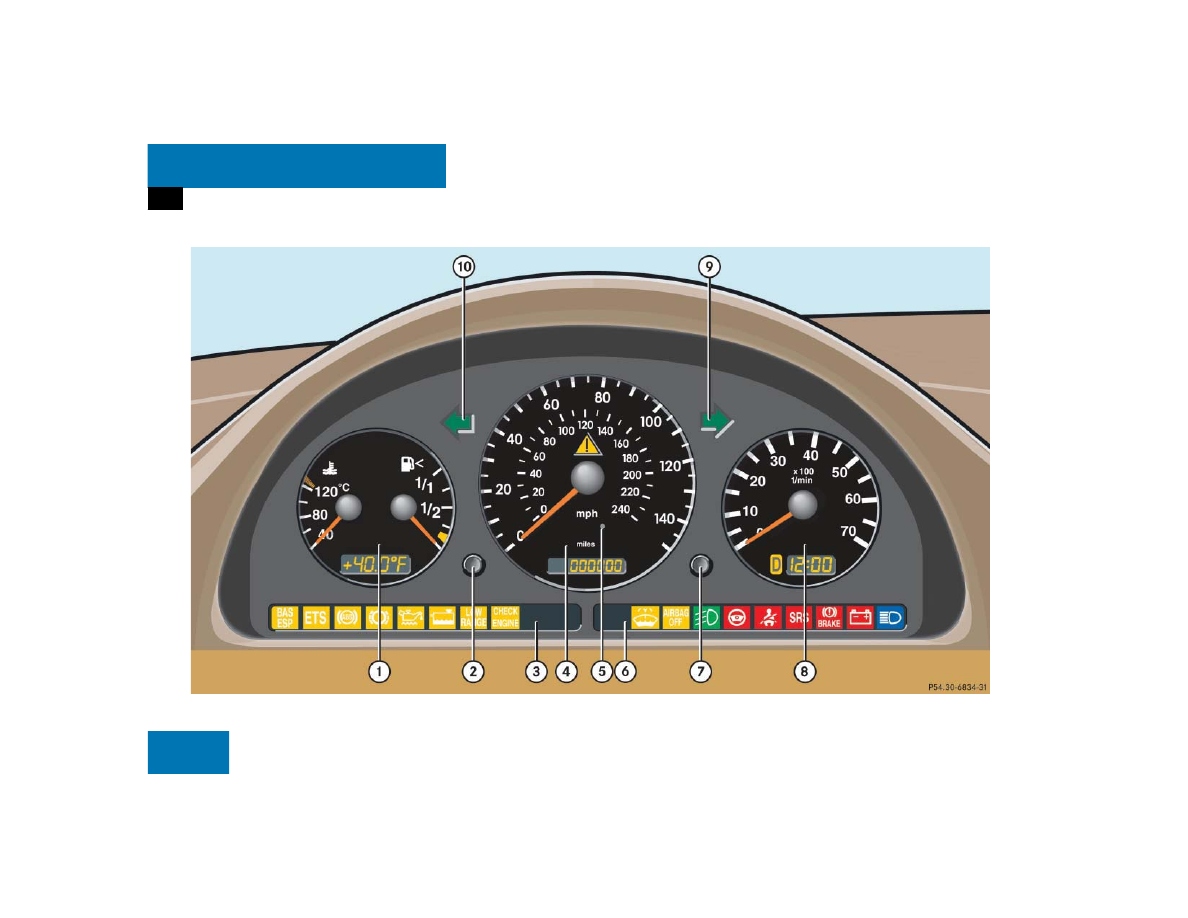

Instrument cluster

왔

Instrument cluster

25

At a glance

Instrument cluster

Item

Page

1 Gauge for

Coolant tempera-
ture

117

Outside tempera-
ture

118

Fuel reserve
warning lamp

252

2 Knob for

Activating instru-
ment cluster

116

Adjusting intensity
of instrument lamps

116

Main odometer

117

Trip odometer
readout /reset

118

Activating Flexible
Service System
(FSS) indicator

232

Item

Page

3 Left indicator lamps

with:
¿ Brake Assist

System
(BAS)/Electronic
Stability Program
(ESP) malfunction
warning lamp

246

{ Electronic Traction

System (4-ETS) mal-
function indicator
lamp

252

- Antilock Brake Sys-

tem (ABS) malfunc-
tion warning lamp

242

2 Brake pad wear in-

dicator lamp

254

: Low engine oil level

warning lamp

253

Item

Page

/ Low engine coolant

level warning lamp

249

ê Low range indicator

lamp

252

? Engine malfunction

indicator lamp

248

4 Speedometer with:

v 4-ETS (Electronic

Traction
System)/Electronic
Stability Program
(ESP) warning lamp

251

Trip /main
odometer

117

Display for Flexible
Service System
(FSS)

232

Engine oil level indi-
cator

219

26

At a glance

Instrument cluster

Item

Page

5 Photo sensor

(adjusts the brightness of
the digital displays located
in 1, 4 and 8)

6 Right indicator lamps

with:
W Low wind-

shield/headlamp
washer system fluid
level warning lamp

253

7 Front passenger air-

bag switched off

243

‡ Front fog lamp

switched on

111

Item

Page

_ Steering wheel ad-

justment not locked

253

< Seat belt non-usage

warning lamp

253

1 Supplemental Re-

straint System
(SRS) indicator
lamp

255

É Brake warning lamp

244

# Charge indicator

lamp

254

A High beam head-

lamp indicator

49

Item

Page

7 Knob for setting clock

118

8 Tachometer with:

Display for Selector
lever position

121

Clock

118

9 K Right turn signal

indicator lamp

a L Left turn signal

indicator lamp
