If a device exceeds the maximum
electric current value of 1,000 mA, it
may not operate or recharge when
connected.



Do not pull out the USB device while in
the USB mode (only pull it out while in
FM/AM radio or CD mode).



The device will not operate if the data is
password protected.

MP3/WMA/AAC/OGG files written under
specifications other than the indicated
specification may not play normally or
files/folder names may not display
correctly.

1 Type B

▼ Operating Tips for iPod

This unit supports playback of music files
recorded to an iPod.

 iPod is a trademark of Apple Inc.,

registered in the U.S. and other
countries.

The iPod may not be compatible
depending on the model or OS version. In
this case, an error message is displayed.

CAUTION

Remove the iPod when it is not in use.

Because the iPod is not designed to
withstand excessive changes in
temperature inside the cabin, it could be
damaged or the battery may deteriorate
due to the excessive temperature or
humidity inside the cabin if it is left in the
vehicle.

If data in the iPod is lost while it is

connected to the unit, Mazda cannot
guarantee recovery of any lost data.

If the iPod battery is deteriorated, the

iPod may not recharge and playback
may not be possible when it is connected
to the unit.

For details on using the iPod, refer to the

iPod instruction manual.

When connecting the iPod to a USB port,

all commands are made from the audio
unit. iPod control is not possible.

NOTE
The audio unit cannot display images or
videos stored in an iPod.

Interior Features

Appendix

5-138

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

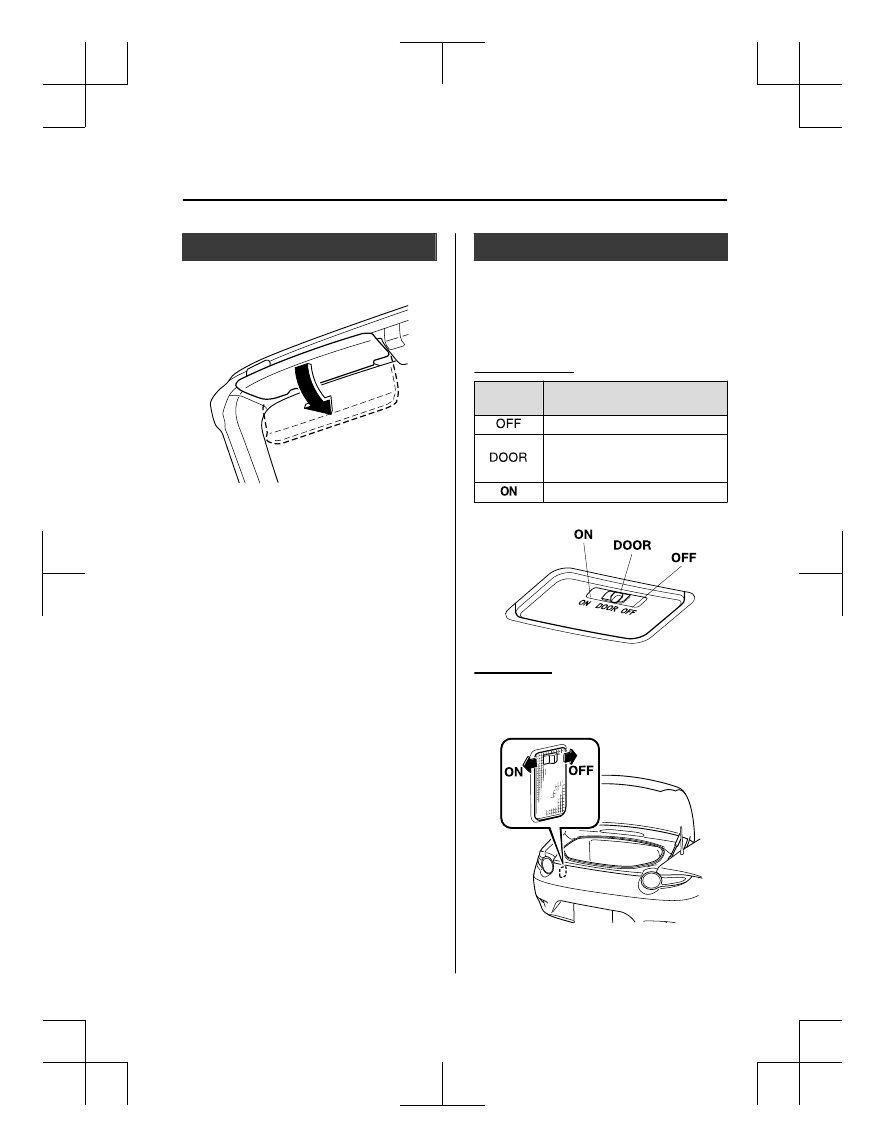

Sunvisors

When you need a sunvisor, lower it for use
in front.

▼ Vanity Mirrors

To use the vanity mirror, lower the
sunvisor.

Interior Lights

NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.

Overhead Light

Switch Posi-

tion

Overhead Light

Light off



Light is on when any door is open



Light is on or off when the illumi-
nated entry system is on

Light on

Trunk Light

The trunk light is on when the lid is open
and off when it's closed.

Interior Features

5-139

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.

▼ Illuminated Entry System

The overhead lights turn on when any of
the following operations is done with the
overhead light switch in the DOOR
position.



The driver's door is unlocked with the
ignition is switched OFF.



The ignition is switched OFF with all
doors closed.

NOTE



The illumination time differs depending
on the operation.



Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.



The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-9.

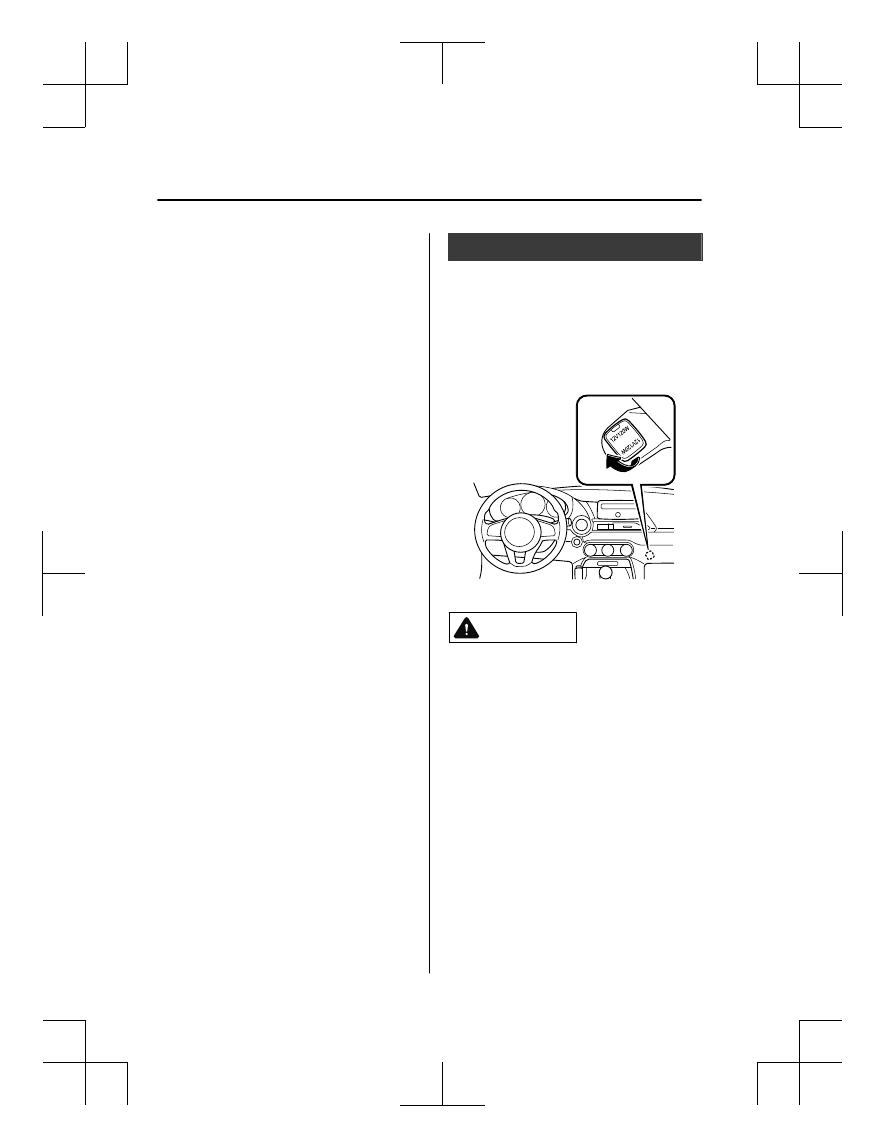

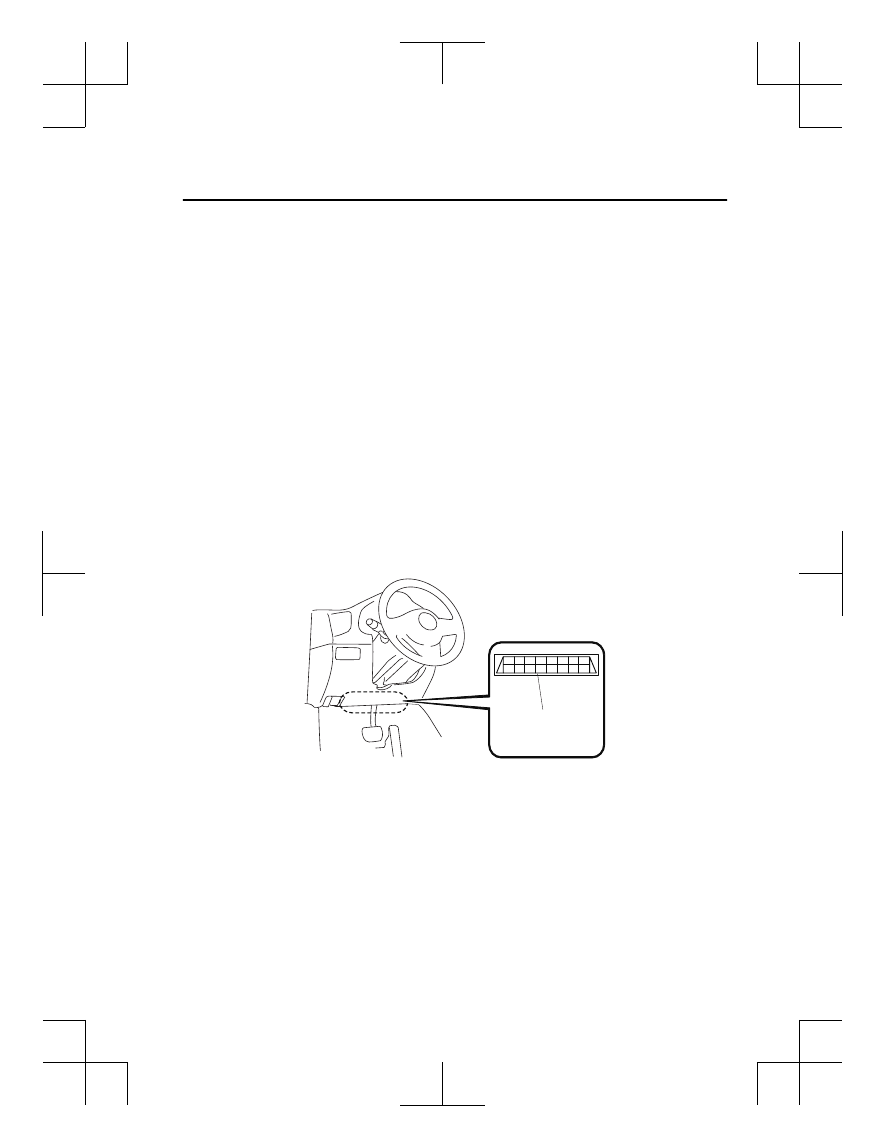

Accessory Sockets

The accessory socket is located deep in the
back of the footwell on the passenger side.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.

CAUTION

To prevent accessory socket damage or

electrical failure, pay attention to the
following:

Do not use accessories that require

more than 120 W (DC 12 V, 10 A).

Do not use accessories that are not

genuine Mazda accessories or the
equivalent.

Close the cover when the accessory

socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.

Correctly insert the plug into the

accessory socket.

Do not insert the cigarette lighter into

the accessory socket.

Interior Features

Interior Equipment

5-140

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Noise may occur on the audio playback

depending on the device connected to
the accessory socket.

Depending on the device connected to

the accessory socket, the vehicle's
electrical system may be affected, which
could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem is
resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the problem
is not resolved, consult an Authorized
Mazda Dealer.

NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.

Interior Features

5-141

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

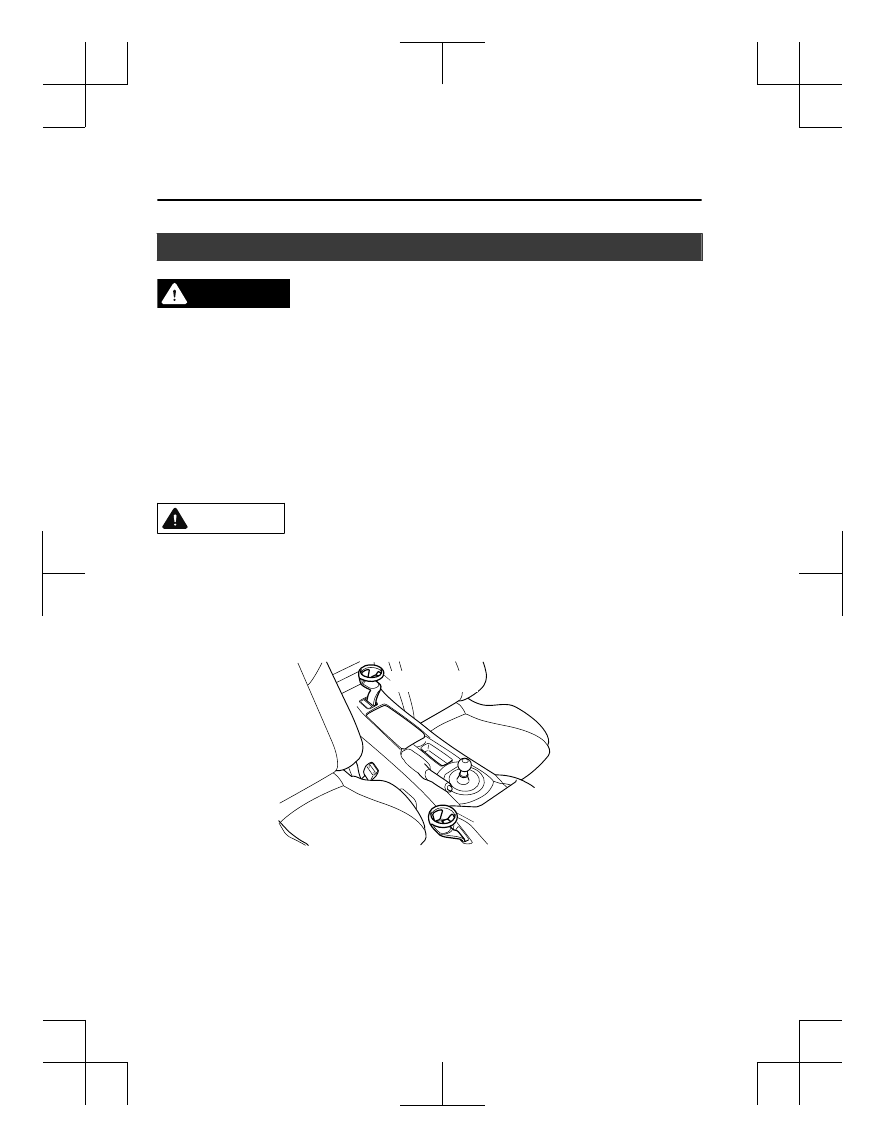

Cup Holder

WARNING

Never use a cup holder to hold hot liquids while the vehicle is moving:
Using a cup holder to hold hot liquids while the vehicle is moving is dangerous. If the contents
spill, you could be scalded.

Do not put anything other than plastic bottles, cups or drink cans in cup holders:
Putting objects other than plastic bottles, cups or drink cans in a cup holder is dangerous.
During sudden braking or maneuvering, occupants could be hit and injured, or objects could
be thrown around the vehicle, causing interference with the driver and the possibility of an
accident. Only use a cup holder for plastic bottles, cups or drink cans.

CAUTION

Do not place plastic bottles without caps in the cup holders. Otherwise, the contents may

spill while the vehicle is being driven.

Do not place excessive weight on the cup holders such as by resting your hands or elbows

on them. Otherwise, the cup holders could be damaged.

If a passenger is present, install the front cup holder to the rear console. Otherwise, a knee

might hit it and cause the contents to spill.

Front cup holder

Rear cup holder

Interior Features

Interior Equipment

5-142

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

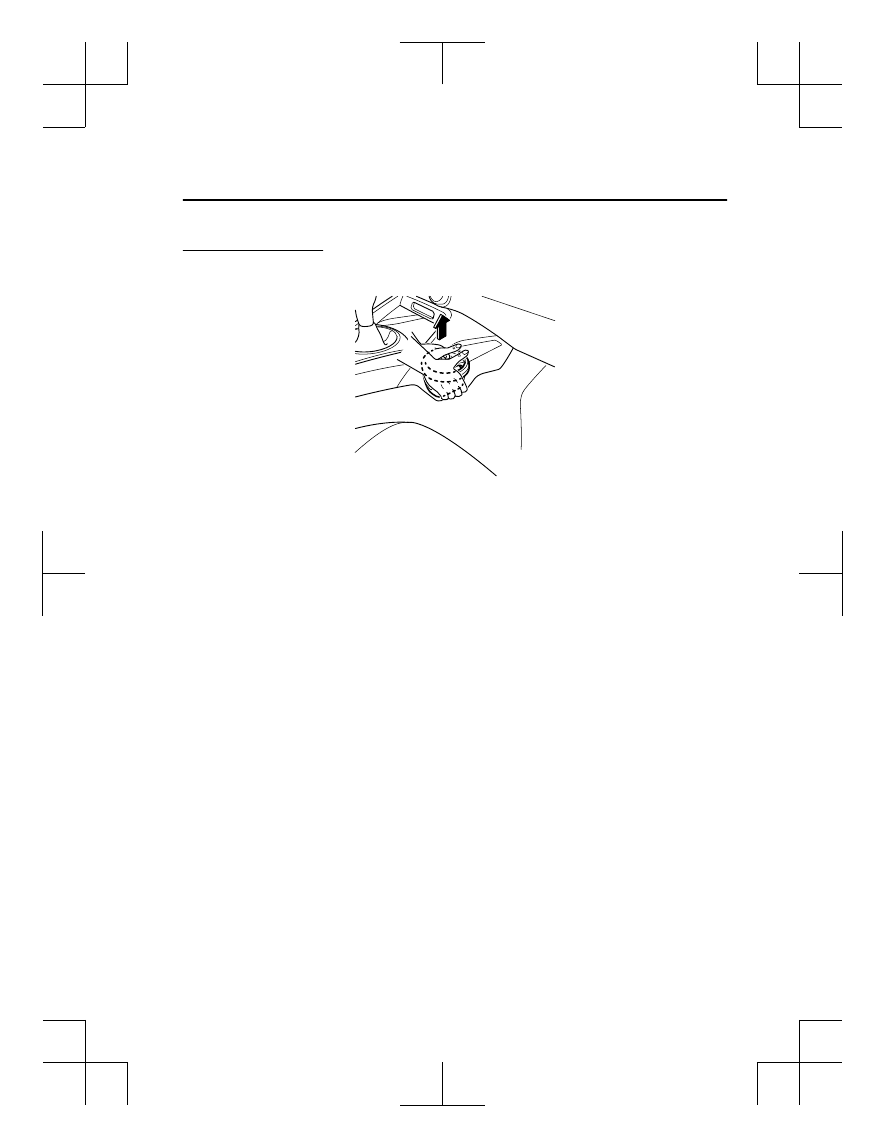

Removing cup holders

Use both hands when removing the cup holder.

Interior Features

5-143

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

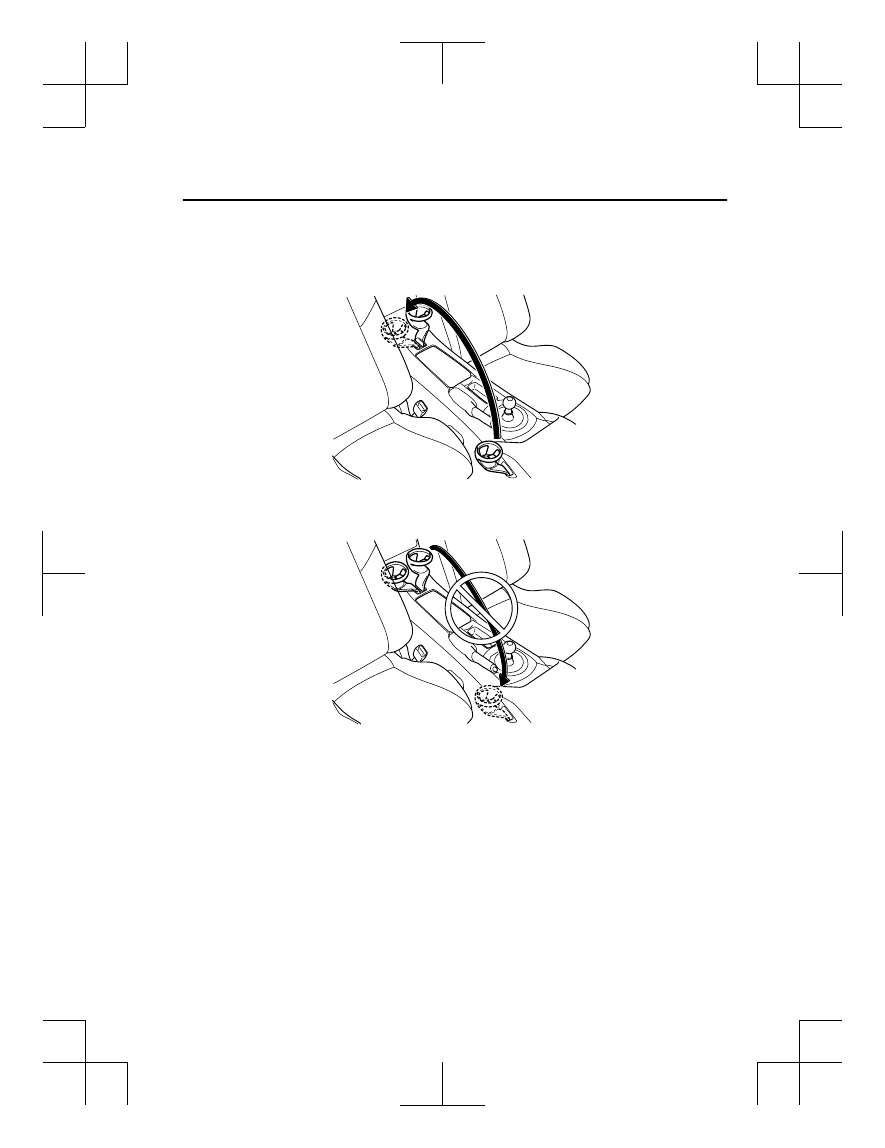

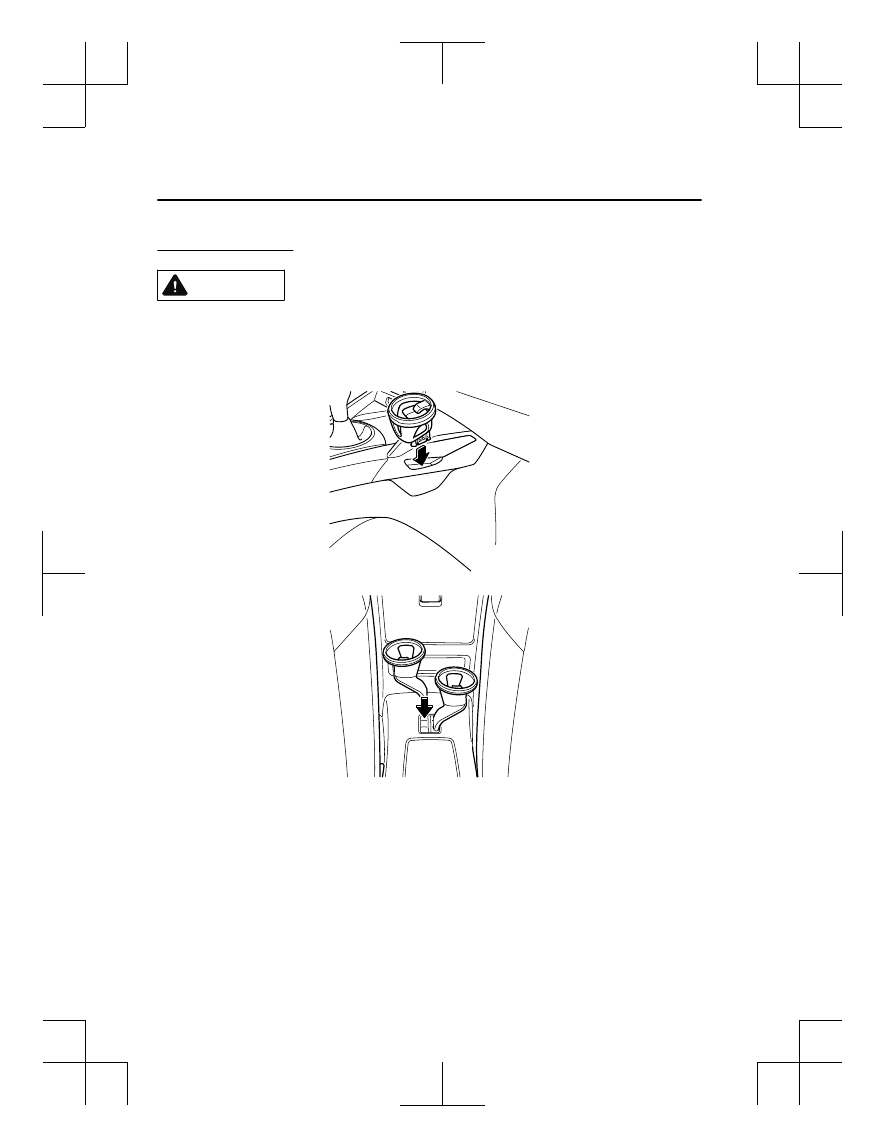

Installing cup holders

CAUTION

When installing a cup holder, insert it all the way into the installation hole and make sure that
it is secured in place. Otherwise, the cup holder may fall off while the vehicle is being driven
and cause the beverage to spill.

Interior Features

Interior Equipment

5-144

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

NOTE



The front cup holder can be removed and installed to the rear console.



The rear cup holder is designed for use on the rear console and cannot be installed to the
front side.

Interior Features

5-145

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

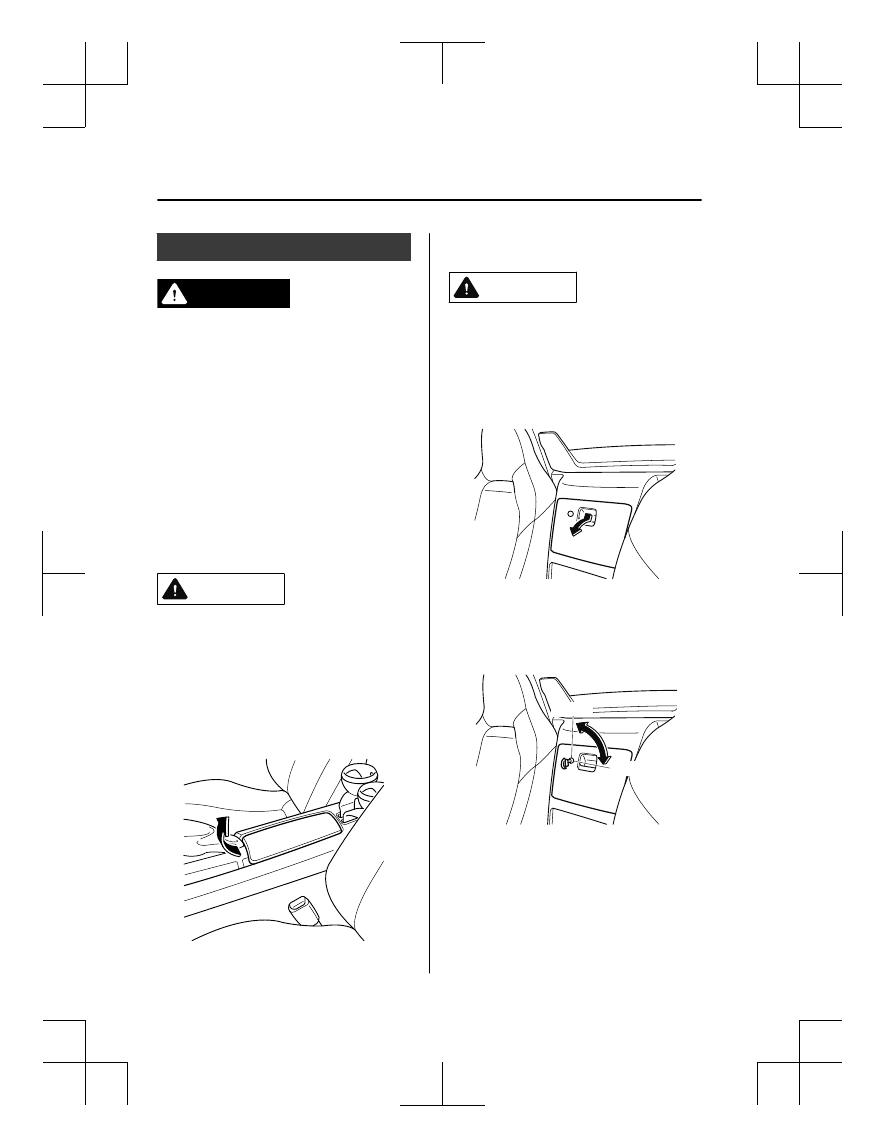

Storage Compartments

WARNING

Keep storage boxes closed when driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop, keep
the storage boxes closed when driving.

Do not put articles in storage spaces with
no lid:
Putting articles in storage spaces with no
lid is dangerous as they could be thrown
around the cabin if the vehicle is suddenly
accelerated and cause injury depending on
how the article is stored.

CAUTION

Do not leave lighters or eyeglasses in the
storage boxes while parked under the sun.
A lighter could explode or the plastic
material in eyeglasses could deform and
crack from high temperature.

▼ Console Box

To use, open the lid.

▼ Seat Side Box

CAUTION

When using the rear console cup holders,
remove any cups before opening the seat
side box.
If the seat side box is opened with cups still
in them, the lid will hit the cups and cause
the contents to spill.

To open, press the latch down to open the
seat side box.
Insert the auxiliary key and turn it
clockwise to lock, counterclockwise to
unlock.

Lock

Unlock

Interior Features

Interior Equipment

5-146

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

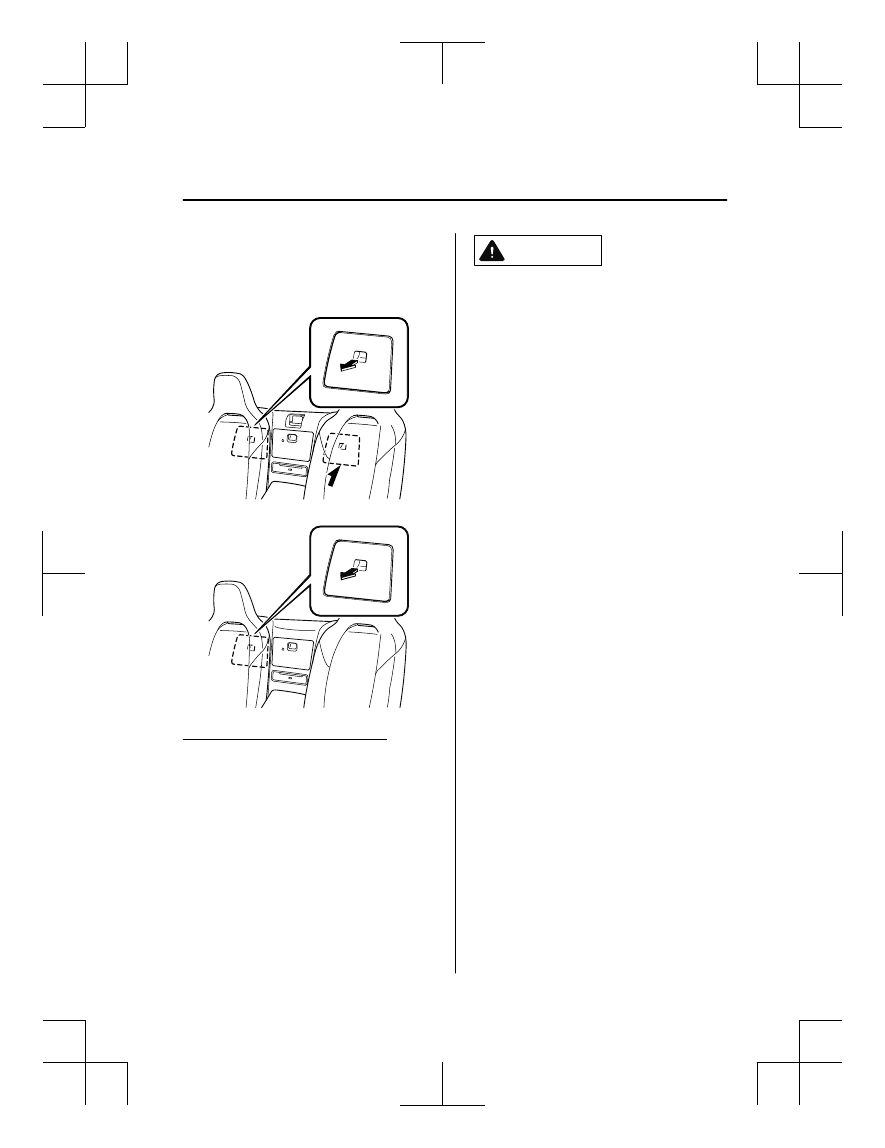

▼ Back Trim Storage Box

Small items can be stored in the back trim
storage box.
(Soft top model)

(Hardtop model)

To use the back trim storage box

1. Slide the seat all the way forward and

fold the seatback forward.
Refer to Seat Operation on page 2-4.

2. Remove the lids.
When finished, return the seat to its
original position and secure it. After
returning the seat to its original position,
make sure the seat is secured by
attempting to lightly move it forward and
backward.

CAUTION

Do not forcefully push objects into the back
trim storage box. Otherwise, the box could
be damaged.

Interior Features

5-147

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

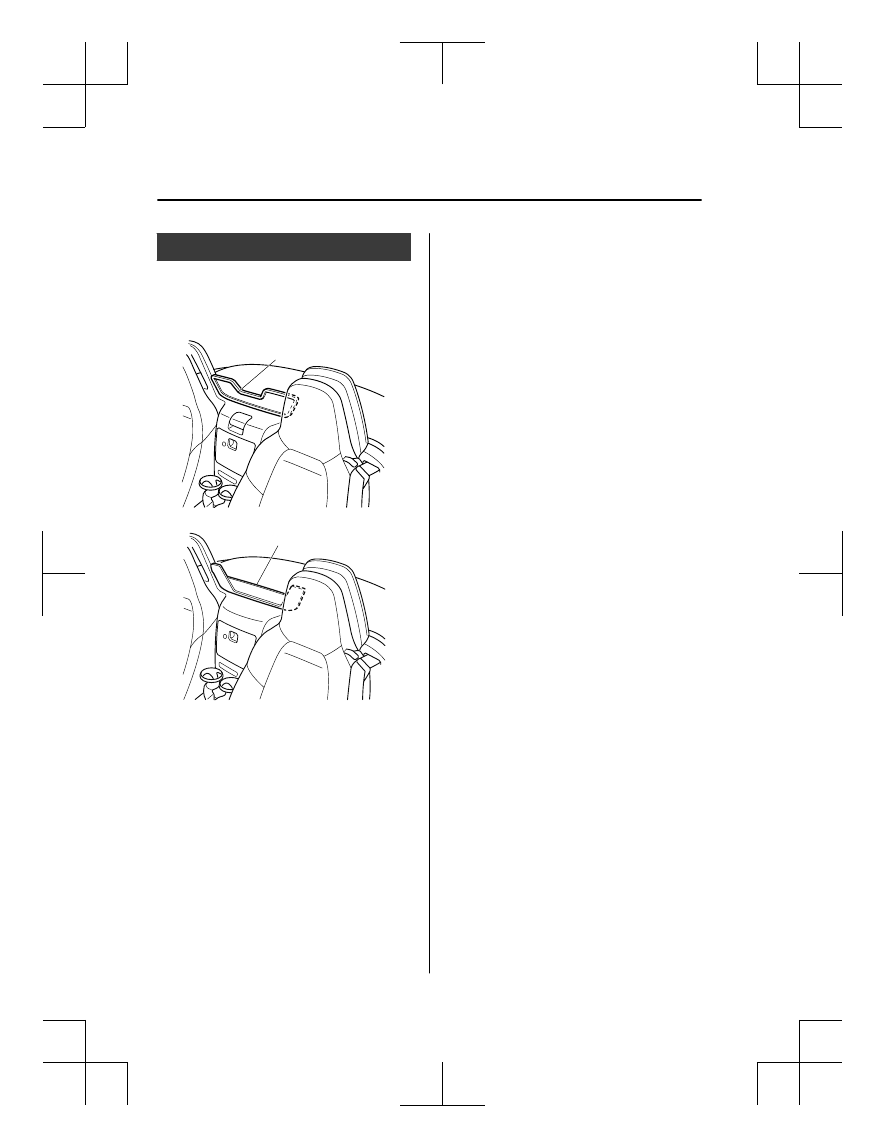

Windblocker

This windblocker reduces rear wind blast
into the cabin when driving with the
convertible top down.
(Soft top model)

Windblocker

(Hardtop model)

Windblocker

Interior Features

Interior Equipment

5-148

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Maintenance and Care

How to keep your Mazda in top condition.

Essential Information........................6-2

Introduction.................................. 6-2

Scheduled Maintenance.................... 6-4

Scheduled Maintenance (U.S.A.,
Canada, and Puerto Rico)............. 6-4
Scheduled Maintenance
(Mexico)..................................... 6-10
Maintenance Monitor................. 6-15

Owner Maintenance........................6-17

Owner Maintenance
Precautions................................. 6-17
Hood........................................... 6-19
Engine Compartment
Overview.................................... 6-21
Engine Oil...................................6-22
Engine Coolant........................... 6-24
Brake/Clutch Fluid..................... 6-26
Washer Fluid...............................6-26
Body Lubrication........................6-27
Wiper Blades.............................. 6-28
Battery........................................ 6-31
Key Battery Replacement...........6-33
Tires............................................ 6-36
Light Bulbs................................. 6-40
Fuses........................................... 6-49

Appearance Care.............................6-54

Exterior Care.............................. 6-54
Interior Care................................6-64

6-1

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Introduction

Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that are
difficult to see while inspecting or working on your vehicle. Doing inspections or
procedures with your bare hands could cause injury.

If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Mazda Dealer.

To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.

This evidence may consist of the following:



The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.



Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.



For self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.

Maintenance and Care

Essential Information

6-2

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.

Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.

Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period (page 6-15).

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.

Malfunction
diagnosis
connector

Maintenance and Care

Essential Information

6-3

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Scheduled Maintenance (U.S.A., Canada, and Puerto

Rico)

Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions)apply.



Repeated short-distance driving



Driving in dusty conditions



Driving with extended use of brakes



Driving in areas where salt or other corrosive materials are used



Driving on rough or muddy roads



Extended periods of idling or low-speed operation



Driving for long periods in cold temperatures or extremely humid climates



Driving in extremely hot conditions



Driving in mountainous conditions continually

If any do apply, follow Schedule 2. (Canada residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is available for U.S.A. and Puerto Rico residents whose
vehicle is operated mainly where none of the following conditions apply:



Extended periods of idling or low-speed operation such as police car, taxi or driving
school car



Driving in dusty conditions

If any do apply, follow Schedule 2 with engine oil fixed maintenance.

Once engine oil flexible maintenance is selected, the vehicle calculates the remaining oil life
based on engine operating conditions. The vehicle lets you know when an oil change is due
by illuminating the wrench indicator light in the instrument cluster. Change the oil as soon
as possible within the next 1,000 km (600 mile) or 15 days. Refer page 6-15 for the details.
Mazda Genuine 0W-20 Oil and Castrol

0W-20 Oil are required to achieve optimum

performance.

NOTE



Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement.



For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.

Maintenance and Care

Scheduled Maintenance

6-4

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

▼ Schedule 1

U.S.A. and Puerto Rico residents - Engine oil flexible maintenance interval

Use when the maintenance monitor for “Oil Change” is set to “Flexible”. For details,
see maintenance monitor. (page 6-15)

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

×1000 km

×1000 miles

7.5

22.5

37.5

52.5

Drive belts

Engine oil & filter

Replace when wrench indicator light is ON. (Max interval:12

months/12,000 km (7,500 miles))

Engine coolant

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years.

Air filter

Replace when any equivalent timing of replacing engine oil.

(Max interval:36 months/60,000 km (37,500 miles))

Fuel lines and hoses

Hoses and tubes for emission

Spark plugs

Replace every 120,000 km (75,000 miles).

Brake lines, hoses and connections

Disc brakes

Manual transmission oil

Replace every 96,000 km (60,000 miles) or 4 years.

Tire (Rotation)

Rotate when any equivalent timing of replacing engine oil.

(Max interval:12,000 km (7,500 miles))

Steering operation and linkages

Front and rear suspension, ball joints and wheel
bearing axial play

Rear differential oil

Driveshaft dust boots

Bolts and nuts on chassis and body

Exhaust system and heat shields

Emergency flat tire repair kit (if installed)

Inspect annually.

Chart symbols:

I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain

Maintenance and Care

Scheduled Maintenance

6-5

MX-5_8GF7-EA-17J_Edition2

2017-10-31 14:07:27

Content .. 21 22 23 24 ..
